Product description

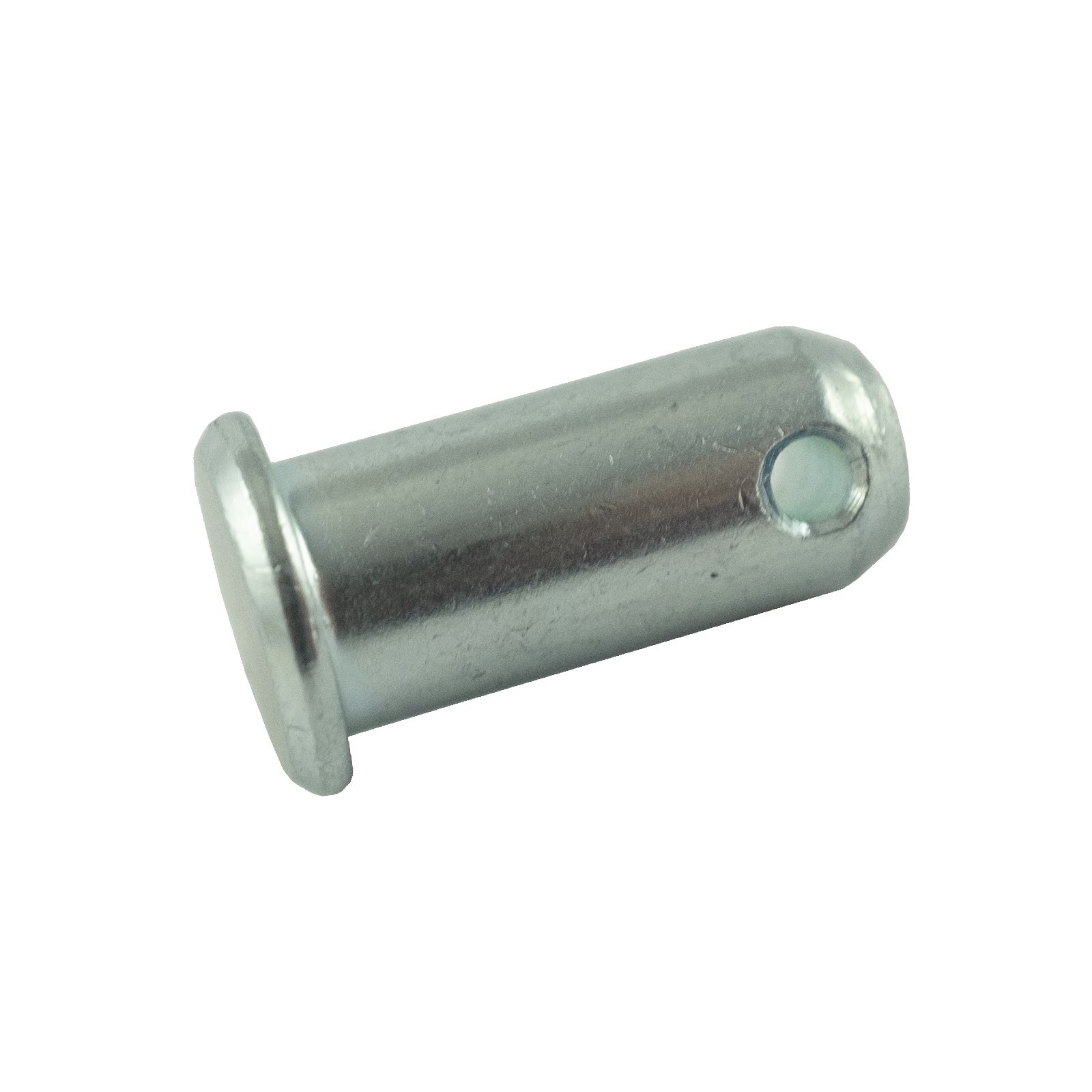

Locking pin for the PTO/PTO speed change lever and the 4 x 4, 4WD drive engagement lever. Pin with an overall length of 23.85 mm , a working length of 18 mm and a diameter of 10 mm for LS Tractors of the LS XJ25, LS MT3.35 series and others.
A pin is one of the most common ways to connect (not rigidly) components, accessories, or a set of parts. The bolt connection is usually a cylinder made of a hard material resistant to damage and temperature, which, depending on the application, can be fitted loosely or tightly with the second element closing the connection, e.g. a pin inserted into the pin hole or a locking nut. We distinguish several types of pins, here are the most common ones:
- headless,
- nasal,
- cylinder head,
- with threaded pin.
Dimensions :
- total length: 23.85 mm,
- working length: 18 mm,
- diameter: 10mm,
- head diameter: 13.75 mm,
- comparative numbers: S427102013.
Tractor models :
LS Tractor :
- LS MT3.35,
- LS XJ25.
Warehouse :
L01:B242
Specifications
Podobne produkty
Reviews of Pin LS XJ25..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
