Available
Condition
New
Production
OEM
Parts
Stripes
Tractor models
LS MT3.35
LS MT3.50
LS MT3.60
Height (mm)
8
Width (mm)
13
Part number
40241546
A0836058

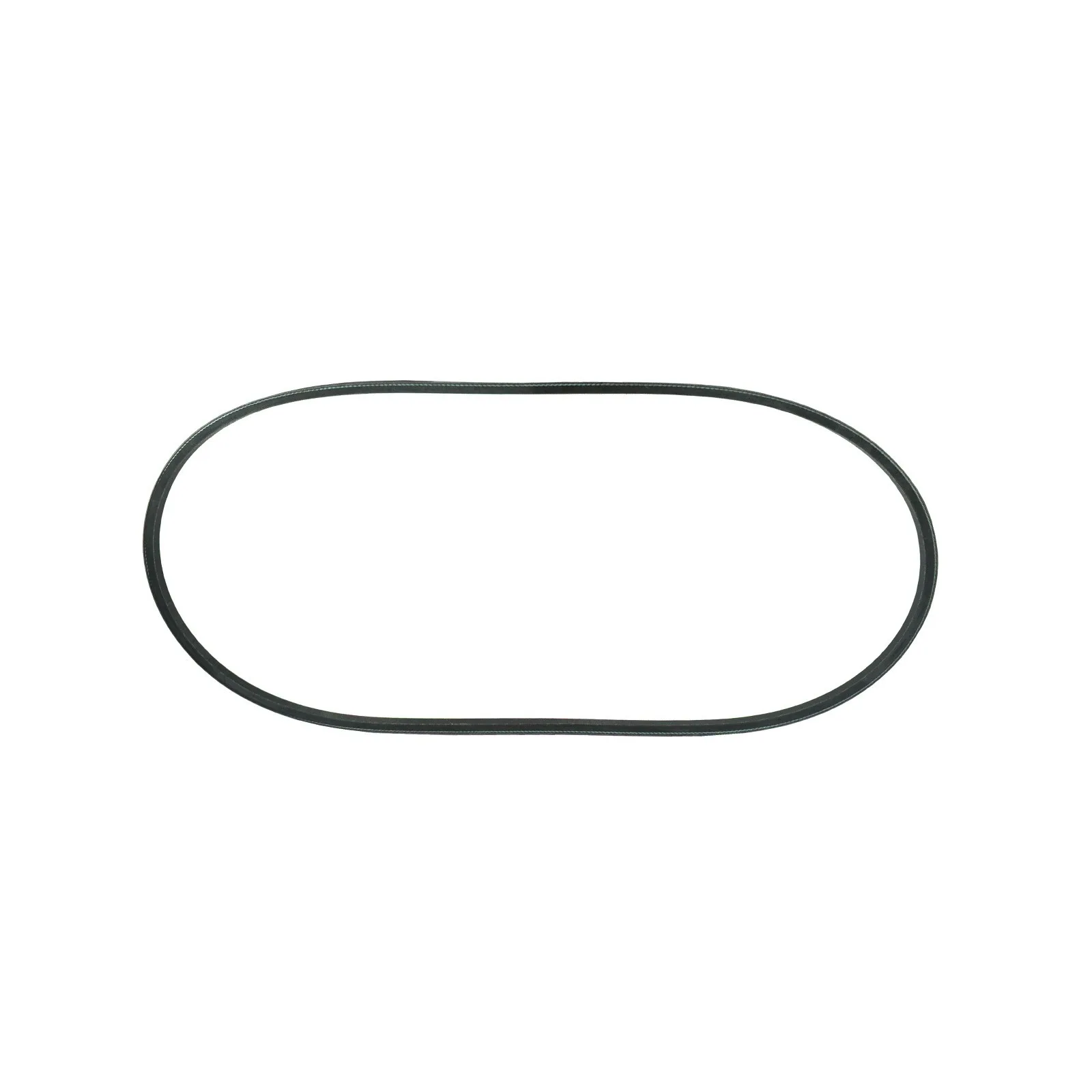

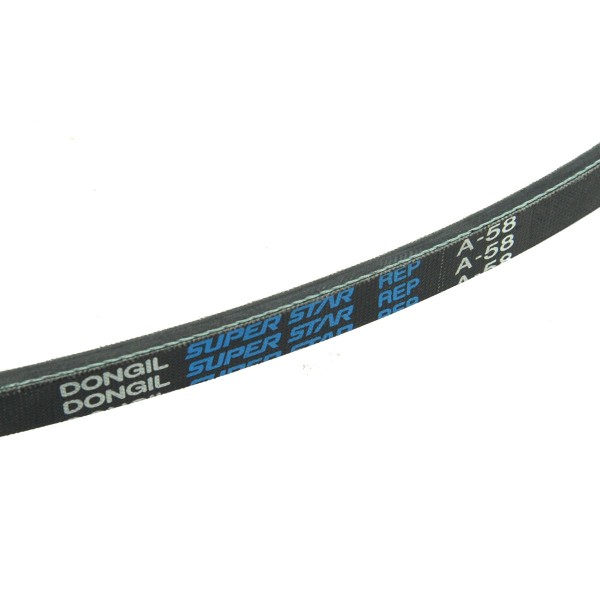

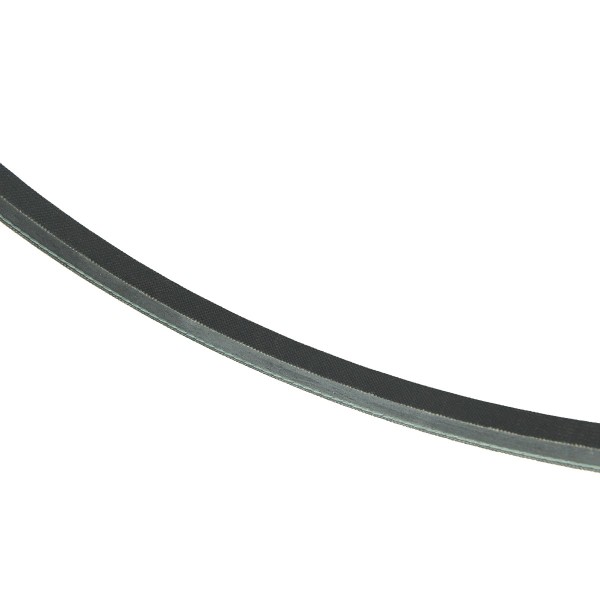

V-belt / 13 x 1445 mm / A58 / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / TRG865 / A0836058 / 40241546

40241546
zł119.74
Tax included PL 23%

97,35 netto

  • Dostępność (3 Quantity): stock

Do you have any questions?

V-belt / 13 x 1445 mm / A58 / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / TRG865 / A0836058 / 40241546

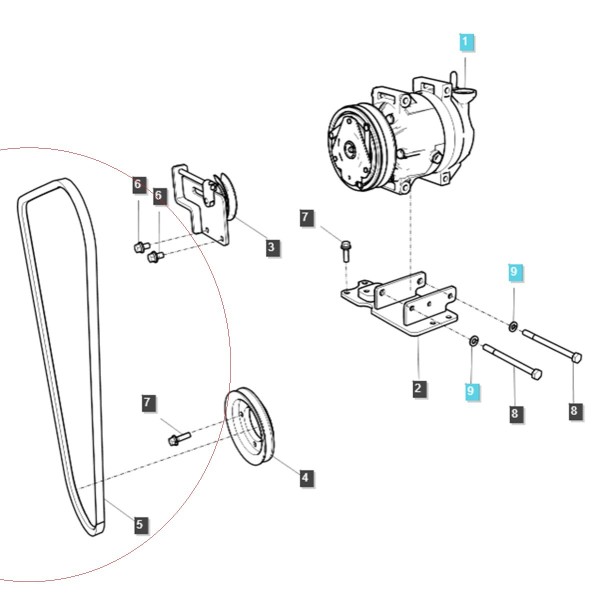

A58 V - belt for air conditioning compressor with external length 1480 mm (La) , internal length 1445 (Li) and width 13 mm for LS Tractor series LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 and others for:

  • air conditioning.

How to measure a V-belt?

A standard V-belt is marked with two length values Ld and Li . The length Li is the internal length, and the length Ld is the so-called pitch length, according to the ISO standard, in great simplification it can be called the external length, but it is the length measured at the strongest structural point of the belt. V-belt markings are most often a capital letter of the alphabet denoting the belt cross-section (mm) Z, A, B, C, D and lengths. The simplest division of belts available on the market is narrow-section belts, classic, narrow-section toothed and classic toothed.

V-belt length Li, Ld or La?

  • Li - internal length,
  • Ld /Lp - pitch length (measured at the height of 3/4 of the wedge cross-section, ISO dimension),
  • La - external length.

Dimensions :

  • external length (La): 1480 mm,
  • internal length (Li): 1445 mm,
  • pitch length (Ld): 1475 mm,
  • width: 13 mm,
  • height: : 8 mm,
  • part number: A0836058, 40241546.

Tractor models:

LS Tractor:

  • LS MT3.35,
  • LS MT3.40,
  • LS MT3.50,
  • LSMT3.60.

A V-belt is an element that is used to transfer drive from an engine or transmission to an accessory or device. V-belts are most often used to drive an alternator, coolant pump or compressor, and in agriculture, belts are used in agricultural devices and equipment that operate at high rotational speeds. V-belts are the most commonly worn parts of agricultural machinery due to the material they are made of and damage resulting from overloads during machine operation. A worn V-belt should be replaced with a new one as soon as possible to prevent an accident or damage to the machine.

Magazine : L01:M25:S08.

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: L01:M25 S08
Condition
New
Production
OEM
Parts
Stripes
Tractor models
LS MT3.35
LS MT3.50
LS MT3.60
Height (mm)
8
Width (mm)
13
Part number
40241546
A0836058
Strap type
Smooth
Pitch length Ld (mm)
1475
External length La (mm)
1480
Inner length Li (mm)
1445

The origins of the LS Tractor brand can be found in South Korea in 1977, when the KHIC (Korea Heavy Industries & Construction Co.), in cooperation with Fiat, began to produce agricultural tractors and, in later years, also combines and other agricultural equipment . The year 1984 brings further successes for the LS Tractor brand , Mitsubishi MHI (Mitsubishi Heavy Industry) and other manufacturers, among others, become the supplier of drive units for mini tractors . Yanmar. Currently, the Korean tractor manufacturer LS Tractor has 4 factories located in South Korea, Brazil, China and the USA. Notably, LS Tractors have been ranked #1 in overall customer satisfaction, product availability and parts availability in the United States.

LS tractors - price combined with high quality

LS tractors were designed for use in households, municipal companies and farms. If you are looking for functional equipment, products with the LS brand will be the perfect choice - the operation of a tractor from each available series is not only comfortable, but, above all, completely safe. Therefore, the equipment can be successfully used by both professionals and beginners. A wide selection of models providing various functionalities and engine performance, adapted to loads of various intensity, compatible accessories allowing for an increase in the work range, simple, intuitive operation and comfort of work - these are the features of every LS tractor - the price is another strong point of the product. High quality of workmanship combined with competitive, attractive prices make even the most demanding customers fully satisfied with the equipment we offer.

LS tractor is not only LS tractor Poland - the equipment of this brand is known and appreciated all over the world. This is confirmed by the fact that LS tractors were recognized as number 1 in terms of customer satisfaction, a wide range of models and the availability of spare parts in the United States.

Are you looking for the perfect equipment or do you need advice on choosing a specific model? Contact us and we will help you match the LS tractor to your needs, not only by suggesting which model will be best for you, but also by helping you choose the right equipment.

LS tractor Poland - improve your work

Our store offers new LS tractors . We meet the needs of our customers by offering a wide selection of models, including agricultural tractors with axes and lawn mowing tractors that can be used both on large plots of land and in the backyard. We offer, among others, the LS MT3.40 HST tractor , which is a tractor with a 3-cylinder L3CRV-T4 diesel engine with a power of 40 HP. The equipment in this series are 4x4 tractors equipped with power steering, which makes operation and maneuvering simple and safe. An LS tractor of this type allows you to work in any terrain, which is also influenced by the possibility of choosing different types of tires - in the case of this model, the customer can choose both agricultural and construction/industrial tires. The 3-point rear three-point linkage with a lifting capacity of 820 kg allows you to use virtually all farm machines and equipment without any restrictions. An additional advantage of this tractor is a comfortable, air-conditioned safety cabin. The LS MT3.60 MEC CAB 4x4 tractor is also available in the MT3 series. This model is a tractor equipped with a 3-cylinder L3CRV-7T diesel engine. Similarly to the previous model in this series, the MT3.60 is equipped with a three-point linkage with a higher lifting capacity - 1,250 kg. The undoubted advantage of this model is the mechanical gearbox with reverse, which allows you to change the driving direction with one movement of the lever located next to the steering wheel. In turn, 3 speeds of the PTO shaft enable the use of additional PTO/PTO equipment. The traktor.com.pl assortment also includes LS tractors from the MT series. LS tractors of this type are equipped with engines with a power of 21.5 HP or 24.7 HP, so you can easily adjust the model to the specific work and your own needs. The offer also includes a complete range of accessories, including a TUR front loader , a mower or an excavator adapted to be attached to the rear of the tractor. The engine based on Yanmar technology makes this compact model perform as well as classic tractors in the field , and also works well as a lawn mower tractor used for household work.
