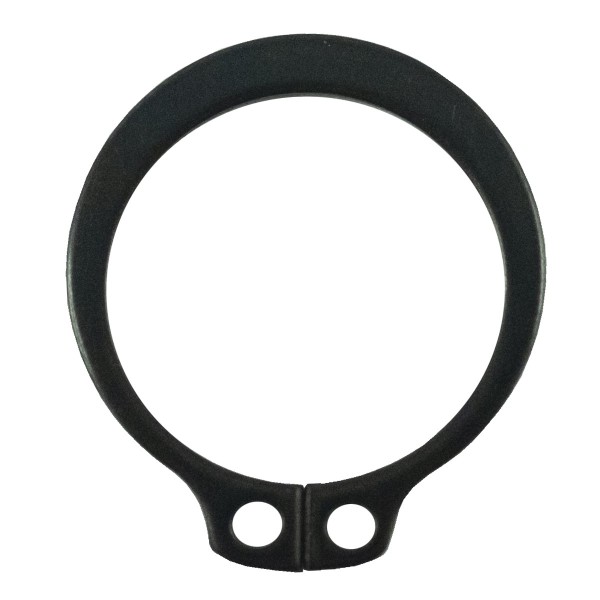

Seeger ring / LS Tractor / LS MT3.35 / S810020003 / no. 40029266

Product code: 40029266
Brand LS Tractor
View other model
1 person purchased this product
zł3.85 netto
zł4.74
Includes VAT 23%

Lowest price from 30 days: zł4.74

Delivery options

Loading delivery options...

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

No delivery options available for this product.

Available
20 pieces
Delivery See details Leasing & financing for businesses See details

Product description

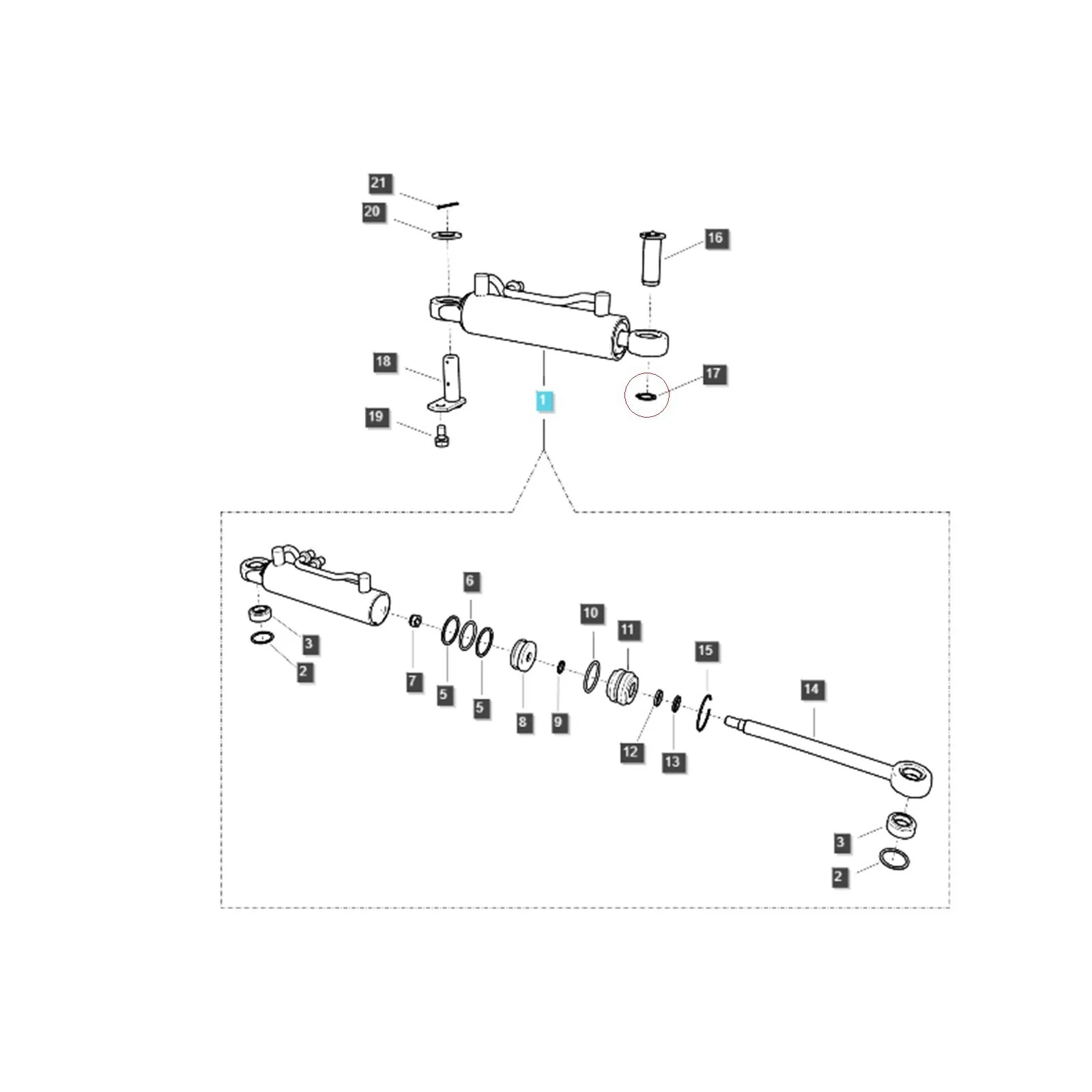

Front axle cylinder pin locking ring with an inner diameter of 18.30 mm , outer diameter of 22.30 mm , height of 25 mm and thickness of 1.00 mm for LS Tractors LS MT3.35 series tractors and others.

A snap ring is called a circlip , after the company that first patented its invention. A circlip is a component of a mechanical system that is installed to prevent movement of moving parts or machine parts. Bearings, bushings, and gears are placed on shafts and axles and, unsecured by circlips, can be subjected to axial displacement. Circlips are divided into two groups: for shafts and pins, and for holes, and they differ in the shape of the mounting holes.

Dimensions:

  • inner diameter: 18.30 mm,
  • outer diameter: 22.30 mm,
  • height: 25 mm,
  • hole diameter: 2.00 mm,
  • thickness: 1.00 mm,
  • reference numbers: S810020003.

Tractor models:

  • LS MT3.35.

Warehouse : L01:B153

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New
Seal type
Circlip

Reviews of Seeger ring..

TRAKTOR.COM.PL sp. z o.o. Reviews with ekomi-pl.com

This product has no reviews yet.

We collect reviews from verified Customers after the purchase of the product.

Write your review

Review form will be here

Questions & Answers

Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.

How to properly select and sharpen mower blades for a Japanese tractor?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.

How to identify the correct V-belt size and how to care for it?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
