zł70.00
To order
Condition
New
Production
Substitute
Parts
Drive
Tractor models
- Kubota L35
- Kubota L39
- Kubota L2501
- Kubota L2800
- Kubota L2900
- Kubota L3010
- Kubota L3200
- Kubota L3240
- Kubota L3300
- Kubota L3410
- Kubota L3430
- Kubota L3540
- Kubota L3560
- Kubota L3600
- Kubota L3710
- Kubota L3800
- Kubota L3830
- Kubota L3940
- Kubota L4060
- Kubota L4200
- Kubota L4300
- Kubota L4310
- Kubota L4400
Kubota GL32
Kubota GL300
Kubota L2808
Kubota L3408
- Kubota L39
- Kubota L2501
- Kubota L2800
- Kubota L2900
- Kubota L3010
- Kubota L3200
- Kubota L3240
- Kubota L3300
- Kubota L3410
- Kubota L3430
- Kubota L3540
- Kubota L3560
- Kubota L3600
- Kubota L3710
- Kubota L3800
- Kubota L3830
- Kubota L3940
- Kubota L4060
- Kubota L4200
- Kubota L4300
- Kubota L4310
- Kubota L4400
Kubota GL32
Kubota GL300
Kubota L2808
Kubota L3408
Height (mm)
23.50
Outer diameter (mm)
70
Inner Diameter (mm)
46
Cartridge sealant / 46 x 70 x 23.50 mm / Kubota L2808/L3408 / BQ4504F / 34070-13370
34070-13370
Do you have any questions?
Cartridge sealant / 46 x 70 x 23.50 mm / Kubota L2808/L3408 / BQ4504F / 34070-13370

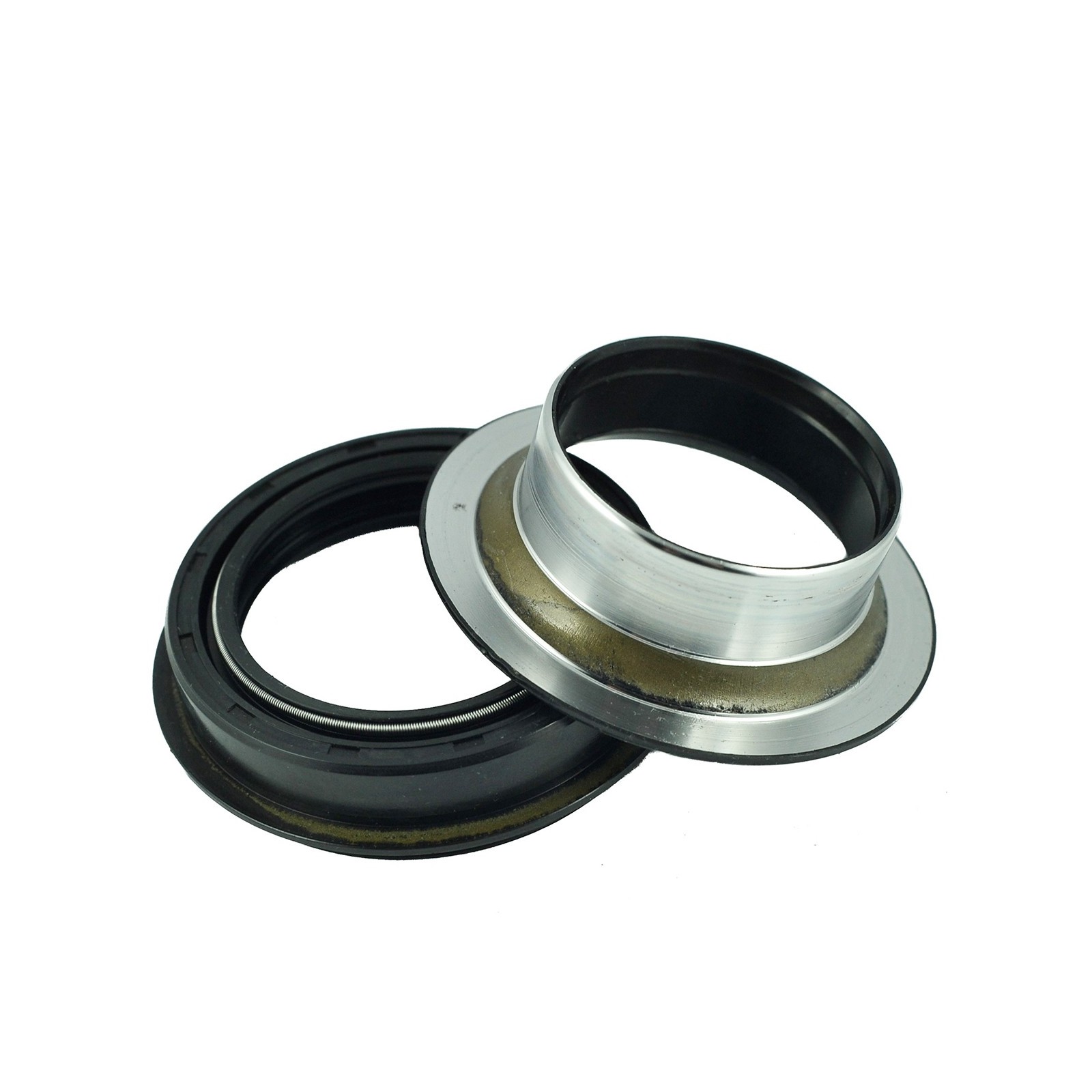

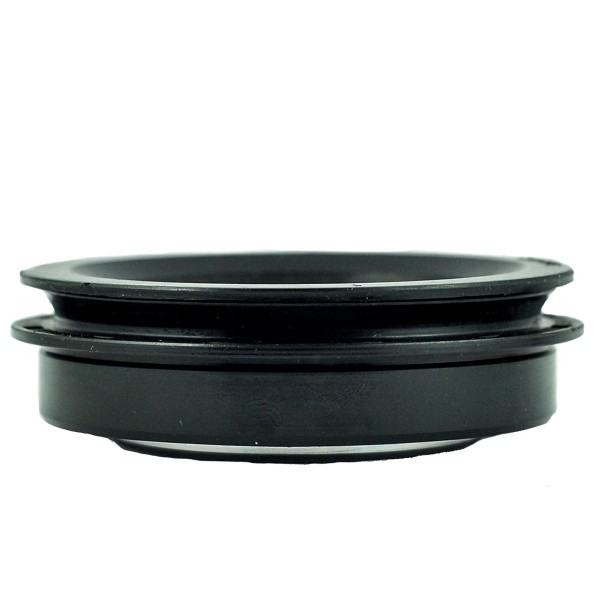

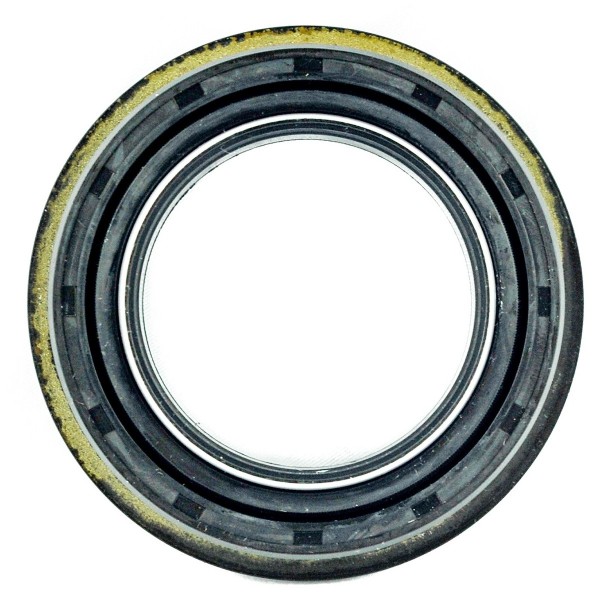

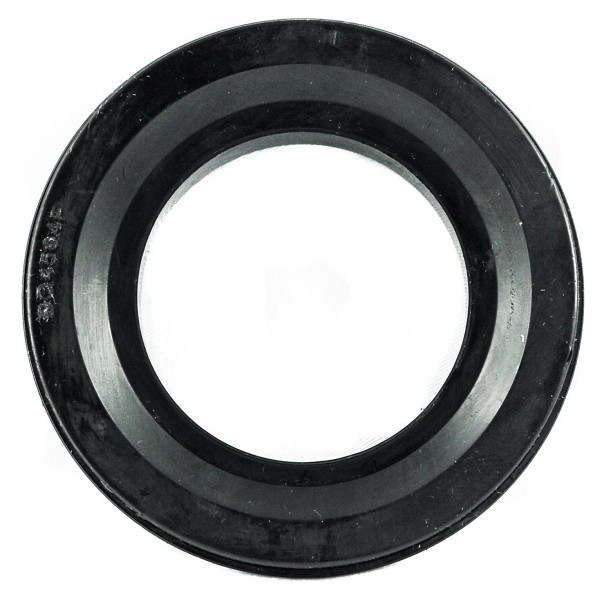

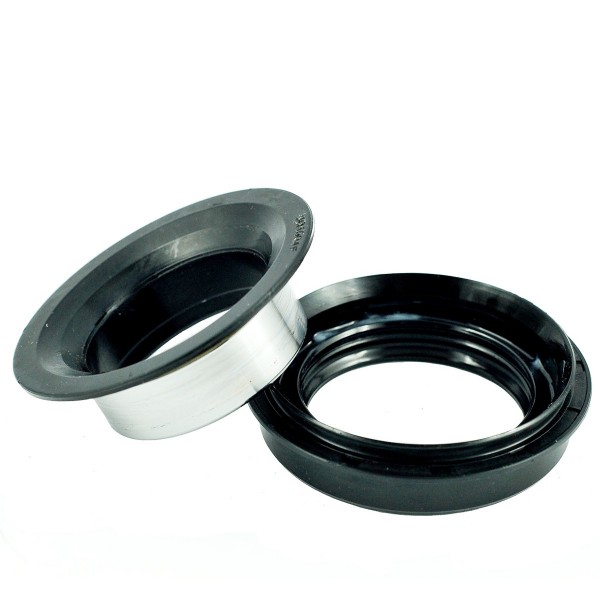

Front axle cassette seal with an internal diameter of 46 mm , an external diameter of 70 mm and a height of 23 mm for Kubota combines of the Kubota L2501, Kubota L2800, Kubota L2808, Kubota L2900, Kubota L3010, Kubota L3200, Kubota L3240, Kubota L3300, Kubota L3408 , Kubota series L3410, Kubota L3430, Kubota L35, Kubota L3540, Kubota L3560, Kubota L3600, Kubota L3710, Kubota L3800, Kubota L3830, Kubota L39, Kubota L3940, Kubota L4060, Kubota L4200, Kubota L4300, Kubota L4310, Kubota L4400 and others.
The sealant is most often a rubber ring (also called simmering, Simmer's ring, after the name of the inventor), which is usually made of rubber or other plastic that meets the assumed technical requirements. Simering is used to seal rotating elements of a system with a maximum internal pressure of up to 0.1 MPa and which are immersed during operation, most often it is a funnel, various types of lubricants, and sometimes gasoline or water. The most common use of sealants is to seal shafts and power transmission or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-piece), sealing rings with a spring around or seals with a partially metal casing (cover).
Dimensions :
- inner diameter: 46 mm (sleeve), 51 mm (sealer),
- outer diameter: 70 mm (sealer), 51 (sleeve),
- flange diameter: 75 / 78 mm,
- height: 11 / 23.50 mm,
- comparison numbers: 5-08-101-03 ,
- part numbers: BQ4504F, 34070-13370.
Tractor models :
Kubota :
- Kubota L2501,
- Kubota L2800,
- Kubota L2808,
- Kubota L2900,
- Kubota L3010,
- Kubota L3200,
- Kubota L3240,
- Kubota L3300,
- Kubota L3408,
- Kubota L3410,
- Kubota L3430,
- Kubota L35,
- Kubota L3540,
- Kubota L3560,
- Kubota L3600,
- Kubota L3710,
- Kubota L3800,
- Kubota L3830,
- Kubota L39,
- Kubota L3940,
- Kubota L4060,
- Kubota L4200,
- Kubota L4300,
- Kubota L4310,
- Kubota L4400.
Seals prevent oil or lubricant leaks and prevent contaminants from entering the system.
Warehouse :
M01:C62:S03
Specification
Magazyn: M01:C62:S03
Condition
New
Production
Substitute
Parts
Drive
Tractor models
- Kubota L35
- Kubota L39
- Kubota L2501
- Kubota L2800
- Kubota L2900
- Kubota L3010
- Kubota L3200
- Kubota L3240
- Kubota L3300
- Kubota L3410
- Kubota L3430
- Kubota L3540
- Kubota L3560
- Kubota L3600
- Kubota L3710
- Kubota L3800
- Kubota L3830
- Kubota L3940
- Kubota L4060
- Kubota L4200
- Kubota L4300
- Kubota L4310
- Kubota L4400
Kubota GL32
Kubota GL300
Kubota L2808
Kubota L3408
- Kubota L39
- Kubota L2501
- Kubota L2800
- Kubota L2900
- Kubota L3010
- Kubota L3200
- Kubota L3240
- Kubota L3300
- Kubota L3410
- Kubota L3430
- Kubota L3540
- Kubota L3560
- Kubota L3600
- Kubota L3710
- Kubota L3800
- Kubota L3830
- Kubota L3940
- Kubota L4060
- Kubota L4200
- Kubota L4300
- Kubota L4310
- Kubota L4400
Kubota GL32
Kubota GL300
Kubota L2808
Kubota L3408
Height (mm)
23.50
Outer diameter (mm)
70
Inner Diameter (mm)
46
Flange diameter (mm)
75 / 78
Comparison numbers
5-08-101-03
Part number
34070-13370
BQ4504F
BQ4504F
