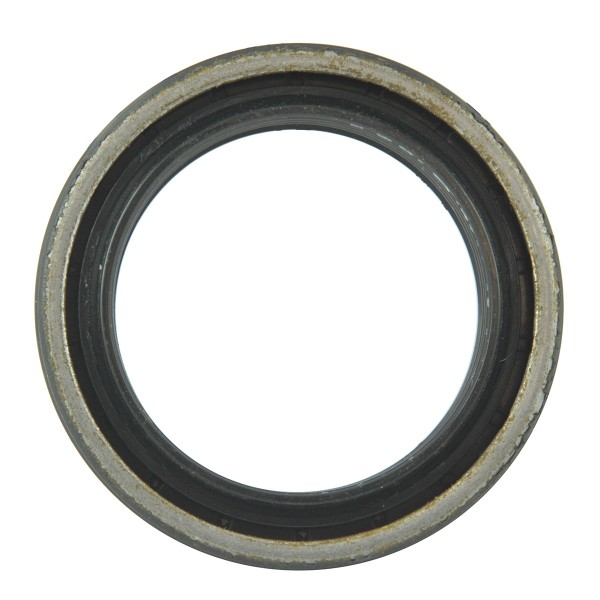

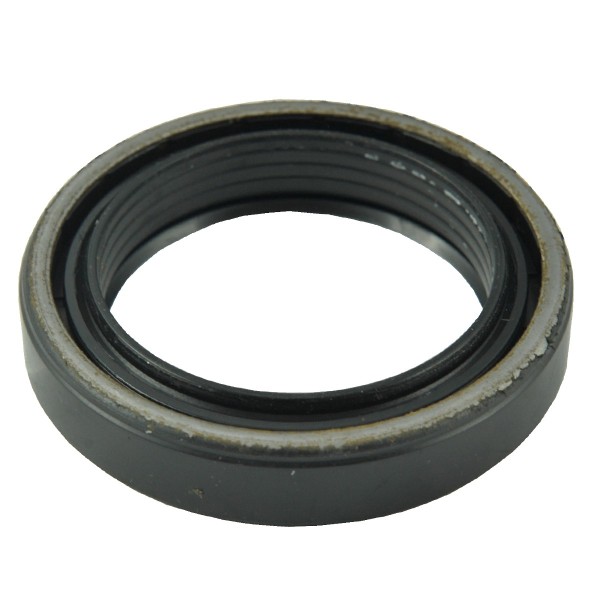

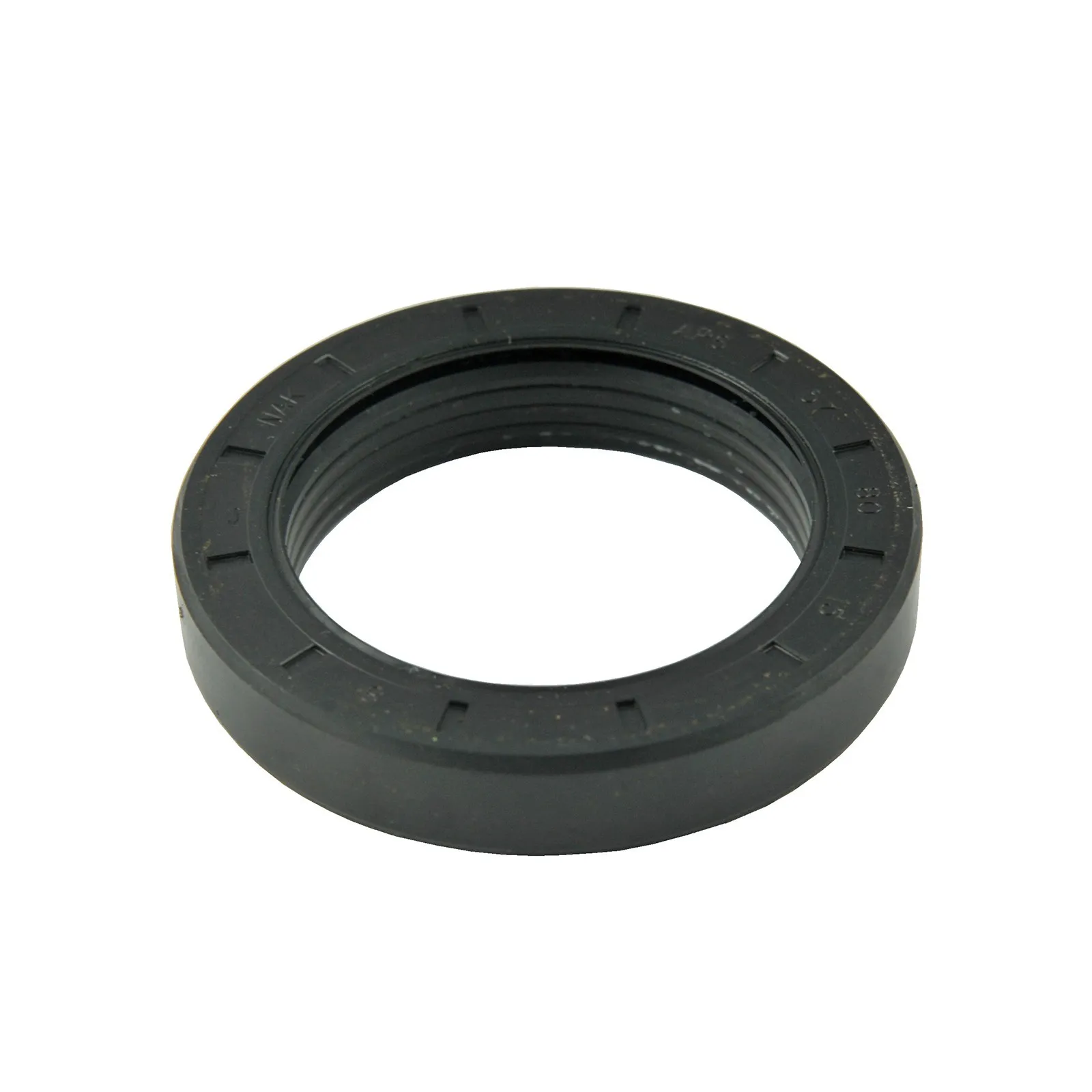

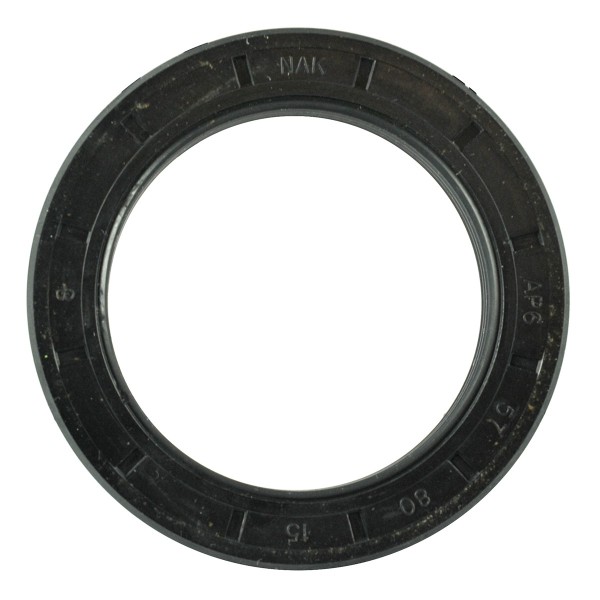

Sealant 57 x 80 x 15 mm / AP6 / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / TRG400 / 40334121

Normal seal , oil seal with an internal diameter of 57 mm , an external diameter of 80 mm and a height of 15 mm , for LS Tractors of the LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 series and others for:

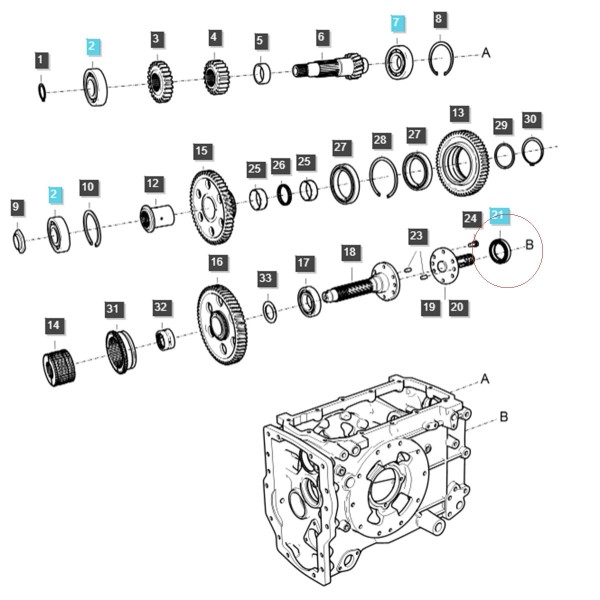

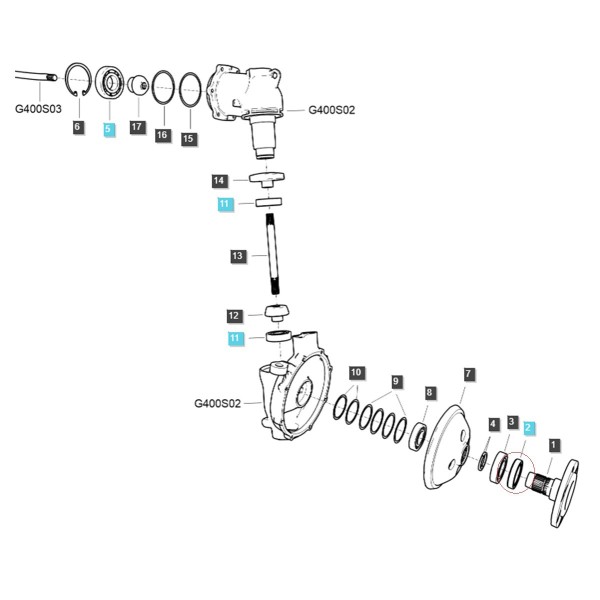

• half axle of the front axle,

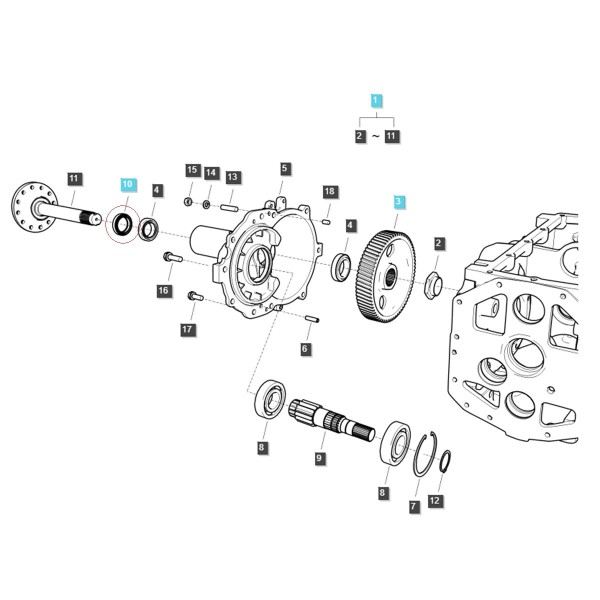

• half axle of the rear axle,
• PTO shaft.

The sealant is a rubber ring (otherwise known as a simmering ring, Simmer ring, after the name of the inventor), which is usually made of rubber or other plastic that meets the assumed technical requirements. Sealing is used to seal the rotating elements of the system with a maximum internal pressure of 0.1 MPa and which are immersed during operation, most often it is a funnel, various types of lubricants, and sometimes gasoline or water. The most common use of sealants is to seal shafts and power transmission or drive systems of machines and devices. There are various types of seals, the most common are cartridge seals (two-piece), seals with a spring around them, or seals with a partly metal housing (lid). Sealants prevent oil or lubricant leakage and prevent contaminants from entering the system.

Dimensions :

• outer diameter: 80mm,
• inner diameter: 57 mm,
• height: 15mm,
• part numbers: 40334121.

57x80
80x57
57-80
80-57

Tractor models :

LS Tractor :

• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60.
