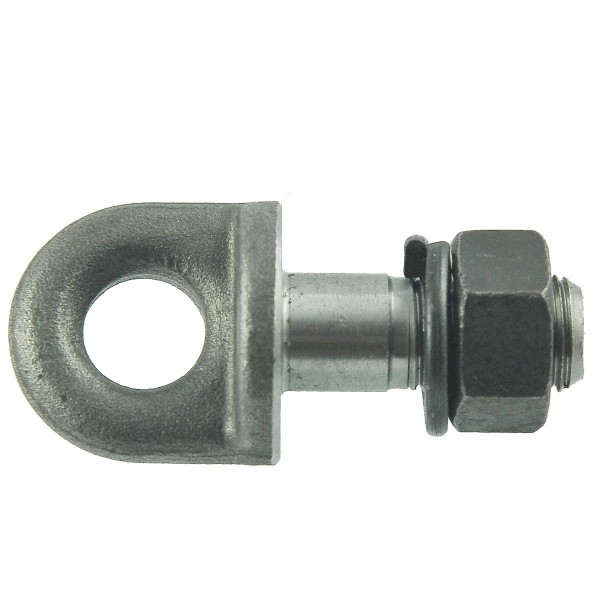

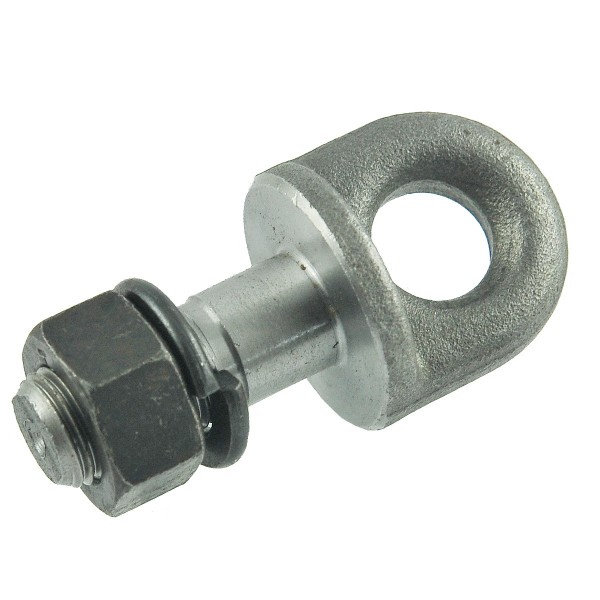

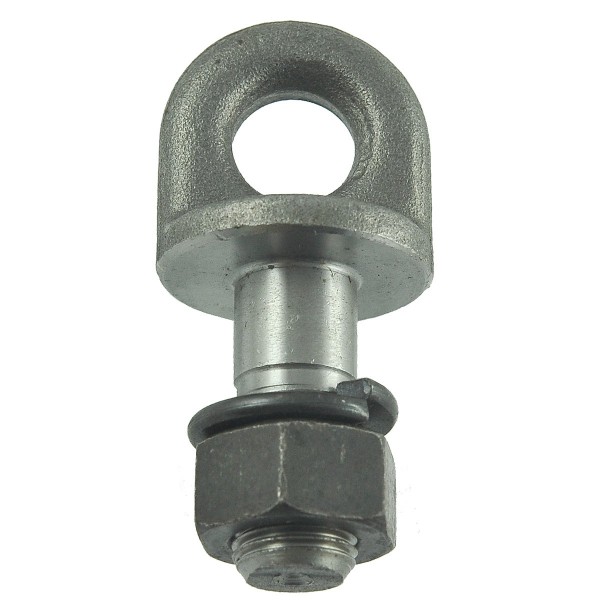

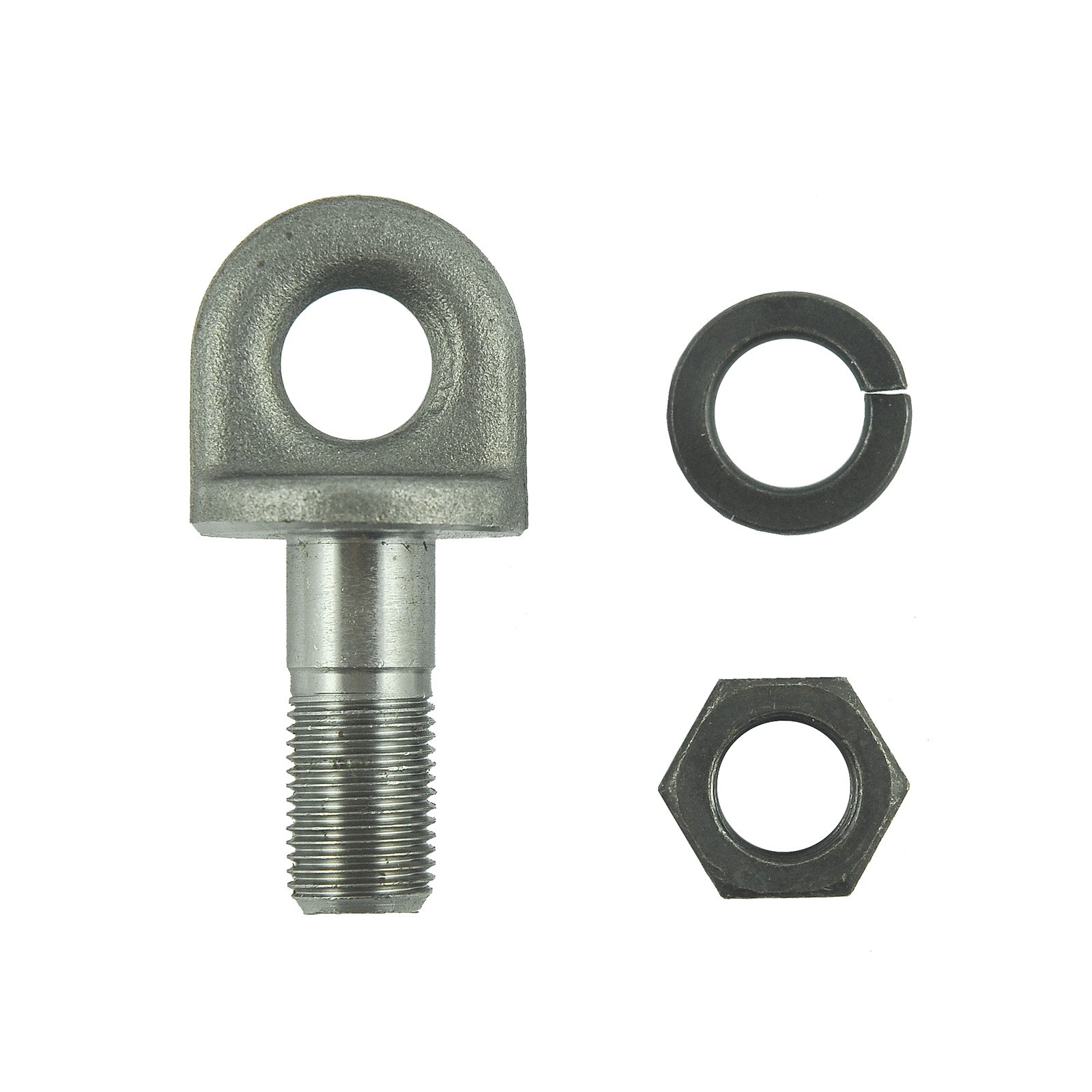

Eye bolt / Ø 16 mm / M16 x 40 mm / Kubota L3408/L4508 / 5-25-131-17

Product code: 5-25-131-17
Brand 4FARMER
View other model
2 people purchased this product
zł20.33 netto
zł25.00
Includes VAT 23%

Lowest price from 30 days: zł25.00

Delivery options

Loading delivery options...

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

No delivery options available for this product.

Available
10 pieces
Delivery See details Leasing & financing for businesses See details

Product description

Eyebolt M16 x 40 mm for the lashings of the lower arms of the three-point linkage ( 5-08-120-04 , arms 5-02-111-22 (L), 5-02-111-23 (R)) of Kubota tractors of the Kubota L3408 series, Kubota L4508 and others.

A shackle is a common solution for connecting (not rigidly) two or more sets of accessories or individual parts. A classic shackle is a metal closed U-shaped buckle. In agriculture, shackles are most often used to quickly connect chains , lower arms of the rear linkage or chains pulling the lower arms.

Dimensions :

  • total length: 76 mm,
  • inner diameter: 16 mm,
  • length of the working part: 40 mm,
  • thread: M16 x 1.5,
  • thread length: 22 mm.
  • flange diameter: 35 mm,
  • key size: 24,
  • part numbers: 5-25-131-17.

Tractor models :

Kubota :

  • Kubota L3408,
  • Kubota L4508.

Magazine :
M01:A62:S01

Specifications

Condition
New
Overall length (mm)
76
Thread
M16 x 1.50
Parts
3-point linkage
Inner Diameter (mm)
16
Tractor models
Kubota L4508, Kubota L3408
working length (mm)
40
Wrench size
24
Flange diameter (mm)
35
Production
Substitute
Part number
5-25-131-17

Podobne produkty

Write your review

Review form will be here

Questions & Answers

Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.

How to properly select and sharpen mower blades for a Japanese tractor?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.

How to identify the correct V-belt size and how to care for it?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
