Product description
Phillips screw M4 with thread pitch 0.7 and a total length of 10 mm. Screw for tractors of the brand LS Tractor, series LS MT and others.
The correct choice of bolt in terms of strength must be made before assembly, because the shape of the bolt and its technical parameters can have a direct impact on the safety and durability of the connection. We distinguish 3 accuracy grades of bolt manufacture, i.e. A, B and C, and 10 strength classes (measured in megapascals): 3.6, 4.6, 4.8, 5.6, 5.8, 6.8, 8.8, 9.8, 10.9, 12.9, where the first digit indicates the tensile strength limit and the second the yield strength relative to the first value (as a percentage). The higher the values, the greater the strength of the bolt, so 3.6 is the lowest quality bolt (low-carbon steel) and 12.9 is the highest strength class (low-alloy steel).

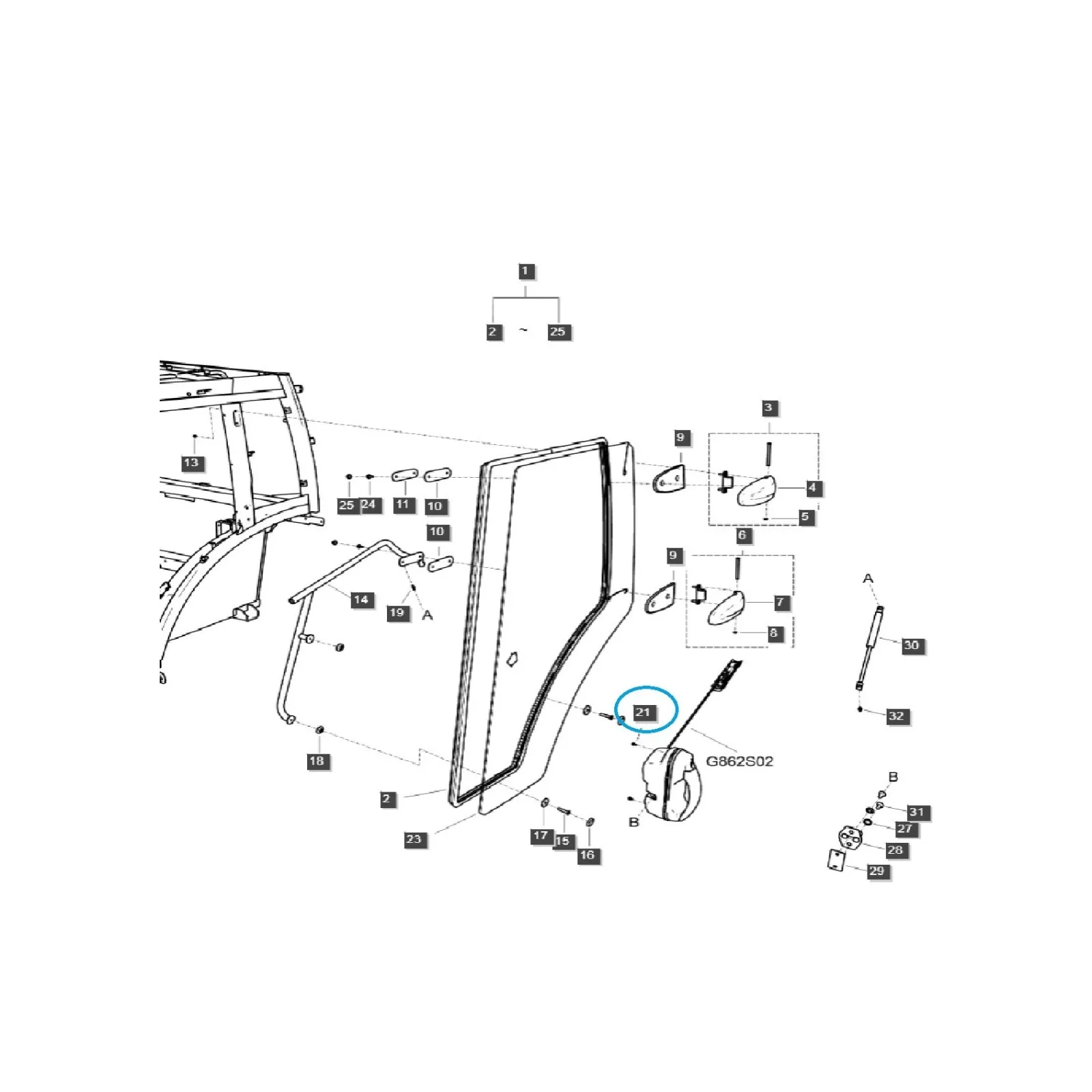

ITEM NO. 21 MARKED IN BLUE ON THE DIAGRAM
Dimensions:
- working length: 10 mm,
- thread: M4 x 0.7,
- part numbers: S227401011, 40072821.
Tractor models:
LS Tractor:
- LS PLUS70, PLUS80, PLUS90, PLUS100
- LS XP8084, XP8094, XP8101
- LS MT5.73
- LS MT340, MT357
- LS MT5.68, MT5.73
- LS XU6158, XU6168
- LS MT7.84, MT7.94, MT7.101, MT7.102, MT7.115
Warehouse: L01:I-2-1
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to production differences over the years.
