Bolt M8 x 1.25 x 25 / S159082513 / LS Tractor 40029007

M8 screw with 1.25 thread, total length 25 mm . Universal screw for LS Tractors series MT3, PLUS, XR, R, XU and others.

The appropriate selection of the screw in terms of strength should be made before starting the assembly, because the shape of the screw and technical parameters can have a direct impact on the safety and durability of the connection. We distinguish 3 classes of precision of screw production, i.e. A, B and C, and 10 classes (measured in mega pascals) of strength 3.6, 4.6, 4.8, 5.6, 5.8, 6.8, 8.8, 9.8, 10.9, 12.9, where the first digit indicates the tensile strength limit and the second the yield strength in relation to the first value (in percentage). The higher the values, the greater the screw strength, so 3.6 is the lowest quality screw (low-carbon steel) and 12.9 is the highest strength class (low-alloy steel).

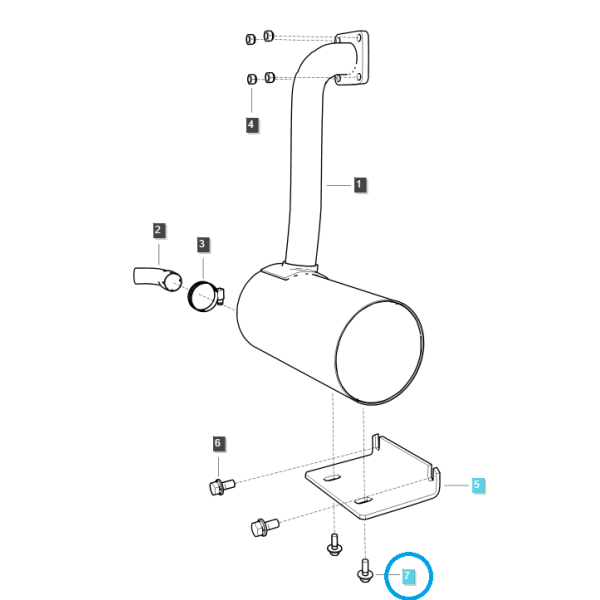

ITEM No.7 MARKED IN BLUE IN THE GRAPHIC

Dimensions :

• total length: 31 mm,
• working length: 25 mm,
• thread length: 25 mm,
• thread: M8 x 1.25,

Tractor models: :

LS Tractor :

• LSMT1.22,
• LSMT1.25,
• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.55,
• LS MT3.60,
• LS XU6158,
• LS XU6168,
• LS PLUS70,
• LS PLUS80,
• LS PLUS90,
• LS PLUS100,
• LS R41,
• LS R43,
• LS R50,
• LS R60,
• LS R65,
• LS XR45,
• LS XR50,
• LS XR60,
• LS i28,
• LS i36
