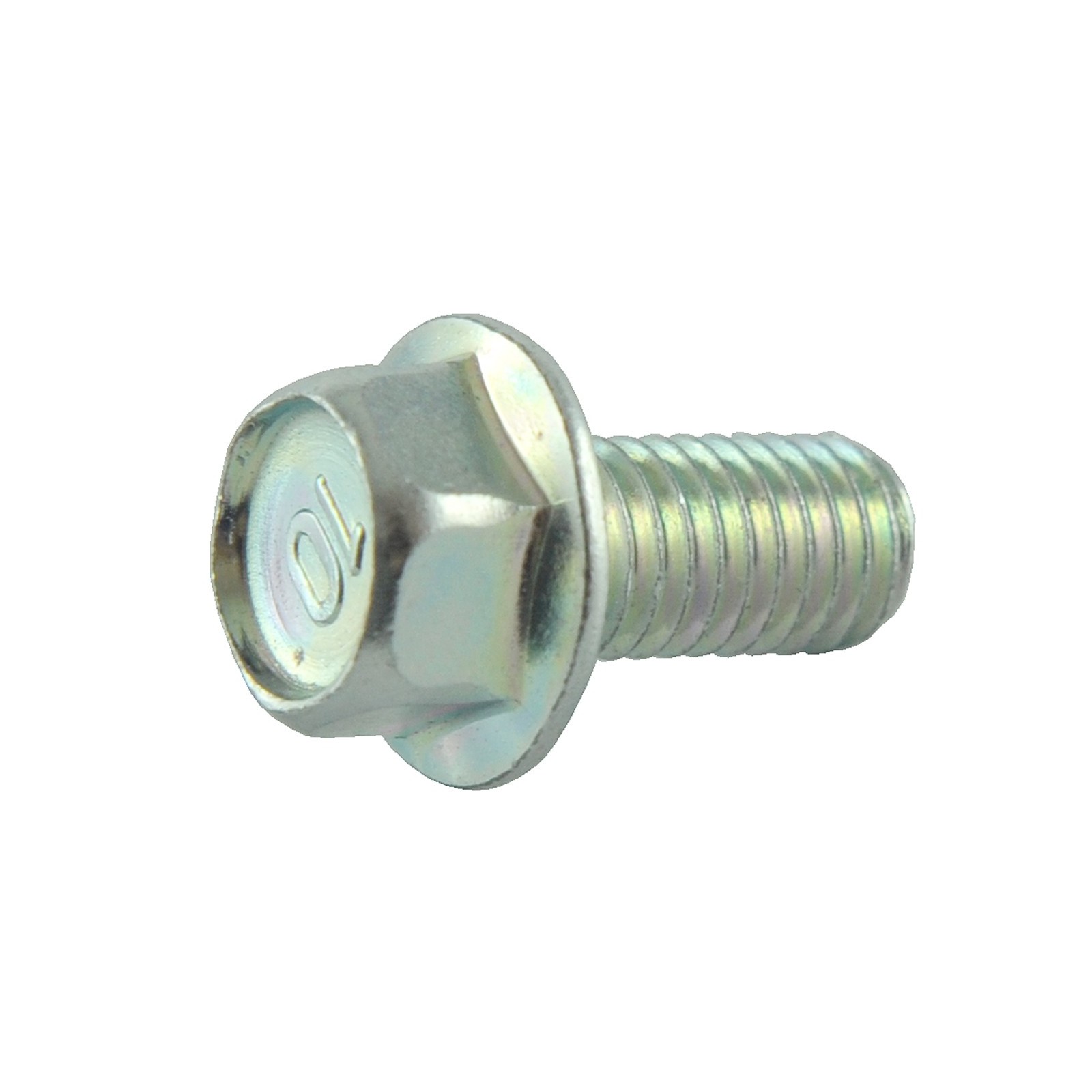

Screw M8 x 16 x 1.25 mm / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / S183081643 /40268190

M8 bolt with a collar with a 1.25 thread, a total length of 24 mm and a hardness of 10. Bolt for LS Tractors of the LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 series and others for:

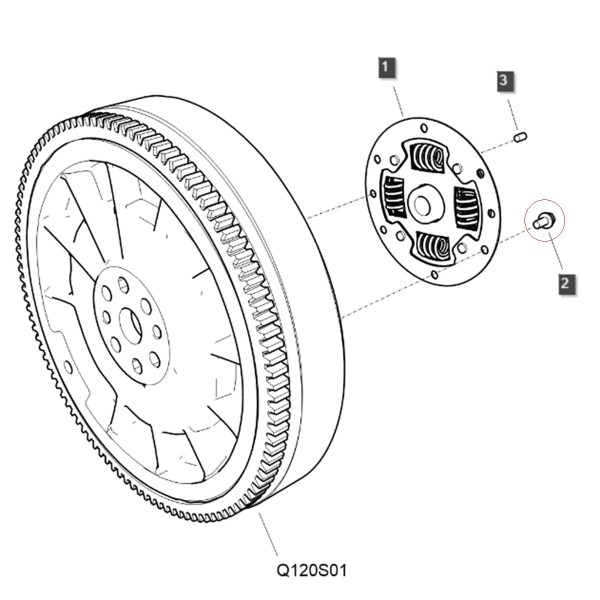

• clutch disc vibration damper.
• flywheel muffler.

The appropriate selection of the screw in terms of strength should be made before starting the assembly, because the shape of the screw and technical parameters can have a direct impact on the safety and durability of the connection. We distinguish 3 classes of screw precision , i.e. A, B and C, and 10 classes (measured in mega pascals) of strength 3.6, 4.6, 4.8, 5.6, 5.8, 6.8, 8.8 , 9.8, 10.9, 12.9, where the first digit indicates the tensile strength limit and the second the yield strength relative to the first value (in percentage). The higher the values, the greater the screw strength, so 3.6 is the lowest quality screw (low-carbon steel) and 12.9 is the highest strength class (low-alloy steel).

Dimensions :

• total length: 24 mm,
• working length: 16 mm,
• thread length: 16 mm,
• thread: M8 x 1.25,
• key size: 12,
• collar diameter: 16 mm,
• standards and strength classes: GS 8.8,
• part numbers: S183081643, 40268190.

Tractor models :

LS Tractor :

• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60,

Warehouse :
L01:F332
