Shaft for flail mower EFGC-K 165 / EFGC-KH 165 4FARMER / 1600 mm

Main shaft with a working length of 1600 mm and a diameter of 105 mm for 4FARMER flail mowers of the EFGC-K 165 4FARMER, EFGC-KH 165 4FARMER and other series.

The flail shaft is a key component in mowers, and its main function is to rotate the attached flails, which perform the cutting motion. Thanks to the shaft's high rotational speed, the flails are able to effectively chop up vegetation, ensuring an evenly cut surface. The flails, which are usually made of hardened steel, are highly resistant to wear and damage. Their shape, often resembling the letter "Y" or "T," is optimized for cutting efficiency and minimal drag during operation. This allows flail mowers to cope with a variety of terrain conditions and vegetation types.

Dimensions :

• length: 1600 mm,
• working length: 1600 mm,
• total length 1725 mm,
• shaft diameter: 105 mm,
• mounting diameter (pins): 35 mm (bearing UC207),
• number of beaters: 28 pcs.
• diameter of holes for screws securing the beaters: 16.50 mm,
• weight: 60 kg,

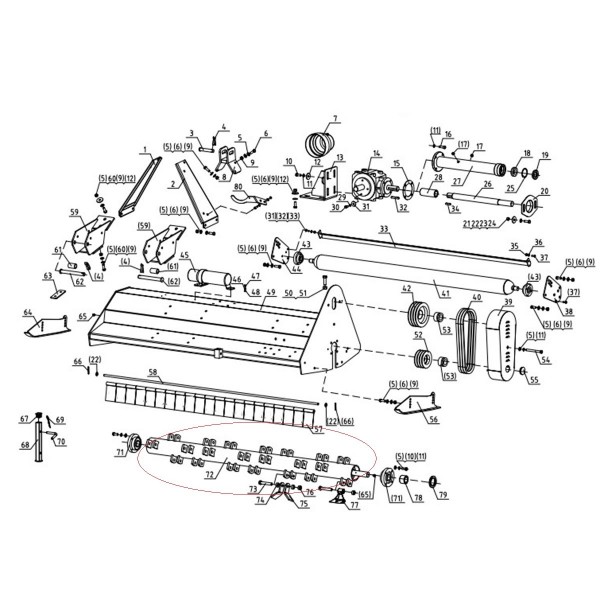

• part numbers (no. 72 marked on the graphic): EFGC165.113.

Lawnmower models :

4FARMER:

• EFGC-K 165 4FARMER,
• EFGC-KH 165 4FARMER.

Warehouse :
M04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

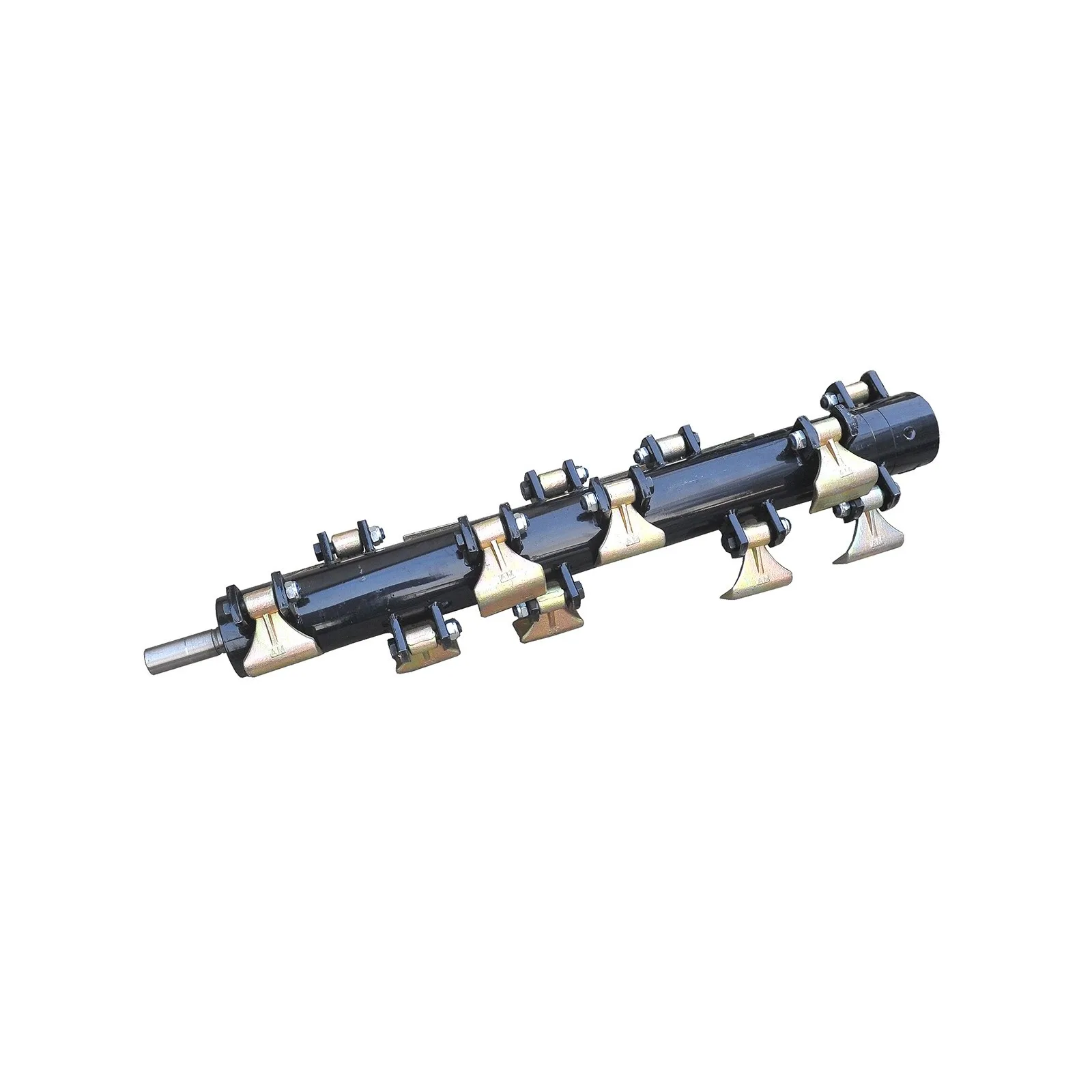

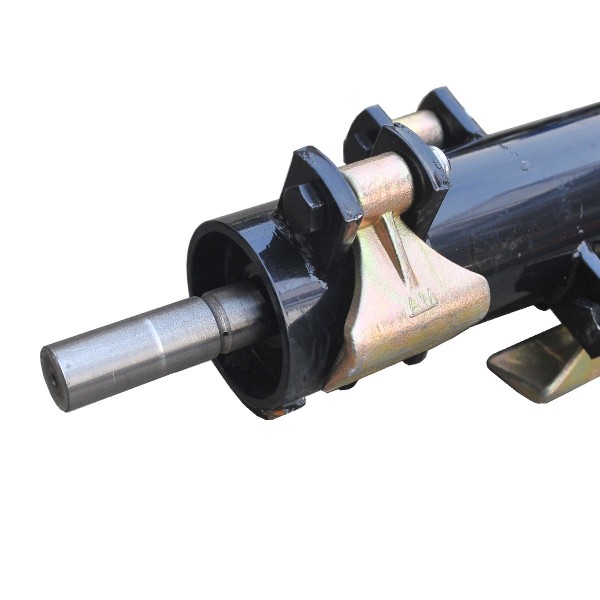

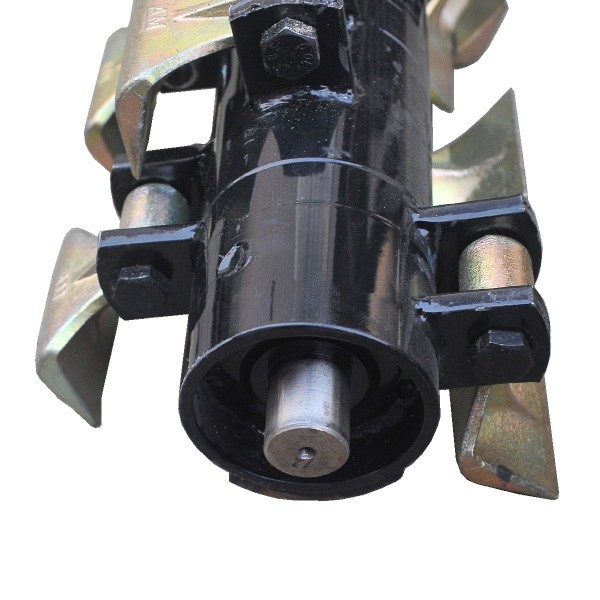

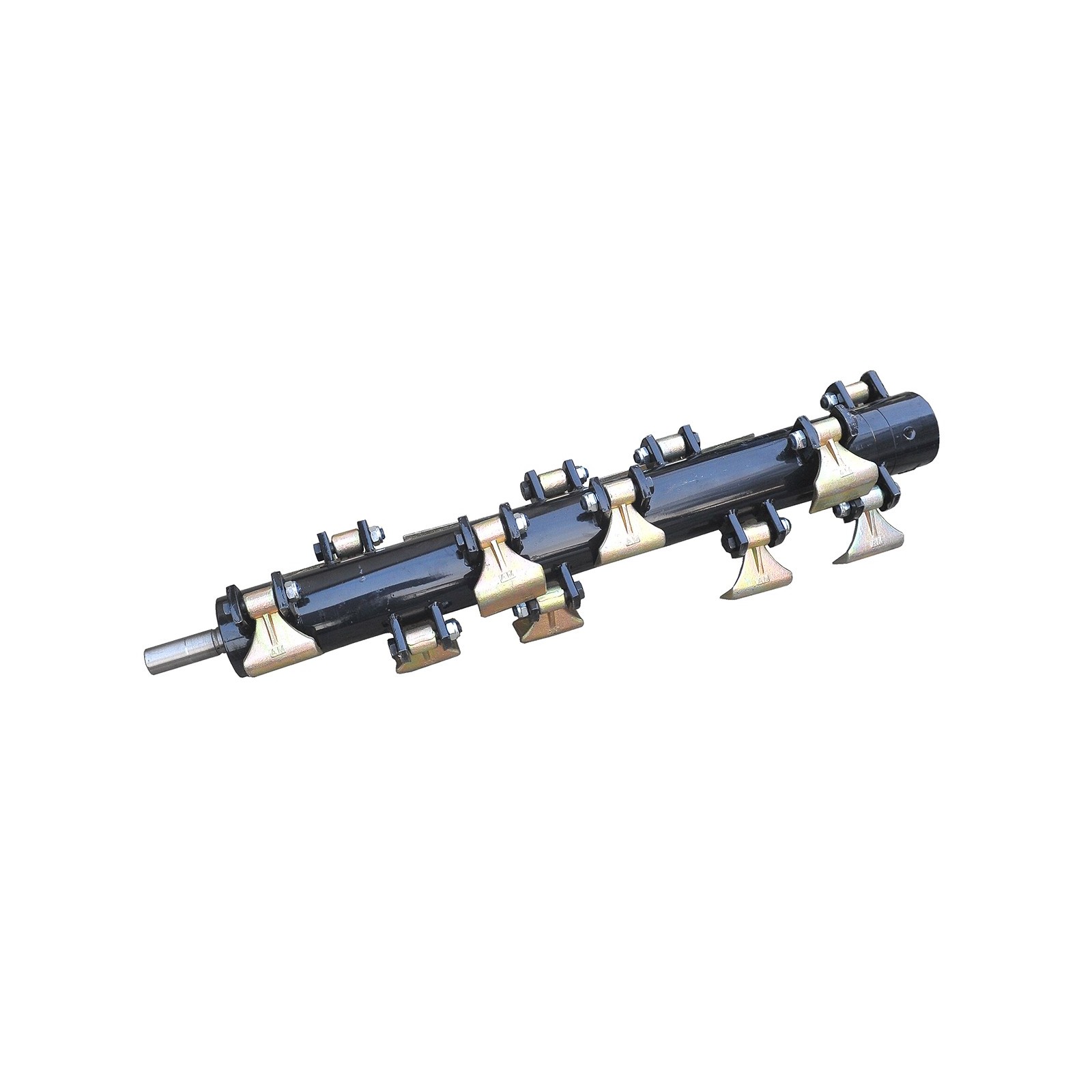

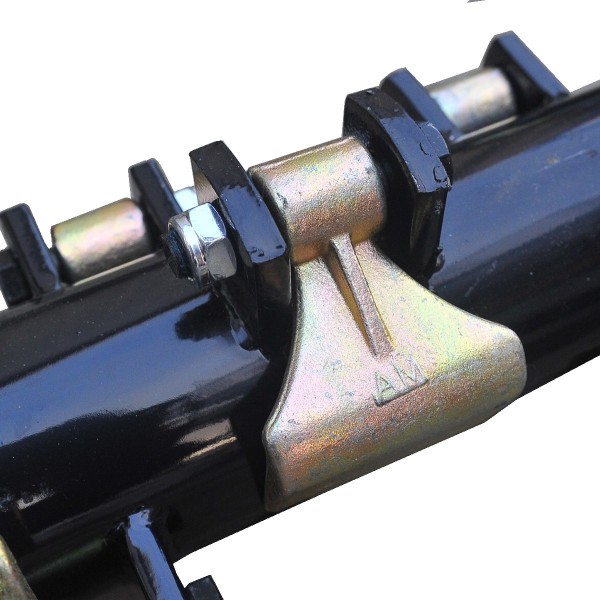

*Illustrative photo. The photo shows the roller for the EFGC 105 mower.
