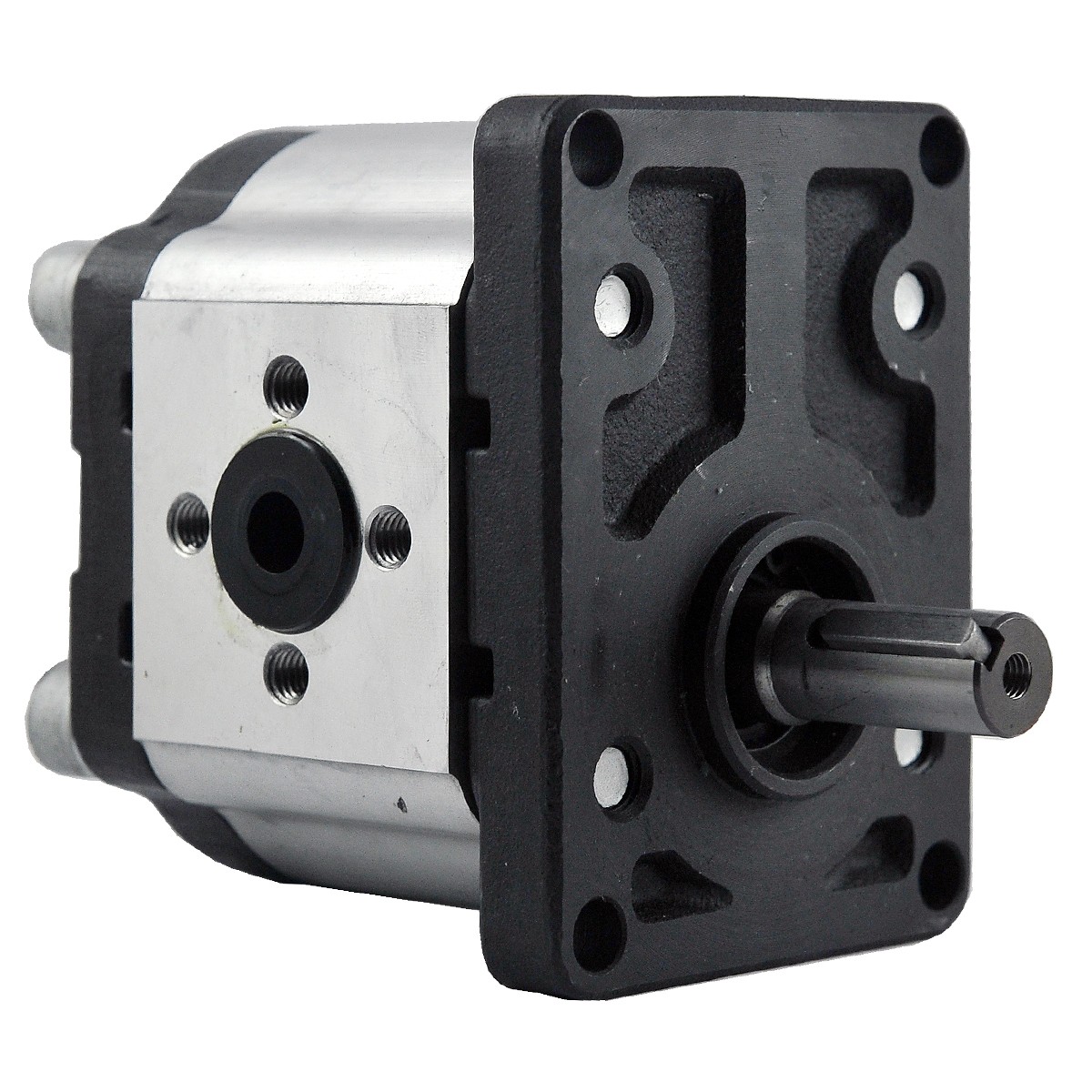

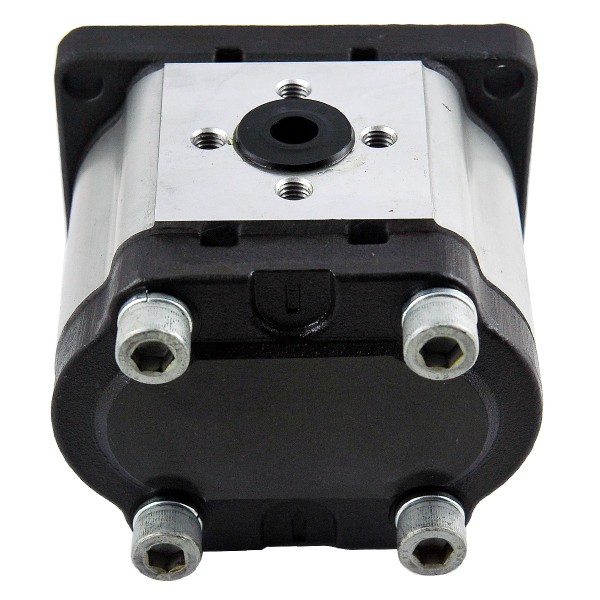

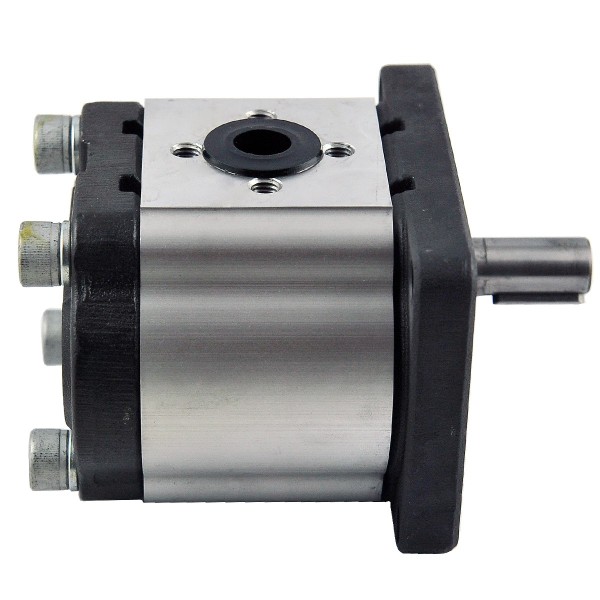

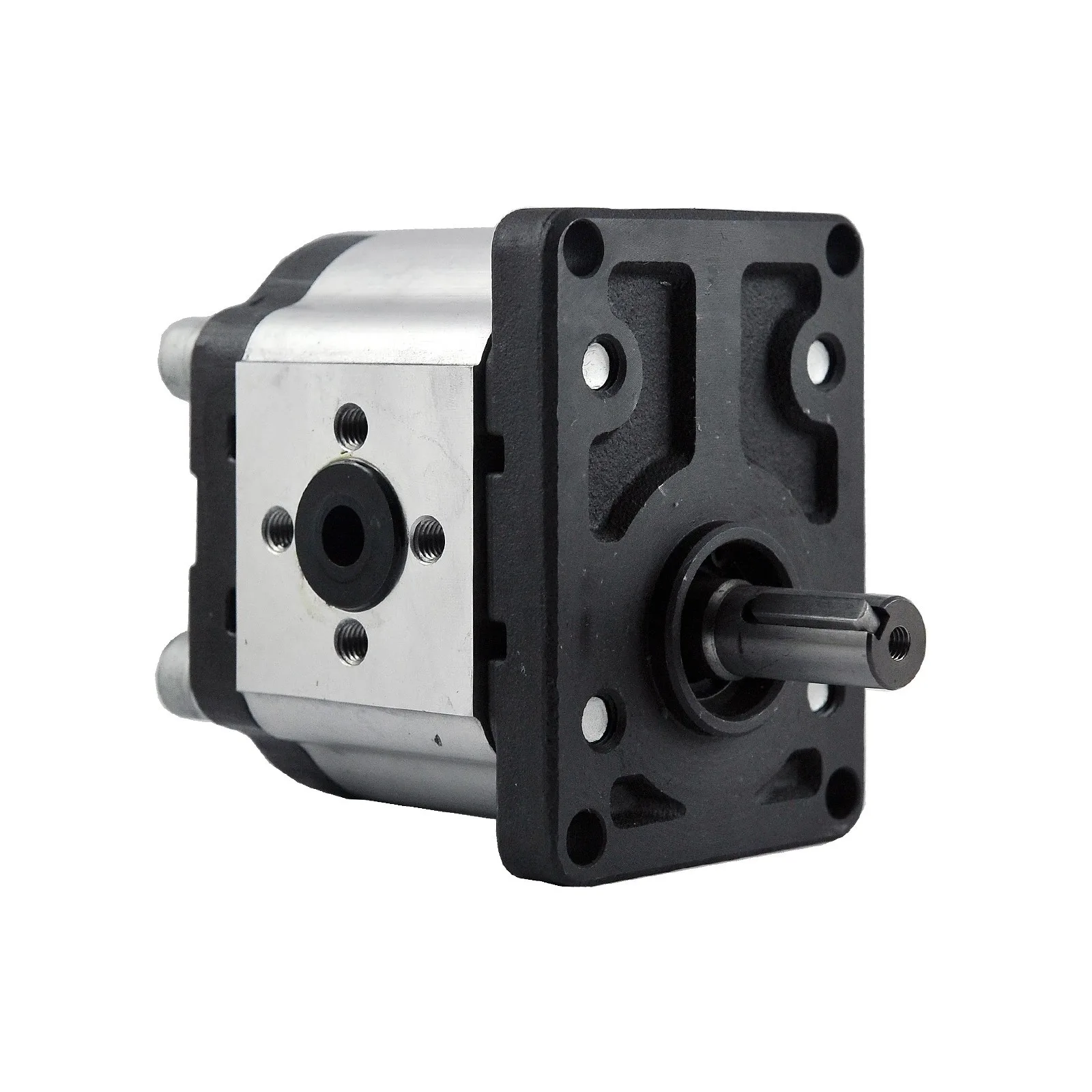

Hydraulic Pump/20MPa/Cedrus RB05/DR-CS-15HP-H 4FARMER/CBN-F310IR-FRD

Hydraulic pump with a shaft diameter of 16 mm and dimensions of 100 x 100 x 90 mm for the Cedrus RB05 brand, %C4% 99bak-spalinowy-tarczowy-dr-cs-15hp-hydrauliczny-4farmer-15km-5904506301690.html">DR-CS-15HP-H and others.

The hydraulic gear pump is a device responsible for the operation of the rear linkage, additional hydraulically operated equipment and in modern tractors the hydraulic pump is responsible for power steering. Using the hydraulic pump we can control additional functions of the agricultural trailer, flail mower, tiller or TUR front loader. The hydraulic pump works using the tractor's hydraulic system and is powered by the tractor's drive system (e.g. crankshaft). Hydraulic oil pressed into the pump goes to the high-pressure control valve, where the excess returns to the gearbox and then goes to the main distributor. Some hydraulic pumps may have additional sections, supplying the steering system with oil under increased pressure.

Technical data :

• dimensions: 100 x 100 x 90 mm,

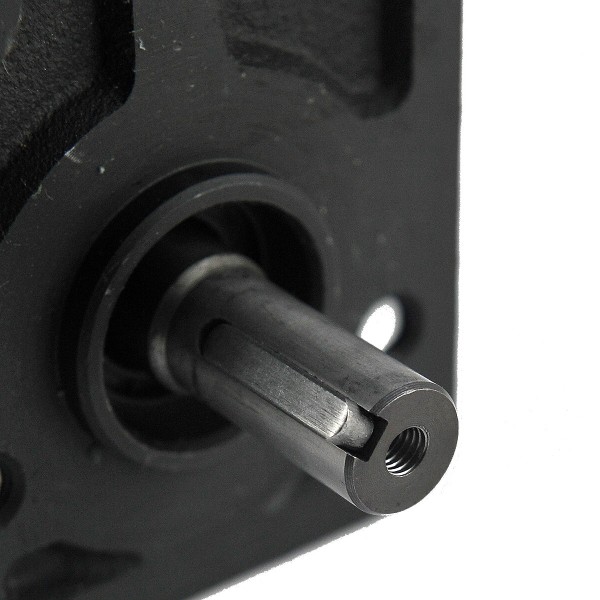

• shaft diameter: 16 mm,
• mounting screw hole spacing: 70 x 100 mm (measured from each other), 122 mm (measured diagonally),
• diameter of mounting screw holes: 9 mm,
• spacing of mounting holes for hydraulic outlets: 38 mm (measured diagonally), 27 mm (measured from each other),
• diameter of holes for mounting screws of hydraulic outlets: M8,
• pressure: 20 Mpa,
• rotation speed: 2000 rpm,
• flow: 10 l/min,
• direction of rotation: marked on the housing,
• INLET/OUTLET diameter: 14 / 18 mm,
• original part numbers: ,
• comparison numbers: -,
• part numbers: CBN-F310FER-FRD.

Machine models :

4FARMER :

• %C4% 99disc-fuel-tank-dr-cs-15hp-hydraulic-4farmer-15km-5904506301690.html">DR-CS-15HP-H 4FARMER .

Cedrus :

• Cedrus RB05.

The first signs of hydraulic pump failure are a lift that drops too quickly or problems with trailer control. Most often, the control valve or pump seals fail, and in both cases the pumps can be successfully rebuilt.

Warehouse :
K02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
