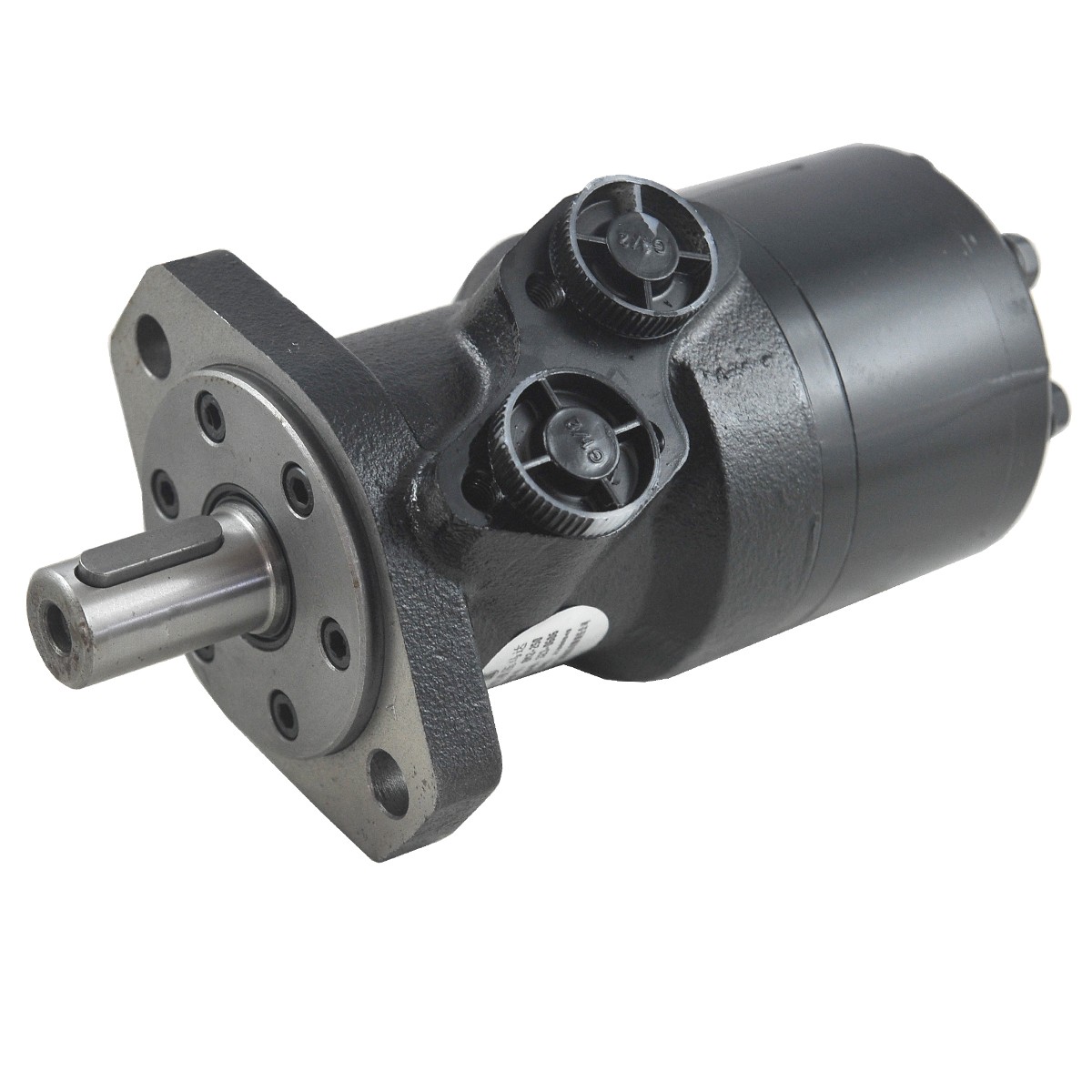

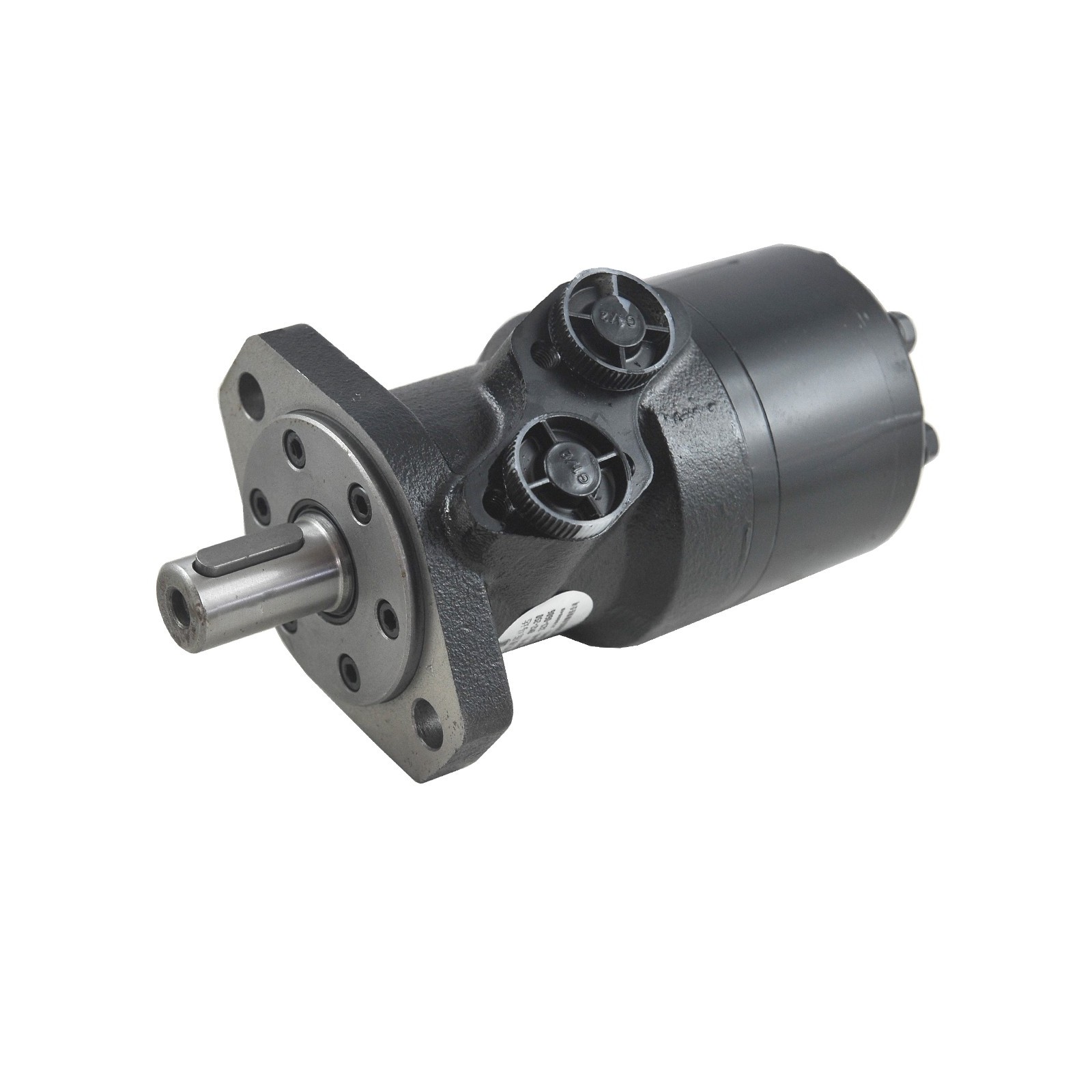

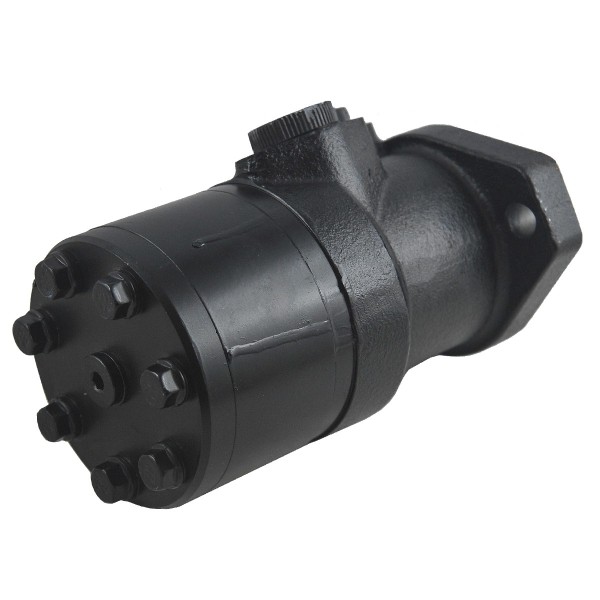

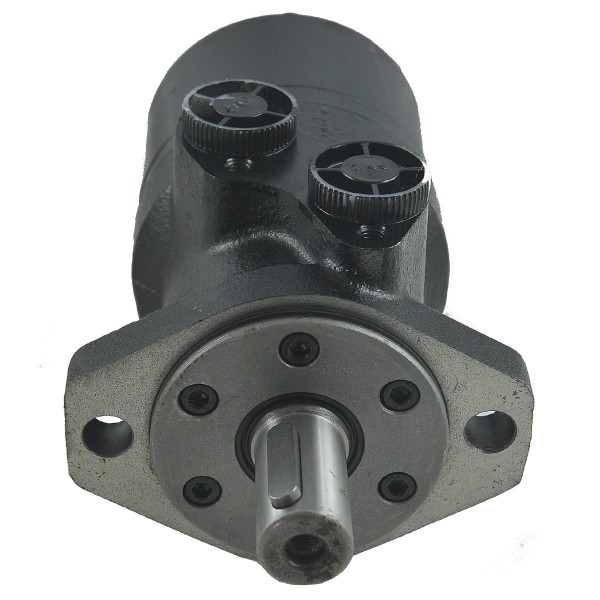

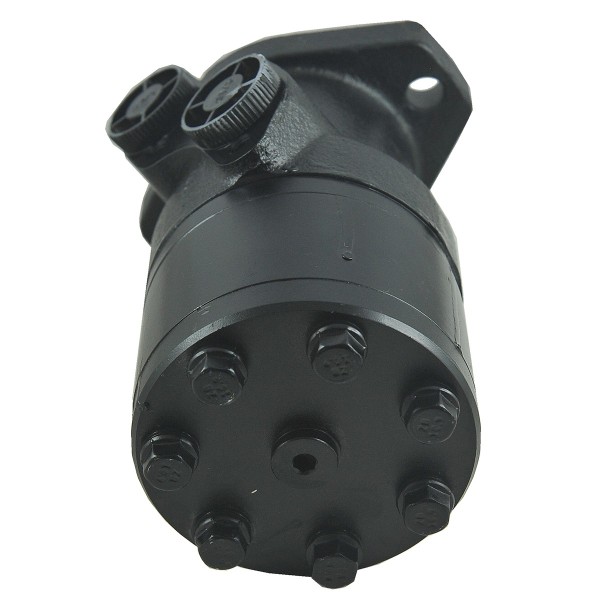

Hydraulic motor / BM2-250 / K2-0021

The BM2-250 reversible hydraulic motor with a maximum flow of 60 l/min / 75 l/min is suitable for agricultural and other machinery and equipment. Hydraulic motors with double bearings are an excellent solution for agricultural, forestry, and industrial machinery requiring reliability and smooth operation. Designed for systems with high torque requirements, they are an ideal choice for intensive use. The ability to connect motors in series allows for larger systems, increasing their versatility and suitability for a variety of applications. These motors are suitable for agricultural machinery, soil drills, vegetable cutters, wrappers, snow blowers, sweepers, and many other machines where power and durability are key. High-quality materials and proven motor design ensure stable and efficient operation over a long period of time, translating into lower operating costs and greater operational efficiency. These motors are the ideal choice for professionals who value reliability and quality in their daily work.

Dimensions :

• dimensions: 110 x 240 mm,
• roller diameter: 25 mm,
• maximum flow: 60 l/min (continuous operation), 75 l/min (intermittent operation),
• maximum rotational speed: 228 rpm (continuous operation), 272 rpm (intermittent operation),
• maximum torque: 340 Nm (continuous operation), 405 Nm (intermittent operation),
• maximum output power: 8.24 kW (in continuous operation), 12.01 kW (in momentary operation),
• maximum pressure: 11 MPa (continuous operation), 14 MPa (intermittent operation),
• diameter of hydraulic holes: G ½",
• spacing of mounting screw holes: 105 mm.

Warehouse : K02

*The photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
