Hub with pin for ATV wheel (complete) / Ø 40 x 150 mm

PIASTA ATV / Ø40 x 150 mm
zł283.00
Tax included PL 23%

230,08 netto

  • To order
wishlist

Do you have any questions?

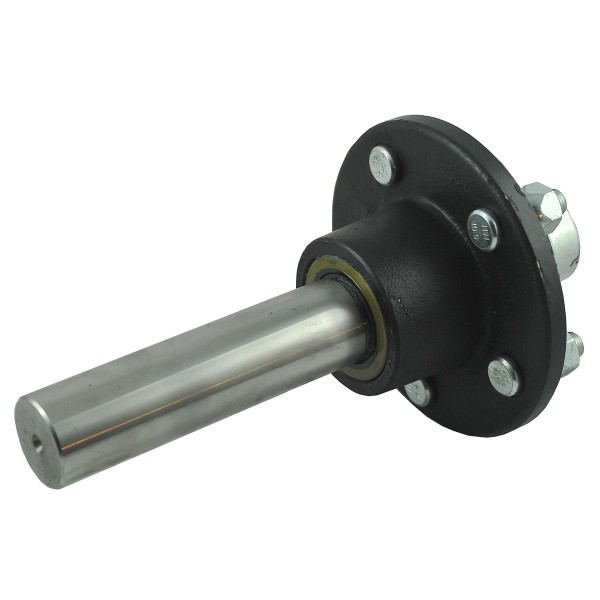

Hub with pin for ATV wheel (complete) / Ø 40 x 150 mm

Hub for a rigid axle with a shaft diameter of 40 mm and a length of 150 mm with a bearing included and a set of screws 5 x HH 10.9 with M12 x 1.25 thread, dedicated to the wheels sold by our company:

A hub is an element of the drive, road or gear wheel, which is mounted on a shaft or axle. There are many ways of attaching hubs to the wheel, the most popular being splined, splined or press-fit connections.

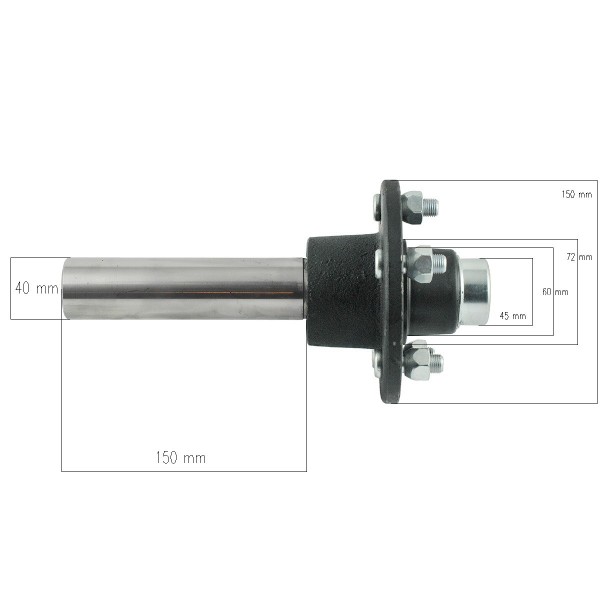

Dimensions :

  • total length: 270 mm,
  • shaft length: 150 mm,
  • shaft diameter: 40 mm,
  • plate diameter: 150 mm,
  • pin diameter: 45 / 60 / 72 mm,
  • spacing of mounting screws: 67 mm (measured from each other), 108 mm (measured diagonally),
  • thread: M12 x 1.25,
  • key size: M21.

The hub is complete with a bearing and a set of bolts and nuts.

Warehouse :
L01

Specification

Magazyn: L01
Condition
New
Production
OEM
Parts
Chassis
Plate diameter (mm)
150
Diameter (mm)
45
60
72
Overall length (mm)
270
Shaft length (mm)
150
Shaft diameter (mm)
40
Wrench size
21
Thread
M12 x 1.25
