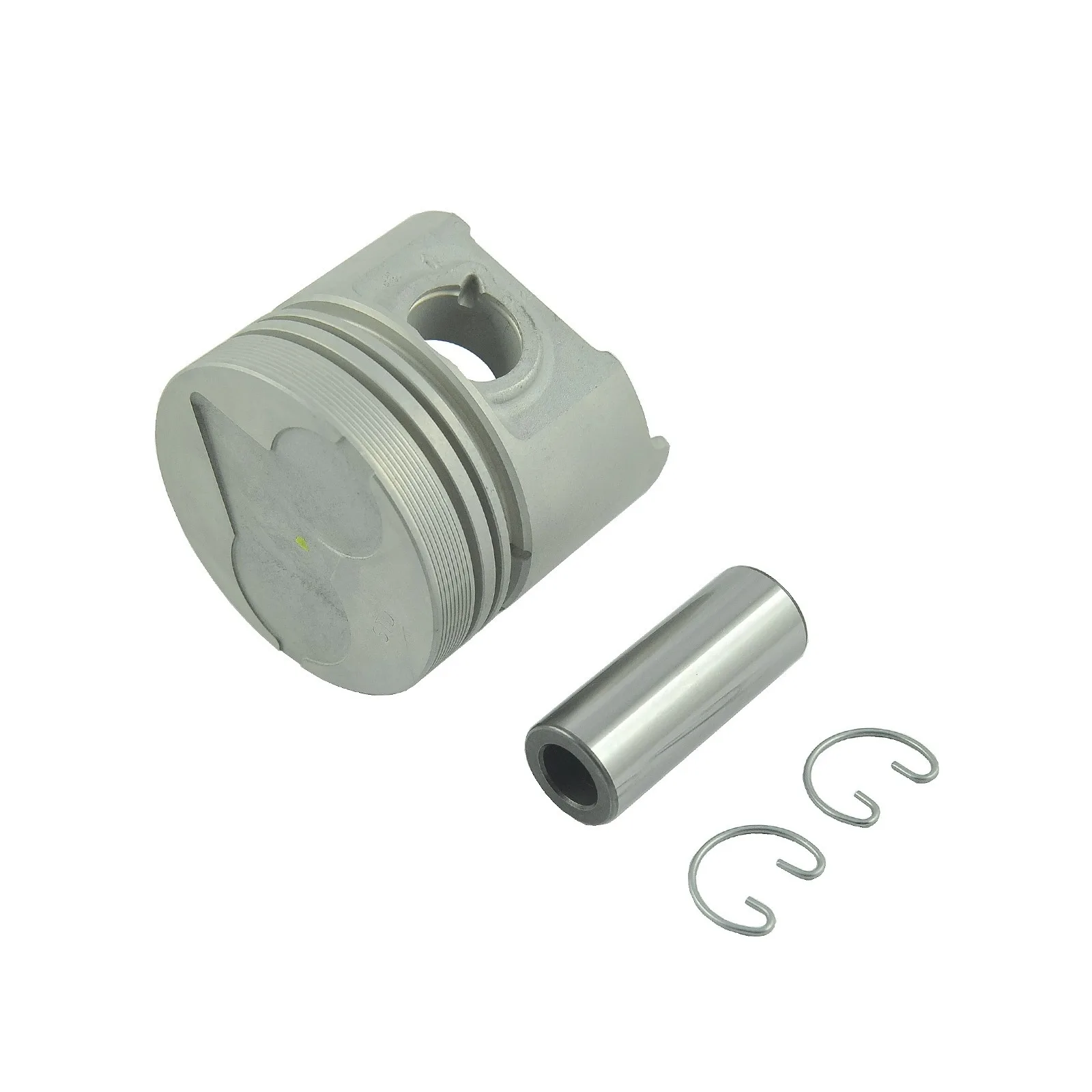

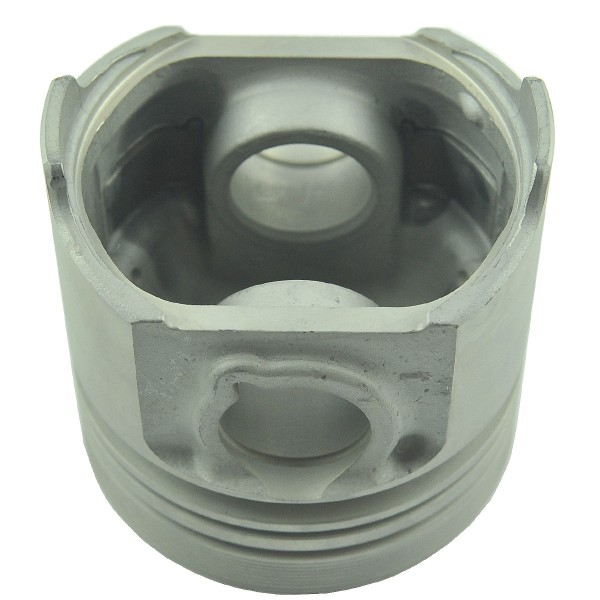

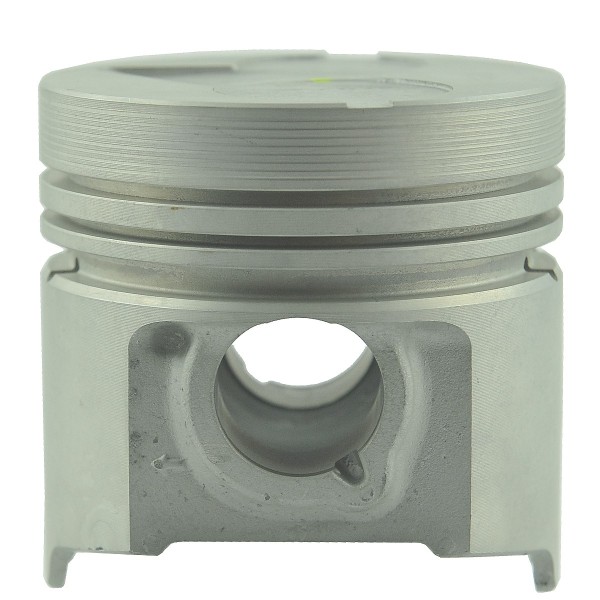

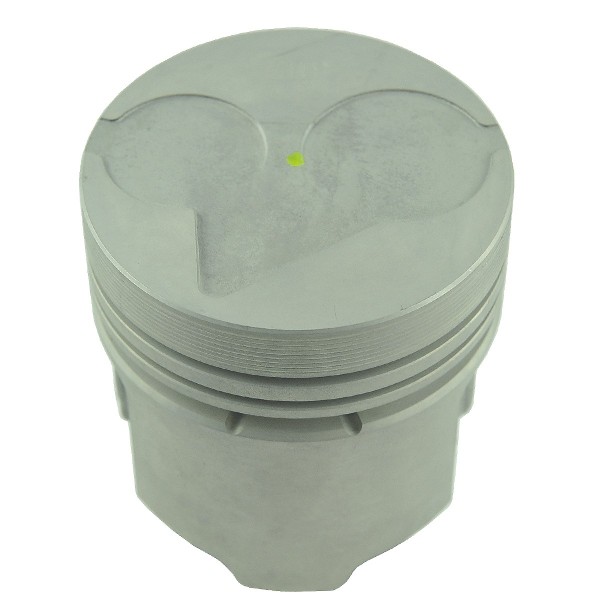

Engine piston / Ø 82 mm / STD / Kubota D1463 / Kubota GL21 / GL23 / GL220 / GL221 / GL240 / GL241

Engine piston (rings %C5% 9Bci-do-kubota/643-pier %C5% 9Bcienie-t %C5% 82oka-82-mm-kubota-d1463-kubota-gl-250-2-5-mm.html">6-26-100-35 , 15201-21052, head gasket %C5% 82ok-82-mm-kubota-d1463-kubota-gl21-gl23-gl220-gl221-gl240-gl241-16415-03310.html">16415-03310 , 16467-03310) with an outer diameter of 82 mm and a total height of 72 mm for Kubota tractors Kubota GL21, Kubota GL23, Kubota GL220, Kubota GL221, Kubota GL240, Kubota GL241 series and others.

The engine piston is a moving element responsible for converting gas and energy generated during combustion to the crankshaft, and then to engine power. The piston is connected to the crankshaft by an element called a connecting rod with pin connections. At the top of the piston there are annular channels for mounting the piston rings, in the middle there is a hub for connecting to the connecting rod. At the top there is a so-called bottom, which, depending on the type of engine, can have a different shape. Due to the work in very difficult conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

• outer diameter: 82 mm,
• height: 66.30 / 80 mm,
• pin hole diameter: 25 mm,
• pin diameter: 24.95 mm,
• pin length: 63 mm,
• distance from the end of the pin hole to the lower edge of the piston: 11 mm,
• Distance from edge of pin hole to top of piston: 31.30 mm.
• ring groove width ( %C5% 9Bci-do-kubota/643-pier %C5% 9Bcienie-t %C5% 82oka-82-mm-kubota-d1463-kubota-gl-250-2-5-mm.html">6-26-100-35 ) from the top of the piston: 2.50 / 2.00 / 5.00 mm,
• original part number: 16447-21110, 16447- 21113,
• comparison numbers: -,
• part numbers: D1463.

Engine models :

Kubota :

• Kubota D1463.

Engine models :

Kubota :

• Kubota GL21,
• Kubota GL23,
• Kubota GL220,
• Kubota GL221,
• Kubota GL240,
• Kubota GL241.


Magazine : K18:A13:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
