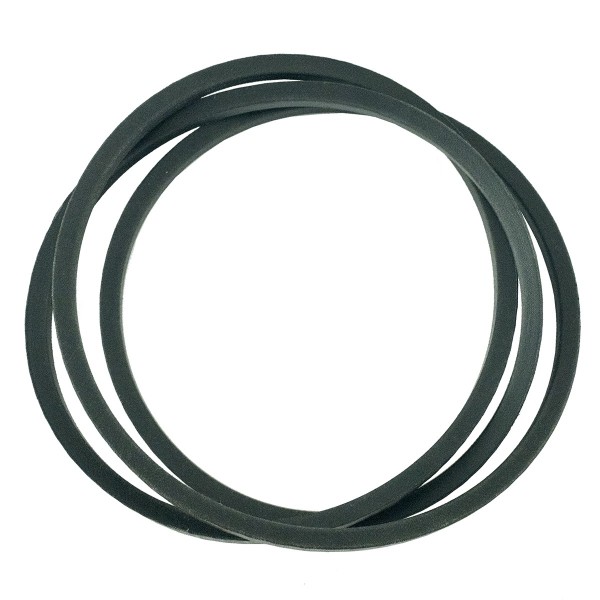

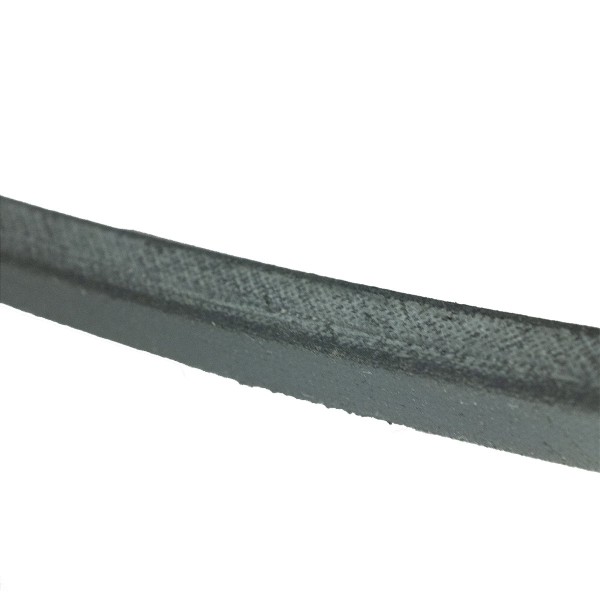

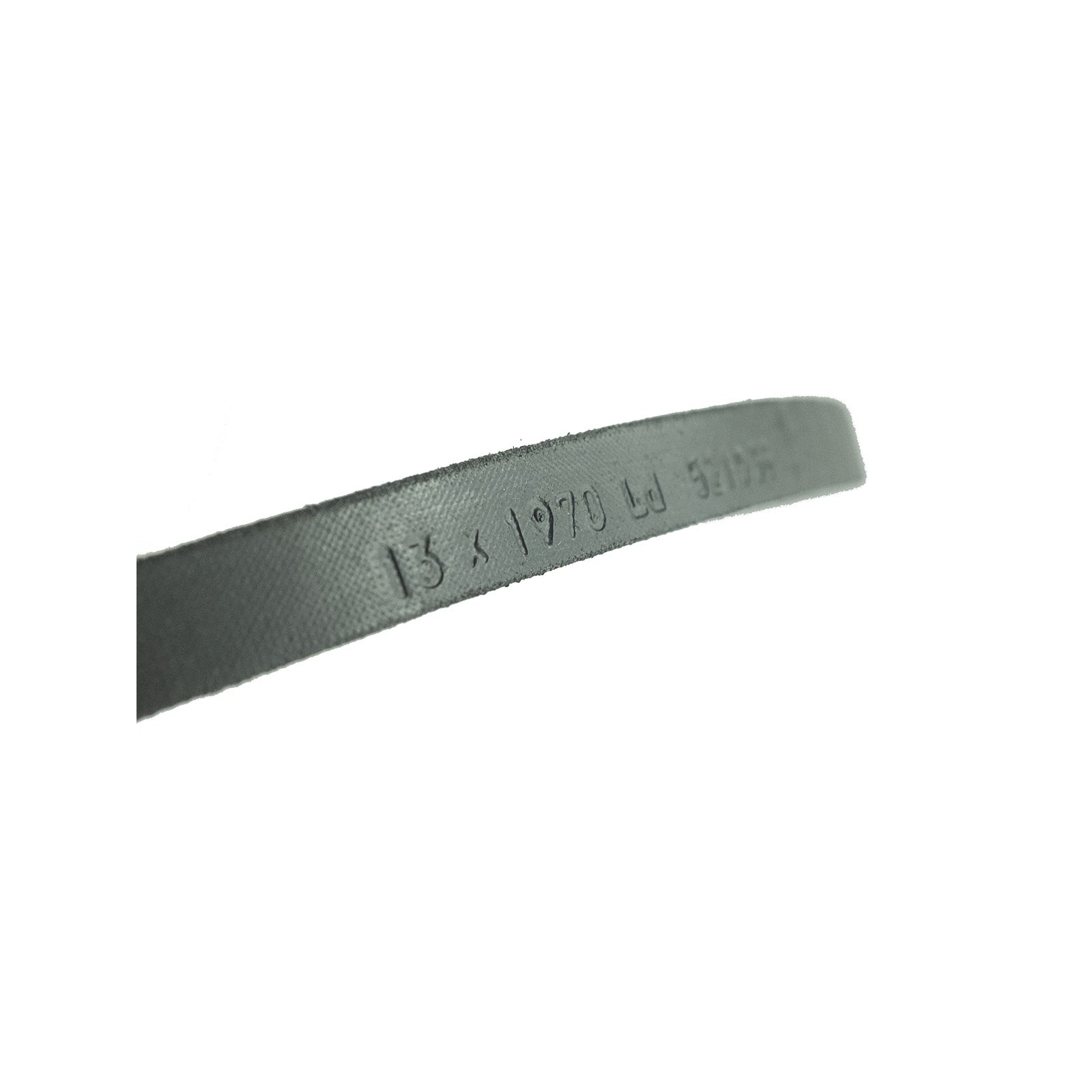

Drive belt 13 x 1970 Ld for AL-KO / 521936 mower tractor

Drive belt with the symbol 521936 , length 1970 mm , width 8/13 mm and height 8.50 mm for Alko lawn mowers series T15, T20, T23, with a basket width of 1020 mm, 1250 mm, 1254 mm, 1257 mm, 1560 mm, and others .

How to measure a V-belt?

The standard V-belt has two length values, Ld and Li . The length of Li is the inside length and the length Ld is the so-called the pitch length, according to the ISO standard, can be simply called the external length, but it is the length measured at the strongest constructional point of the belt. V-belt designations are usually a capital letter of the alphabet denoting the belt cross-section (mm) Z, A, B, C, D and length. The simplest division of belts on sale are narrow-profile belts, classic belts, narrow-profile toothed and classic toothed belts.

Dimensions :

• length: 1970 mm,
• width: 8/13 mm,
• height: 8.50 mm,
• part numbers: 521936.

Mower models :

• AL-KO T15-102 S CONCORD,
• AL-KO T23-125,4 HD V2 ,,
• solo by AL-KO T23-125.5 HD V2,
• solo by AL-KO T23-123.5 HD V2,
• solo by AL-KO T23-125.6 HD V2,
• solo by AL-KO T20-125.7 HD V2,
• and others.

A V-belt is a component that transmits power from the engine or transmission to an attachment or device. Most often, V-belts are used to drive an alternator, coolant pump or compressor, and in agriculture , belts are used in agricultural machinery and equipment that are operated at high speeds. V-belts are the most frequently wearing parts of agricultural machinery due to the material they are made of and damage resulting from overloading during machine operation. A worn V-belt should be replaced as soon as possible to prevent accidents or damage to the machine.
