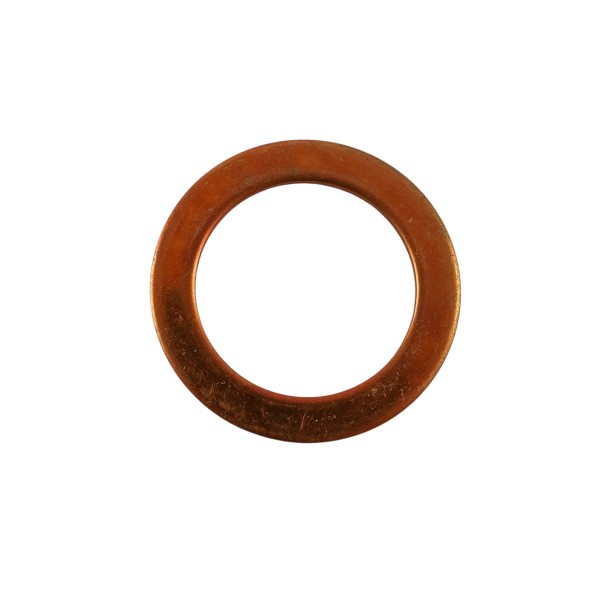

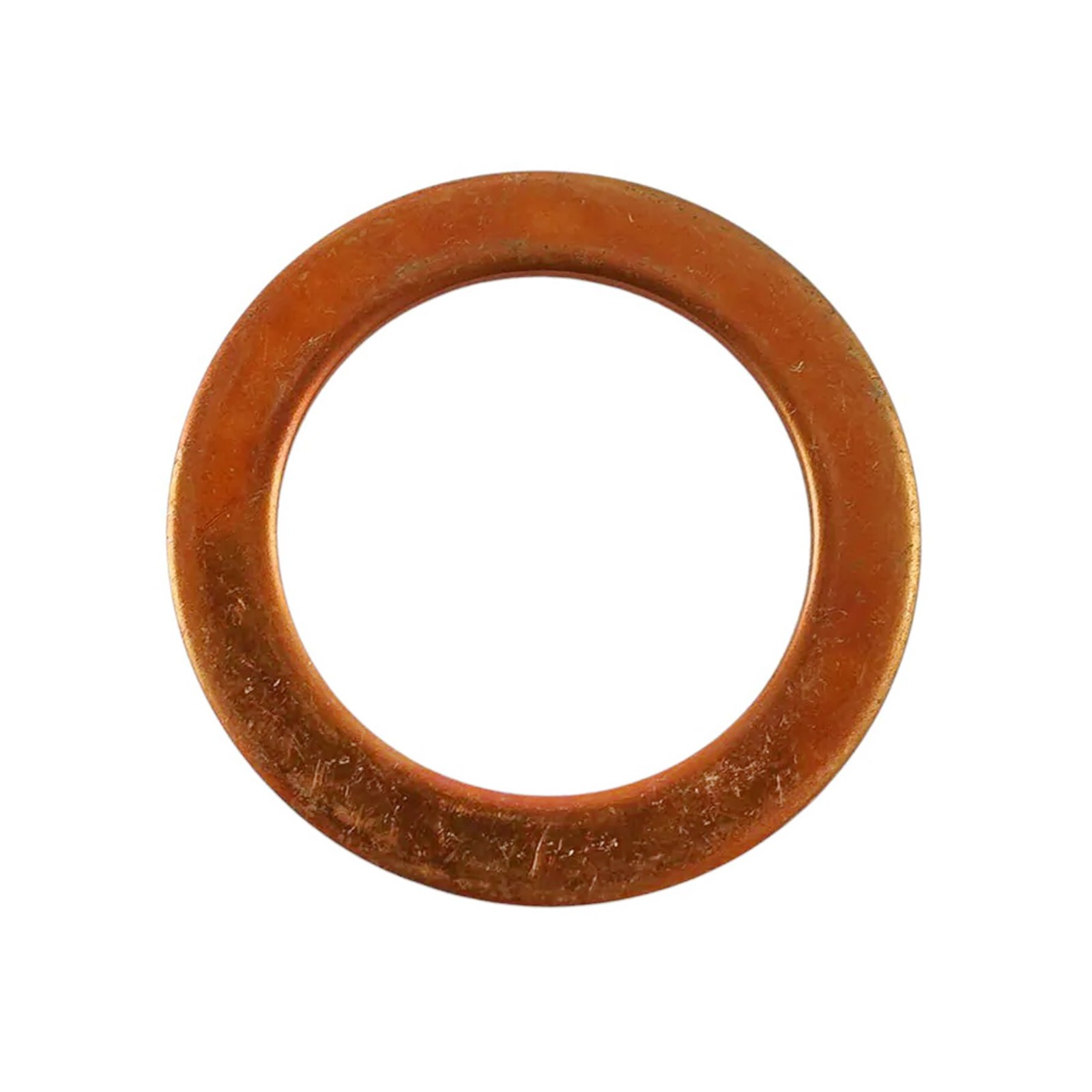

Copper washer 22.30 x 31.50 x 1.50 mm / LS XJ25 / 3434000700 / 40224916

Copper washer, copper gasket with an inner diameter of 22.30 mm , an outer diameter of 31.50 mm and a thickness of 1.50 mm for LS Tractors of the LS XJ 25 series and others: for:

hydraulic valves,

The washer is the basic element that occurs in all screw connections, and their main task is to separate the nut from the connected element. Another function is to prevent self-loosening of screws in threaded connections. In addition, copper washers can act as sealing and are used due to the plasticity of the metal, high anti-corrosion properties. We divide the washers into three groups:

• ordinary (protective, increasing the pressure surface of the screw),
• securing against unscrewing (spring),
• leveling, spacing, copper sealing (for leveling when the joined elements are not perfectly smooth),
• special sealing.

Dimensions :

• inner diameter: 22.30 mm,
• outer diameter: 31.50 mm,
• thickness: 1.50mm,
• part numbers: 3434000700, 40224916

Tractor models :

LS Tractor :

• LS XJ25.

Warehouse :
M21:S07 S08
M01:M26:S07
