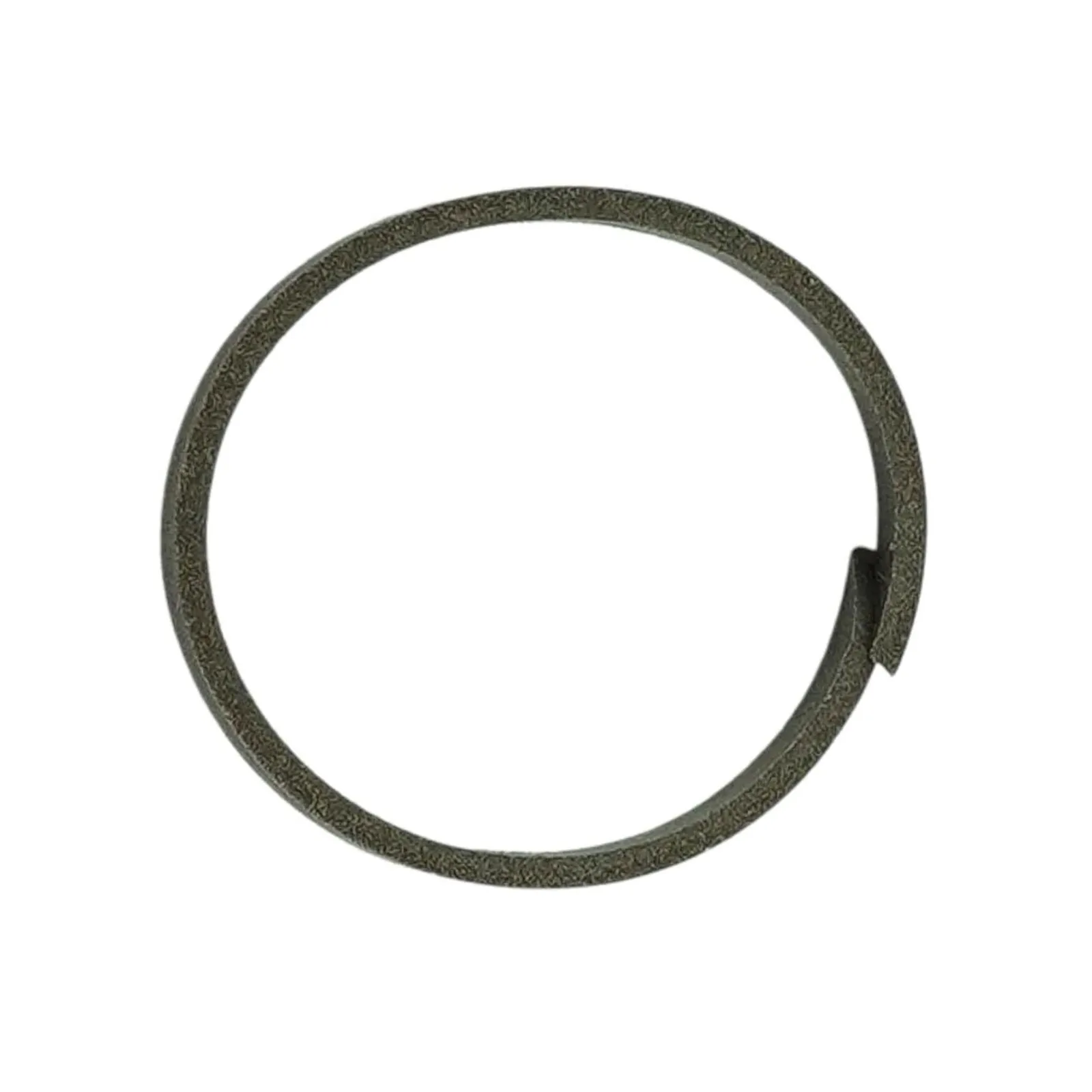

Sealing ring / 25.14 x 2.50 mm / LS MT3.40 / LS MT3.50 / LS MT3.60 / No. 40312217

A sealing ring with an outer diameter of 25.14 mm and a height of 2.50 mm for LS Tractors and other tractors. A back-up ring is a rigid ring, usually made of plastic, that protects O-rings from damage caused by the high pressure and temperature inside the hydraulic system during operation. A back-up ring is a ring whose primary function is to prevent the O-ring from being forced into the gap between the sealing surfaces and to protect the seal from deformation, which can occur when the seal is subjected to high pressure and temperature. When pressure acts on the O-ring from two directions, a back-up ring is used on both sides of the O-ring.

Dimensions :

• Outer diameter: 25.14 mm,
• Height: 2.50 mm,
• Comparison numbers: 40312217.

Tractor models :

• LS U43,
• LS U50,
• LS U60,
• LS PLUS70,
• LS PLUS80,
• LS PLUS90,
• LS PLUS100,
• LS ULTRA55,
• LS ULTRA65,
• LS P7040,
• LS XR45,
• LS XR50,
• LS XR60,
• LS XP8084,
• LS XP8094,
• LS XP8101,
• LS XU6158,
• LS XU6168,
• LS MT357,
• LS MT340,
• LS XP7.101.

Warehouse : L01:B233

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
