MBER 120 Geograss shredder mower

MBER 120 Geograss - what does it look like and what is a tractor-mounted mulcher mower?

A grass mulcher mower is a tractor-mounted mower, because its operation is based on the power of the tractor's engine (or another machine) and it must be mounted on the three-point rear or front hitch of the tractor, in short called the three-point hitch. Power from the tractor is transmitted to the mower gearbox by a PTO power transmission shaft, and from the gearbox, without a clutch, to the hub on which the cutting blades are mounted. Such a solution requires the use of additional protection against damage to the gearbox or blades. When the mower hits an obstacle or becomes clogged with cut material, the lack of a clutch in the gearbox may damage the gearbox, shaft or blades, therefore the manufacturer recommends using PTO (power take-off) shafts with a clutch or with a so-called shear bolt.

How does the MBER Geograss mulcher mower differ from other mulcher mowers?

The mulcher-type mower is equipped with two cutting blades, and it is precisely the difference in the blades used that determines the differences between various models of mulcher mowers from different manufacturers. The way the blades rotate, regardless of the blades used, is the same, and in every case the blades rotate in the same manner, similar to the way a helicopter rotor turns. The difference between mowers is the difference in the size of the cutting blade itself and of the rotating bar to which the blades are bolted.

What is the MBER Geograss mulcher used for?

• for mowing large areas of tall grass in meadows, parks and recreational areas,
• for mowing grass in orchards and plantations,
• for mowing agricultural wasteland,
• for mowing scrub,
• for mowing catch crops.

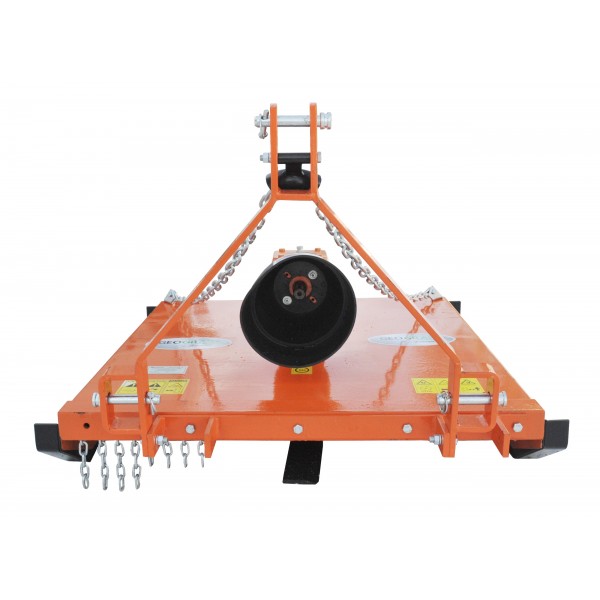

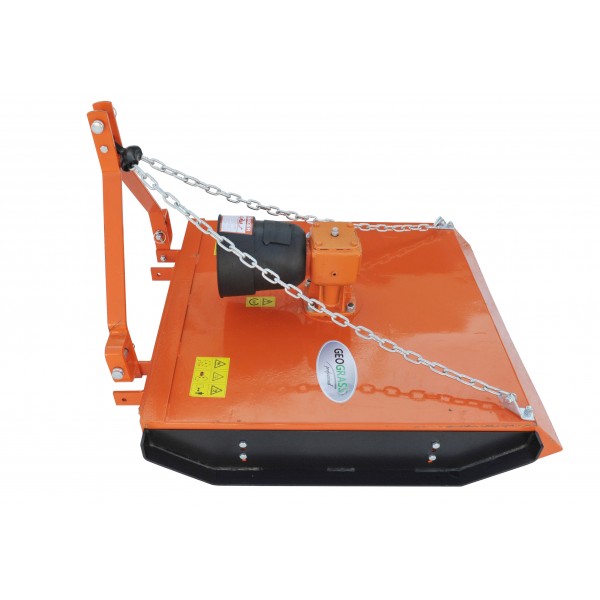

Orange MBER Geograss mulcher mower.

MBER Geograss is a mulcher mower with which, besides green grass, we can also mow wasteland with plants of moderate thickness. The mower will also cut small, young self-seeded trees and shrubs as well as residues left after farm crops. The agricultural mulcher is fitted with heavy blades (2 x 3 kg), which, combined with a strong gearbox, give very large mowing capabilities, even for tougher materials such as low shrubs and crop residues, e.g. maize. The durable construction, solid housing, high-quality bearings and strong gearbox allow many hours of use of the mower, even in difficult terrain and for many hours a day.

A brand created for Professionals . The equipment has been equipped with bearings with increased durability and stronger components, thanks to which the structure is even more stable. Increased parameters give GEOGRASS devices increased service life and even longer trouble-free operation.

Simple in construction and in knitting, a single-propeller tractor-mounted mower with two cutting knives.

Dimensions:
- Working width 1200 mm.
- Overall width: 1300mm.
- Cat 1 3-point hitch mounts.
- Weight: 150 kg.
- Number of knives: 2 knives placed on one rotating propeller.
- PTO/PTO shaft speed: 540 rpm.
- Cutting height adjustment on mower skids.

THE MOWER'S CONSTRUCTION ALLOWS TO MOVE THE TURRET RELATIVE TO THE MOWER AXIS BY 150 MM TO THE RIGHT OR LEFT .

It is recommended to use PTO shafts with a clutch .
