Ergonomic design
The LS Tractor XJ series is, above all, a perfect fit for your needs. You choose how the tractor will be equipped to meet all your expectations.
The design of the LS Tractor tractors has been designed with versatile use in mind. These machines will work well in the field, garden, orchard, plantation, transport and municipal work. Thanks to the tractor configuration options and the availability of equipment dedicated to LS tractors , this machine will be an ideal partner for work.
Freedom of configuration
When choosing an XJ series tractor, you can fit additional LS equipment to it:

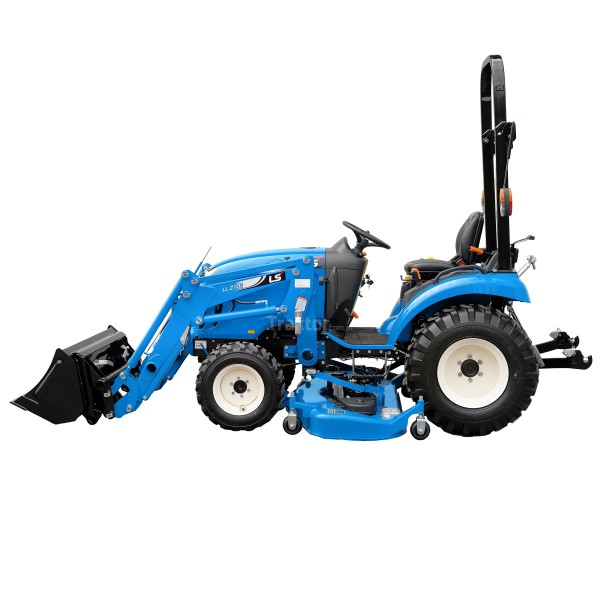

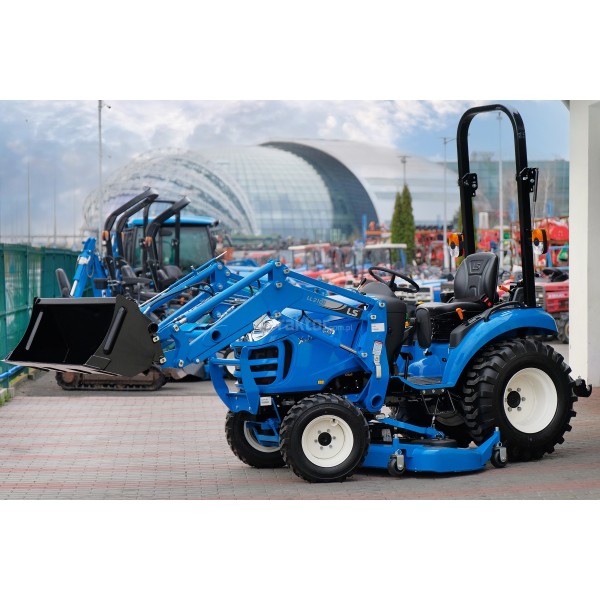

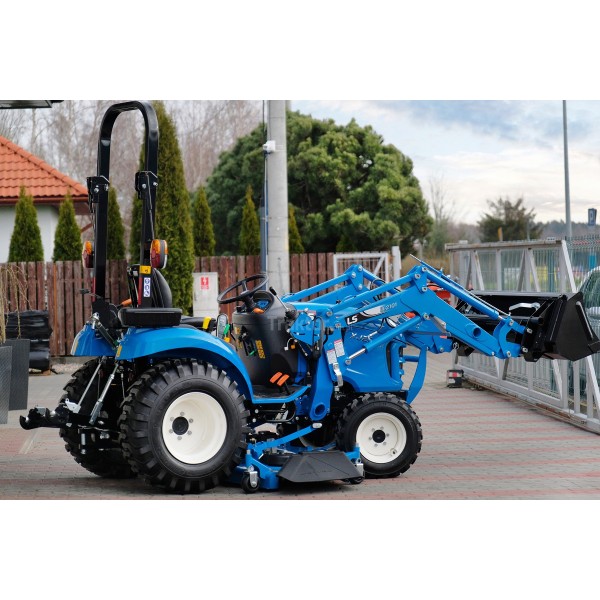

The combination of the XJ25 tractor with a front loader gives us even more possibilities, making our tractor multi-functional.
Strong and Comfortable
The XJ25 model is a compact tractor classified as Premium. Under the hood of this machine there is a 3-cylinder Mitsubishi S3L2-Z561GT Diesel engine with a power of 24.4 HP. It guarantees very good operating parameters and high efficiency. Additionally, 2 hydraulic outlets allow you to connect a wide range of equipment to the tractor.

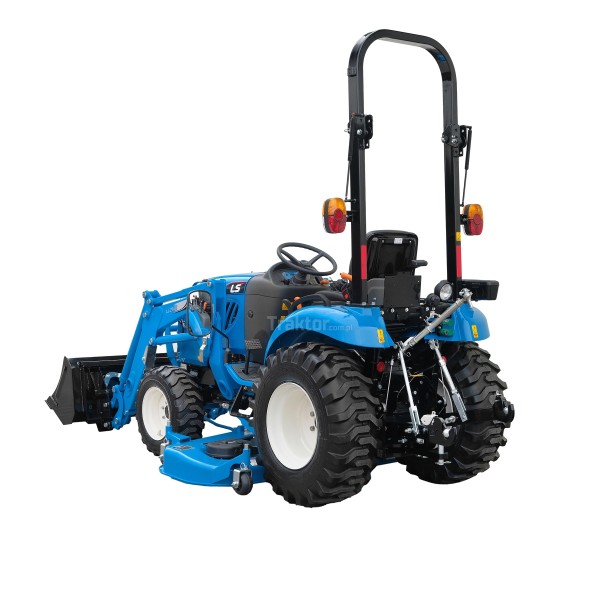

The XJ25 model is equipped with a 3-point three-point linkage Cat I with a lifting capacity of 650 kg and a rear and inter-axle PTO shaft, which allows for versatile use of the tractor. Four-wheel drive, power steering, convenient PTO engagement and intuitively placed control levers make the XJ25 tractor an ideal machine, created according to your preferences.
The XJ25 model has a hydrostatic gearbox. This is an exceptionally comfortable option, which does not require additional manual gear changes. It is operated by two pedals F3 and R3, pressing the appropriate one changes the direction of travel - forward or backward. This allows for a very comfortable drive, similar to driving a car with an automatic gearbox.

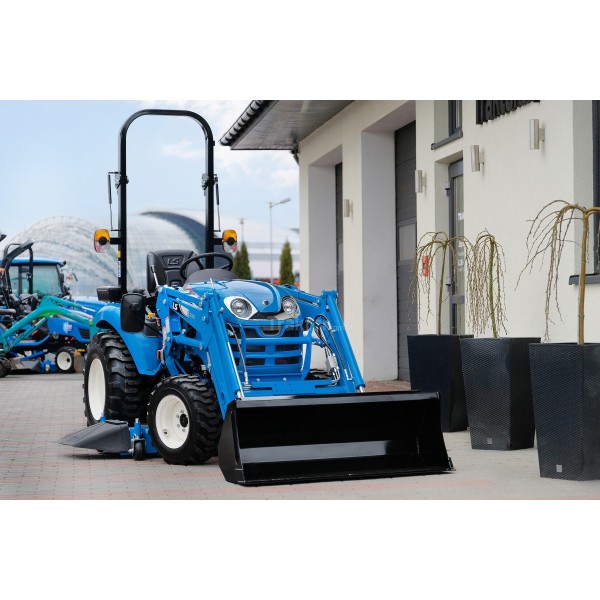

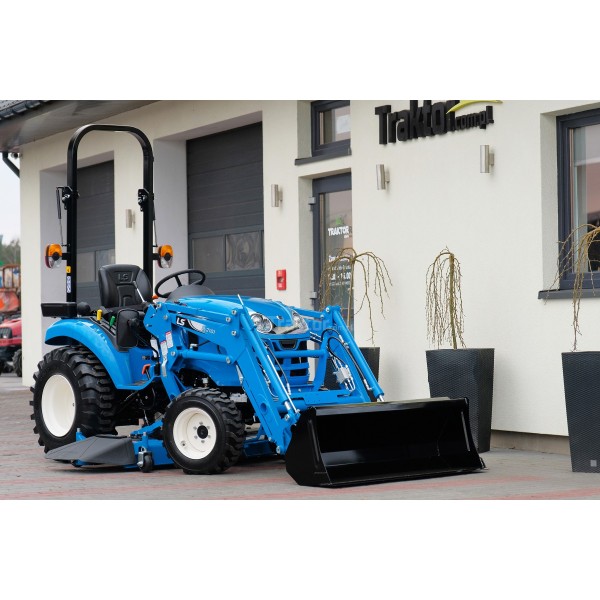

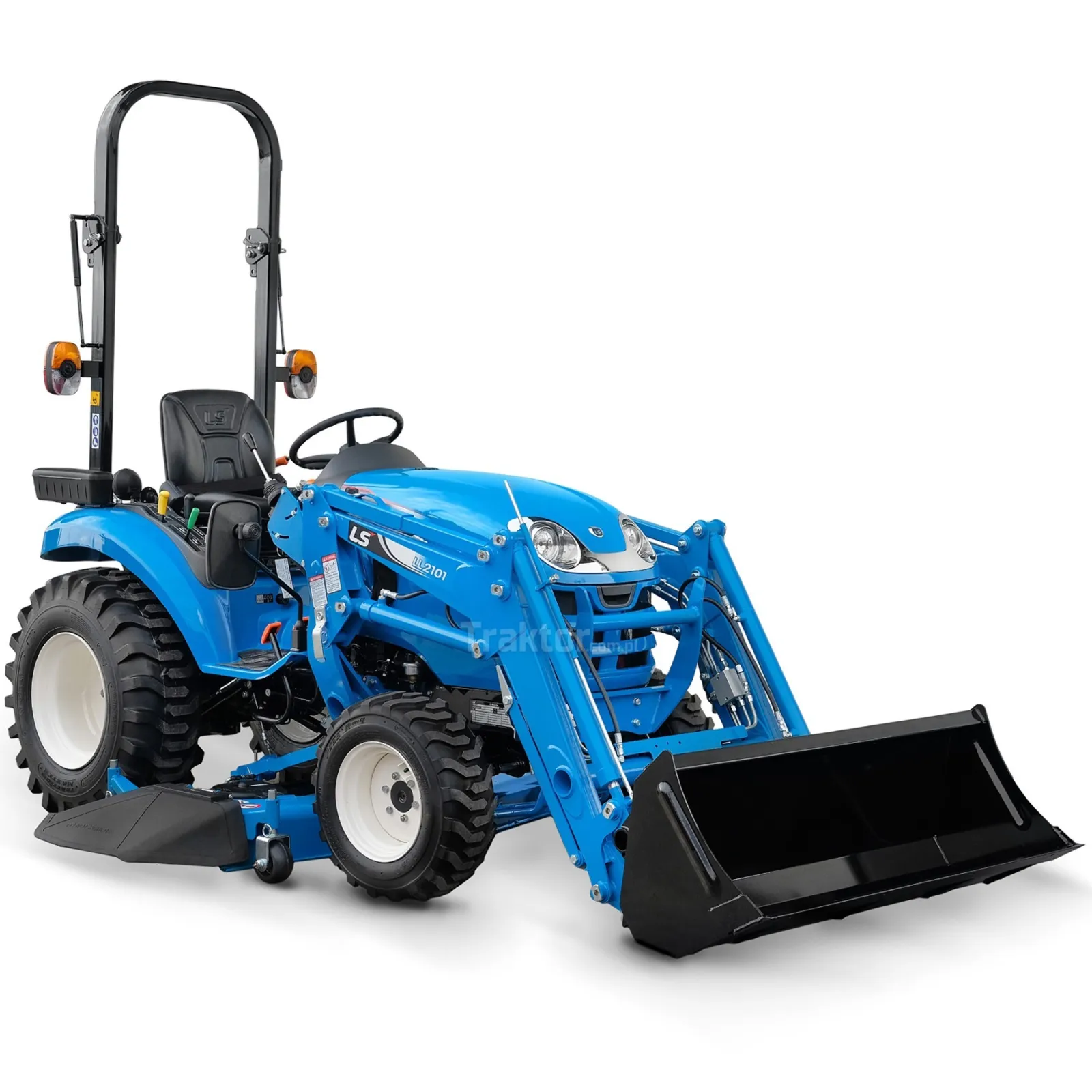

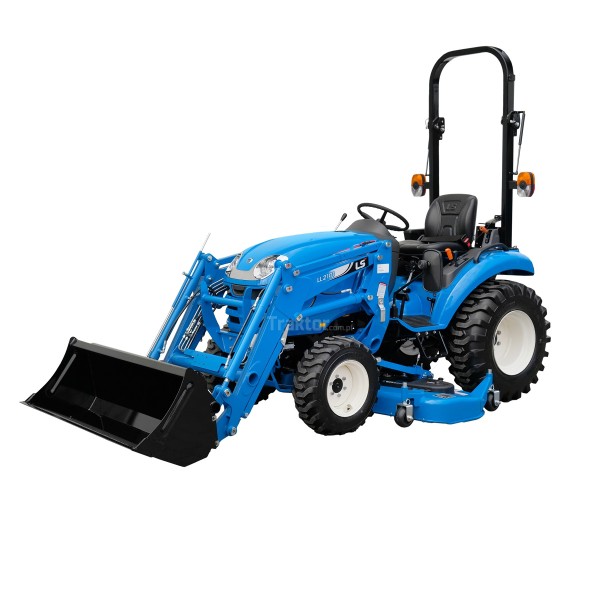

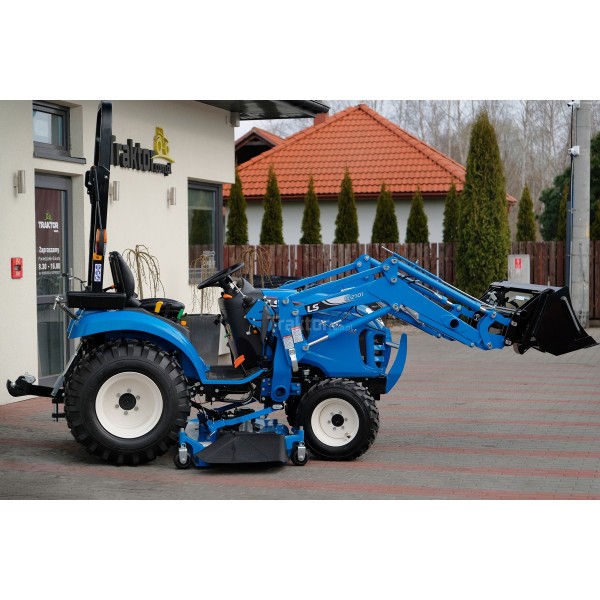

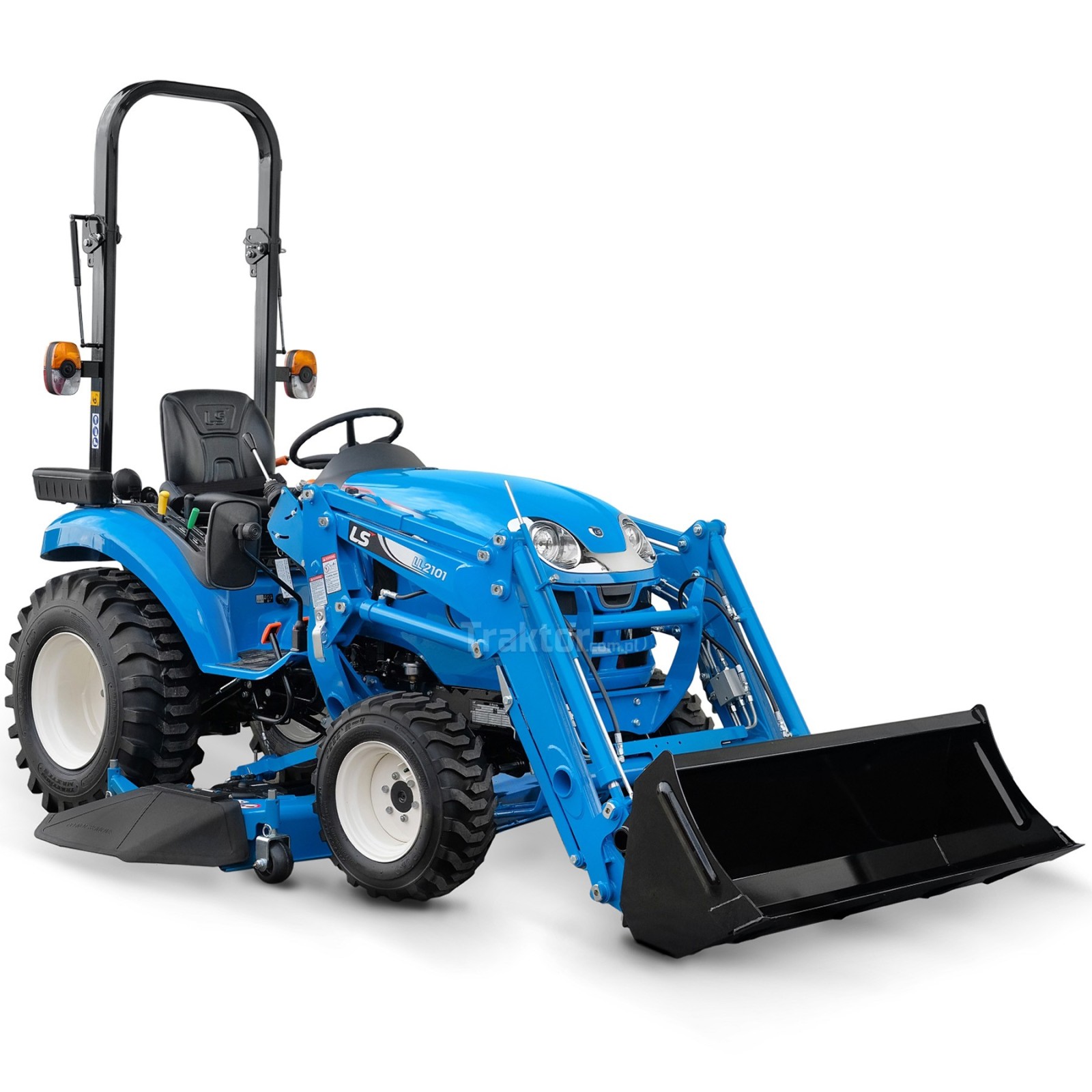

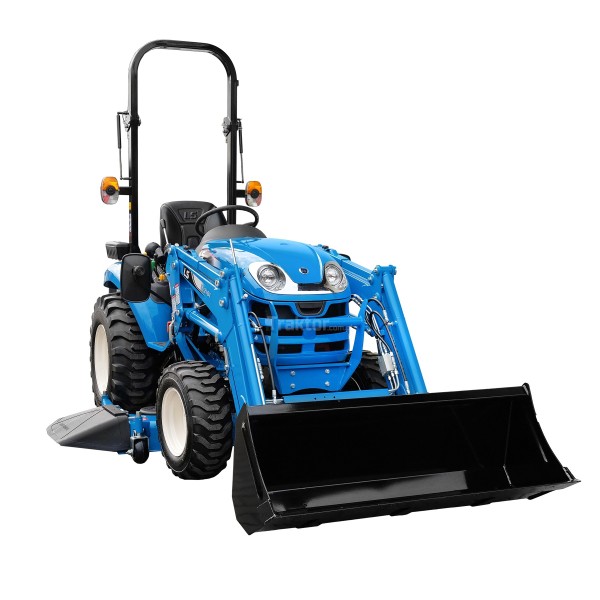

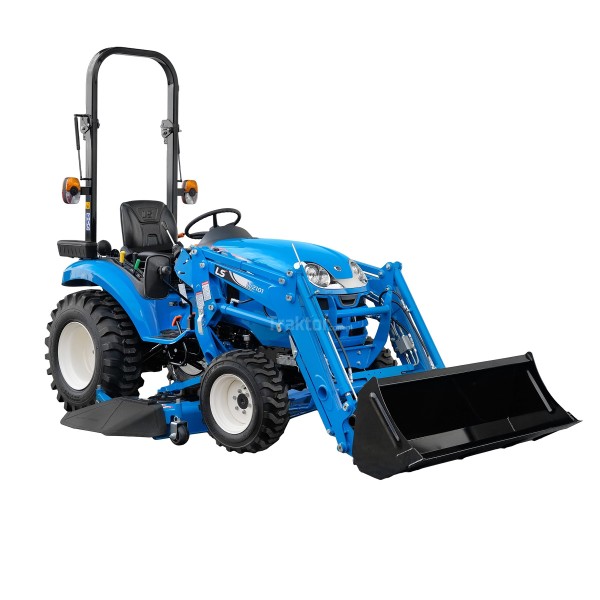

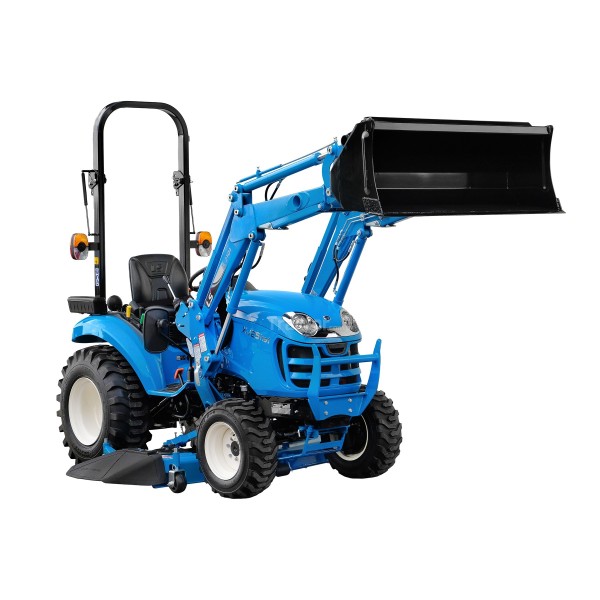

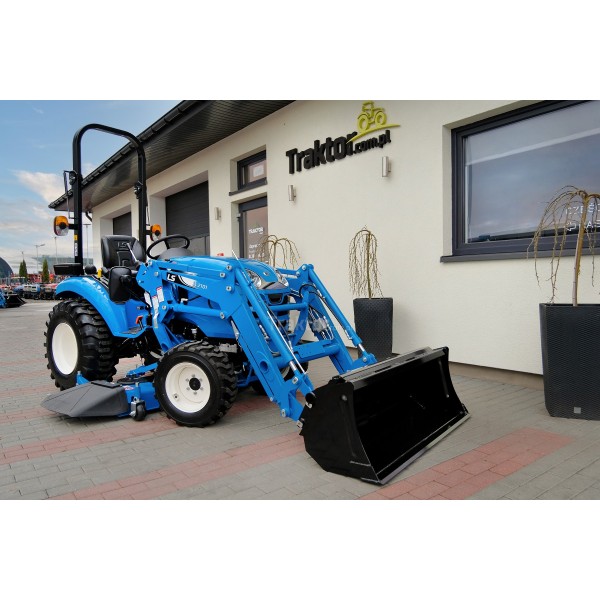

LL2101 - TUR front loader for LS XJ25 tractor
The front loader with the symbol LL2101 is the original, standard front loader dedicated to LS XJ25 tractors. The front loader, the so-called TUR, thanks to its very durable construction and well-thought-out design is able to lift much more weight than other tractors of similar size and power. One of the many advantages of this loader is its quick assembly and disassembly, which is allowed by, among others, quick hydraulic connectors and special supports for storage.
Safety and comfort of work
The LS front loader has a safety valve , which prevents the load from being lifted higher in the event of the loader being overloaded. Automatic bucket adjustment is another convenience and improvement in the quality of work, the automation is designed to regulate the position of the bucket during the movement of the loader arm. Tractors equipped with a hydraulic distributor with a floating section have bucket protection functions at their disposal, the function automatically folds the bucket when it encounters an obstacle that is too large. The loader is equipped with a cover protecting the grille from damage as standard.
Key Features of the LL2101 Loader
- Load capacity: 500 kg,
- Bucket width: 1270 mm,
- Maximum lift height: 2132 mm, 1945 mm (bucket horizontal), 1585 mm (bucket fully lowered),
- Bucket capacity: 0.19 m3,

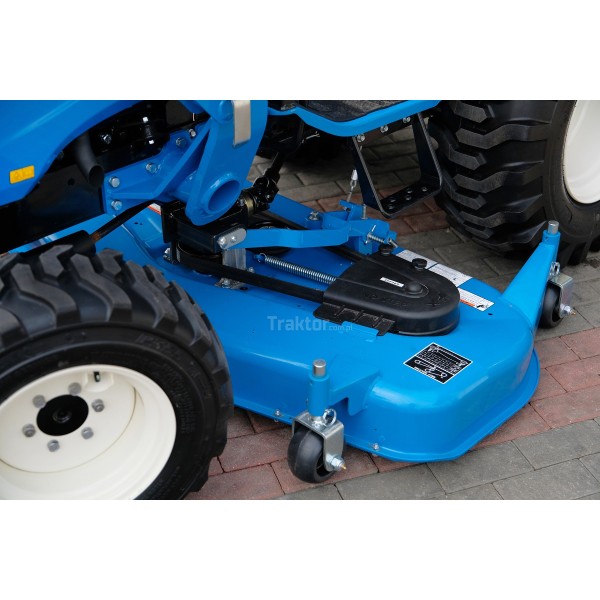

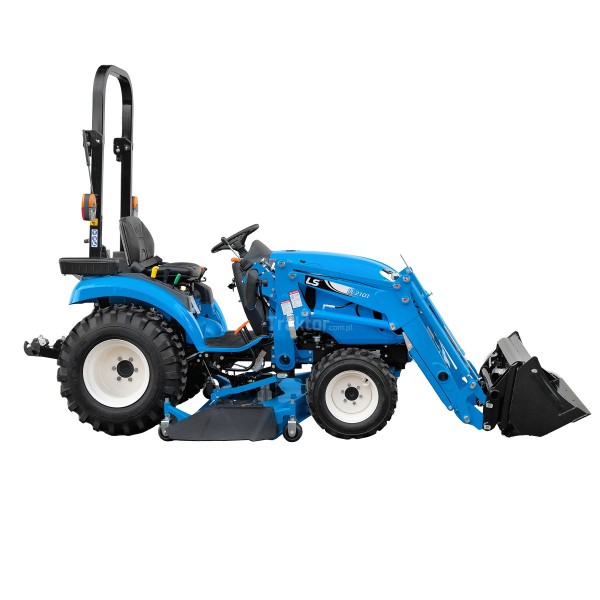

Mid-axle care mower LS LM1160.1

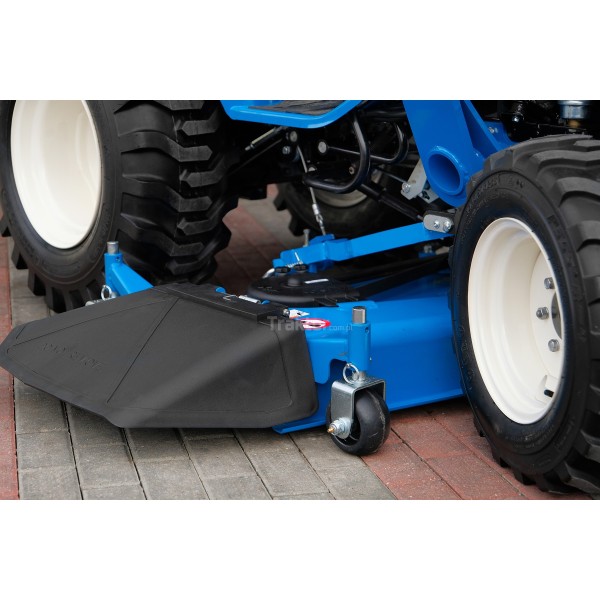

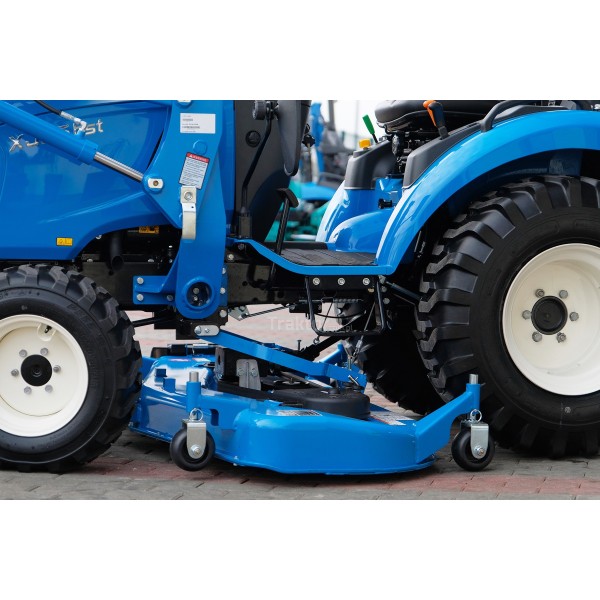

A maintenance mower is a mower designed for mowing large areas , where mowing is done regularly and when we want nicely cut grass. Its design allows it to be mounted between the tractor axles.
The cutting element consists of three blades, which are driven by a V-belt through an angle gear connected to the central PTO shaft. The mower is designed for tractors from the M1 and XJ series.
It has been designed to make connecting and dismantling the device as time-consuming as possible and the operation itself is very simple to perform even for a less experienced operator.
Perfect cut with the LM1160.1 lawnmower

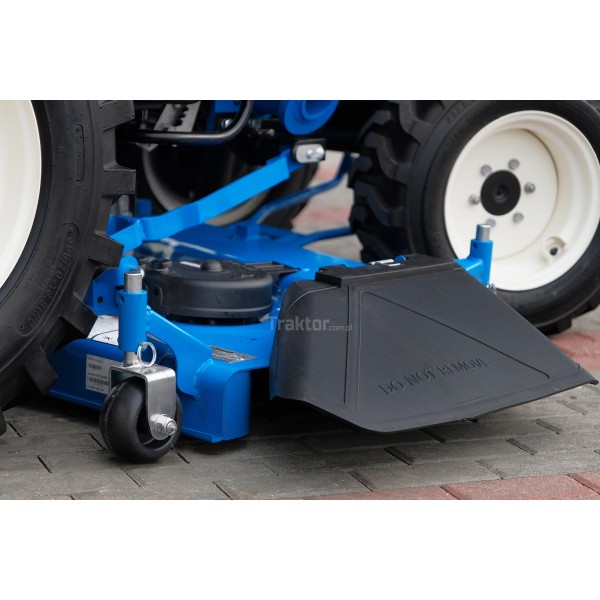

The LM1160.1 mower has a durable construction, and the efficient operation of the device is possible thanks to the use of the best materials and technological solutions. The machine allows for high quality cutting, is low-failure, and its operation is exceptionally quiet. The lowering and raising of the maintenance mower is done hydraulically. The cutting height is adjusted using a knob, allowing you to select the appropriate operating parameters for the terrain. To protect against uneven terrain, the mower is equipped with support wheels that prevent damage.
Key Features:
- cutting width: 1521 mm,
- total width: 1921 mm,
- weight: 129 kg,
- number of knives: 3 pcs,
- maximum knife speed: 2650 rpm,
- cutting height adjustment: 4 ranges.
LS Tractors represent modernity, high operator comfort and the highest quality of workmanship.
