Hydraulic oil filter Kubota B1400, Kubota B6100E, INSERT, 66021-36390
Do you have any questions?

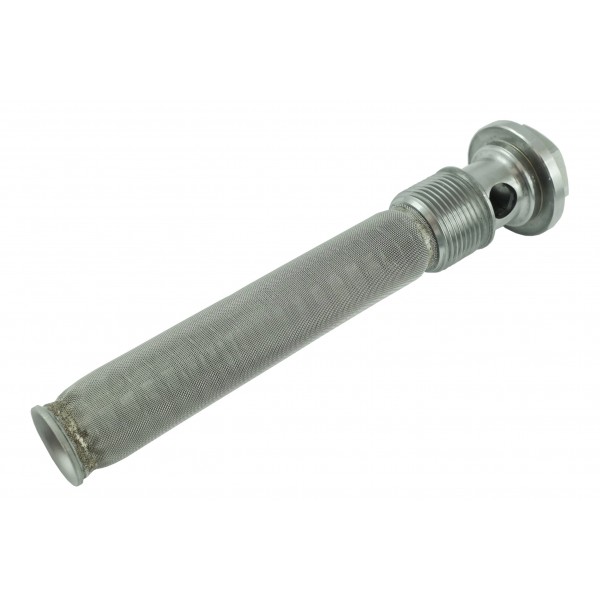

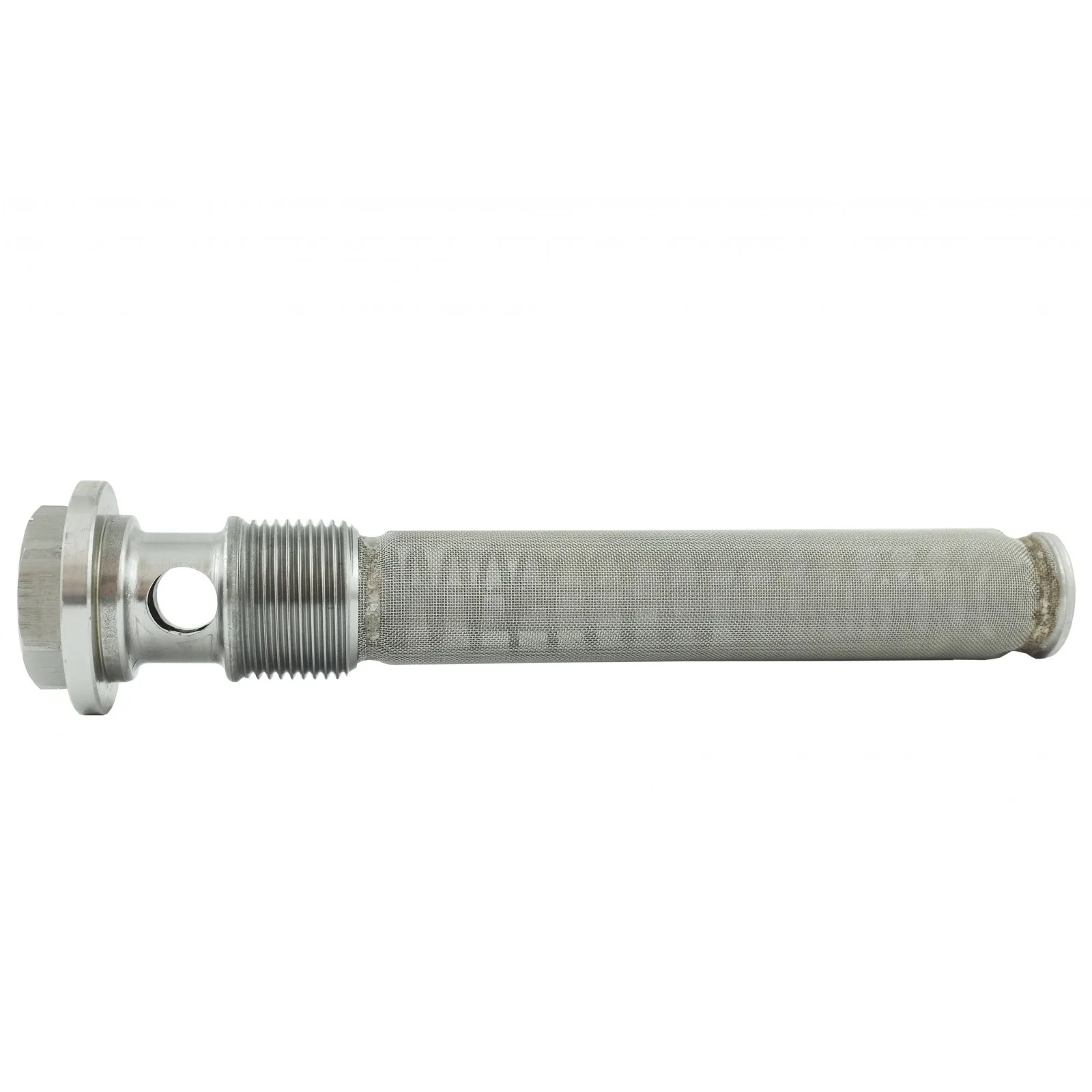

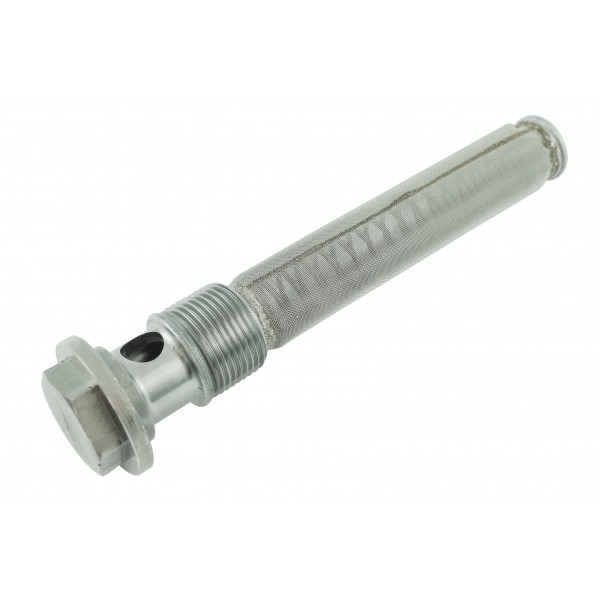

Hydraulic oil filter Kubota B1400, Kubota B6100E, INSERT, 66021-36390
Kubota B1400, Kubota B6100E hydraulic oil filter CARTRIDGE.
The main task of the hydraulic filter is to clean the hydraulic oil, stop all impurities that enter the hydraulic system , or are created during the use of the tractor, e.g. solid particles (minerals), which are created during the operation of the machine. The hydraulic filter is replaced every time we change the hydraulic oil or when the vehicle is used frequently, in the case of mini tractors, this is approximately every 100 operating hours in the case of used tractors. The principles of replacing the hydraulic filter in new tractors are described in detail in the machine's operating instructions and usually this is after the first 50 operating hours (at least 3 cycles). The hydraulic filter is most often a metal filter with a thread and a seal , which is mounted near the tractor's box exactly in the flow path of the hydraulic system oil, most often from the bottom of the box or under the floor of our tractor.
Dimensions:
- Total length: 170 mm.
- Insert length (metal mesh): 117 mm.
- Diameter: 22 mm.
- Thread: 3/4"-BSP.
- Thread length: 17 mm.
- Nut: 26 mm.
- Weight: 0.2kg.
ORIGINAL KUBOTA PART.
Tractor models:
- Kubota B1400
- Kubota B6100E
Comparison numbers:
- 66611-36120
- 66021-36390
- 67156-36120
Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter guarantees trouble-free operation of the machine and ensures that there are no foreign bodies in the hydraulic system that may damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.
Magazine: M01: F54
Specification
- Kubota D850L
- Kubota B6100E
Kubota is one of the leading manufacturers of heavy agricultural equipment based in Osaka. The company was established in 1890 by Gonshiro Kubota. For several years, it produced tractors under license from FIAT.
It was only in 1978 that the company released its first tractor entirely on its own components to the market. In 2010 , Kubota announced production of 3.5 million tractors. Nowadays, Kubota is one of the global concerns employing approximately 25,000 people around the world.
From the beginning of its activity, it has been cooperating with the best suppliers and manufacturers of parts and components, which results from cooperation with Fiat and Nissan. The company has 34 representative offices around the world, mainly in Europe: Germany, Great Britain, France, Spain, Poland, the United States and Canada.
Kubota is a company that is known for its long life and high quality of workmanship, which is why it is currently very popular among many users around the world.
Their wide range of agricultural tractors allows each user to choose a model tailored to their individual needs and preferences.
