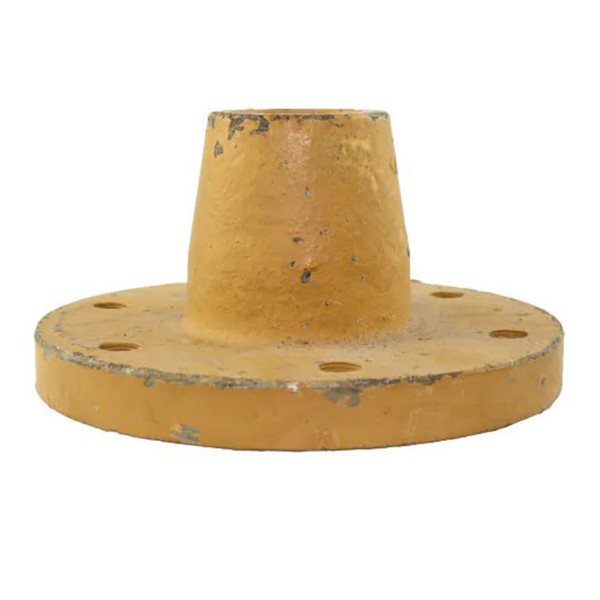

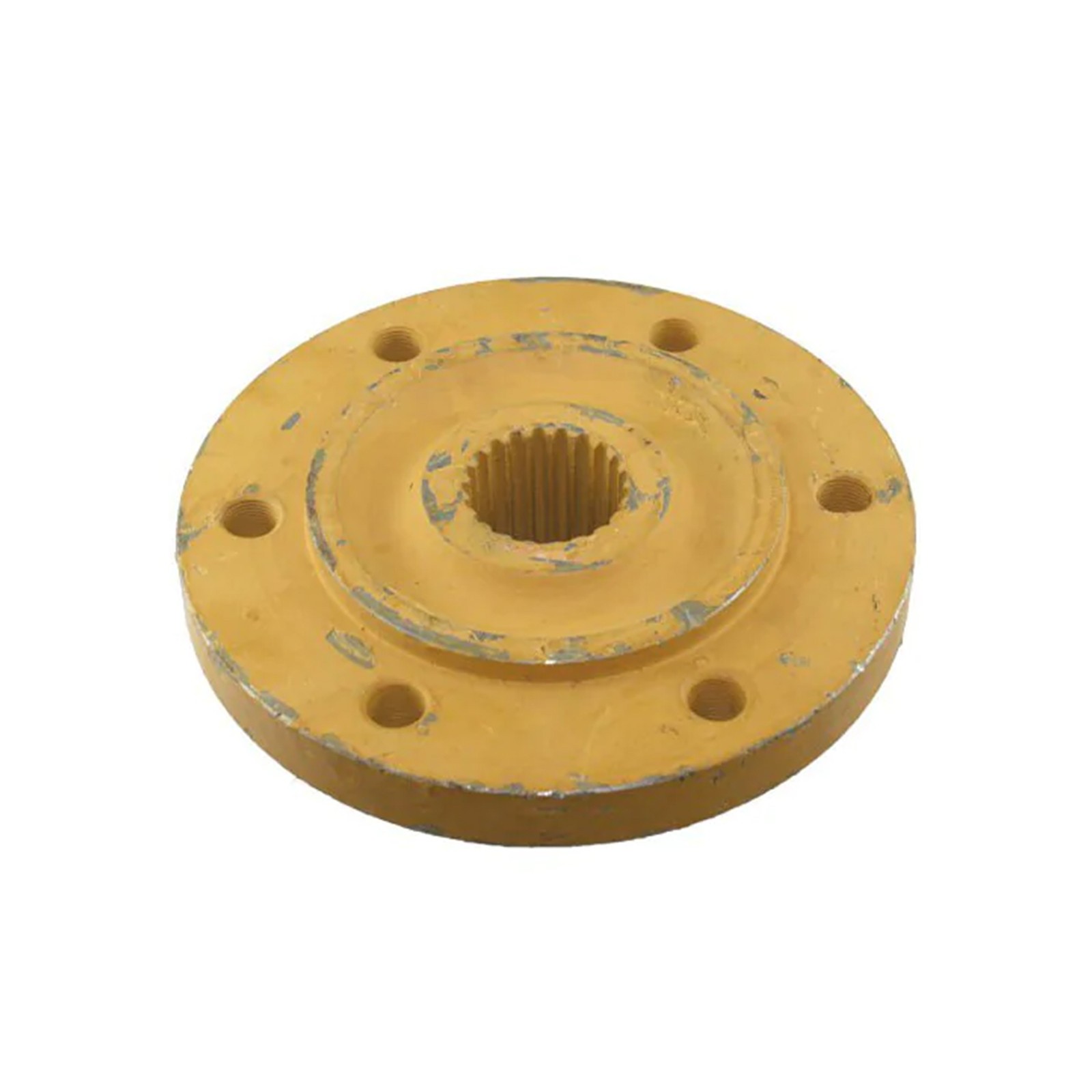

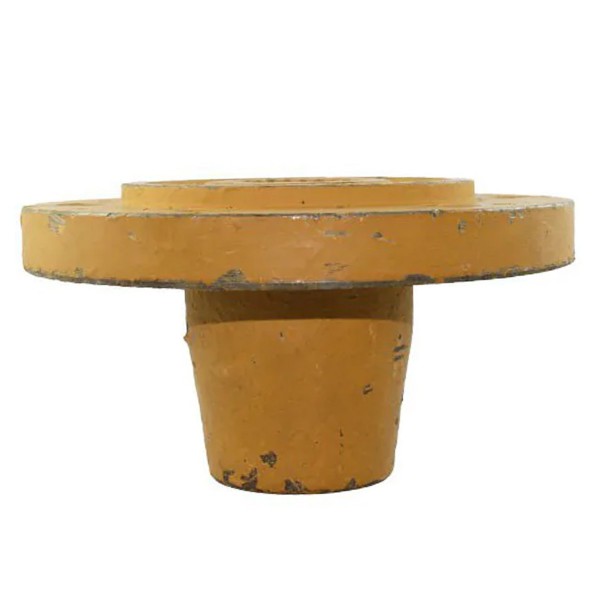

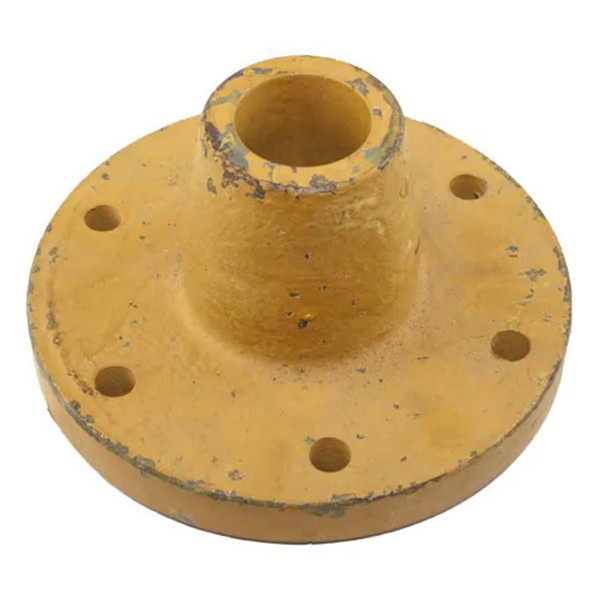

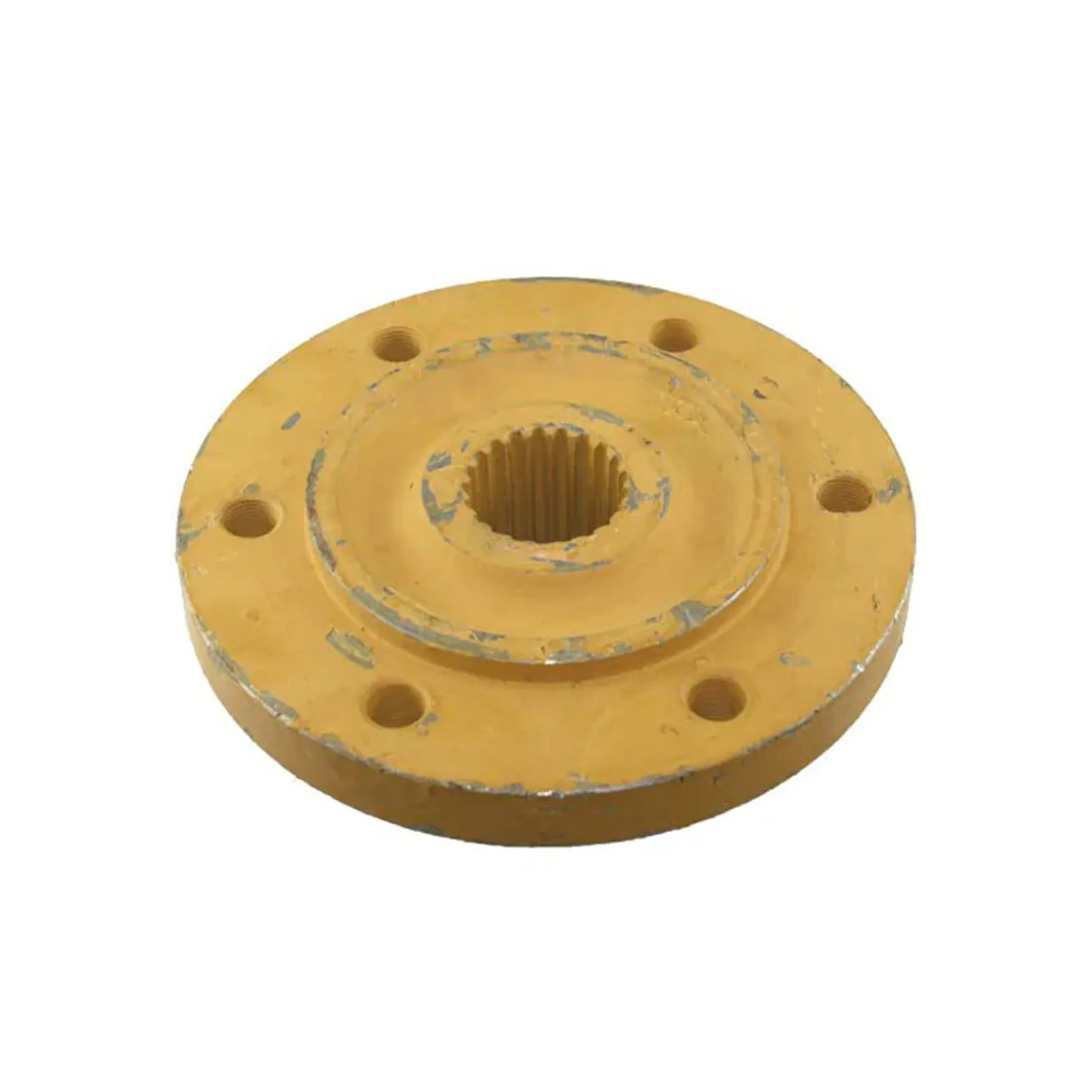

Rear wheel hub 21T / 208 x 45 mm / Hinomoto E28
7-09-101-11
Do you have any questions?
Rear wheel hub 21T / 208 x 45 mm / Hinomoto E28
Rear wheel hub with an outer diameter of 208 mm , an internal diameter of 45 mm (measured between the teeth of the cutter) and a height of 114 mm for Japanese Hinomoto E -series tractors and others.
The hub is an element of the tractor's undercarriage to which the wheel is bolted. The hub is placed in the so-called reduction gear and allows the wheel to rotate freely and is responsible for keeping the wheel in the right position.
Dimensions :
- height: 114 mm,
- outer diameter: 208 mm,
- number of holes for mounting screws: 6 pcs.
- internal diameter: 45 mm (measured between the teeth of the cutter),
- spacing of holes for fastening screws: 168 mm (measured diagonally), 85 mm (measured from each other),
- mounting bolt hole diameter: 15 mm,
- number of teeth: 21T.
Tractor models :
Hinomoto :
- Hinomoto E28.
The first signs of wheel hub wear are problems with keeping the right direction of travel, sometimes combined with loud noise coming from the wheel area, especially noticeable when braking and accelerating the tractor. An extremely worn out wheel hub may lead to blockage or even detachment of the wheel from the tractor.
Warehouse :
M01: B72
Specification
Magazyn: M01:B72
Condition
New
Production
Substitute
Parts
Chassis
Tractor models
Hinomoto E28
Number of teeth (pcs/T-teeth)
21T
Height (mm)
114
Outer diameter (mm)
208
Inner Diameter (mm)
45
Mounting bolt(s) hole diameter (mm)
15
Bolt hole spacing (mm)
85 / 168
Color
Yellow
HINOMOTO is one of the most popular Japanese manufacturers of agricultural tractors, known mainly in Japan. Hinomoto was a trade name for tractors manufactured by Toyosha. Toyosha has its roots in plows built by Denzou Tanoue in 1863. Hinomoto compact tractors appeared in the 1950s. It produced 68 models of mini tractors.
The company produced tractors and mini tractors with Toyosha engines under its own trademark HINOMOTO until 1990. TOYOSHA was also the previous name of the company under which agricultural equipment was produced. In 1990, the company became part of Hitachi Tierra, and the Hinomoto name was finally abolished in 1997.
HINOMOTO also produced tractors for other international concerns under their own names, including: for: Massey Ferguson, Deutz-Allis, Simplicity and Allis-Chalmers.
The Hinomoto company is the largest importer of Japanese mini tractors, single-axle tractors and other machines in Eastern Poland.
