zł85.00
To order
Condition
New
Production
Substitute
Parts
Engine
Engine model
Yanmar 3TNB84
Tractor models
- Yanmar F22
- Yanmar F24
- Yanmar F24
Length (mm)
306
Thickness (mm)
1.60
Head gasket Ø86 mm, Yanmar F22 / F24 / Yanmar 3TNB84
3TNB84 / 86
Do you have any questions?

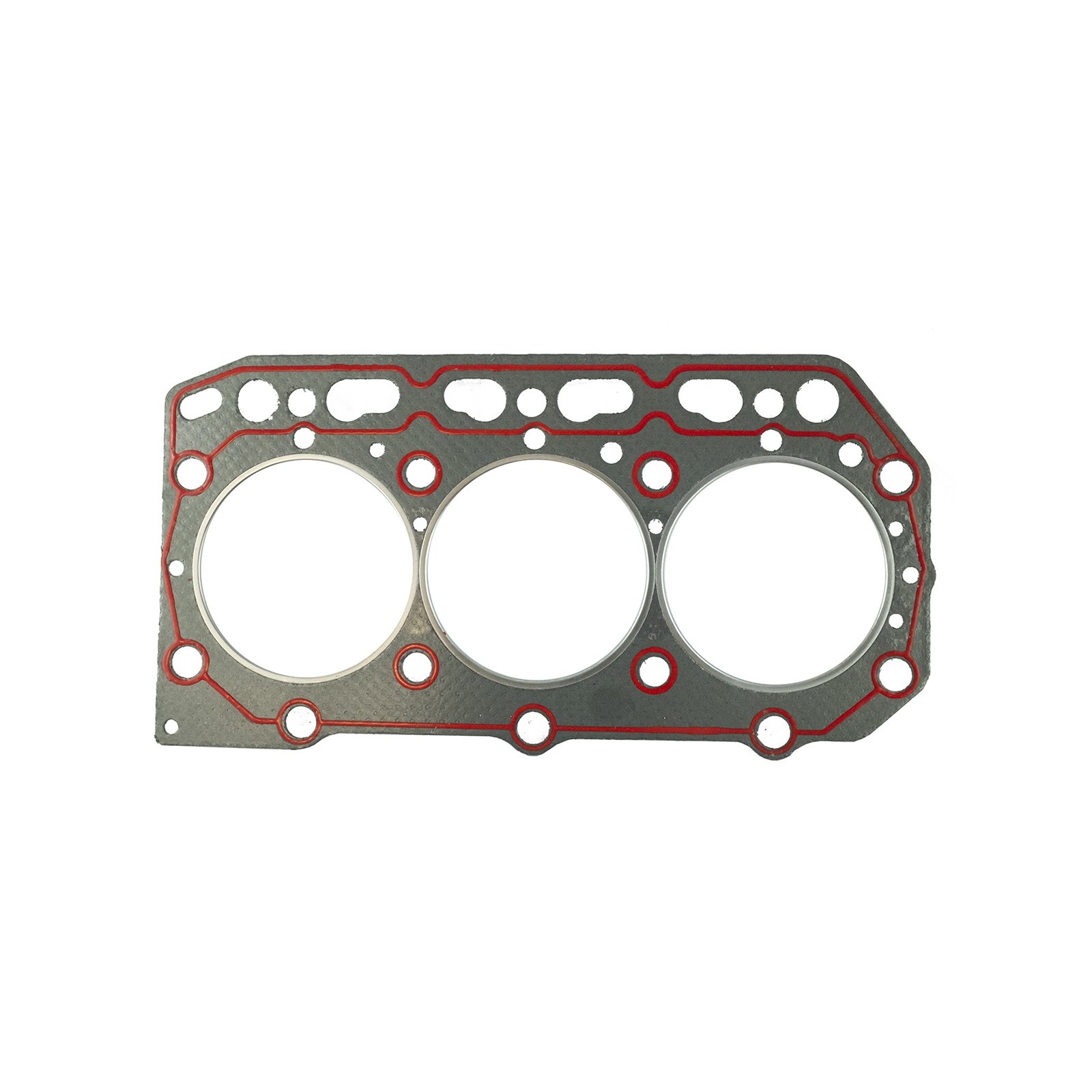

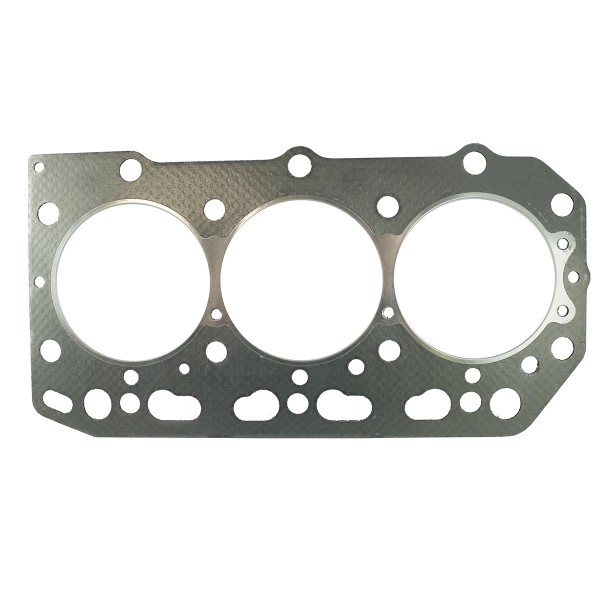

Head gasket Ø86 mm, Yanmar F22 / F24 / Yanmar 3TNB84
Engine head gasket with dimensions of 306 x 151 mm , piston hole diameter of 86 mm and thickness of 1.60 mm for Yanmar F series tractors with the 3TNB84 engine.
The engine head gasket is a gasket that is installed where the engine head connects to the engine block. The place where the block connects to the head must be tight for proper engine operation. The head gasket is designed to seal the operation of the cylinders, coolant channels and lubrication channels and to separate and prevent mixing of both fluids. The second task of the gasket is thermal insulation, because part of the engine block may heat up from the operating combustion chambers, up to 2000 degrees Celsius.
Dimensions :
- length: 306 mm,
- width: 151 mm,
- thickness: 1.60 mm,
- diameter of piston holes: 86.50 mm,
- comparison numbers:
Engine model:
Yanmar:
- Yanmar 3TNB84,
Tractor models :
- Yanmar F22,
- Yanmar F24.
The first signs of head gasket wear, gasket burnout, or gasket blowing are uneven operation of a hot engine, loss of coolant or oil, presence of oil in the coolant and coolant in the engine oil, or air bubbles visible to the naked eye in the coolant (expansion tank). ).
Warehouse :
M01:D12:S01
Specification
Magazyn: M01:D12:S01
Condition
New
Production
Substitute
Parts
Engine
Engine model
Yanmar 3TNB84
Tractor models
- Yanmar F22
- Yanmar F24
- Yanmar F24
Length (mm)
306
Thickness (mm)
1.60
Width (mm)
151
Diameter of piston holes (mm)
86.50
