Tire / 8.3-20 / 8.3x20 / 8.30x20 / 8PR / GRASS

Agricultural tire with an outer diameter of 860 mm , an inner diameter of 505 mm and a width of 190 mm .

A grass tire is a type of tire that is designed specifically for driving on grass or other soft surfaces . It has special treads that provide better traction and stability on these types of terrain. Grass tires are often used on off-road vehicles or agricultural machinery that travel on grassy areas. They can avoid damaging the grass and provide a smooth ride on these types of terrain.

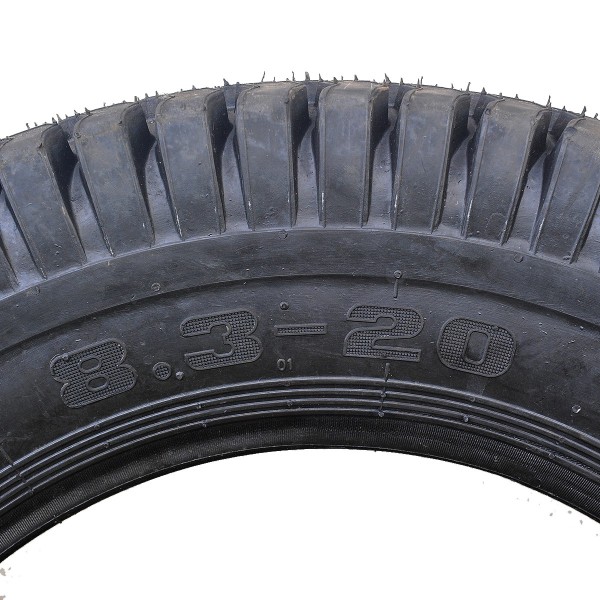

Agricultural tire sizes are most often given in inches (abbreviation or symbol: in or ″) and are a series of numbers and letters indicating the tire width, profile height and type of construction, tread type and rim diameter. An 8.3-20 agricultural tire is a tire:

• 8.30 - width 8.30 inches,
• 20 - inner diameter,
• 10PR - number of canvases.

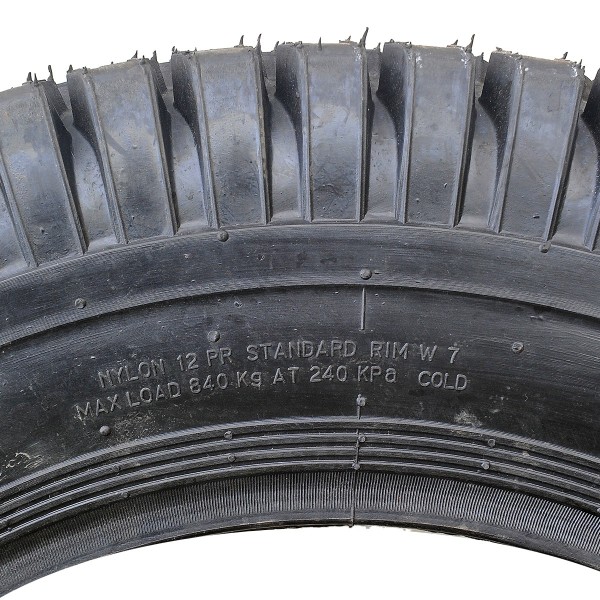

Additionally, the tire provides information about the number of X PR plies, the speed index e.g. TT and the maximum tire load in kg or lbs.

Dimensions :

• outer diameter: 860 mm (+/- 10 mm),
• inner diameter: 505 mm,,
• width: 190 mm (+/- 10 mm),
• number of canvases: 10PR,
• load capacity: 840 kg,
• pressure: 240 KPa,
• weight: 20 kg,
• tire size: 8.3-20, 8PR

Poorly selected tires for the tractor can damage the tire, the tractor or create a hazard for people and animals and affects work comfort and operation, e.g. fuel consumption. Maintaining the correct pressure of agricultural tires allows for optimal use of the driving properties of the tires, the power of the tractor and extends their service life.

Warehouse :
M04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
