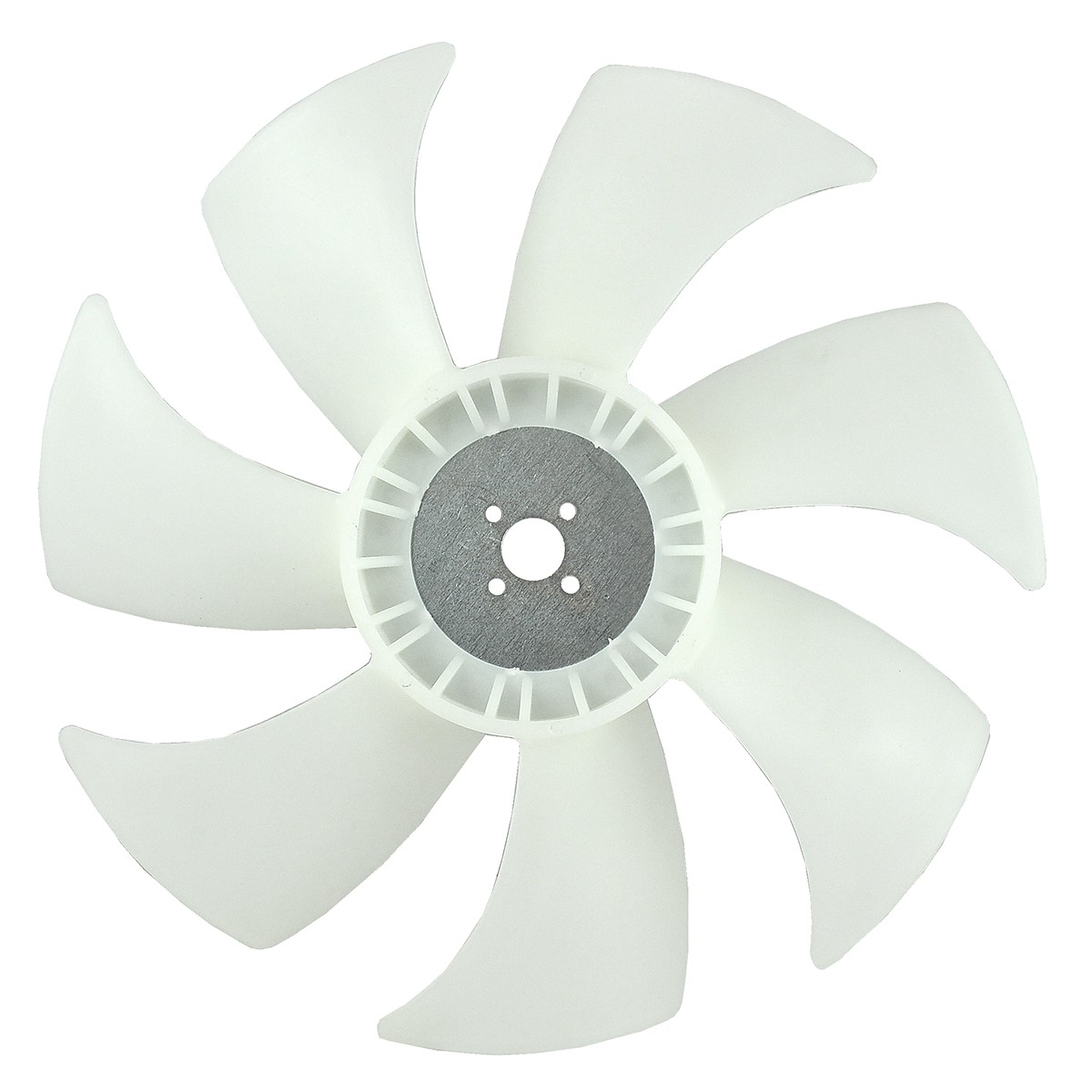

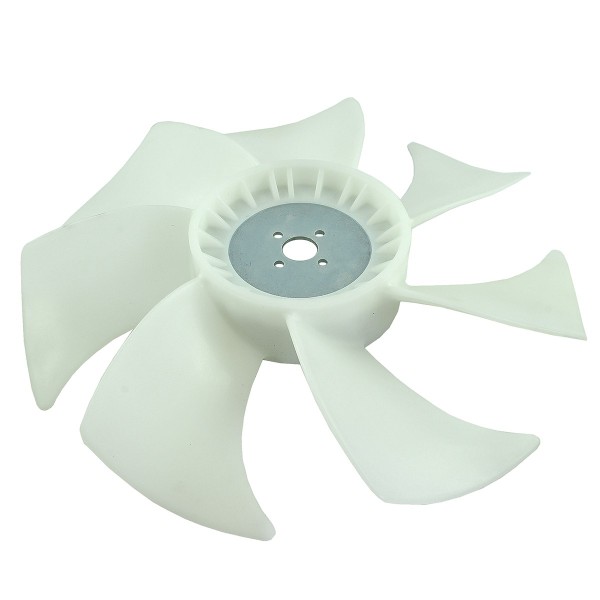

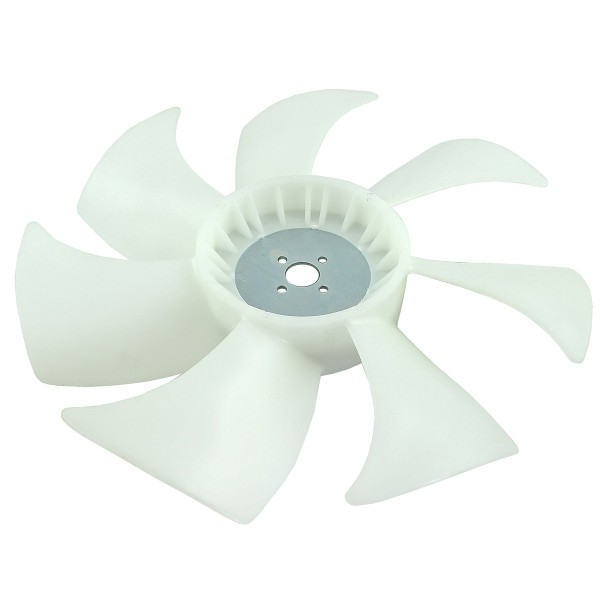

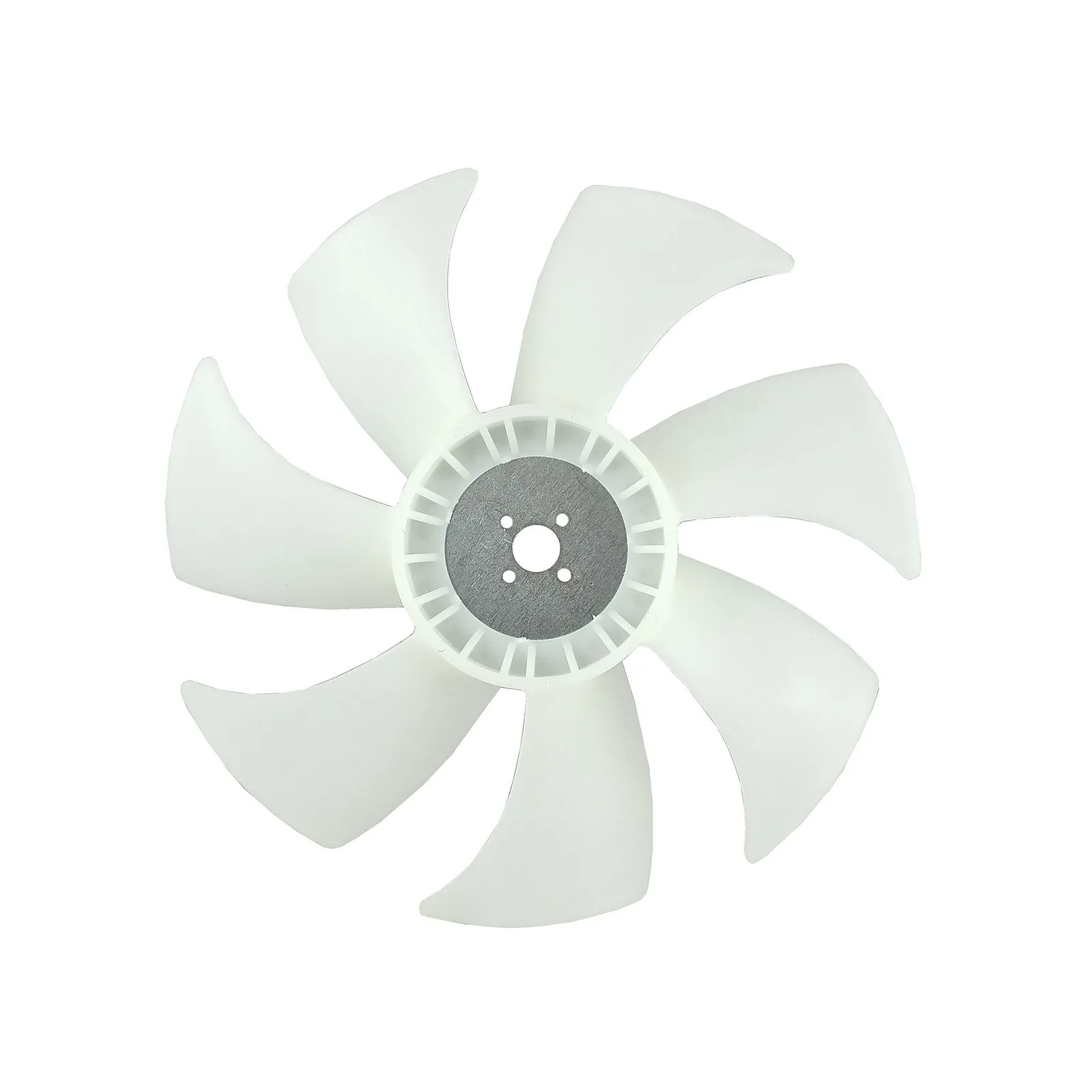

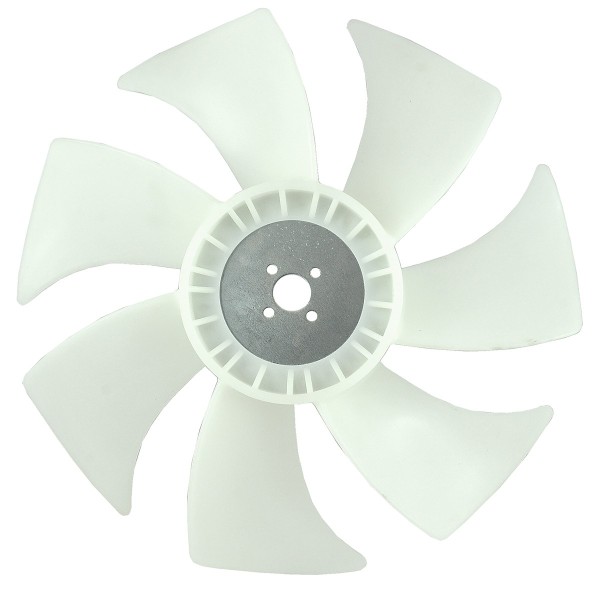

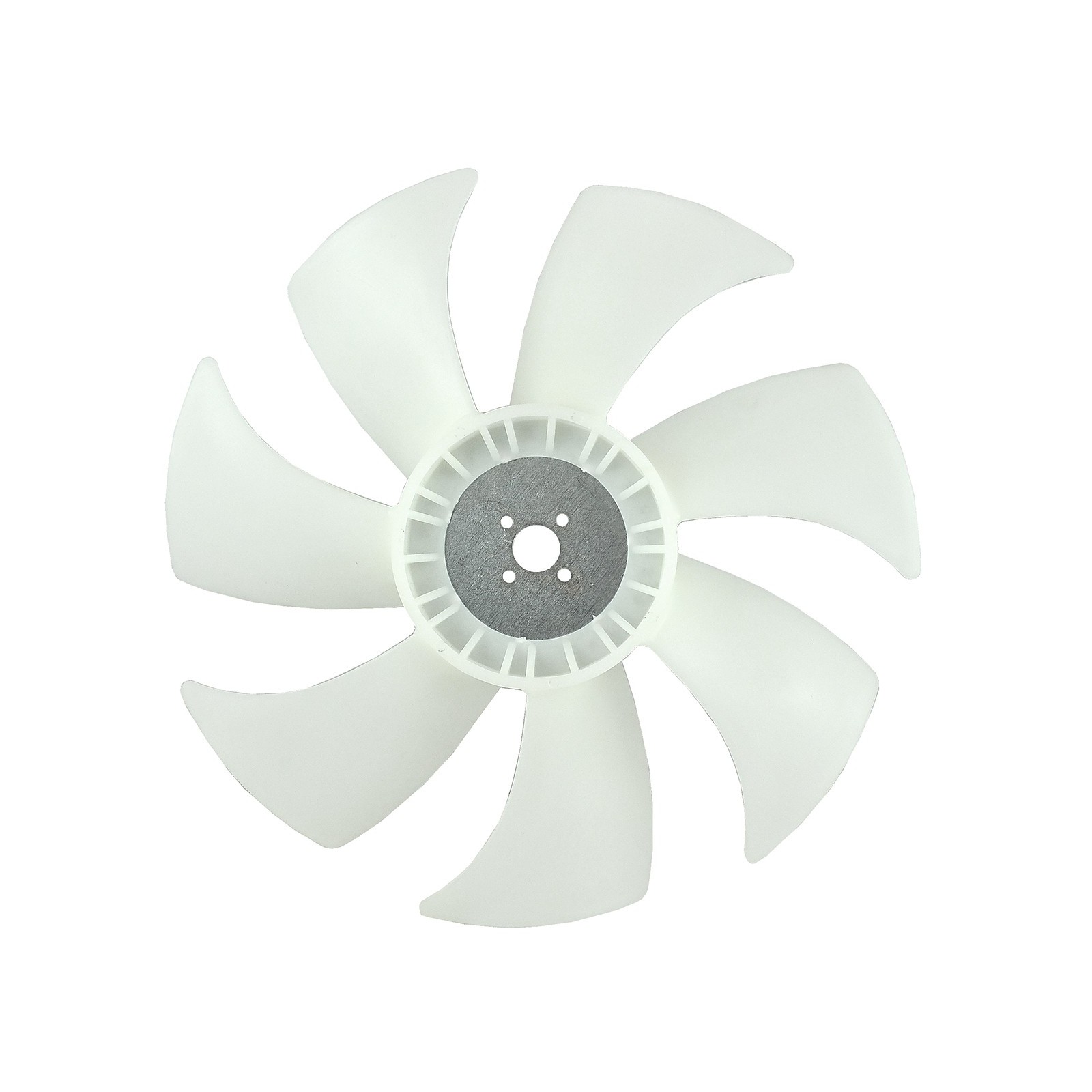

Radiator fan / Ø 380 mm / Yanmar 3TNV88 / Yanmar EF453T / EF494T / EF514T / 6-14-201-09

Fan blade with an outer diameter of 380 mm for Yanmar tractors of the series Yanmar EF453T, Yanmar EF494T, Yanmar EF514T with Yanmar 3TNV88 engines and others.

The fan impeller is a replaceable part of the radiator fan, which naturally wears out or is often damaged as the device's operating time increases. The main task of the fan impeller is to accelerate the cooling process of the coolant in the radiator. Increased airflow is created during the operation of the fan, the impeller of which is screwed to the flywheel of the water pump

Dimensions :

• outer diameter: 380 mm,
• central hole diameter: 24 mm,
• diameter of mounting screw holes: 7 mm,
• mounting screw hole spacing: 40 mm (measured diagonally), 28 mm (measured from each other),
• height: 54 mm,
• number of blades: 7 pcs.
• original part numbers: 129655-44740,
• part numbers: 6-14-201-09.

Tractor models :

Yanmar :

• Yanmar EF453T,
• Yanmar EF494T,
• Yanmar EF514T.

Engine models :

Yanmar :

• Yanmar 3TNV88.

The most common damage to the fan impeller is mechanical damage resulting from collisions, but the fan also suffers damage while operating the machine in difficult road conditions, e.g. heavy dust, sandy ground, mud.

Warehouse :
K18:A02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
