Condition
New
Production
Substitute
Parts
Cooling system
Engine model
- Kubota V2607
- Kubota V3307
Kubota D1803
Kubota V2203-M
Kubota V2403
Tractor models
- Kubota M6800
- Kubota M8200
- Kubota M9000
Kubota M6040
Kubota M7040
Number of blades (pcs.)
8
Height (mm)
40
Go to full specification >

Cooling fan / Ø410 mm / Kubota D1803 / V2203-M / V2403 / V2607 / V3307

16483-74110
zł140.00
Tax included PL 23% Dostępny na zamówienie

113,82 netto

  • To order

Do you have any questions?

Cooling fan / Ø410 mm / Kubota D1803 / V2203-M / V2403 / V2607 / V3307

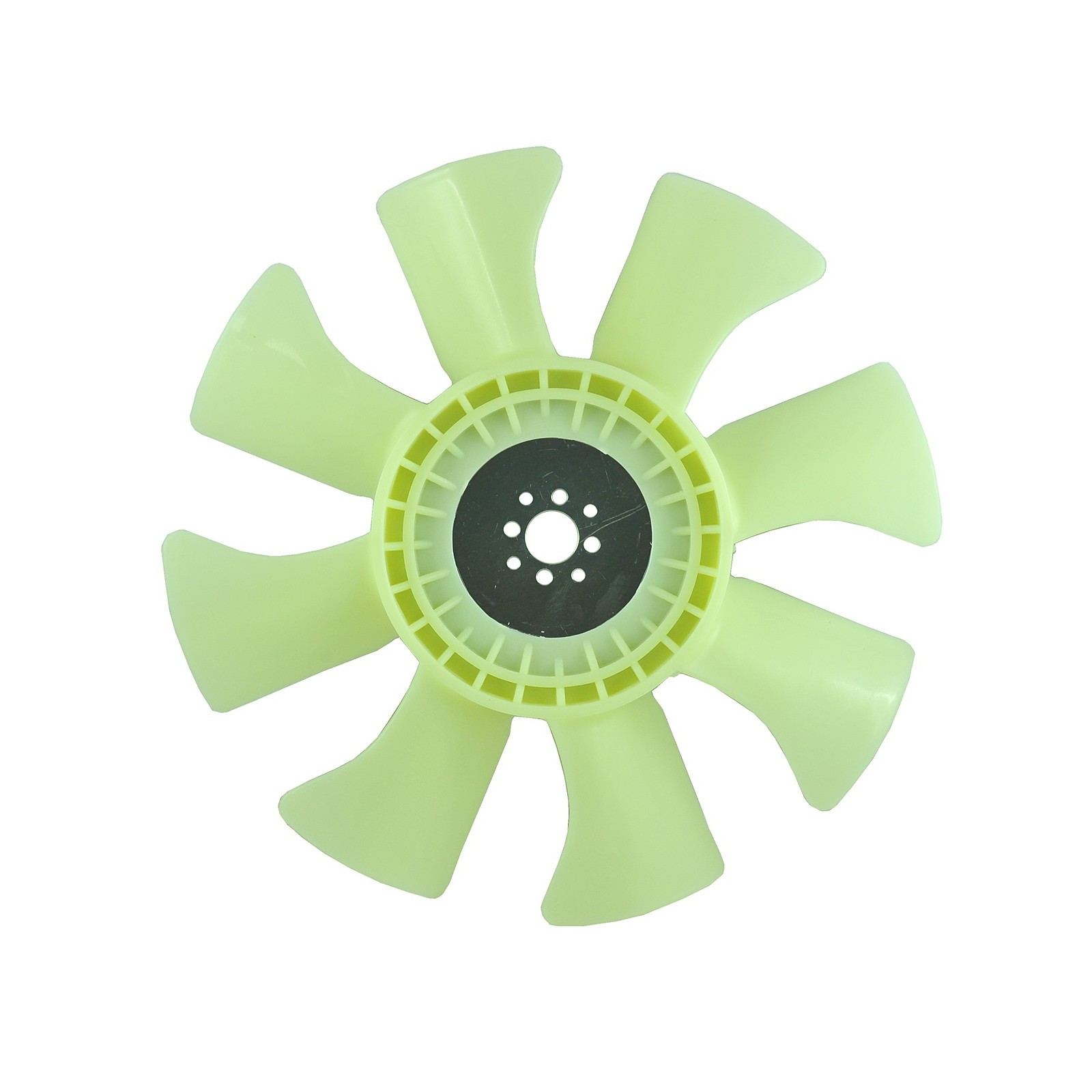

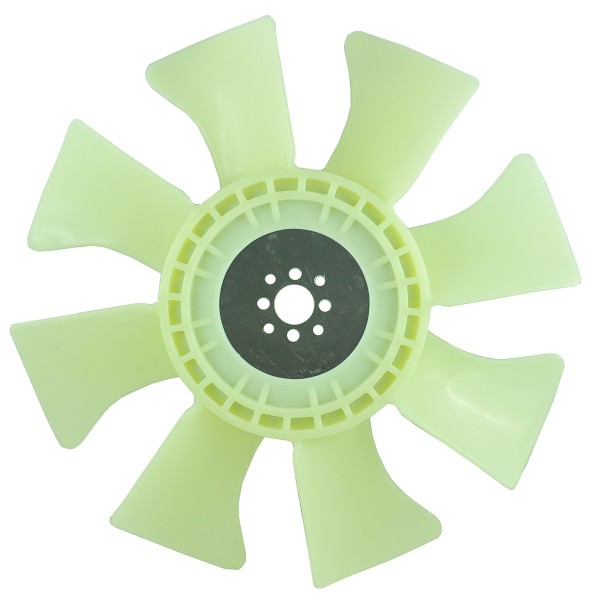

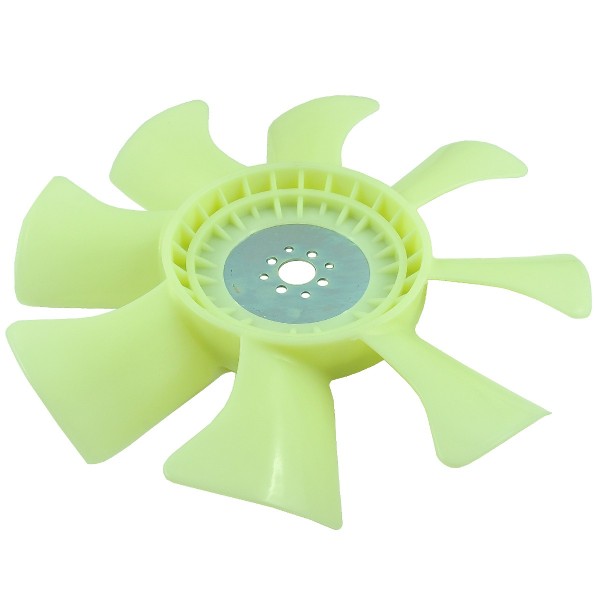

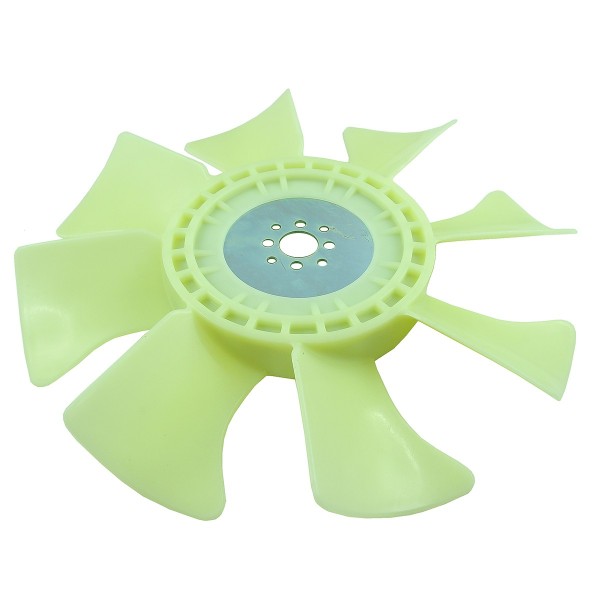

Fan impeller with an outer diameter of 410 mm for Kubota tractors of the Kubota M6040, Kubota M6800, Kubota M7040, Kubota M8200, Kubota M9000 series, with Kubota D1803, Kubota V2203-M, Kubota V2403, Kubota V2607, Kubota V3307 and other engines.

The fan fan is a replacement part of the radiator fan, which naturally wears out or is often damaged as the device works. The main task of the fan fan is to accelerate the cooling process of the coolant in the radiator. Increased airflow is created during the operation of the fan, the fan of which is screwed to the flywheel of the water pump

Dimensions :

  • outer diameter: 410 mm,
  • central hole diameter: 28.50 mm,
  • diameter of mounting screw holes: 8.50 mm,
  • mounting screw hole spacing: 43.50 mm (measured diagonally), 31 mm (measured apart),
  • height: 40 mm,
  • number of blades: 8 pcs.
  • original part numbers: 16483-74110.

The most common damage to the fan impeller is mechanical damage resulting from collisions, but the fan also suffers damage while operating the machine in difficult road conditions, e.g. heavy dust, sandy ground, mud.

Magazine : M01:J31

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: M01:J31
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
- Kubota V2607
- Kubota V3307
Kubota D1803
Kubota V2203-M
Kubota V2403
Tractor models
- Kubota M6800
- Kubota M8200
- Kubota M9000
Kubota M6040
Kubota M7040
Number of blades (pcs.)
8
Height (mm)
40
Hole diameter (mm)
8.50
28
28.50
Outer diameter (mm)
410
Original Part Number (OEM)
16483-74110
