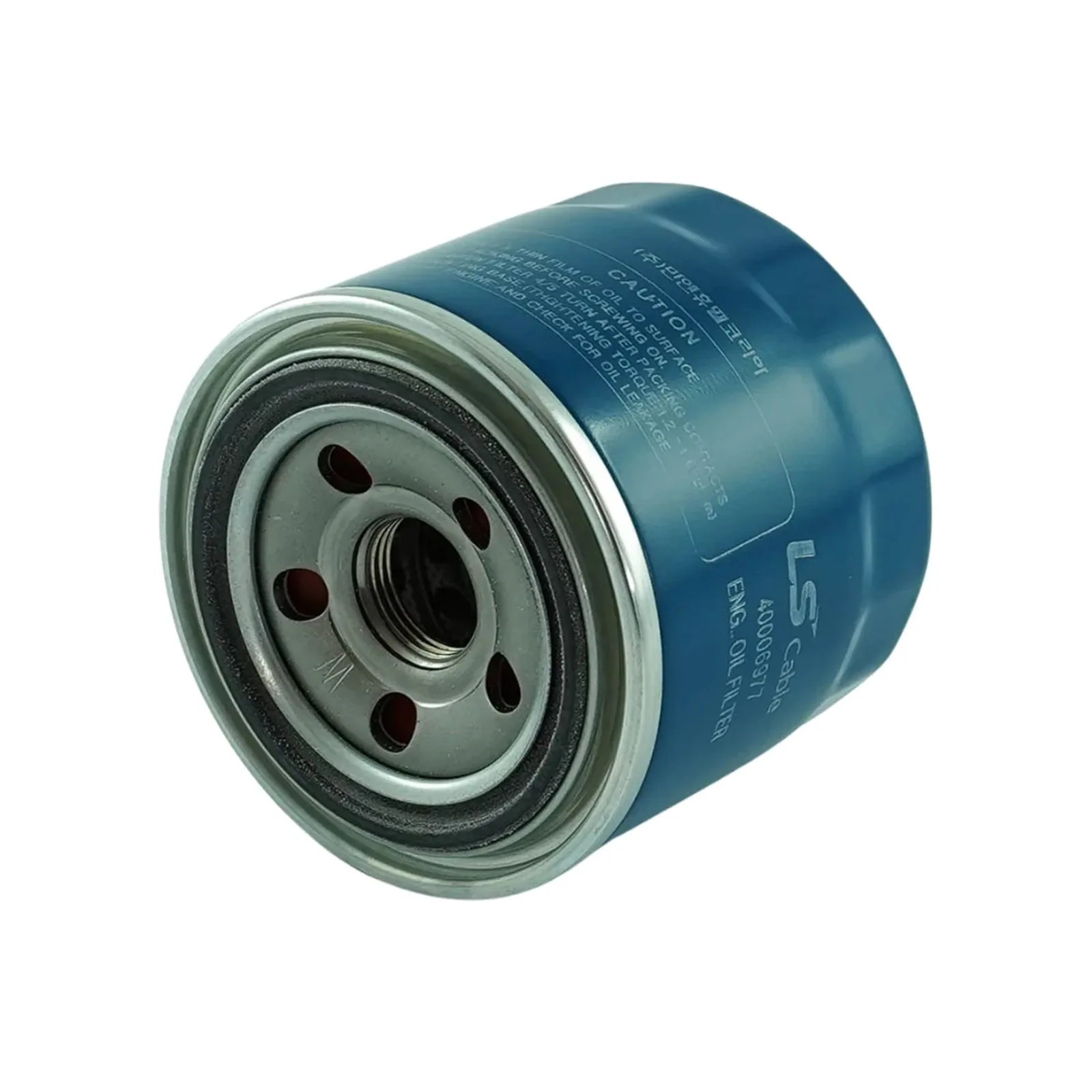

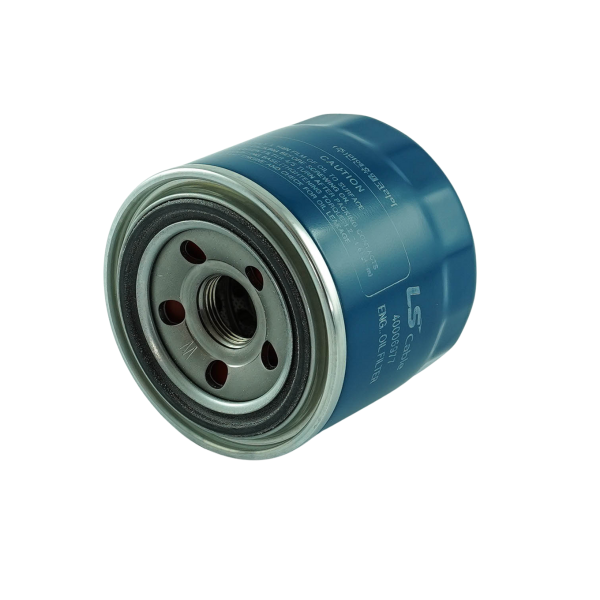

LS Tractor engine oil filter / M20 x 1.5 / Q1400001 / 40318590 / 40006977

Engine oil filter with a diameter of 80 mm and a height of 75 mm and with a 3/4"-16UNF thread for LS Tractor tractors of the LS R41, LS R50, LS R60, LS U43, LS U50, LS U60 series and others.

The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral impurities. The metal, screw-on oil filter is a filter whose main task is to remove the smallest contaminants from the oil, up to 1/50 mm in size. The structure of the filter is very simple and consists of a metal can with thread and a paper insert inside, arranged in the so-called accordion to increase the filtration surface. Contamination of the oil for which we use a filter most often occurs, in the case of organic contaminants, from the breakdown of the oil itself during operation, from fuel residues or from oxidation by-products. Mineral contaminants are air pollutants and metal particles that appear in the engine during operation.

Dimensions:

• height: 75 mm,
• diameter: 80 mm,
• base diameter: 81 mm,
• seal diameter: inner 53 mm, outer 65 mm,
• thread: M20 x 1.5,
• weight: 300 kg,
• part numbers: Q1400001, 40318590, 40006977,
• reference numbers: SO 6105.

Tractor models :

LS Tractor :

• LS R41,
• LS R50,
• LS R60,
• LS U43,
• LS U50,
• LS U60.

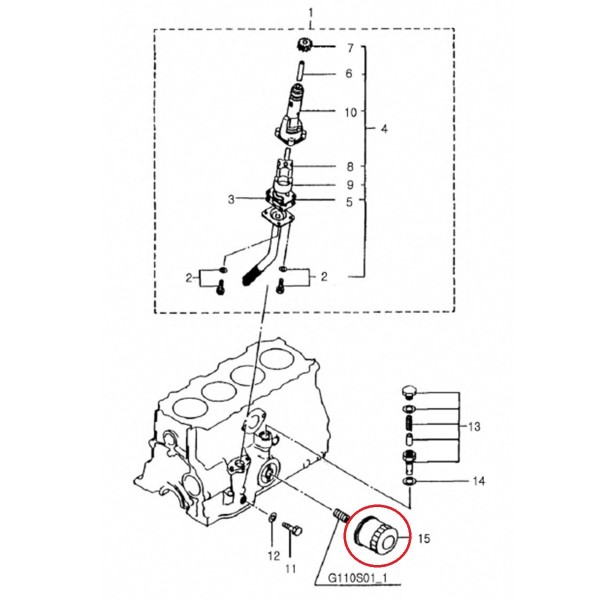

The filter is most often mounted on the side of the engine and a clean, unused oil filter has a direct impact on the operation and life of the engine, fuel consumption and in extreme cases a clogged oil filter can lead to engine overheating and damage to the head gasket. The oil filter should always be replaced together with the oil change at the frequency specified in the machine's operating instructions.
