Available
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Cooling system
Tractor models
Yanmar YM135
Yanmar YM155
Yanmar YM1100
Yanmar YM1300
Yanmar YM1500
Thickness (mm)
40
Height (mm)
350
Width (mm)
365
Go to full specification >
wishlist

Radiator Yanmar YM135 / YM155 / YM1100 / YM1300 / YM1500

124160-44501 / RA4160
zł1,349.00
Tax included PL 23%

1096,75 netto

  • Dostępność (10 Quantity): stock
wishlist

Do you have any questions?

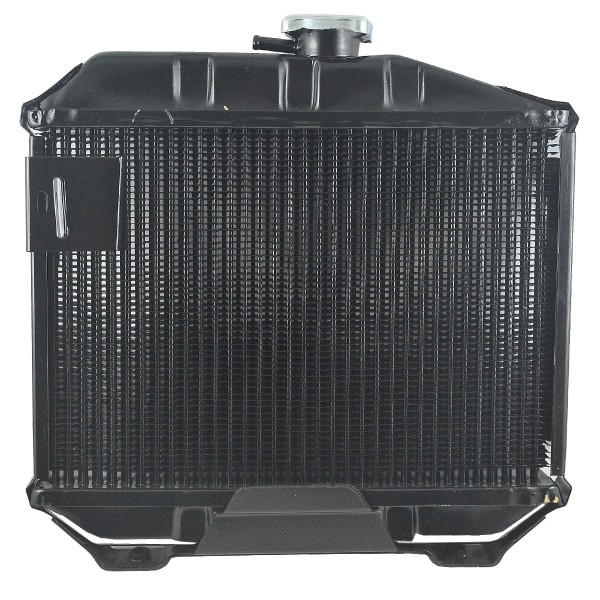

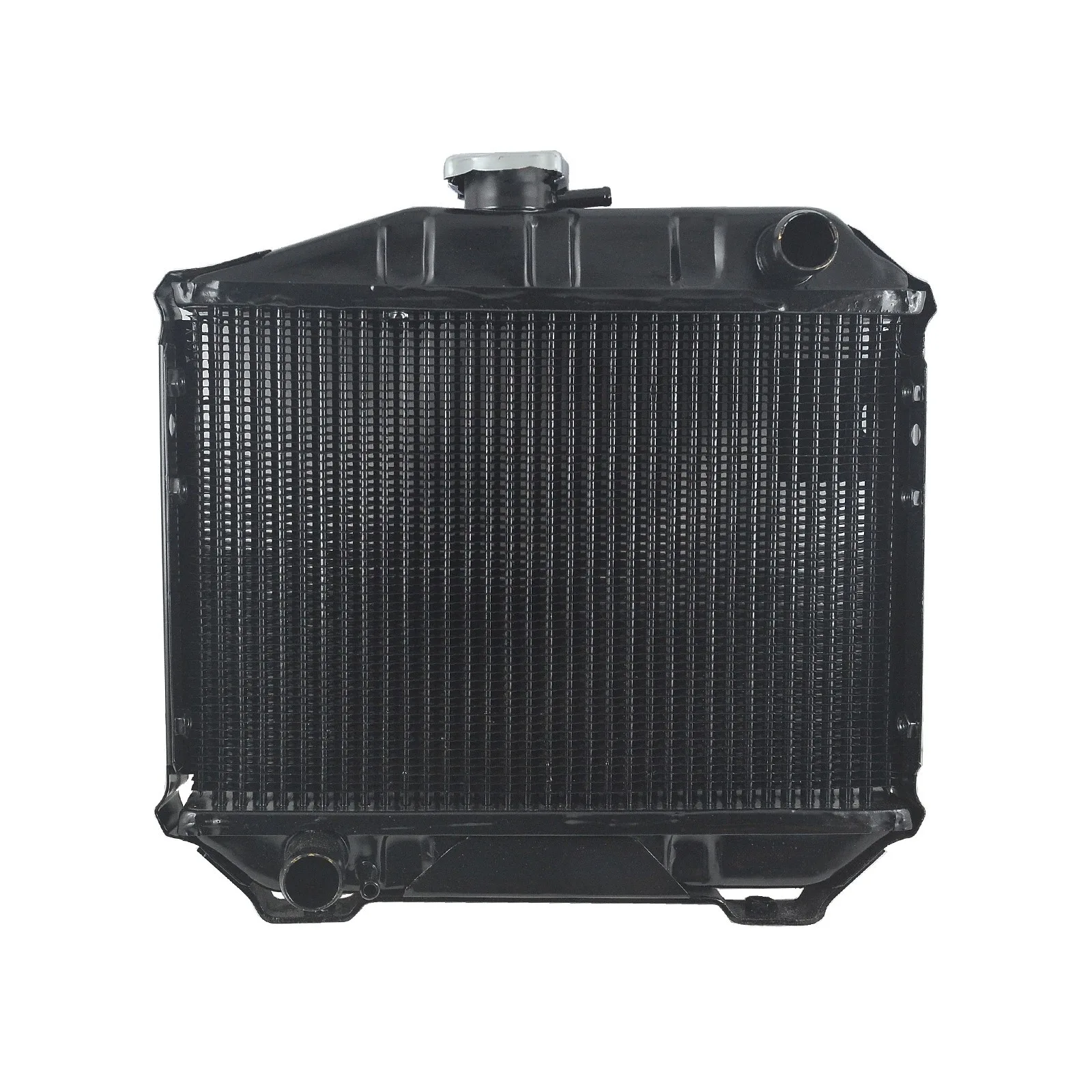

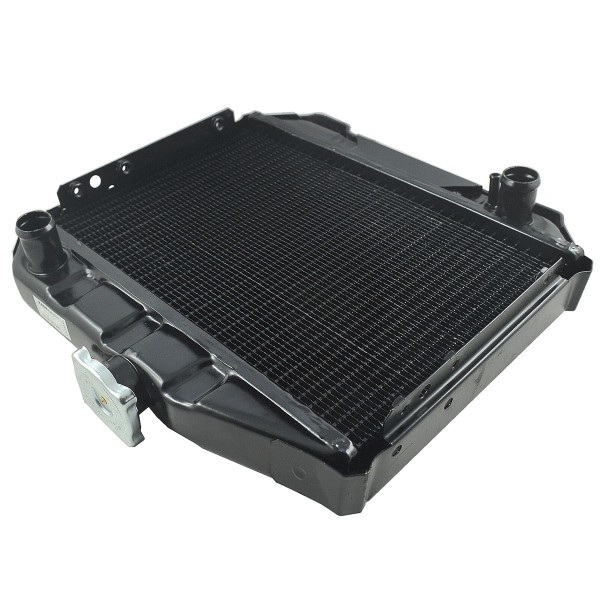

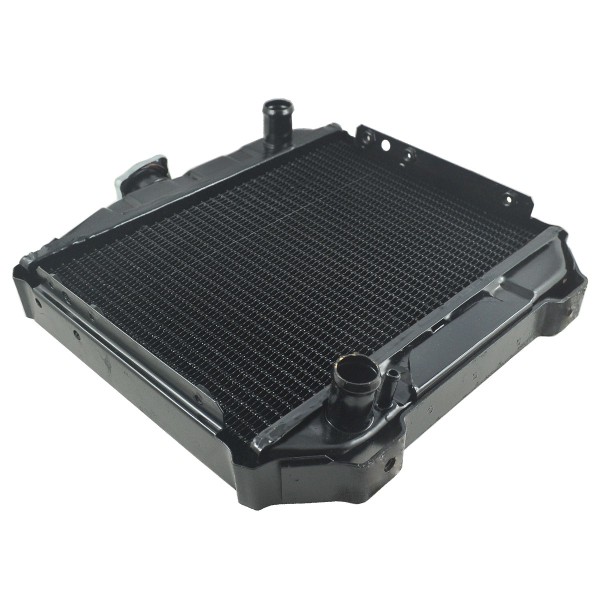

Radiator Yanmar YM135 / YM155 / YM1100 / YM1300 / YM1500

Radiator with a height of 350 mm (without cap), width of 365 mm and thickness of 40 mm for Yanmar tractors of the Yanmar YM135, Yanmar YM155, Yanmar YM1100, Yanmar YM1300, Yanmar YM1500 series and others.

The engine head and block coolant cooler is a device whose task is to cool the engine by setting in motion the coolant, which is located in the engine water channels and in the cooler itself. The coolant is successively cooled by air generated by the cooler fan, which is driven by the coolant pump during engine operation. The cooler is made of water channels, which are suitably arranged and encased in metal fins. The metal fins of the cooler allow for faster heat removal from the engine, increasing the cooling efficiency.

Dimensions :

  • height: 350 mm (without stopper),
  • width: 365 mm,
  • thickness: 40mm,
  • spacing of mounting screw holes: 220 mm,
  • reference numbers: S.70626,
  • part numbers: 124160-44501.

Tractor models :

Yanmar :

  • Yanmar YM135,
  • Yanmar YM155,
  • Yanmar YM1100,
  • Yanmar YM1300,
  • Yanmar YM1500.

The first signs of a faulty radiator are the lighting up of temperature indicators on the dashboard or the liquid in the radiator boiling, thick steam escaping, the expansion tank cap being pushed out or a coolant leak. The most common radiator failures are caused by scale deposits inside the cooling lines, which restricts the flow of liquid and leads to failure.

Warehouse :
K15

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: K19:S7
Condition
New
Production
Substitute
Parts
Cooling system
Tractor models
Yanmar YM135
Yanmar YM155
Yanmar YM1100
Yanmar YM1300
Yanmar YM1500
Thickness (mm)
40
Height (mm)
350
Width (mm)
365
Bolt hole spacing (mm)
220
Comparison numbers
S.70626
Part number
124160-44501
