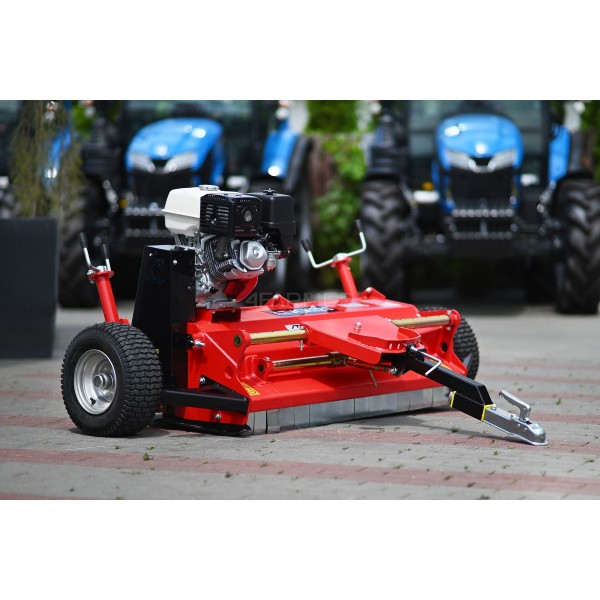

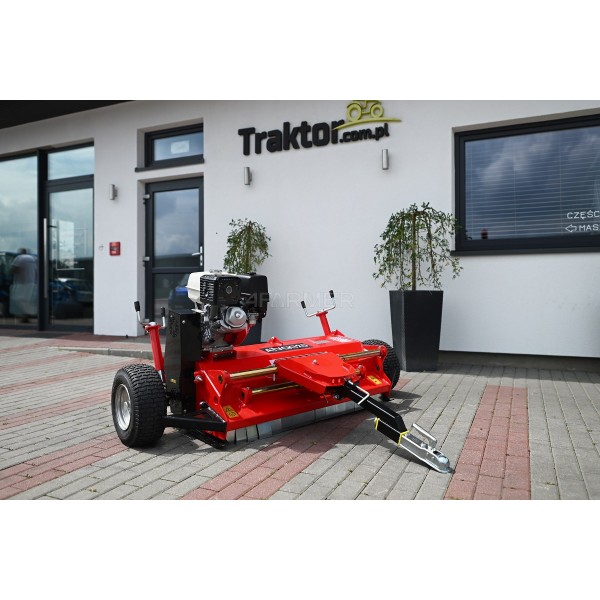

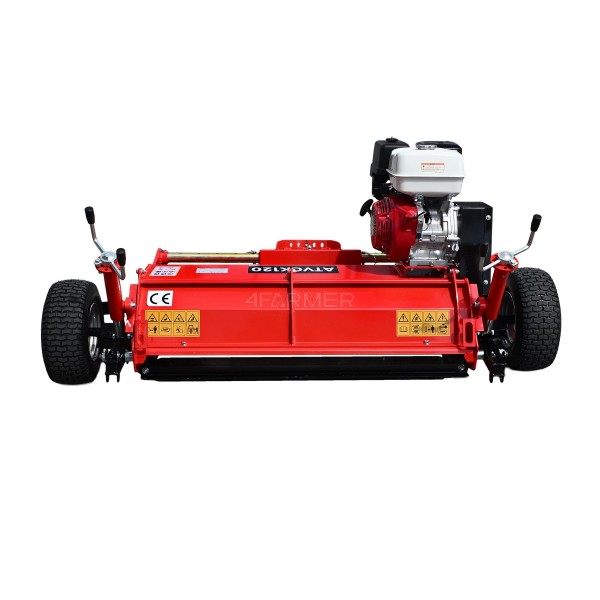

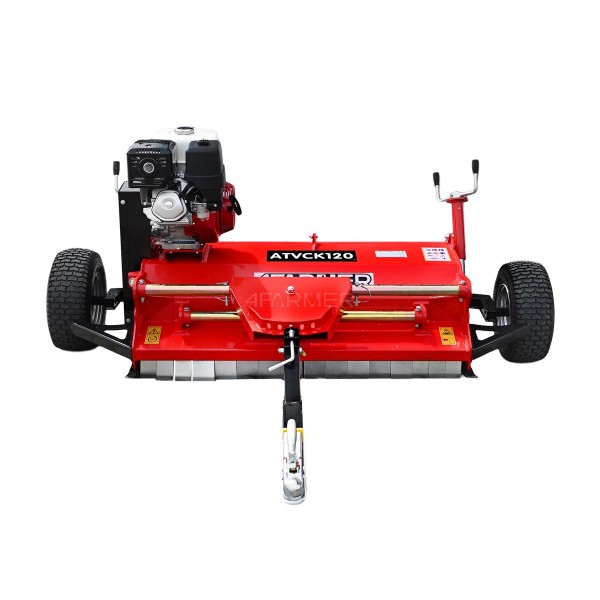

ATV CK/M 120 flail mower, Honda 4FARMER engine
Flail mower with combustion engine – what is an ATV mower?
A lawn mower with its own internal combustion engine , attached to various vehicles, is an ATV mower . Although there is no strict definition, simply put, it is a grass-cutting device that, thanks to its self-propulsion, does not require an external power source, such as a tractor's PTO shaft. Although it has an engine, it does not have a ground drive – it must be towed by another vehicle. The internal combustion engine is responsible only for powering the shaft or cutting blades.
Types of ATV mowers:
- ATV flail mower
- ATV grooming mower
Both types differ in the design of the cutting unit. Flail mowers use special flails (hammer blades) mounted on a shaft to handle dense vegetation and undergrowth. Grooming mowers, on the other hand, use rotating blades that operate similarly to a helicopter propeller, ensuring precise lawn cutting.

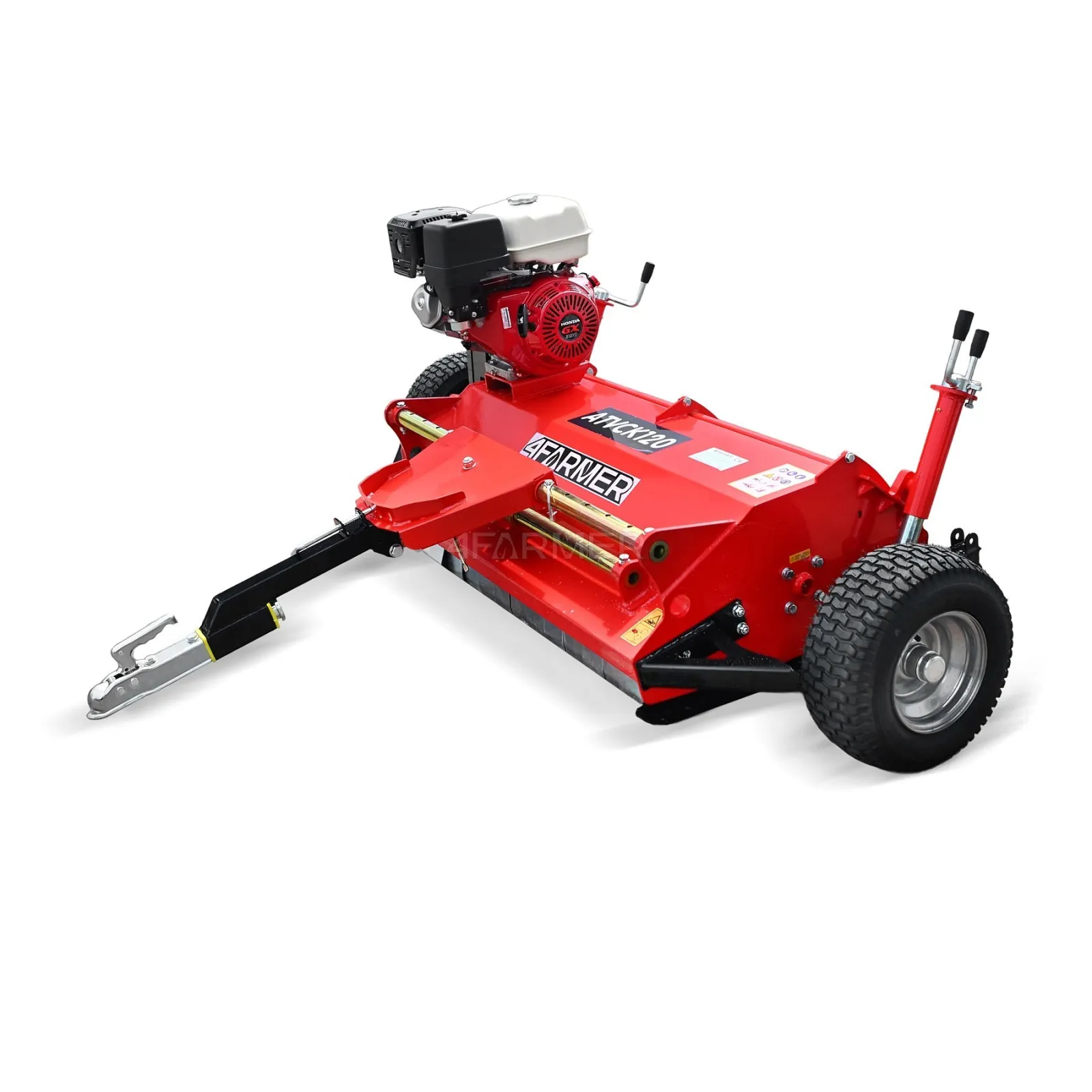

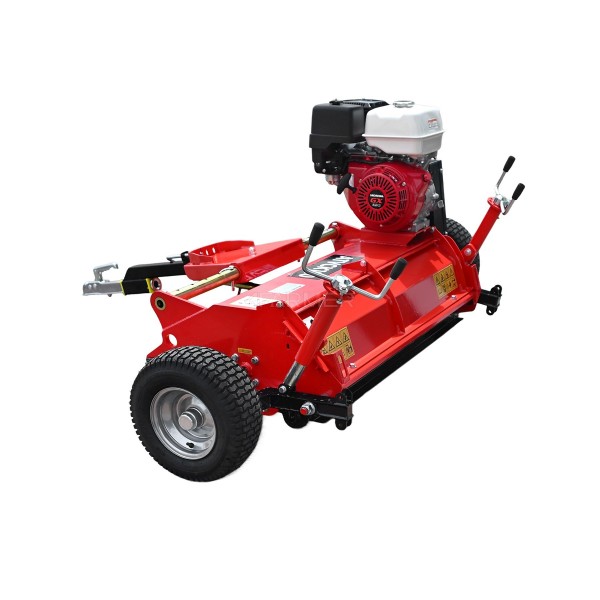

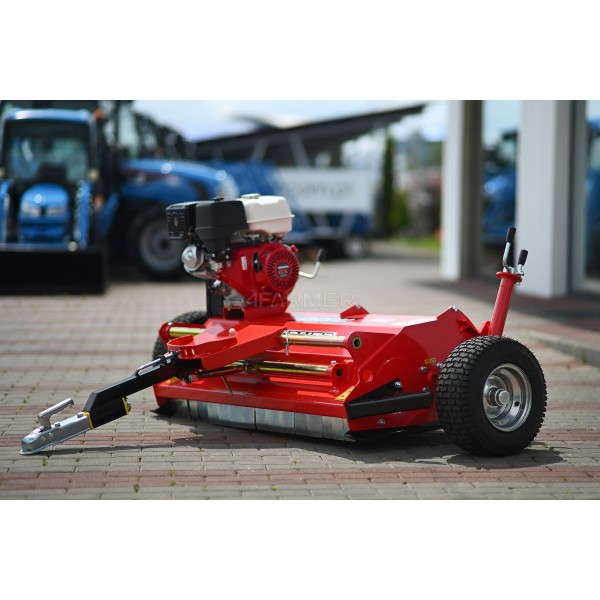

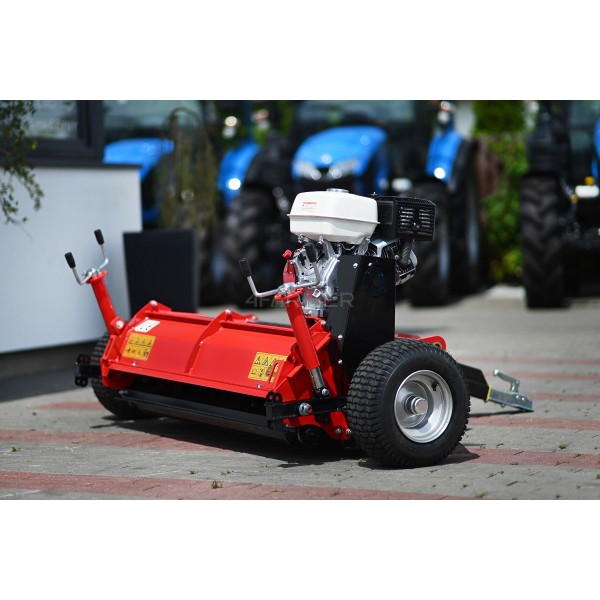

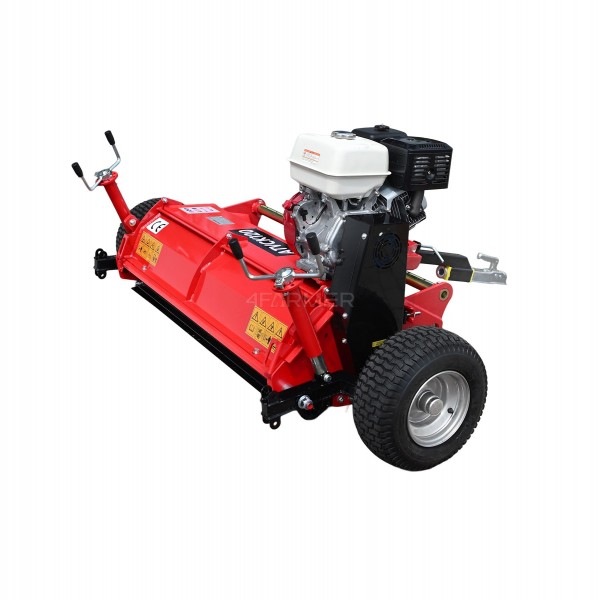

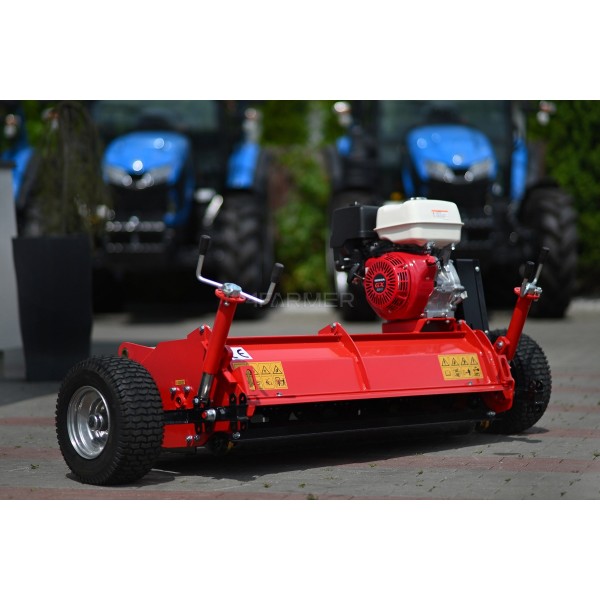

ATV CK/M 120 flail mower, Honda engine (for ATV QUAD) 4FARMER

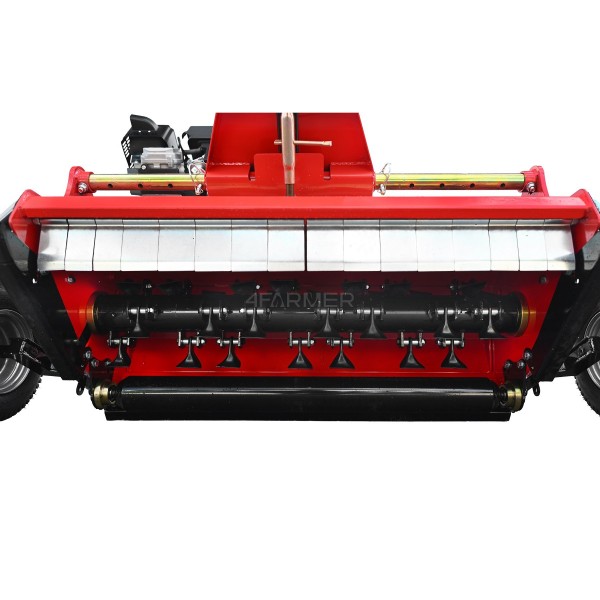

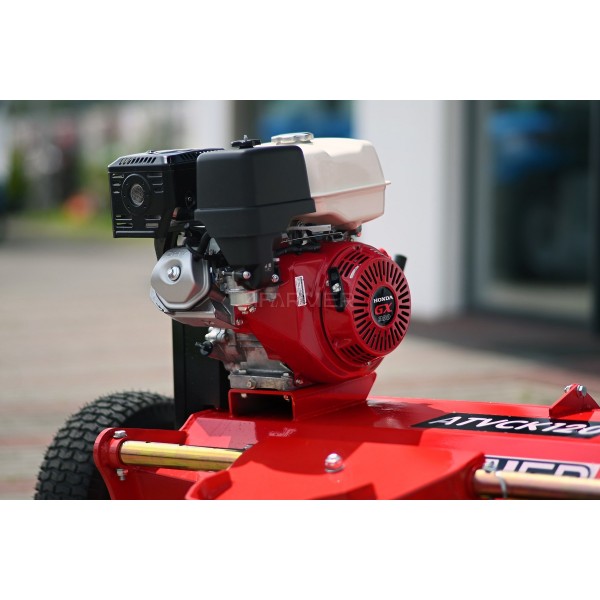

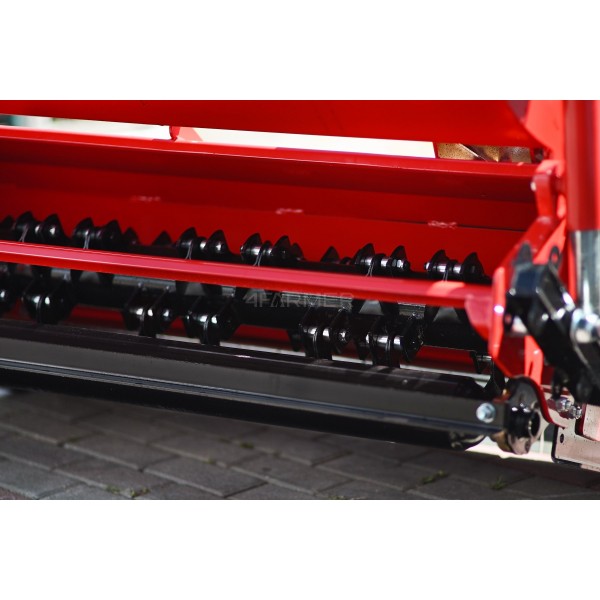

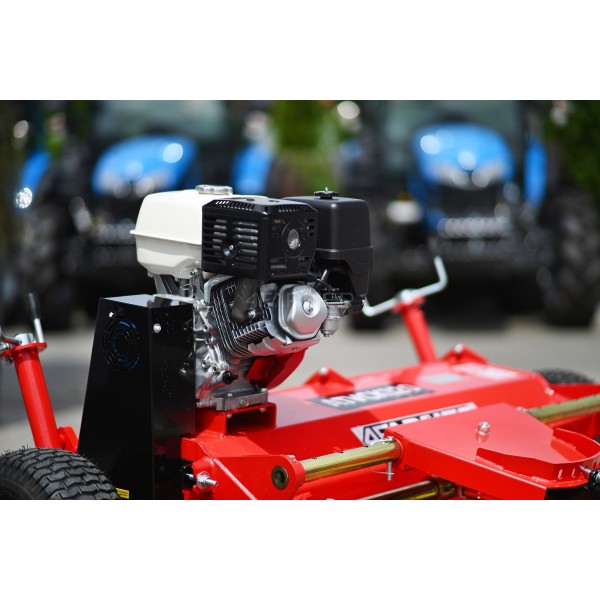

It features a Honda 4-stroke, OVH 11 HP petrol engine with manual start. A balanced shaft with flail blades ensures smooth operation, while a high shredding speed ensures excellent results. It also features a simple tow bar attachment system. This makes it an ideal machine for quads, ATVs, SUVs, or mini tractors.

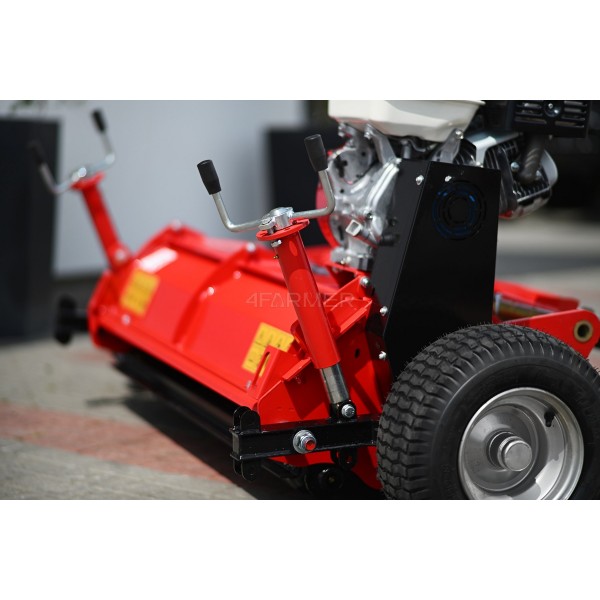

The mower can be adjusted:
- cutting height,

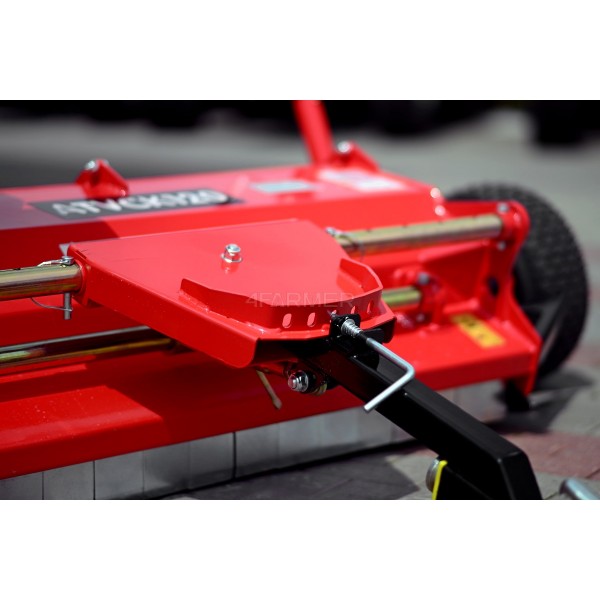

- height and angle of the drawbar,
- side shift.

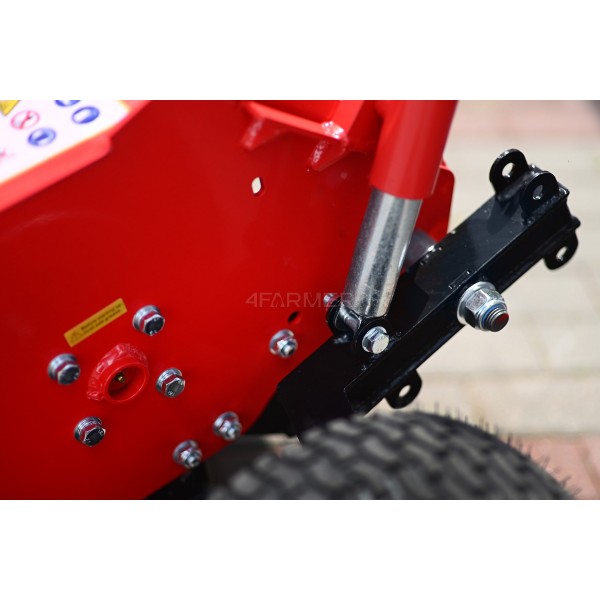

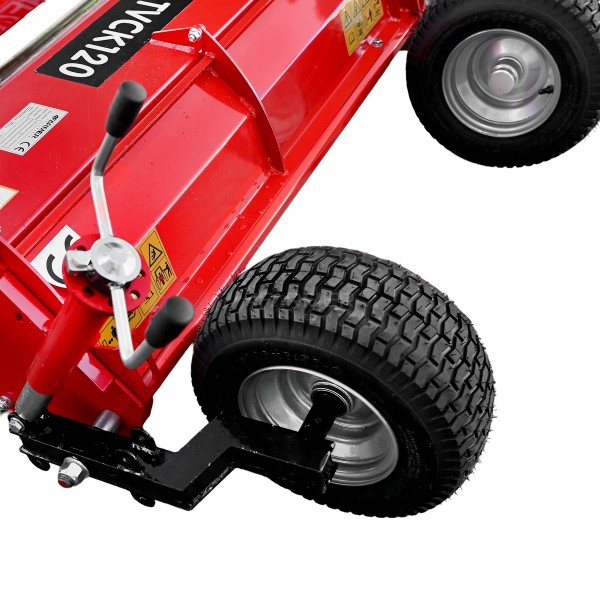

The ATV CK model stands out because it has an opening flap, which allows you to lighten the machine when mowing tall grass, and the design also allows you to reposition the wheels - they can be placed on the sides of the machine or behind the mower, to make the machine as narrow as possible.
Application of the ATV CK/M 120 mower:
- mowing all kinds of wasteland,
- mowing roadsides,
- mowing green areas in cities,
- maintenance of pastures, meadows, recreational areas and bushes for cleaning purposes,
- mowing green areas in parks,
- as a cleaning machine in fruit growing and nurseries
- wherever it is possible to enter with a quad bike.
Specification
Condition
New
So
4Farmer
Color
Red
Engine brand
Honda

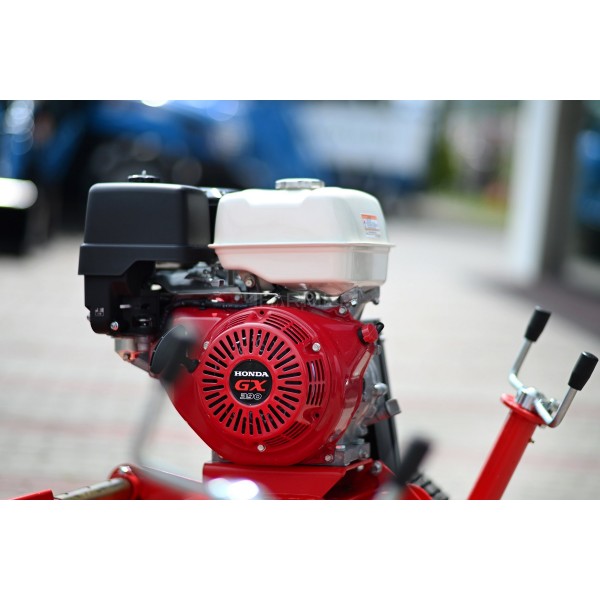

Engine model
Honda GX390
Power (HP/HP)
11
Engine capacity (cc/cc)
389
Fuel tank capacity (L)
6.1
working width (mm)
1200
Cutting height (mm)
20 - 200
Number of V-belts
2
Number of beaters (pcs.)
28
Tire size front/rear
16.5x6.50 - 3
Weight (kg)
230
sideshift (mm)
+/- 340
Boot system
Manual

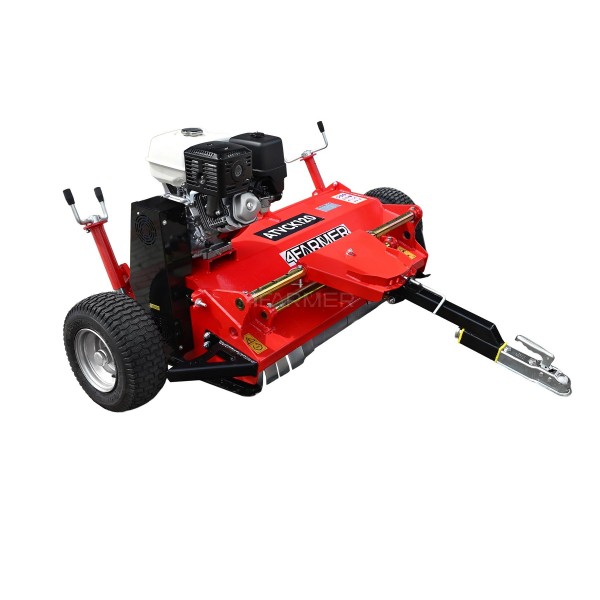

Hitch type
ISO-50 (Passenger Cars)
