Condition
New
Minimum required tractor power (HP HP PS)
40
working width (mm)
1400
Number of V-belts
4
Weight (kg)
640

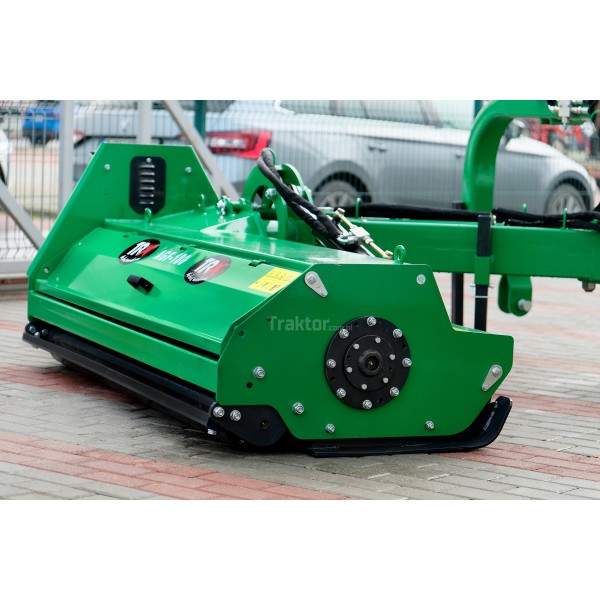

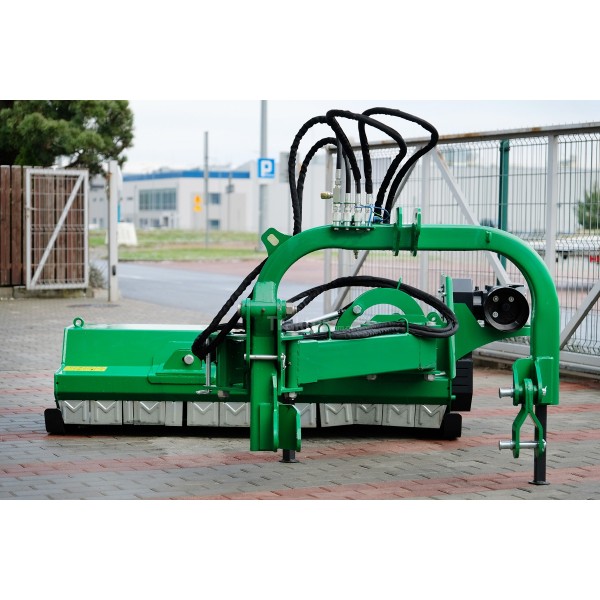

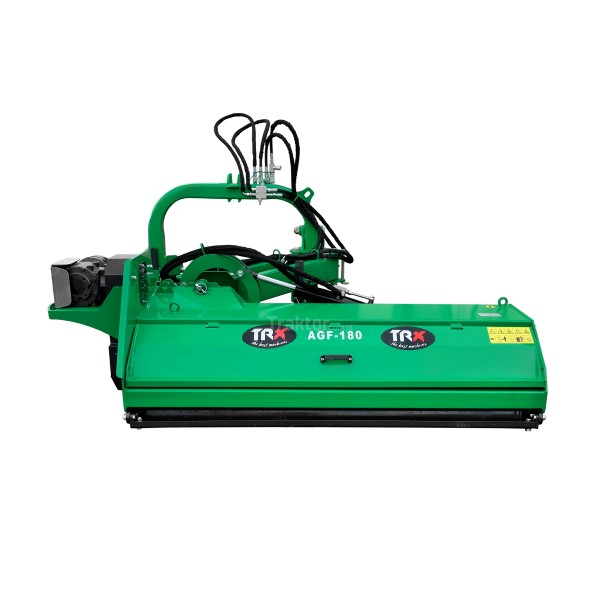

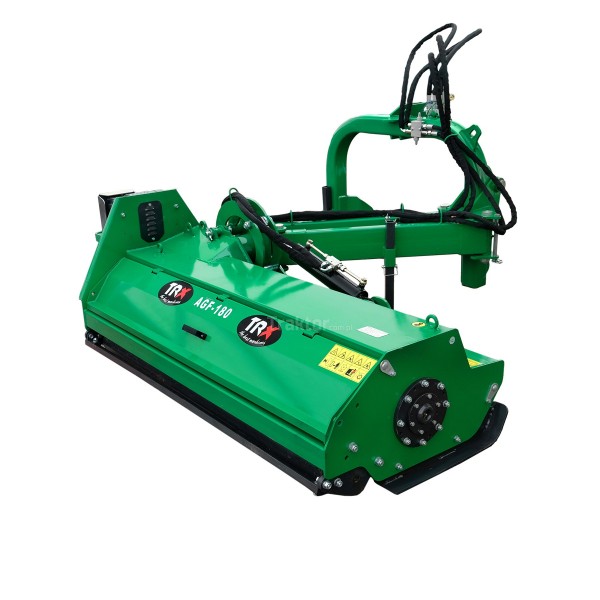

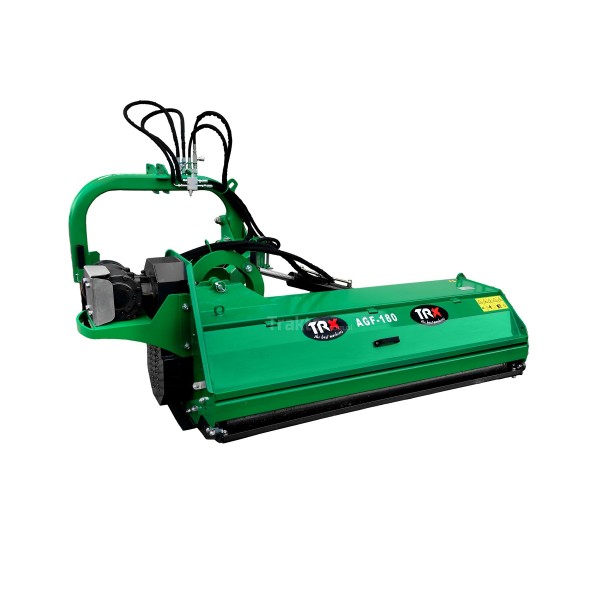

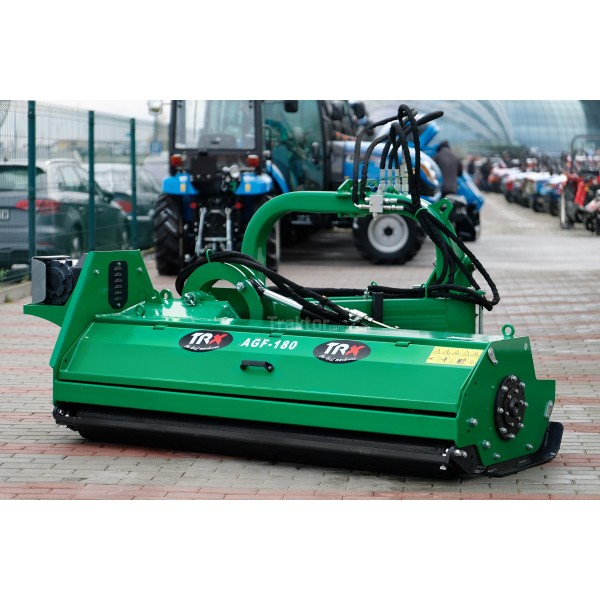

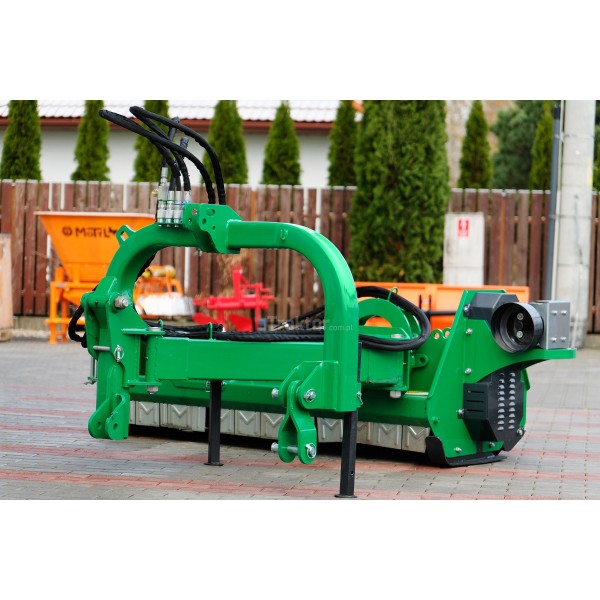

AGF 140 boom mower with TRX valves
Do you have any questions?

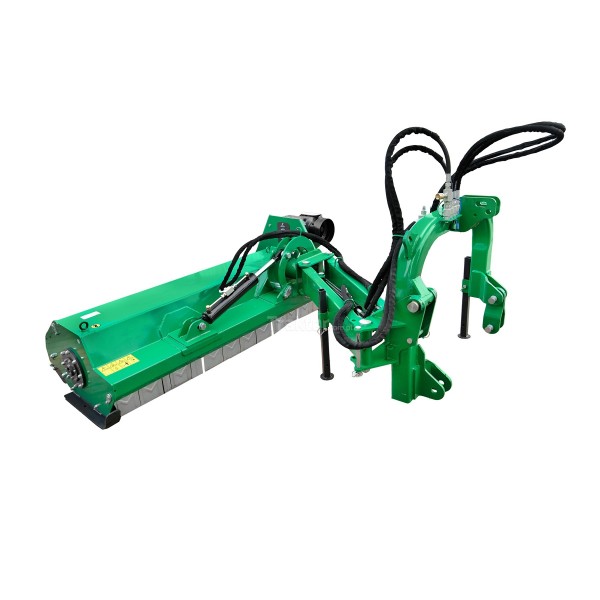

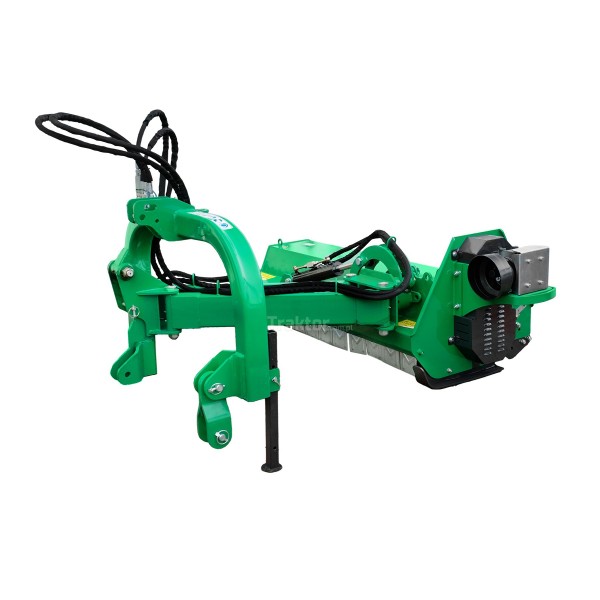

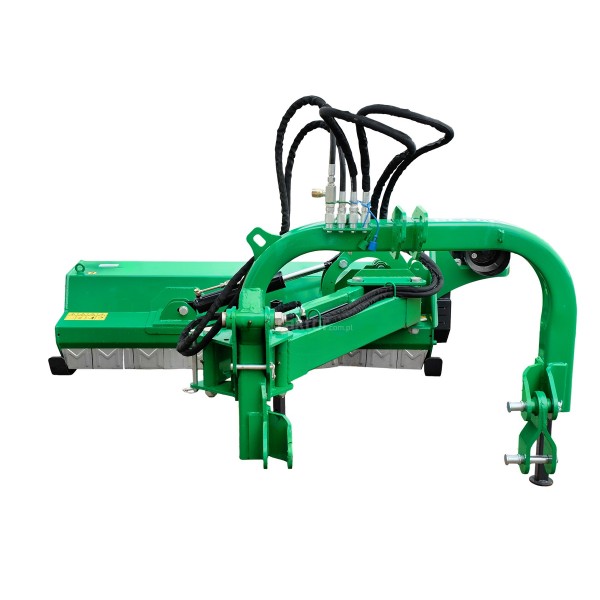

AGF 140 boom mower with TRX valves
AGF22-N rear-side flail mower
Super heavy class flail mower (mulching) on a boom, model AGF.

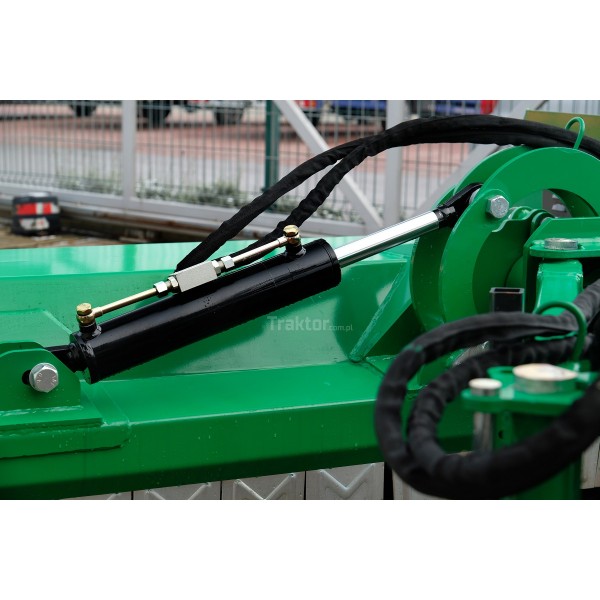

The AGF model flail mower is very suitable for professional municipal works due to its massive construction and the heaviest hammers. The hydraulically adjustable extension and inclination of the working module is perfect for mowing roadsides, ditches and slopes.
Application:
- clearing all types of wasteland,
- mowing roadsides, slopes and ditches
- mowing green areas in cities
- maintenance of pastures, meadows, recreational areas and bushes for cleaning purposes
- mowing green areas in parks
- as a cleaning machine in orchards and nurseries
Advantages:
- can be easily used in urban areas because the number of flying stones and their impact are greatly limited,
- when caring for lawns, there is no need to collect mulched grass if this procedure is repeated quite often,
- it can also cope in unkempt areas with more stones, branches and other obstacles,
- cut green material quickly turns into humus, and old grass does not grow back so quickly,
- has double protection against damage to the gear: the hammers bounce off a stable obstacle, the belts on the pulleys slip if there is too much resistance,
- the gearbox has a one-way clutch
- simple construction ensures reliability and low repair costs
Technical data:
- working width - 140 cm
- total width - 168 cm
- arm reach - 200 cm (from the center of the tractor)
- weight - 490 kg
- minimum tractor power - 65 HP (the tractor must have the appropriate weight)
- max efficiency - 1.4 ha/h
- max speed - 10 km/h
- number of V-belts - 4 pcs
- mounted on the 3-point mounting of the Cat-2 tractor,
- drive from the tractor's PTO shaft, 540 rpm,

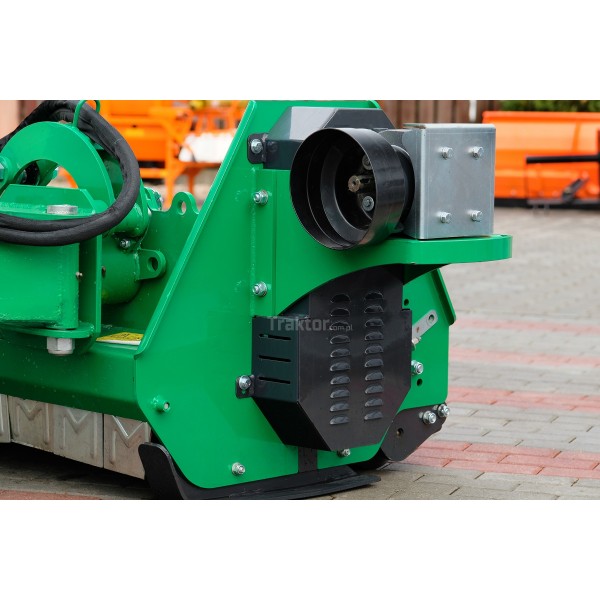

- equipped with an angle gear with a clutch,

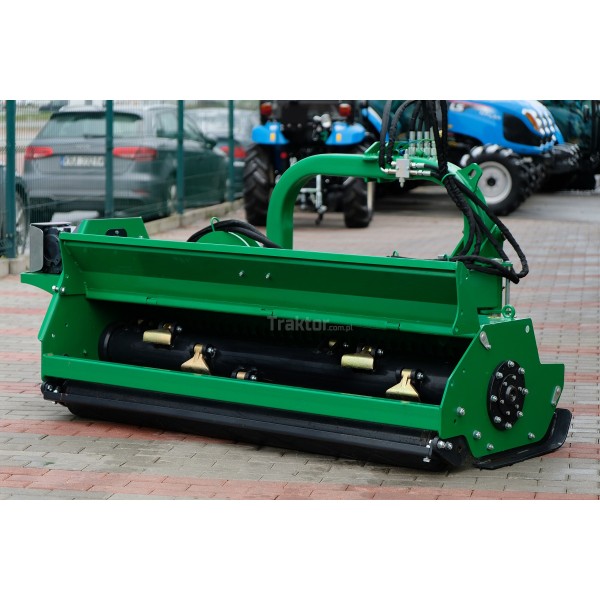

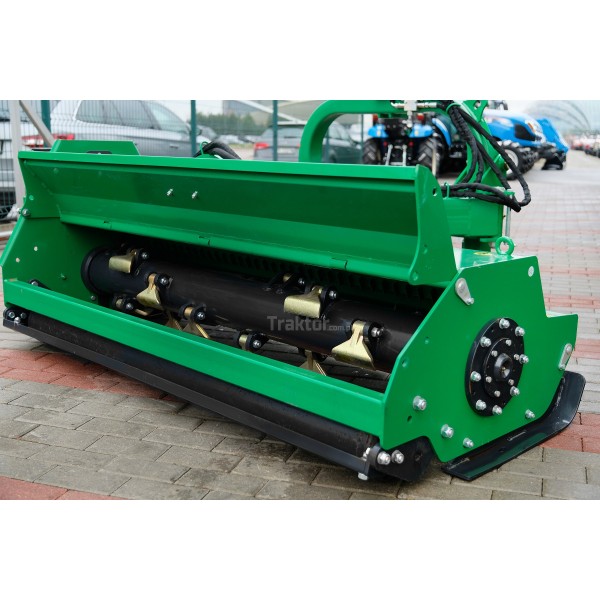

- cutting elements: 12 pieces of hammers weighing 1200 g on a 16 mm screw, max diameter of cut branches: Ø 80 mm
- adjustable cutting height
- The mower is equipped with 2 valves: one as protection against uncontrolled lowering of the machine, and the second one causes the machine to tilt when encountering an obstacle.
- the mower has the ability to move sideways and tilt at an angle, so it can also be used for mowing ditches (up to 60 degrees down), slopes and hedges (up to 90 degrees up)

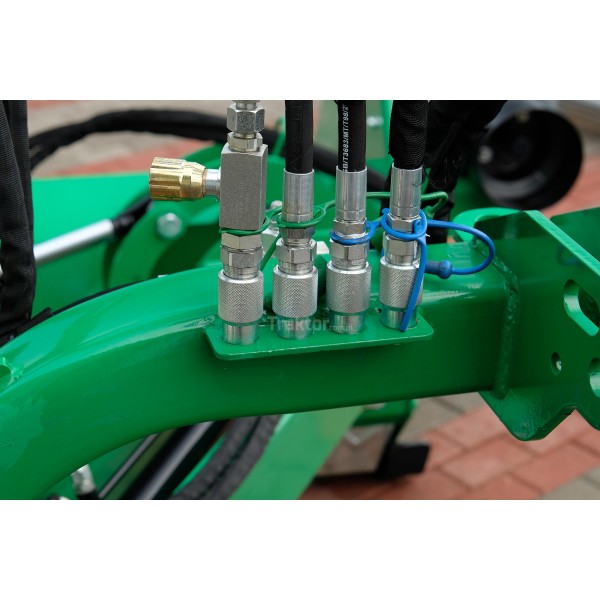

- 2-section hydraulics required in the tractor
Moreover, our company:
- issues a one-year warranty,
- we provide service and spare parts,
- for mowers with hydraulic control, we can prepare the necessary set that can be mounted on the tractor (to be agreed by phone).
Specification
KAT II
Traktomix (TRX) has been on the Polish market since 2010. It specializes in the production and sale of agricultural equipment that is necessary in modern agriculture and the sale of mini tractors.
Thanks to its focus on continuous technological development and high-quality products, Traktomix has gained recognition on both the domestic and international markets.
The company's offer includes a wide range of agricultural machines, including: flail mowers, levelers, maintenance mowers, tillage units, spreaders, splitters and many others.
The company is based in Poland, but Traktomix has a strong presence on international markets, exporting its machines to many countries. Thanks to this, the company not only expands its activities, but also contributes to the global development of modern technologies in agriculture.
