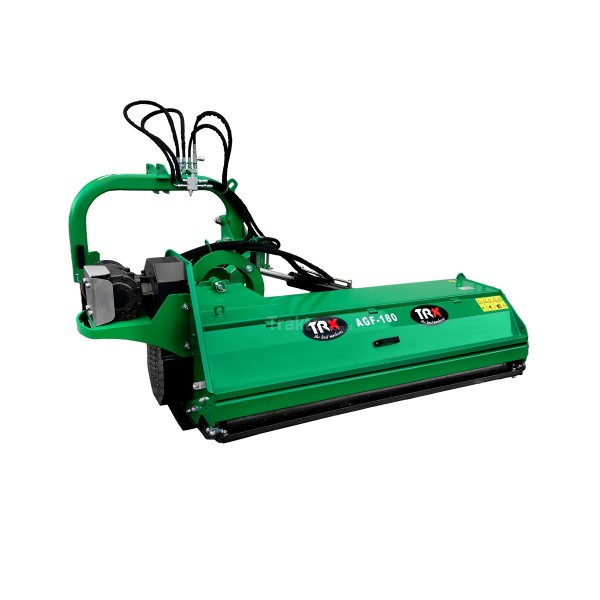

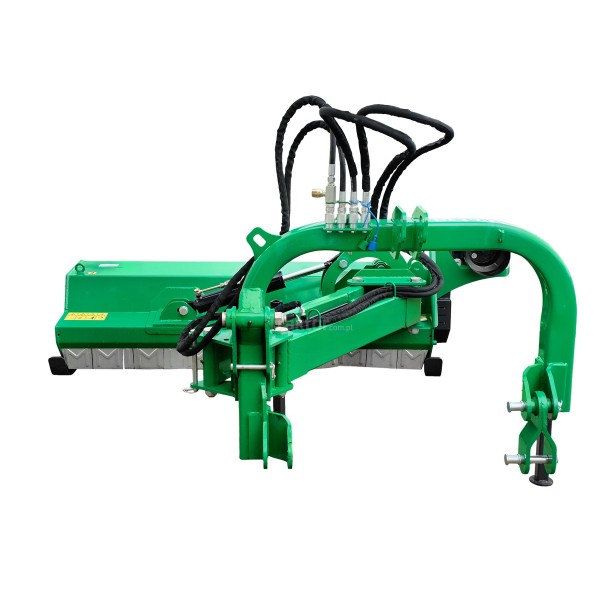

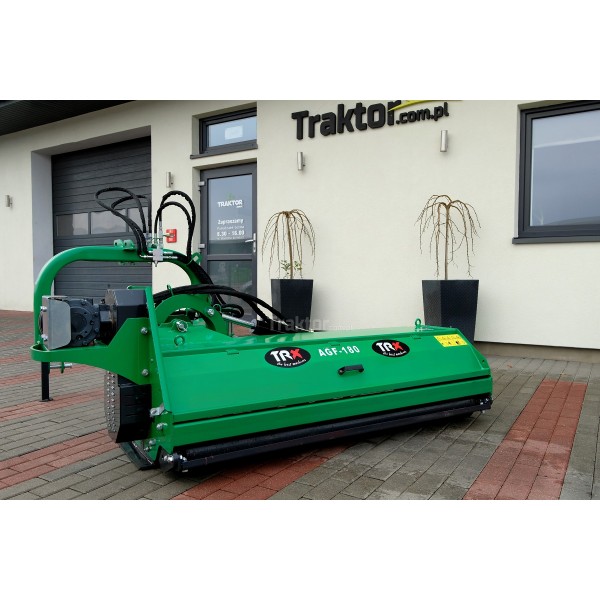

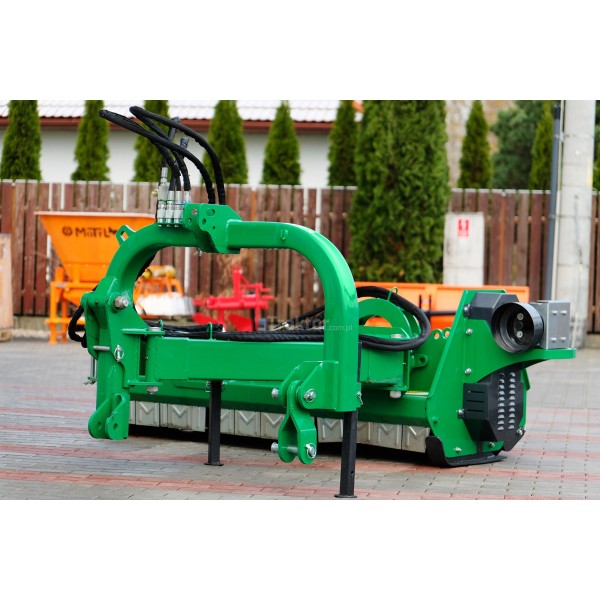

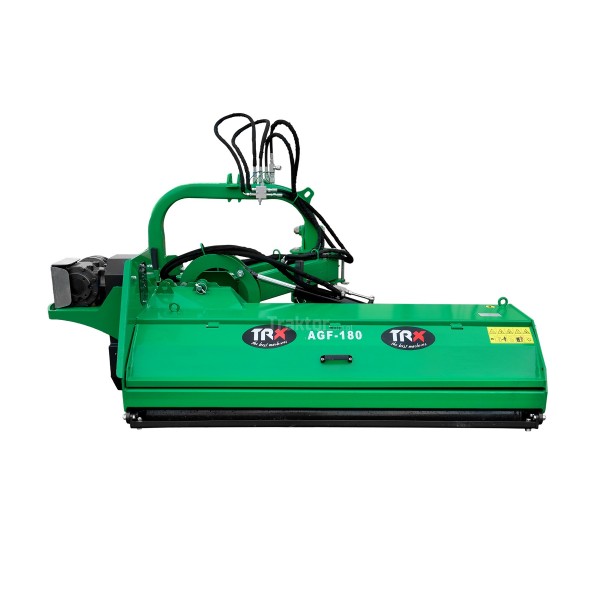

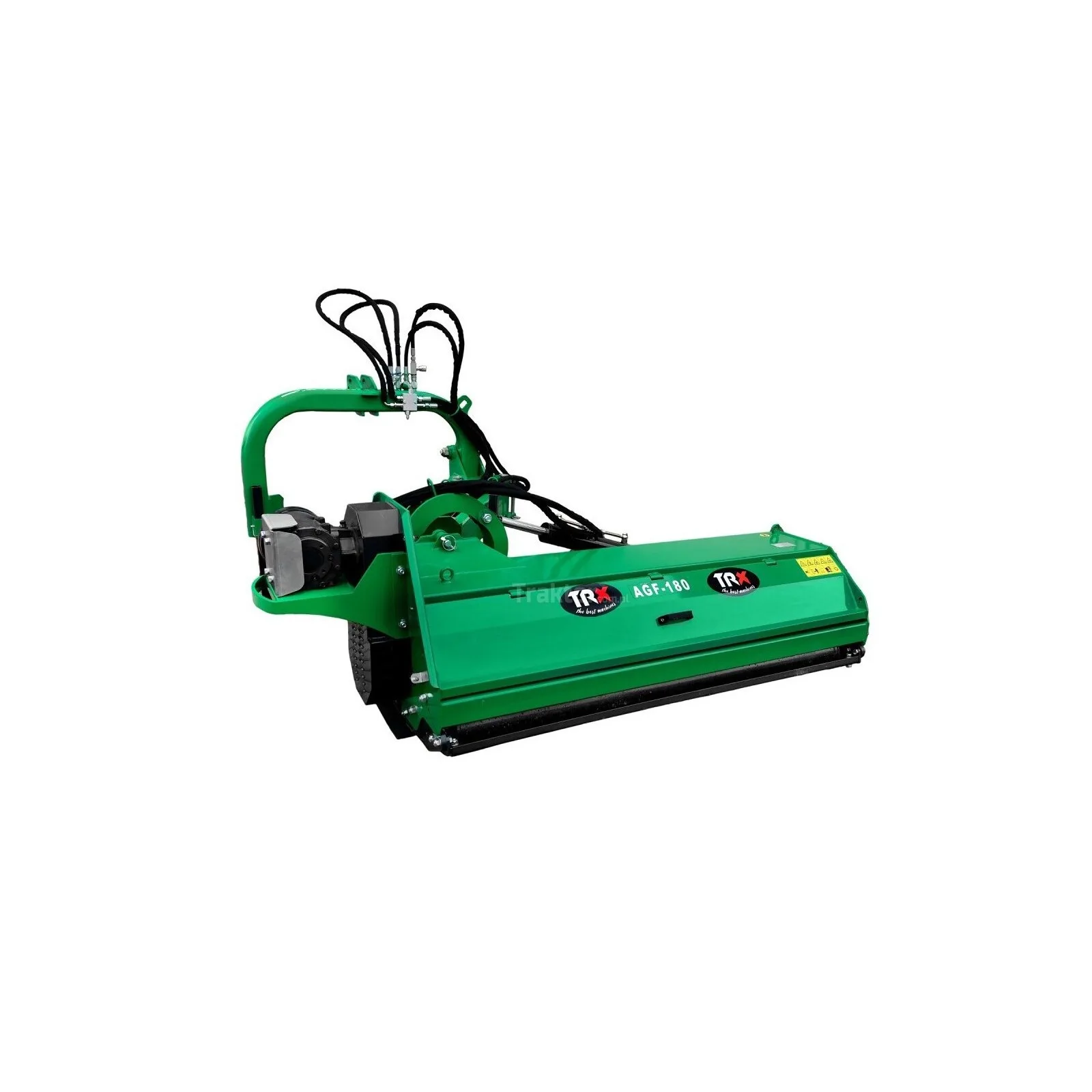

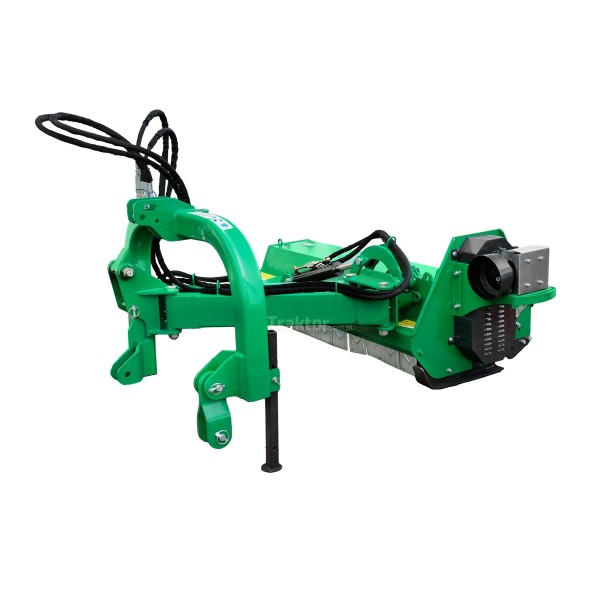

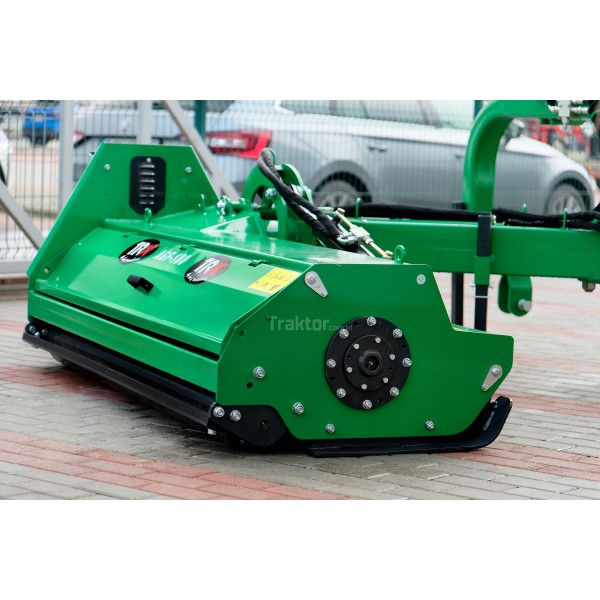

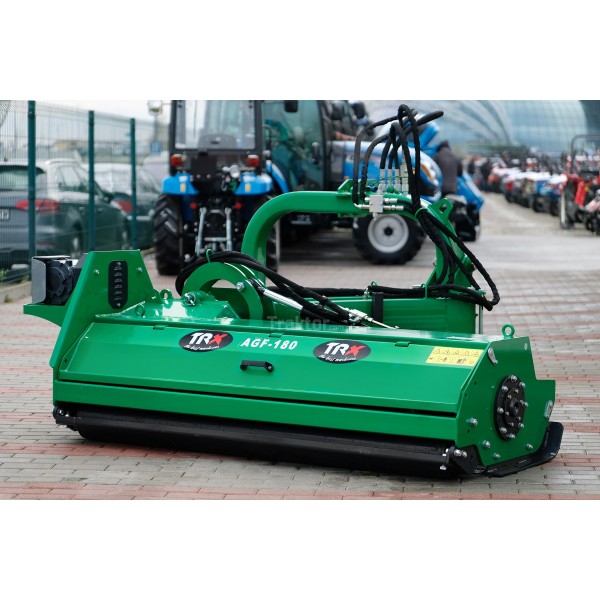

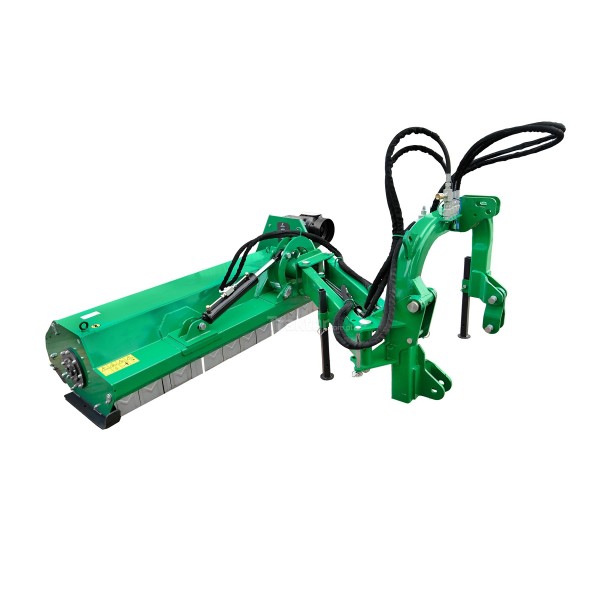

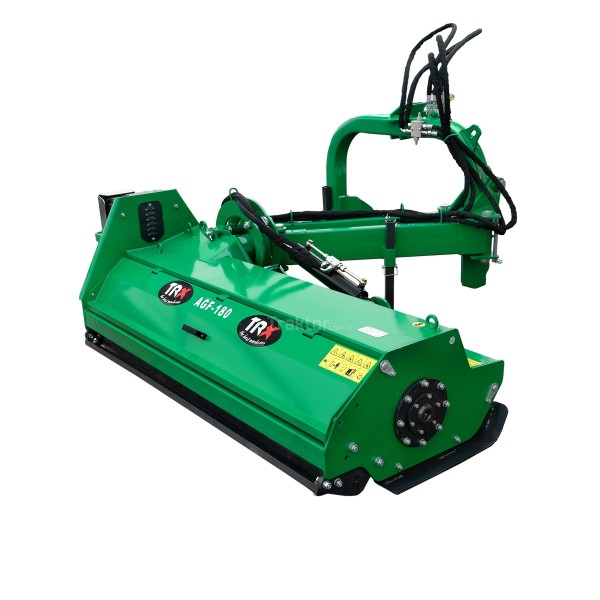

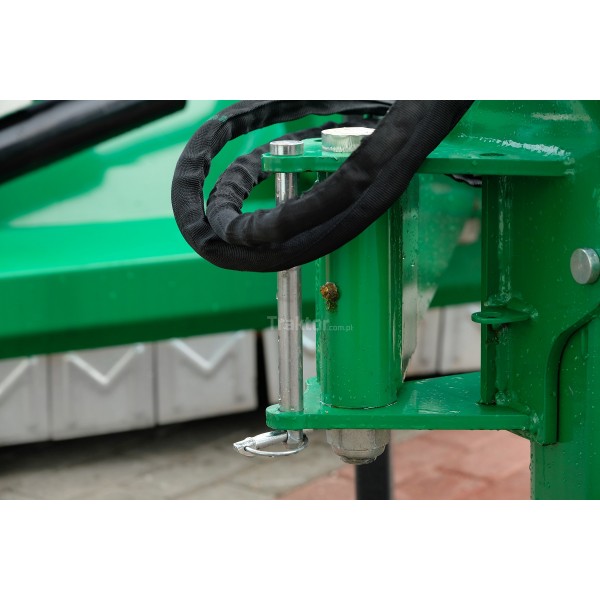

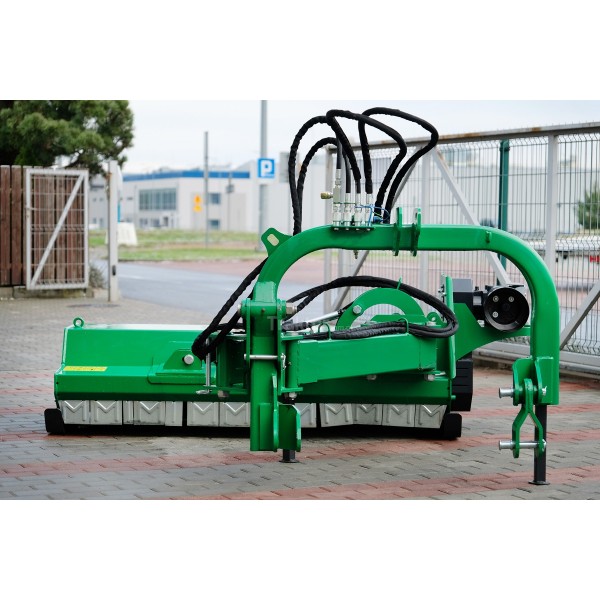

AGF 180 boom flail mower with TRX valves

AGF22-N rear-side flail mower

Super-heavy class flail (mulching) mower on the AGF boom. The flail mower model AGF, due to its massive construction and the heaviest hammers, is very well suited for professional municipal works. The hydraulically adjustable extension and inclination of the working module will be perfect for mowing roadsides, ditches and slopes.

Application:

• clearing all kinds of waste
• mowing roadsides, slopes and ditches
• mowing green areas in cities
• care of pastures, meadows, recreational areas, bushes for cleaning purposes
• mowing green areas in parks
• as a cleaning machine in orchards and nurseries

Advantages:

• it can be easily used in urbanized areas because the number of flying stones and their impetus are very limited
• when taking care of lawns, there is no need to collect mulched grass if this procedure is repeated quite often
• it also copes with neglected terrain where there are more stones, branches and other obstacles
• the cut green material quickly turns into humus, and the old grass does not grow back so quickly
• has a double protection against damage to the gear: hammers bounce off a stable obstacle, belts on pulleys slip in case of too much resistance
• the gearbox has a one-way clutch
• simple construction ensures reliability and low repair costs

Technical data:

• working width - 180cm
• total width - 208cm
• arm reach - 240cm (from the center of the tractor)
• weight - 590 kg
• minimum tractor power - 100 HP (the tractor must have the right weight)
• maximum capacity - 1.8 ha/h
• max speed - 10 km/h
• number of V-belts - 4 pcs
• mounted on the 3-point mount of the Cat-2 tractor
• drive from the tractor's PTO shaft, 540 rpm

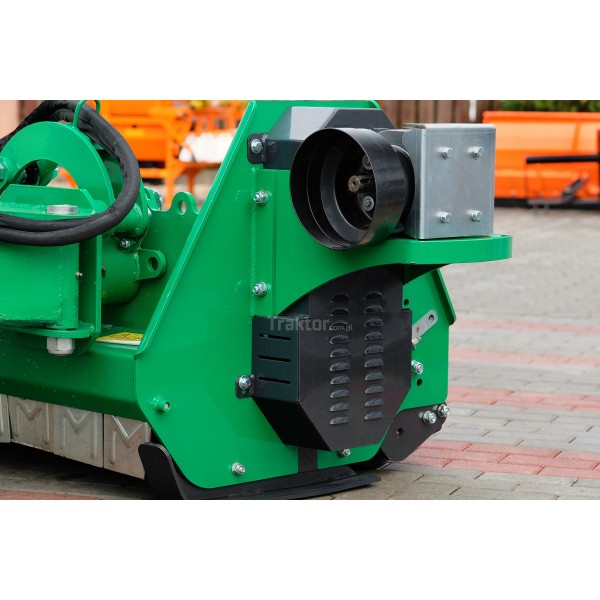

• equipped with an angle gear with a clutch

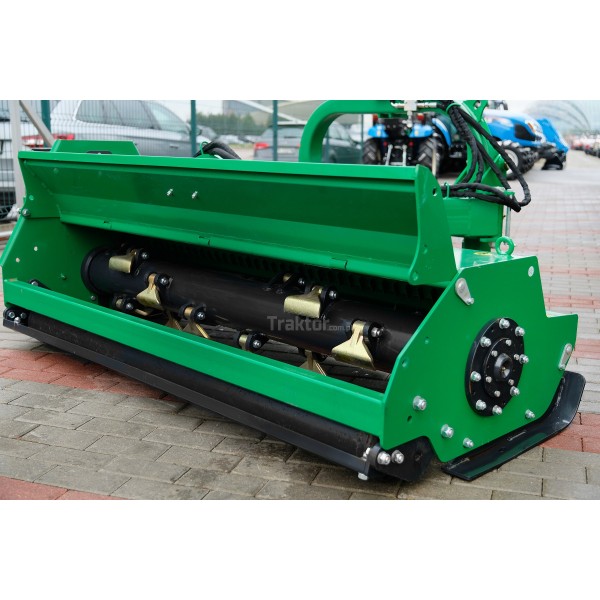

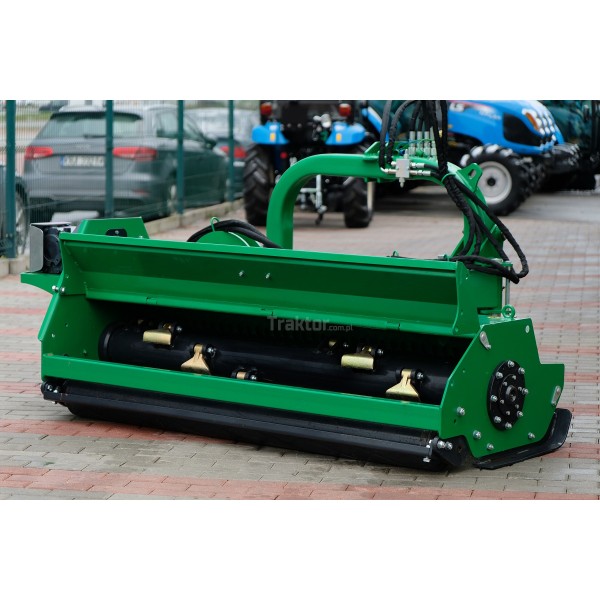

• cutting elements: 16 pieces of hammers with a weight of 1200 g per screw fi 16, max diameter of cut branches: Ø 80 mm
• adjustable cutting height

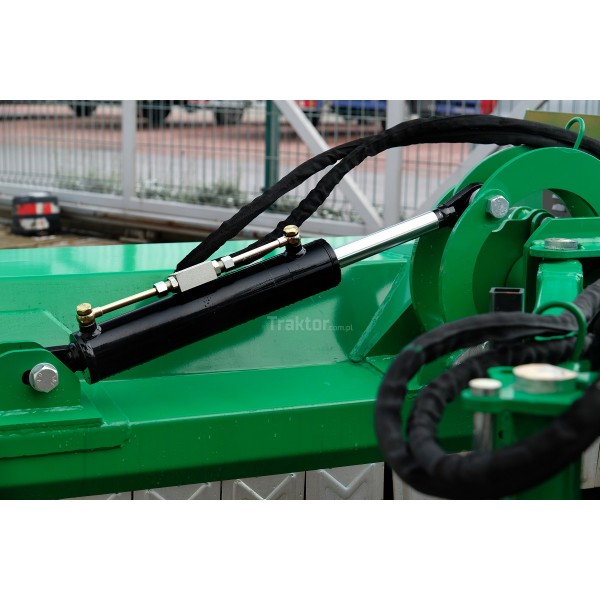

• the mower has both side shift and tilt angle, so it can also be used for mowing ditches (up to 60 degrees down), slopes and pre-hedges (up to 90 degrees up)

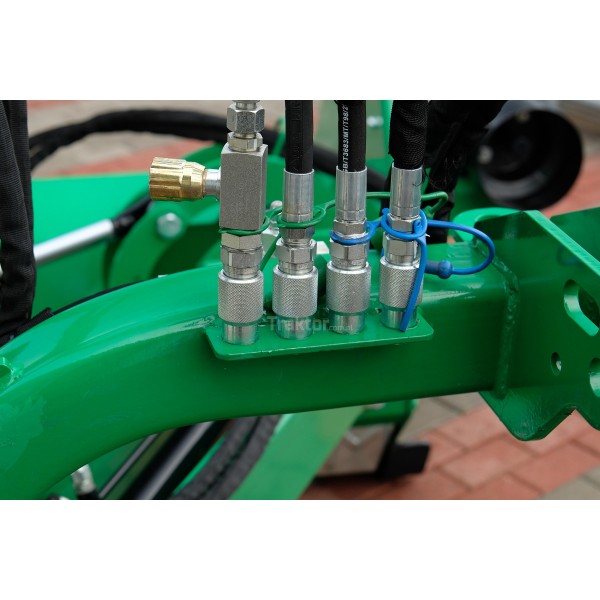

• 2-section hydraulics required in the tractor

In addition, our company:

• provides a one-year warranty
• we provide service and spare parts
• for mowers with hydraulic control, we can prepare the necessary set that can be mounted on the tractor (to be agreed by phone)
