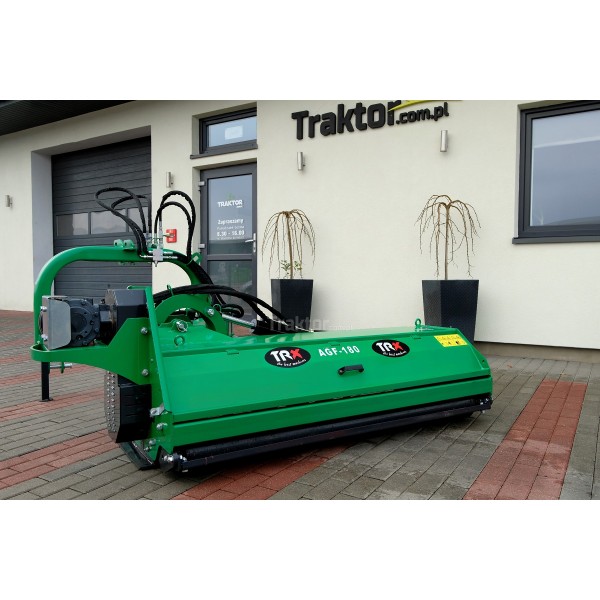

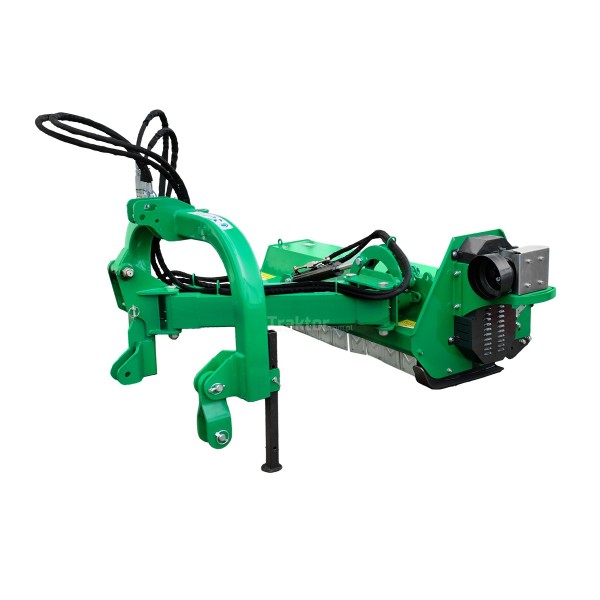

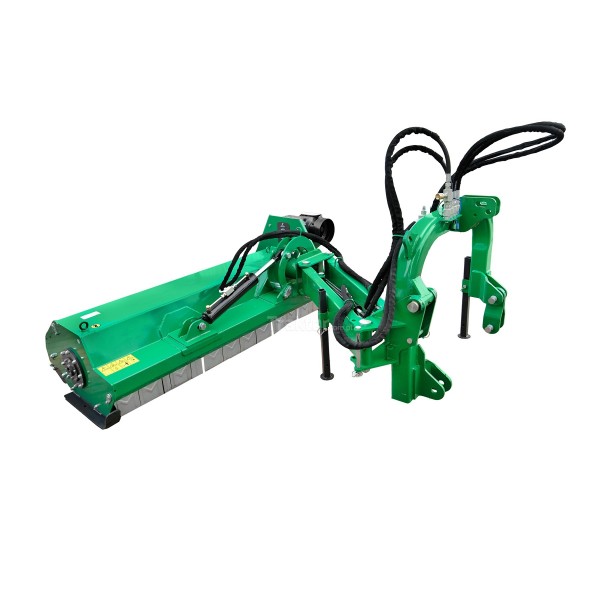

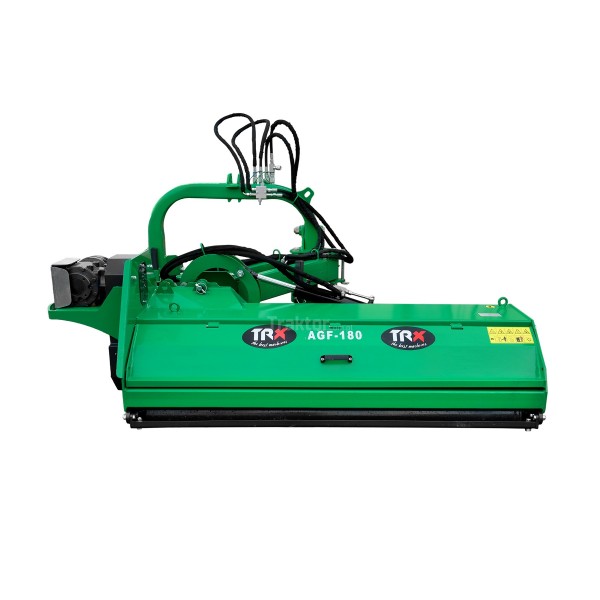

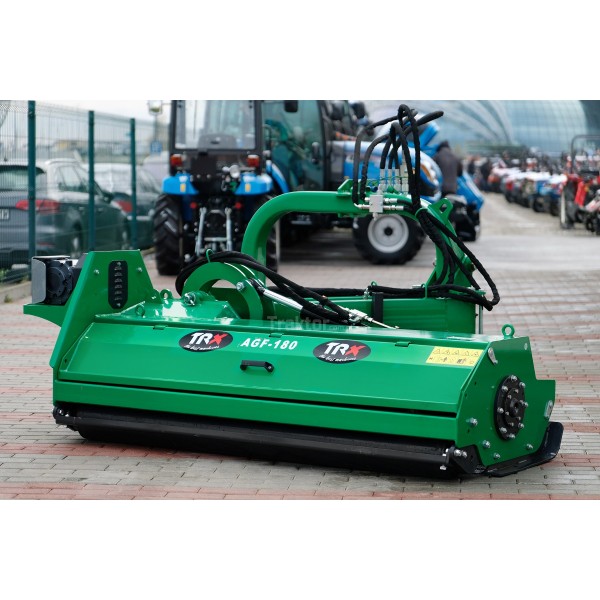

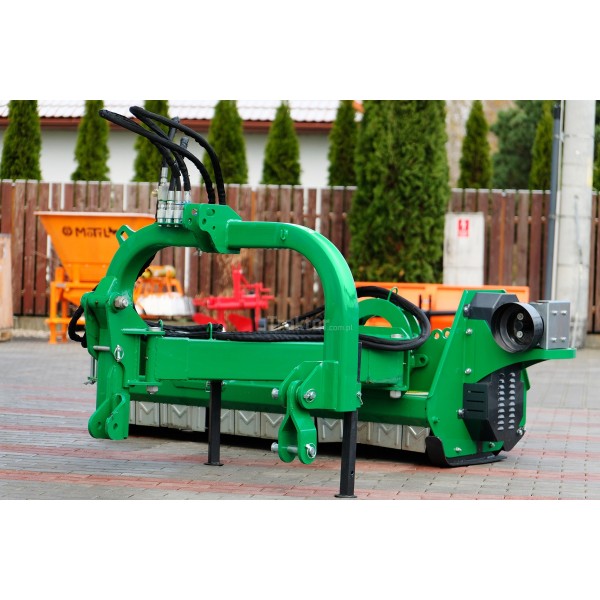

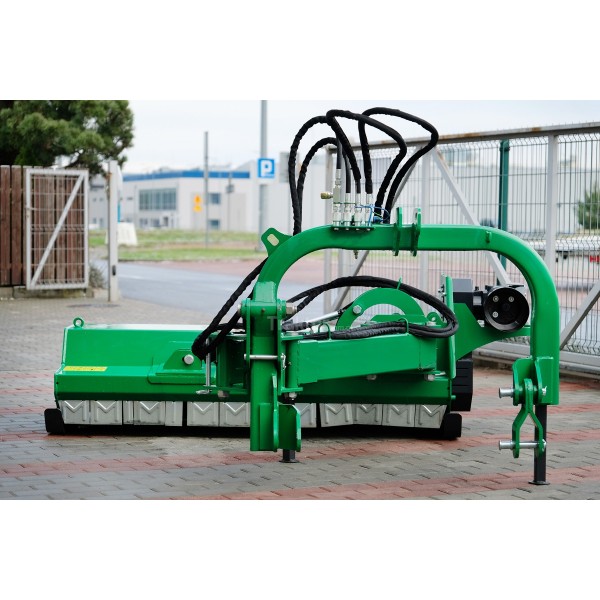

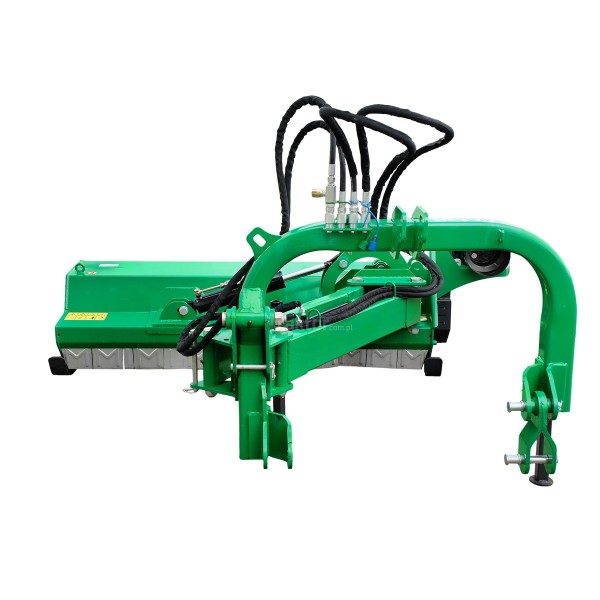

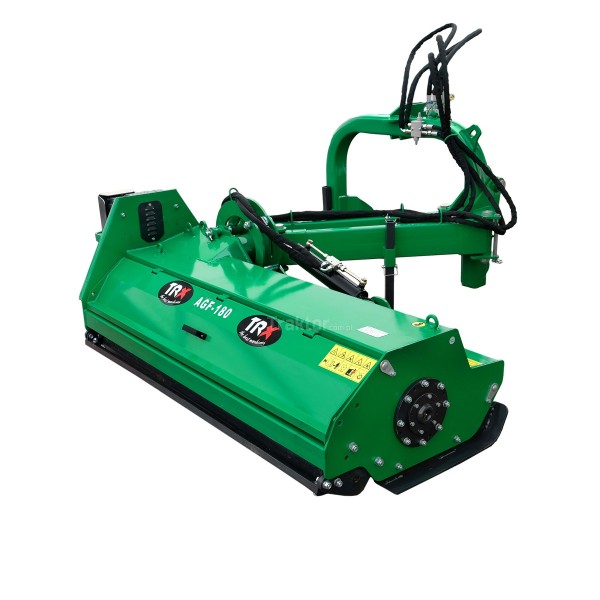

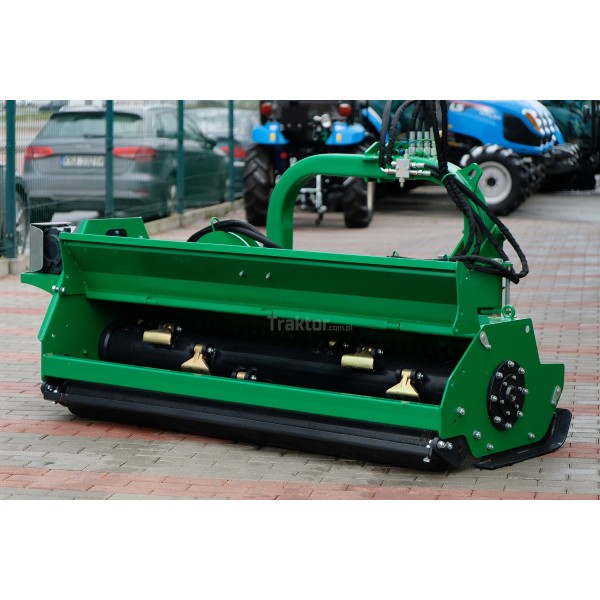

AGF 160 boom mower with TRX valves

Application:

• clearing all types of wasteland,
• mowing roadsides, slopes and ditches
• mowing green areas in cities
• maintenance of pastures, meadows, recreational areas and bushes for cleaning purposes
• mowing green areas in parks
• as a cleaning machine in orchards and nurseries

Advantages:

• can be easily used in urban areas because the number of flying stones and their impact are greatly limited,
• when caring for lawns, there is no need to collect mulched grass if this procedure is repeated quite often,
• it can also cope in unkempt areas with more stones, branches and other obstacles,
• cut green material quickly turns into humus, and old grass does not grow back so quickly,
• has double protection against damage to the gear: the hammers bounce off a stable obstacle, the belts on the pulleys slip if there is too much resistance,
• the gearbox has a one-way clutch
• simple construction ensures reliability and low repair costs

Technical data:

• working width - 160 cm
• total width - 188 cm
• arm reach - 220 cm (from the center of the tractor)
• weight - 678 kg
• minimum tractor power - 80 HP (the tractor must have the appropriate weight)
• max efficiency - 1.6 ha/h
• max speed - 10 km/h
• number of V-belts - 4 pcs
• mounted on the 3-point mounting of the Cat-2 tractor,
• drive from the tractor's PTO shaft, 540 rpm,
• equipped with an angle gear with a clutch,

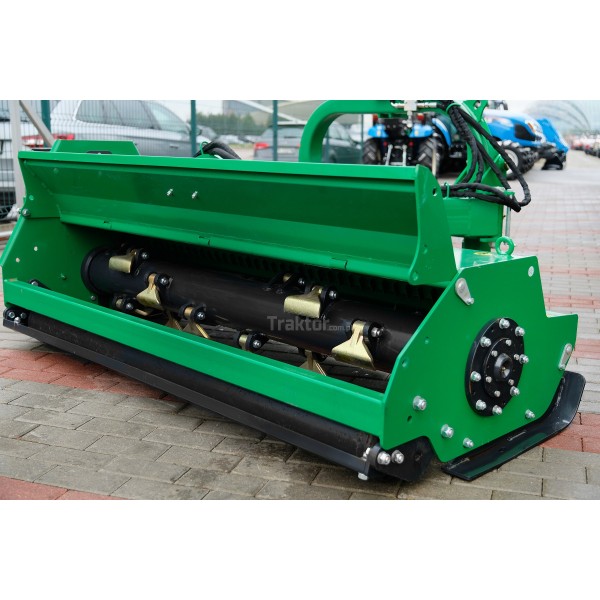

• cutting elements: 14 pieces of hammers weighing 1200 g on a 16 mm screw, max diameter of cut branches: Ø 80 mm
• adjustable cutting height

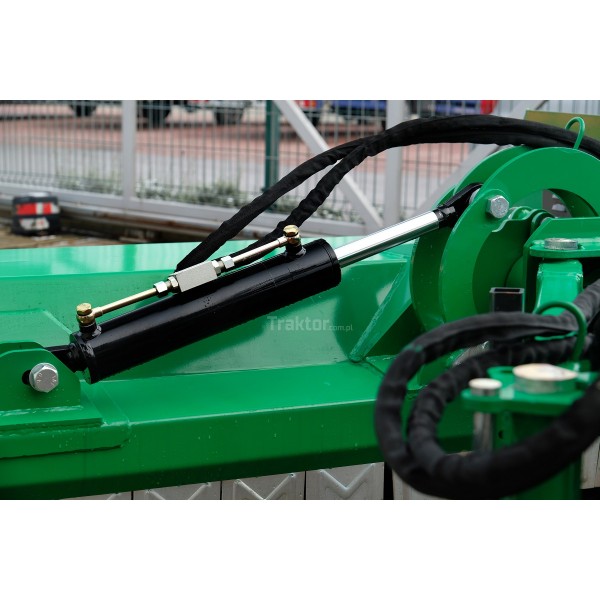

• The mower is equipped with 2 valves: one as protection against uncontrolled lowering of the machine, and the second one causes the machine to tilt when encountering an obstacle.
• the mower has the ability to move sideways and tilt at an angle, so it can also be used for mowing ditches (up to 60 degrees down), slopes and hedges (up to 90 degrees up)

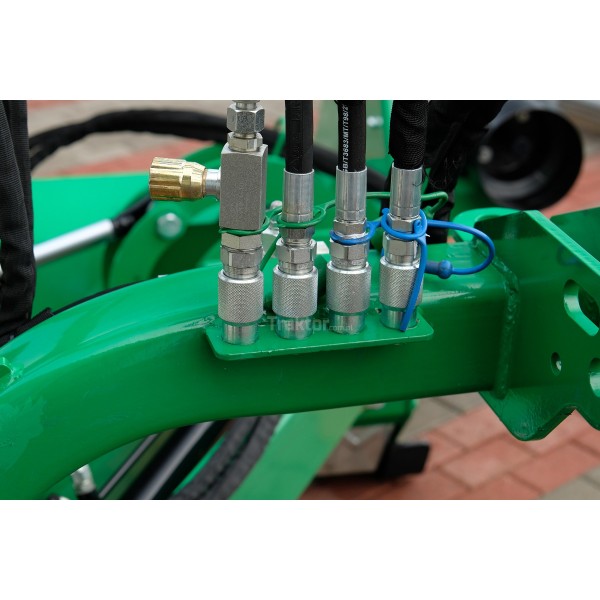

• 2-section hydraulics required in the tractor

Moreover, our company:

• issues a one-year warranty,
• we provide service and spare parts,
• for mowers with hydraulic control, we can prepare the necessary set that can be mounted on the tractor (to be agreed by phone).
