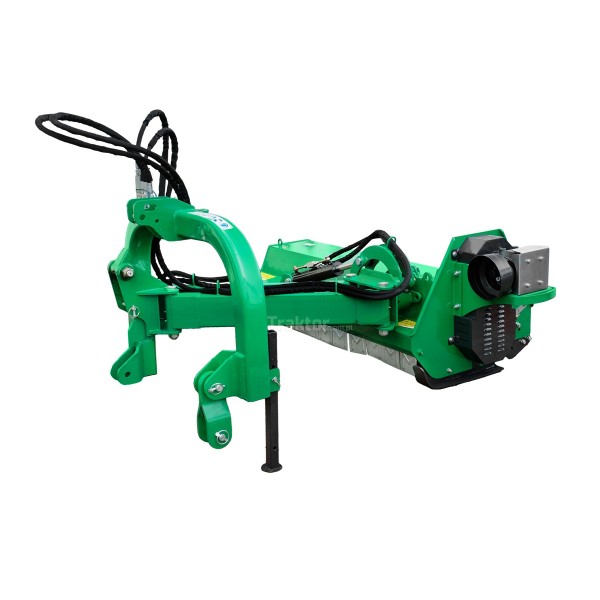

AGF 220 boom mower with TRX valves

AGF22-N rear-side flail mower

Flail mower on a boom AGF 220 with valves

Super heavy class flail mower (mulching) on a boom, model AGF. The AGF model flail mower is very suitable for professional municipal works due to its massive construction and the heaviest hammers. The hydraulically adjustable extension and inclination of the working module is perfect for mowing roadsides, ditches and slopes.

Application:

• clearing all types of wasteland
• mowing roadsides, slopes and ditches
• mowing green areas in cities
• maintenance of pastures, meadows, recreational areas and bushes for cleaning purposes
• mowing green areas in parks
• as a cleaning machine in orchards and nurseries

Advantages:

• You can easily use it in urban areas because the number of flying stones and their impact are very limited
• When caring for lawns, there is no need to collect mulched grass if this procedure is repeated quite often
• It can also cope in unkempt areas with more stones, branches and other obstacles
• cut green material quickly turns into humus, and old grass does not grow back as quickly
• has double protection against damage to the gear: the hammers bounce off a stable obstacle, the belts on the pulleys slip if there is too much resistance,
• the gearbox has a one-way clutch
• simple construction ensures reliability and low repair costs

Technical data:

• working width - 220 cm
• total width - 248 cm
• arm reach - 280 cm (from the center of the tractor)
• weight - 710 kg
• minimum tractor power - 120 HP (the tractor must have the appropriate weight)
• max efficiency - 2.2 ha/h
• max speed - 10 km/h
• number of V-belts - 5 pcs
• installed on the 3-point mounting of the Cat-2 tractor
• drive from the tractor's PTO shaft, 540 rpm
• equipped with an angle gear with a clutch

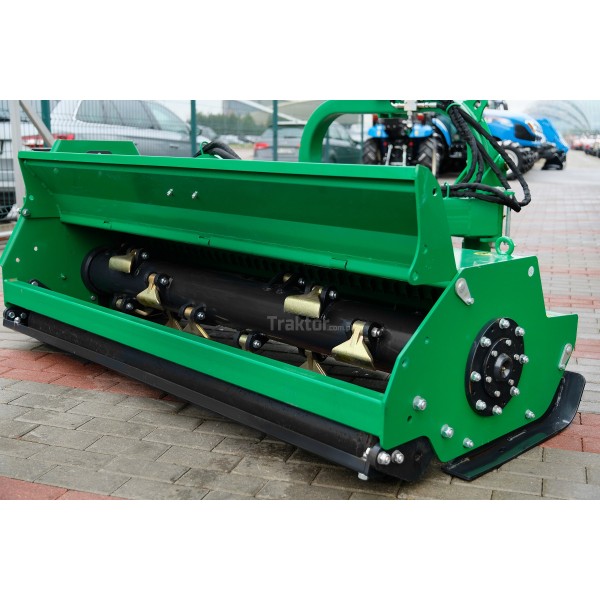

• cutting elements: 20 pieces of hammers weighing 1200 g per screw diameter 16, max diameter of cut branches: Ø 80 mm
• adjustable cutting height

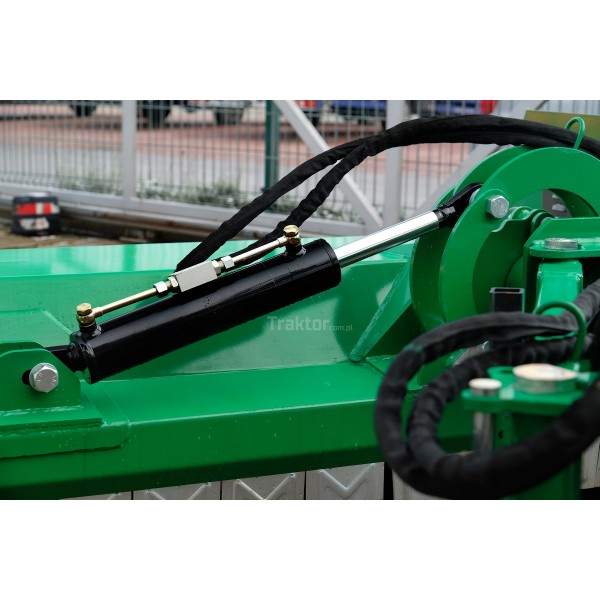

• The mower is equipped with 2 valves: one as protection against uncontrolled lowering of the machine, and the second one causes the machine to tilt when encountering an obstacle.
• the mower has the ability to move sideways and tilt at an angle, so it can also be used for mowing ditches (up to 60 degrees down), slopes and hedges (up to 90 degrees up)

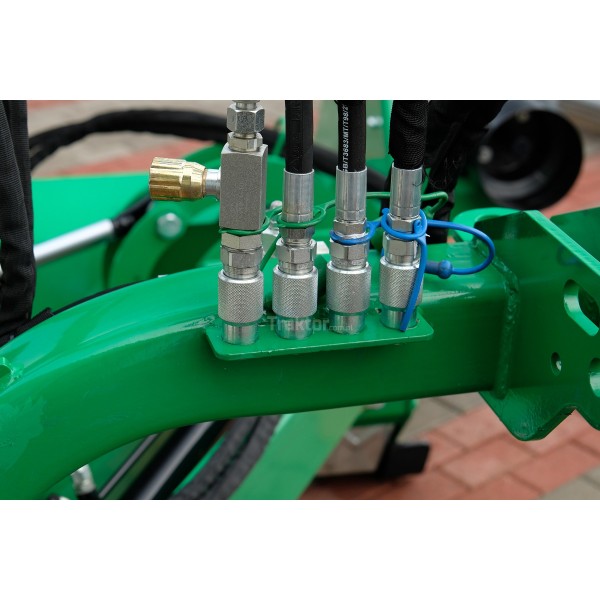

• 2-section hydraulics required in the tractor

Moreover, our company:

• issues a one-year warranty
• we provide service and spare parts
• for mowers with hydraulic control, we can prepare the necessary set that can be mounted on the tractor (to be agreed by phone)

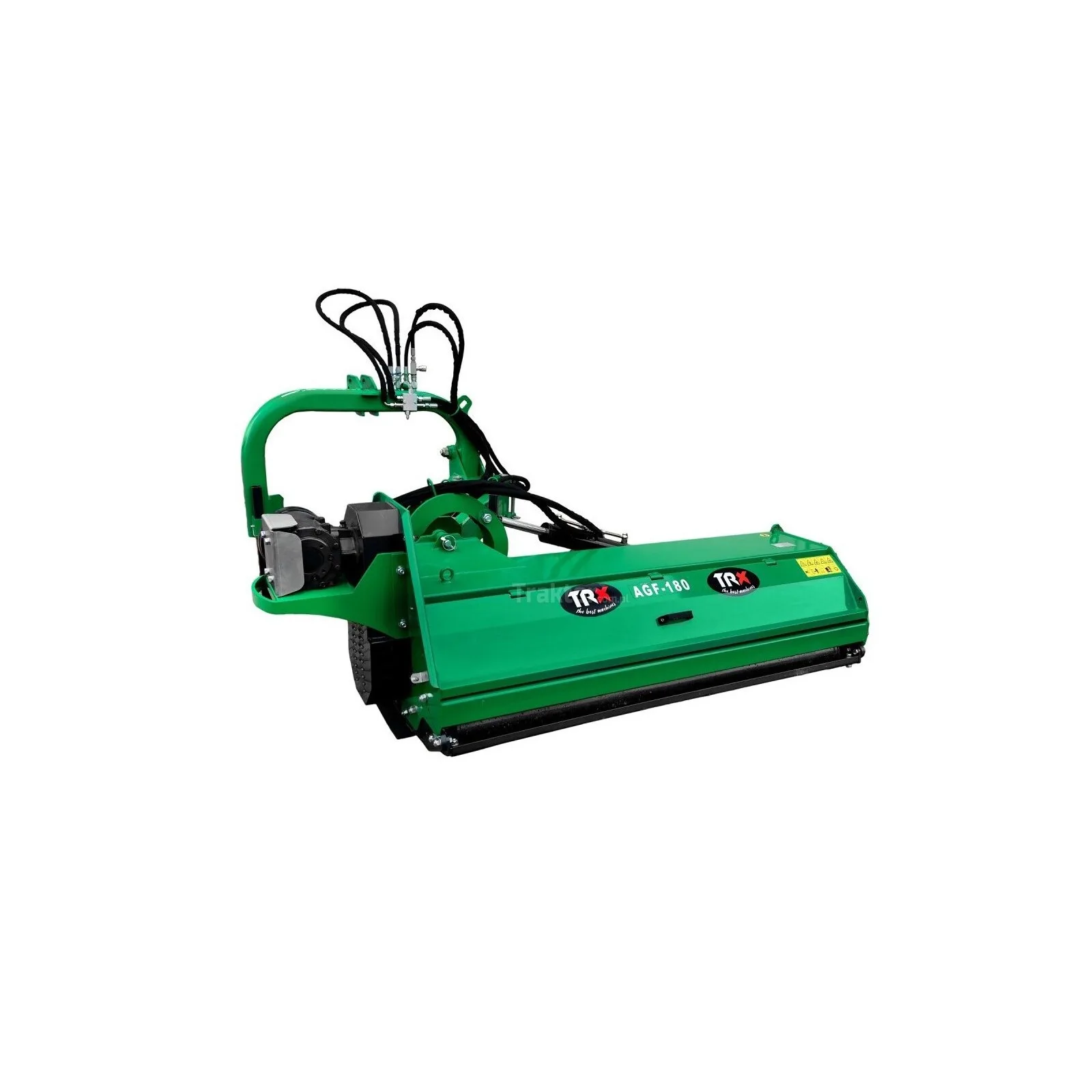

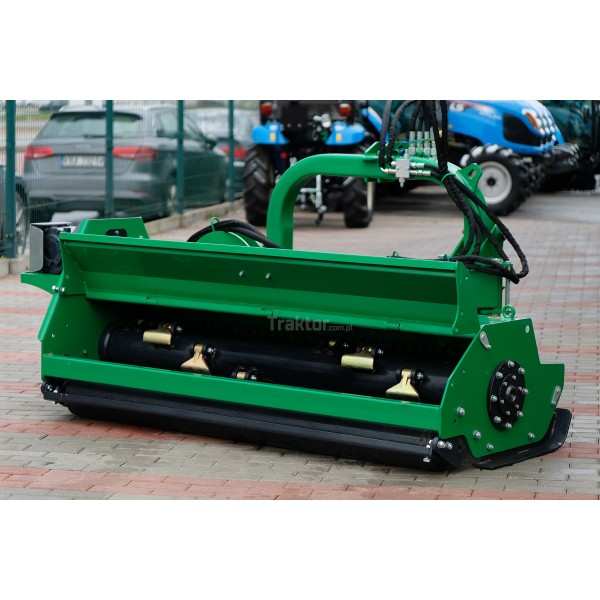

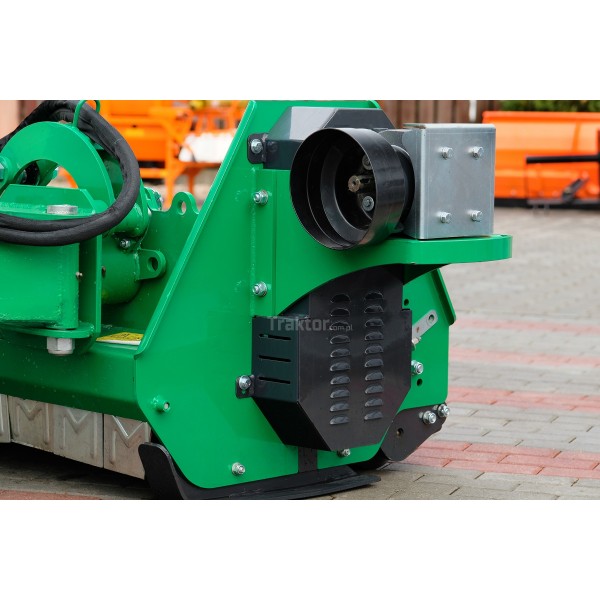

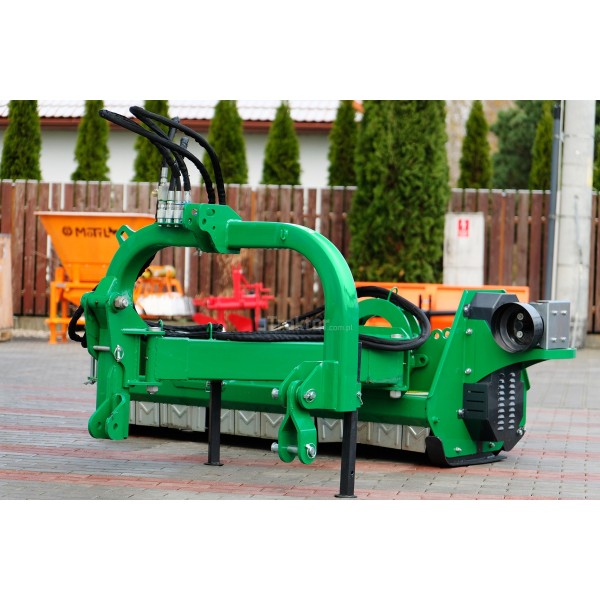

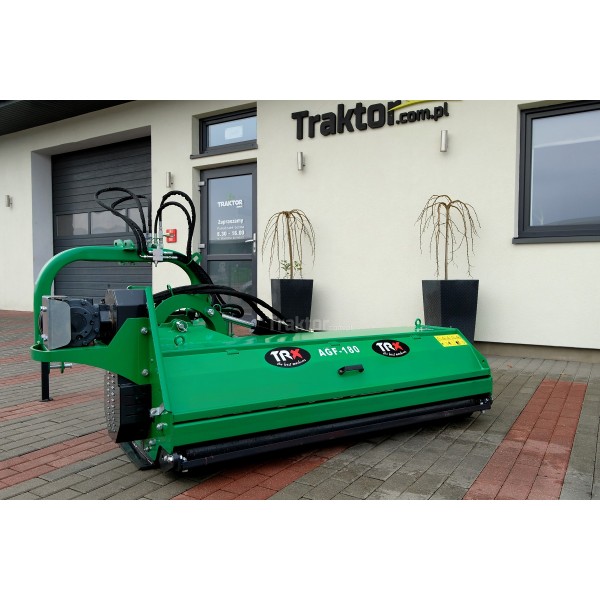

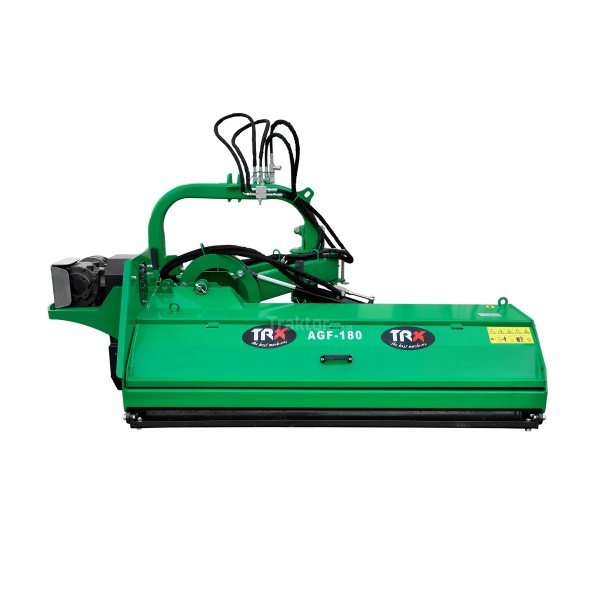

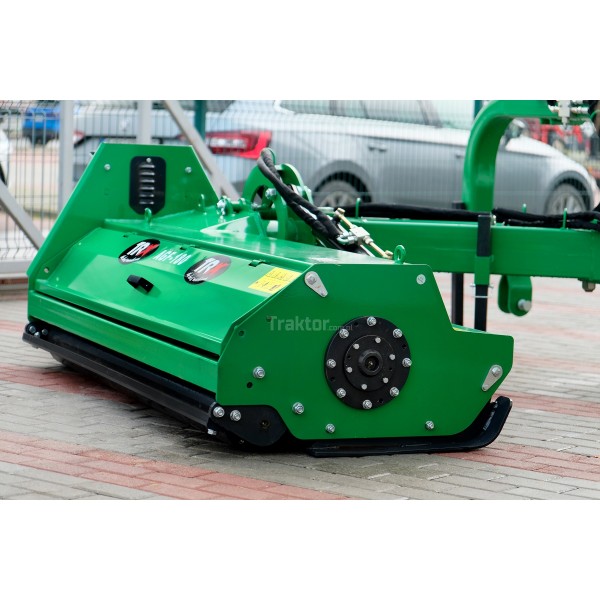

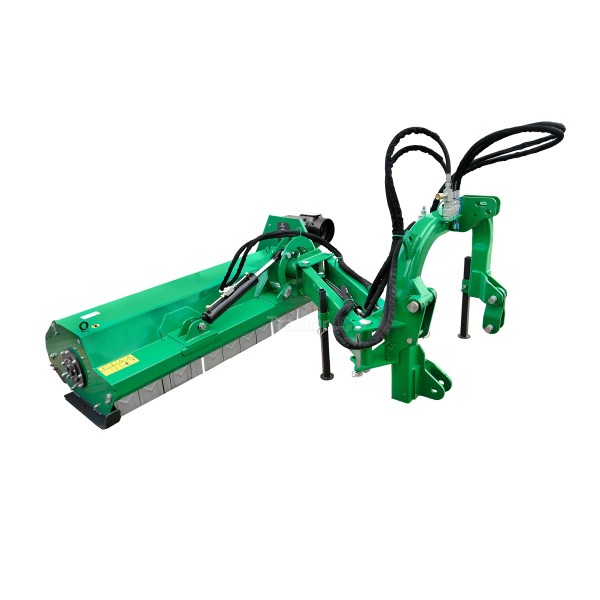

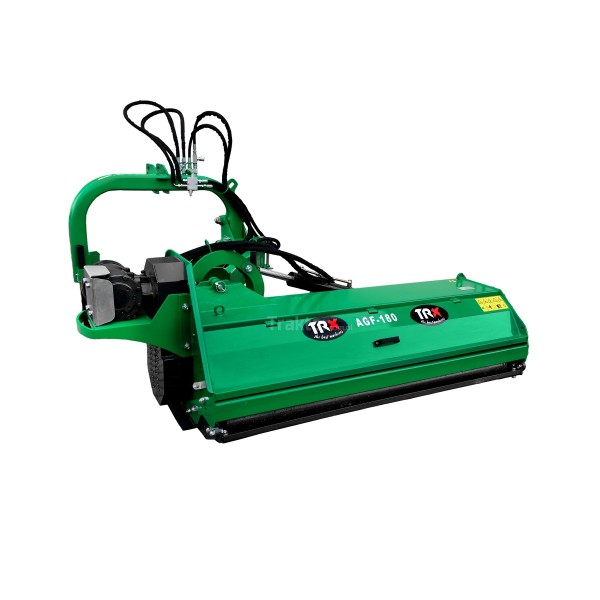

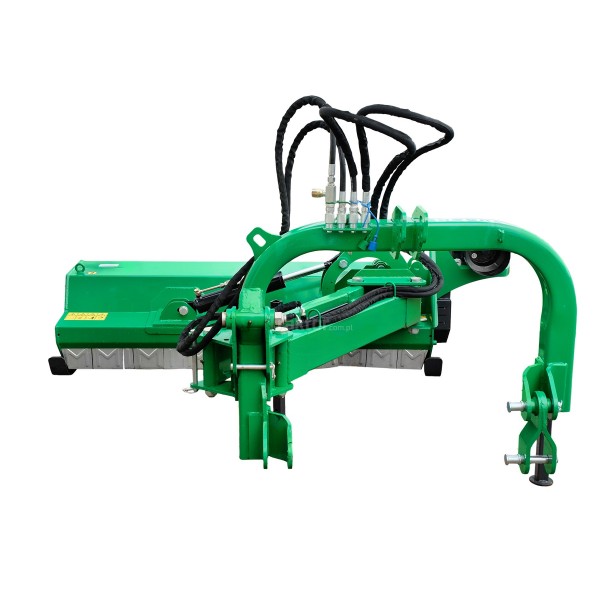

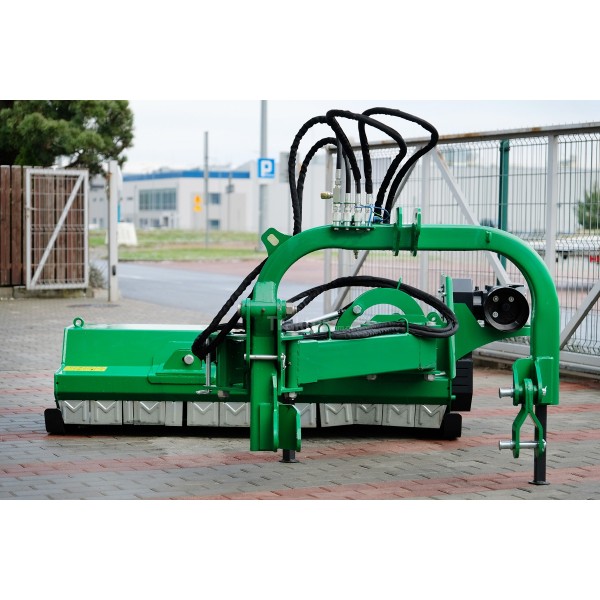

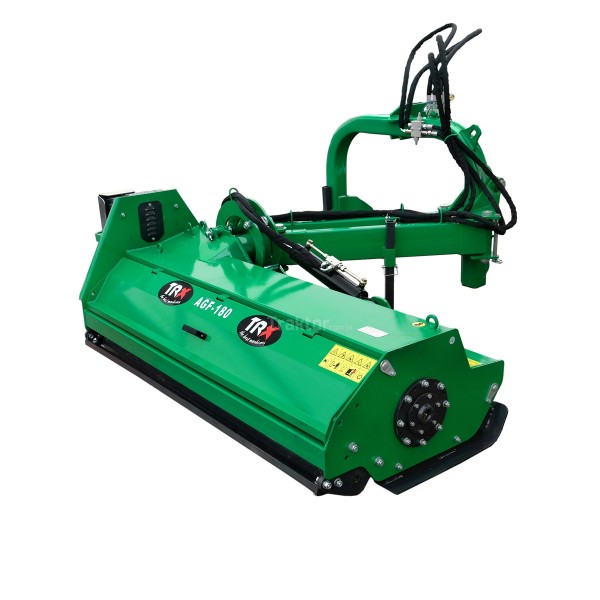

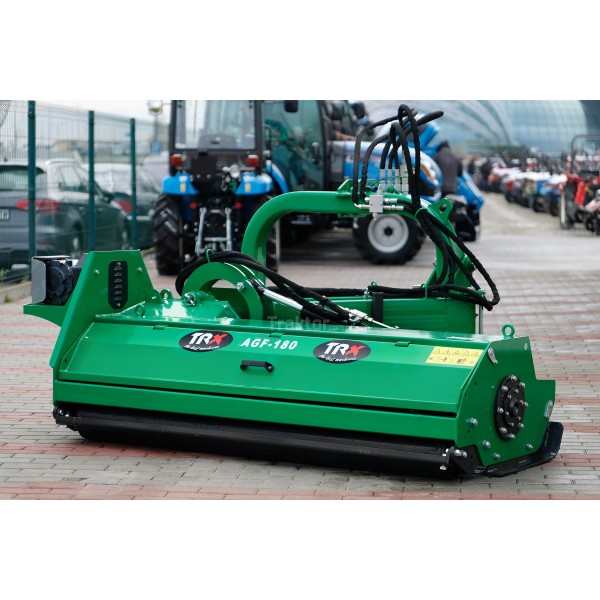

*The illustrative photos show the model in size AGF 180.
