AGL 145 Geograss flail mower on a boom

AGL 145 medium-class flail mower (mulching) on a boom, model AGL.

A flail mower with the option of extending and tilting the mowing module. Thanks to this, it is also very suitable for mowing the sides of slopes and ditches. With such a mower, you can comprehensively tidy up wasteland, access roads and safely (low weight) mow pond slopes.

GEOGRASS - A brand created for Professionals. The equipment is equipped with increased durability bearings and stronger components, making the structure even more stable. Increased parameters give GEOGRASS devices increased durability and even longer failure-free operation.

Distinguishing features:

• V-belt tensioner

• even stronger structure

• better bearings

Application:

• clearing all types of wasteland,

• mowing roadsides, mowing green areas in cities

• maintenance of pastures, meadows, recreational areas and bushes for cleaning purposes

• mowing green areas in parks

• as a cleaning machine in orchards and nurseries

Advantages:

• can be easily used in urban areas because the number of flying stones and their impact are greatly limited,

• when caring for lawns, there is no need to collect mulched grass if this procedure is repeated quite often,

• it can also cope in unkempt areas with more stones, branches and other obstacles,

• cut green material quickly turns into humus, and old grass does not grow back so quickly,

• has double protection against damage to the gear: the hammers bounce off a stable obstacle, the belts on the pulleys slip if there is too much resistance,

• the gearbox has a one-way clutch

• simple construction ensures reliability and low repair costs

Technical data:

• working width - 145 cm

• total width - 158 cm

• arm reach - 200 cm (from the center of the tractor)

• weight - 336 kg

• recommended tractor power - 20 HP (the tractor must have the appropriate weight)

• max efficiency - 1.45 ha/h

• max speed - 10 km/h

• mounted on a KATI 3-point suspension

• number of hammers (400 g) - 24 pcs.

• number of V-belts - 3 pcs.

• feed supply - hydraulic

• required hydraulic connectors - 4 pcs.

• gear type - directional with clutch

• driven by PTO 540 rpm.

• very good mowing quality

In addition:

• we issue a one-year warranty,

• we provide service and spare parts,

• for mowers with hydraulic control, we can prepare the necessary set that can be mounted on the tractor (to be agreed by phone).

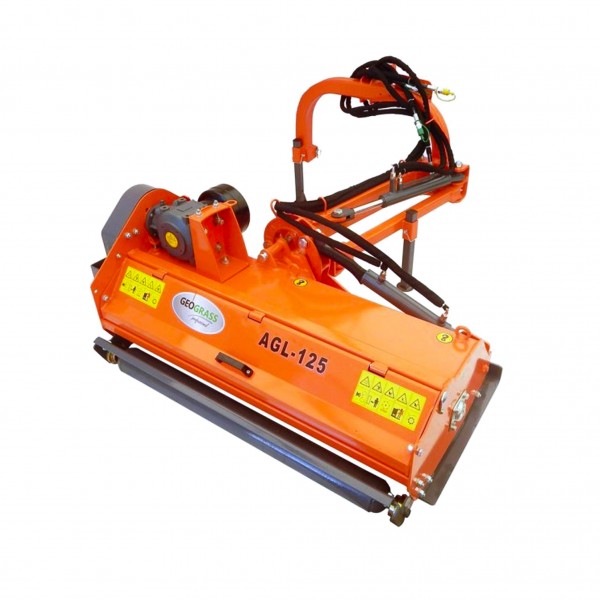

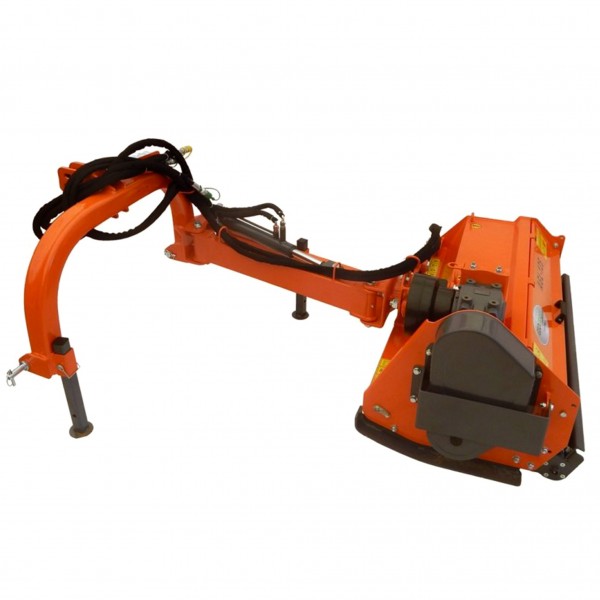

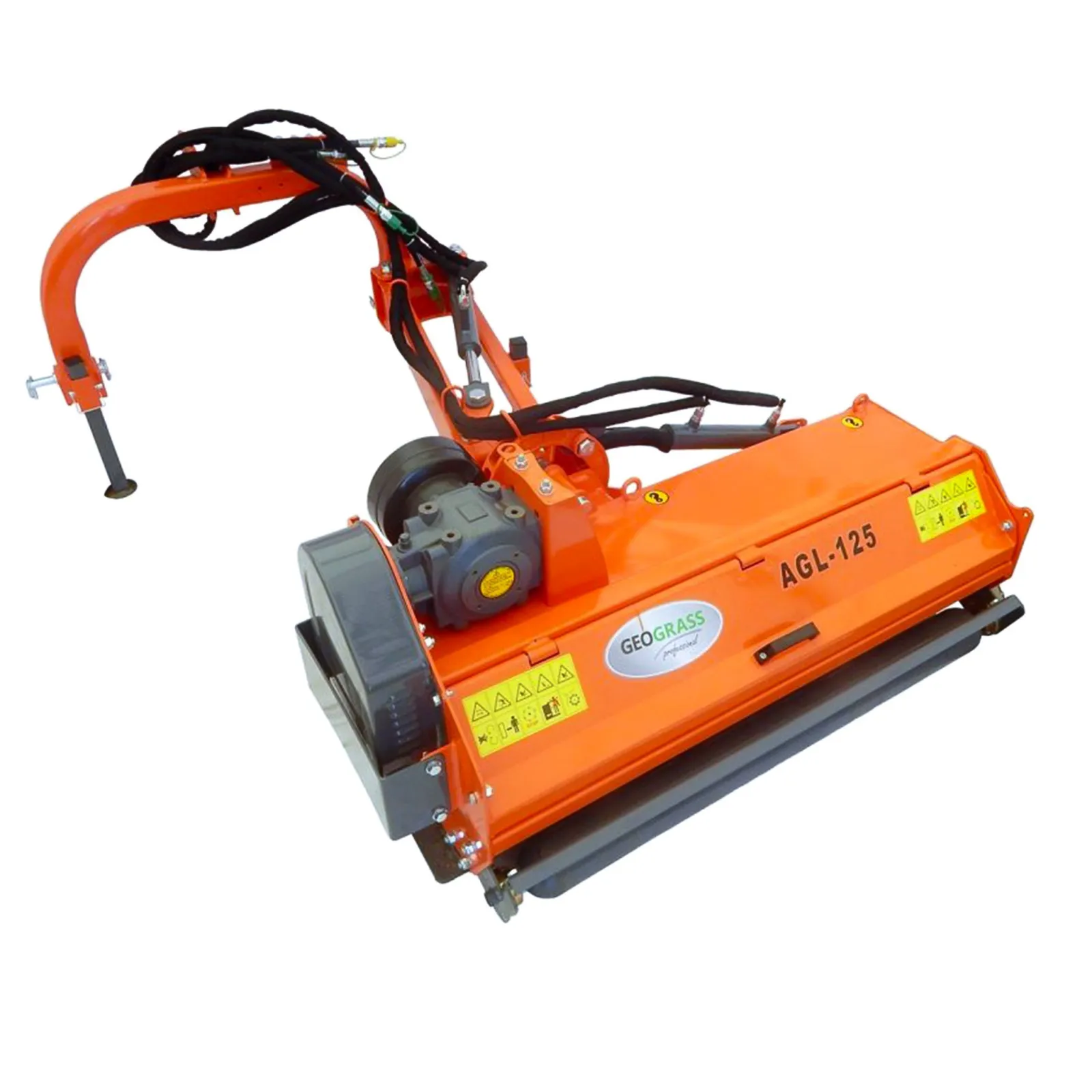

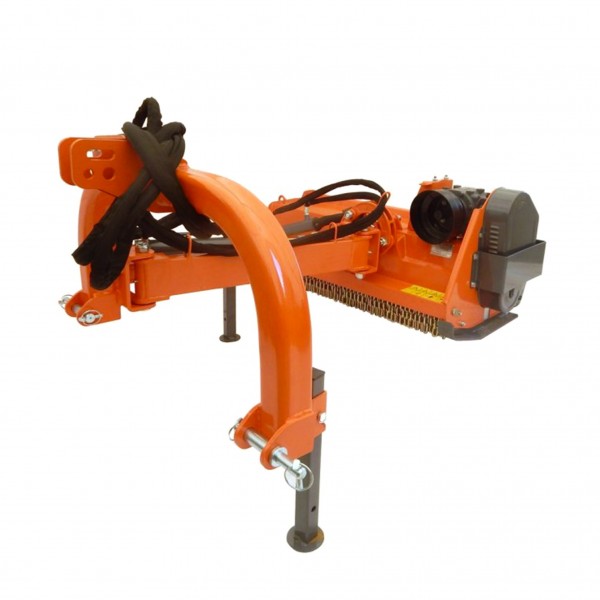

*The photos are for illustration purposes only, they show the model in size 125.
