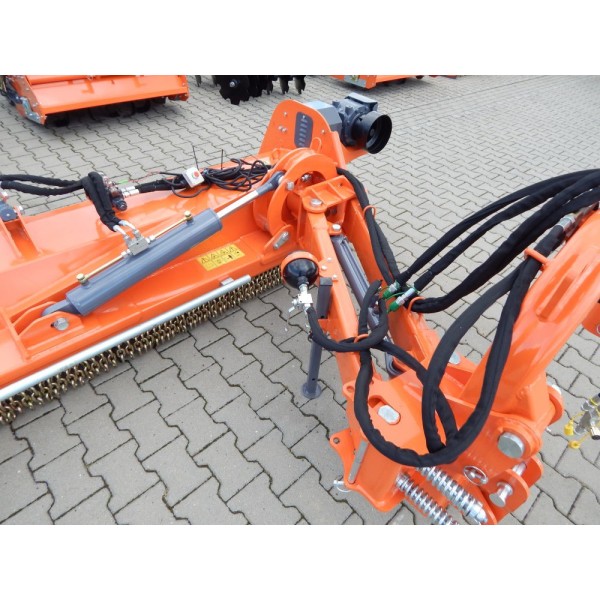

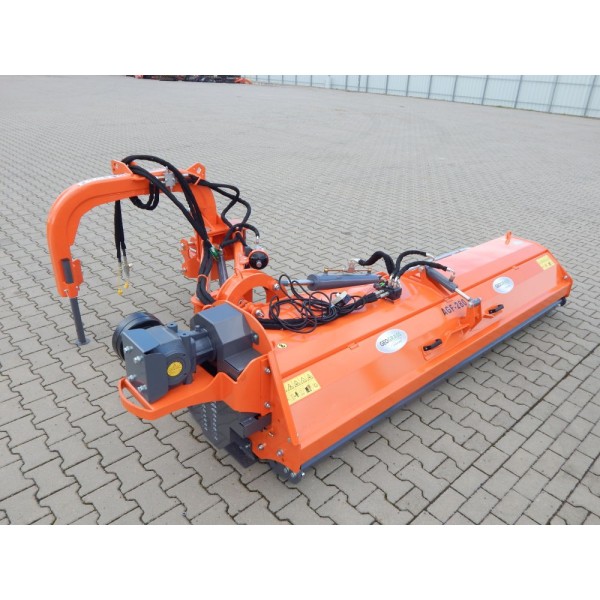

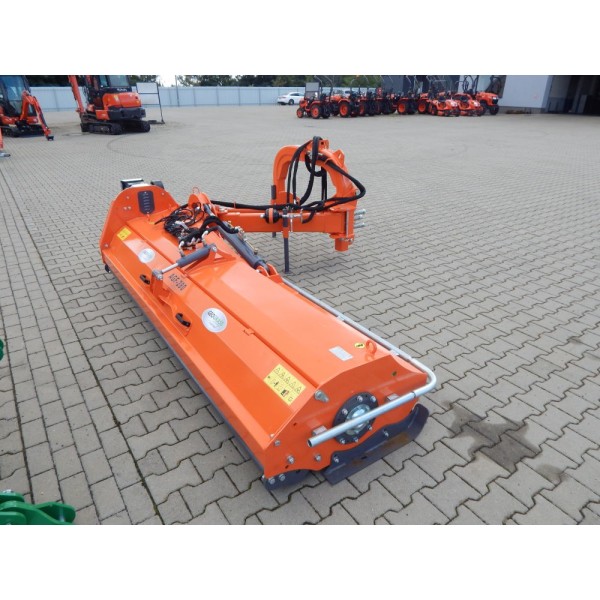

AGF 280 Geograss flail mower on a boom

Super heavy class flail mower (mulching) on a boom, model AGF.

The AGF model flail mower is very suitable for professional municipal works due to its massive construction and the heaviest hammers. The hydraulically adjustable extension and inclination of the working module is perfect for mowing roadsides, ditches and slopes. The equipment is equipped with increased durability bearings and stronger components, making the structure even more stable. Increased parameters give GEOGRASS devices increased durability and even longer failure-free operation.

Distinguishing features:

• service flap at the rear of the mower

• V-belt tensioner

• rebound springs

• even stronger structure

• better bearings

Application:

• clearing all types of wasteland,

• mowing roadsides, slopes and ditches

• mowing green areas in cities

• maintenance of pastures, meadows, recreational areas and bushes for cleaning purposes

• mowing green areas in parks

• as a cleaning machine in orchards and nurseries

Advantages:

• can be easily used in urban areas because the number of flying stones and their impact are greatly limited,

• when caring for lawns, there is no need to collect mulched grass if this procedure is repeated quite often,

• it can also cope in unkempt areas with more stones, branches and other obstacles,

• cut green material quickly turns into humus, and old grass does not grow back so quickly,

• has double protection against damage to the gear: the hammers bounce off a stable obstacle, the belts on the pulleys slip if there is too much resistance,

• the gearbox has a one-way clutch

• simple construction ensures reliability and low repair costs

Technical data:

• equipped with an angle gear with a clutch,

• cutting elements: 28 pieces of hammers weighing 1200 g per screw diameter 16, max diameter of cut branches: Ø 80 mm

• adjustable cutting height

• The mower is equipped with 2 valves: one as protection against uncontrolled lowering of the machine, and the second one causes the machine to tilt when encountering an obstacle.

• the mower has the ability to move sideways and tilt at an angle, so it can also be used for mowing ditches (up to 60 degrees down), slopes and hedges (up to 90 degrees up)

• 2-section hydraulics required in the tractor

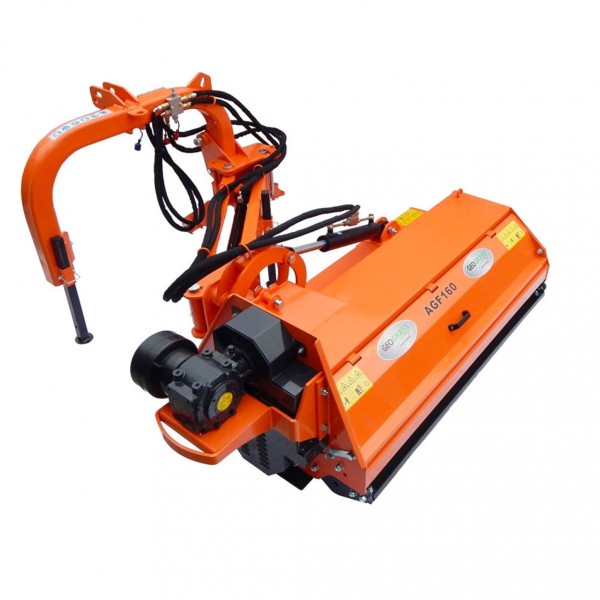

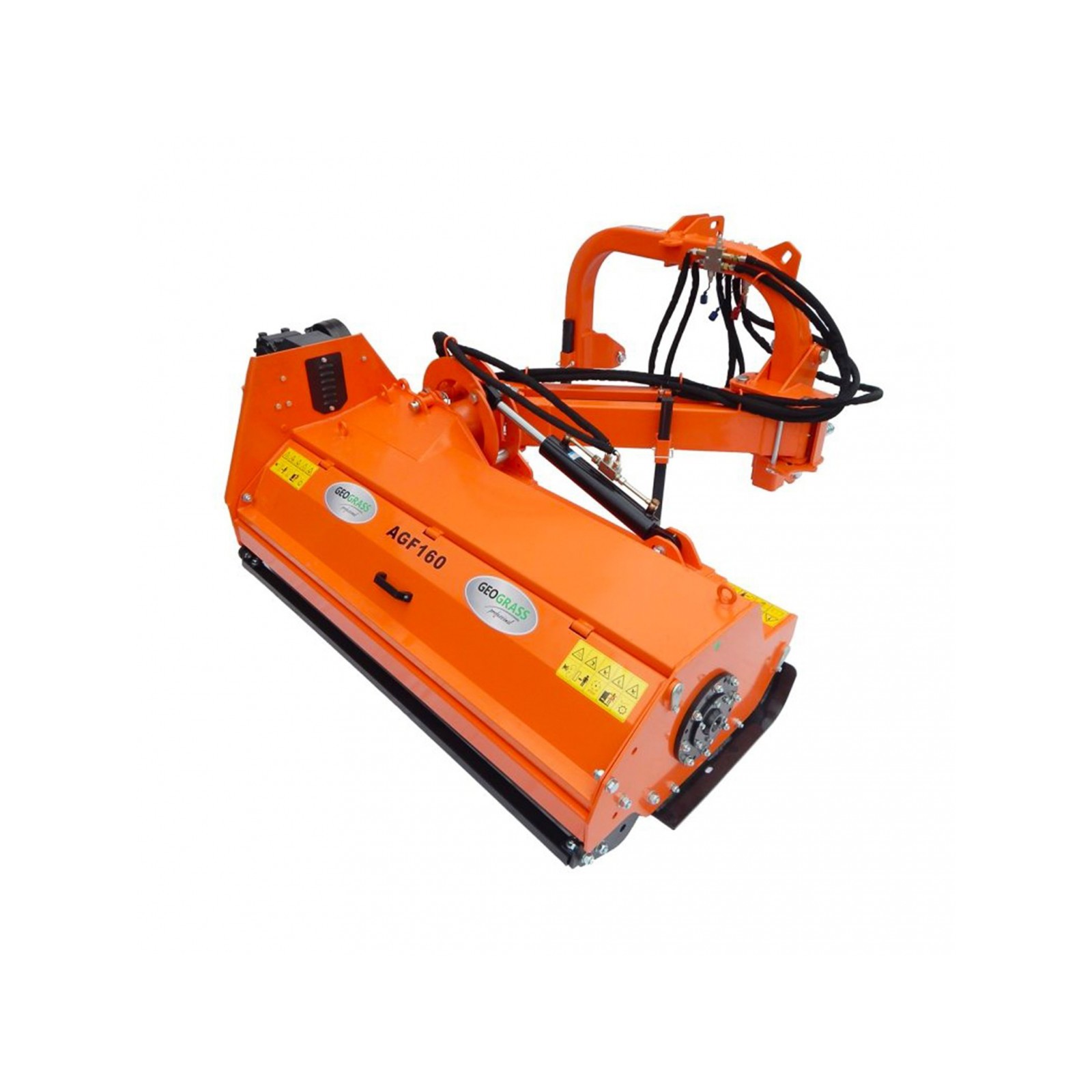

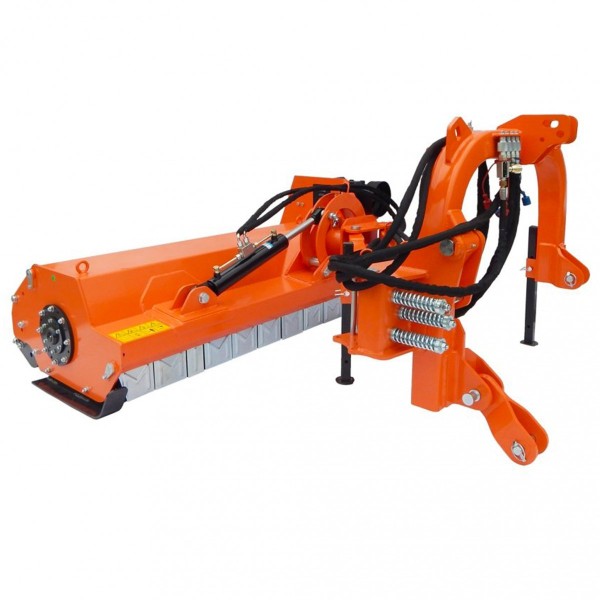

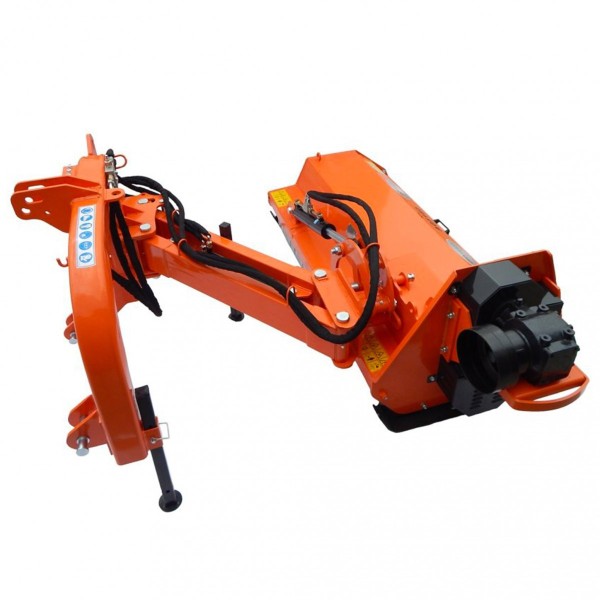

*The photos are for illustration purposes only, they show the model in size 160.
