Locking ring Ø 35 / LS MT1.25 / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / S810035001 / 40029275

Product code: 40029275
Brand LS Tractor
Country of production LS Tractor
View other model
zł4.60
Includes VAT 23%

Lowest price from 30 days: zł4.60

Product description

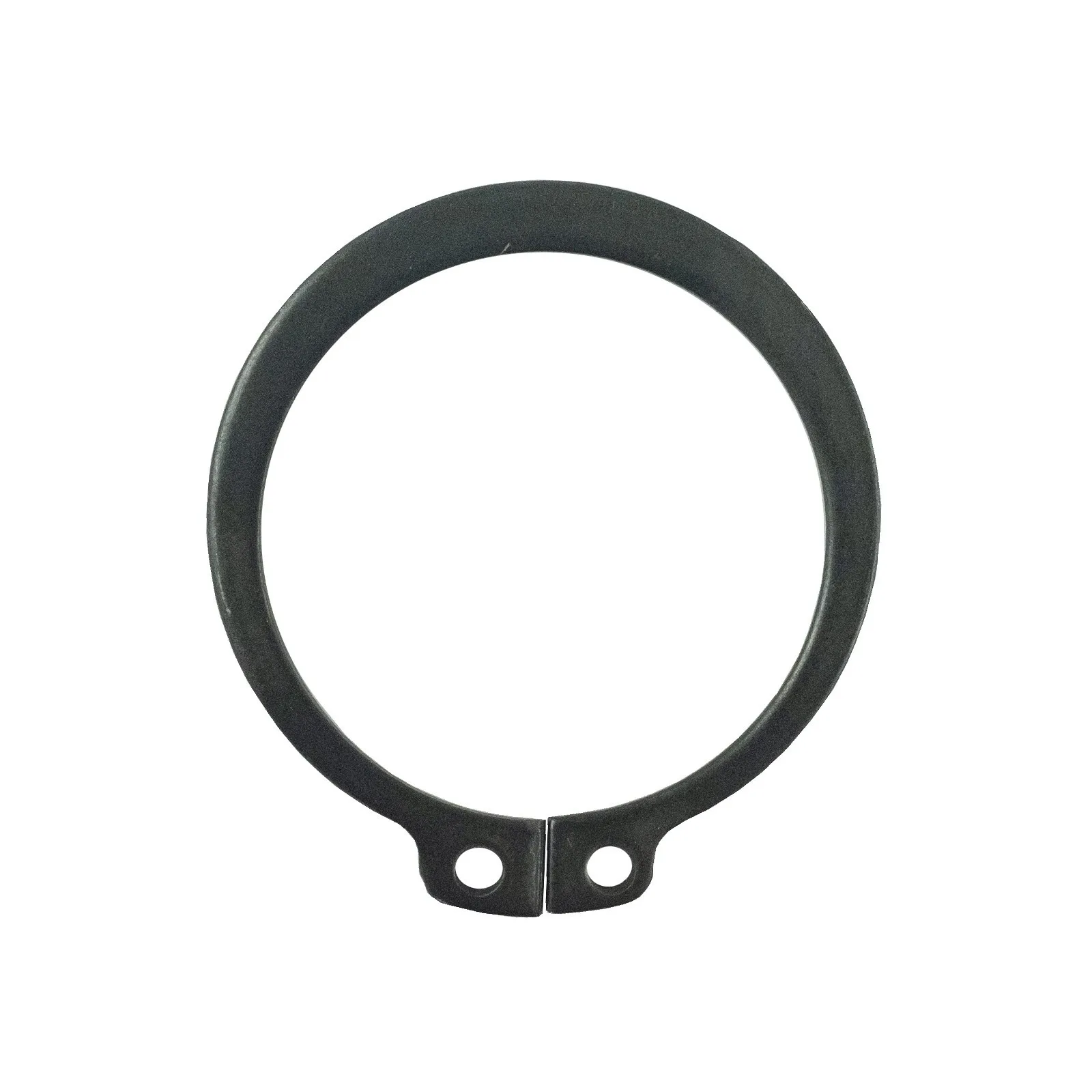

Seger ring, with ring latch , internal diameter 27.90 mm , external diameter 33 mm , height 36 mm and thickness 1.30 mm for LS Tractors series LS MT1.25, LS MT3.35, LS MT3.40, LS MT3.50, LS series MT3.60 and others to:

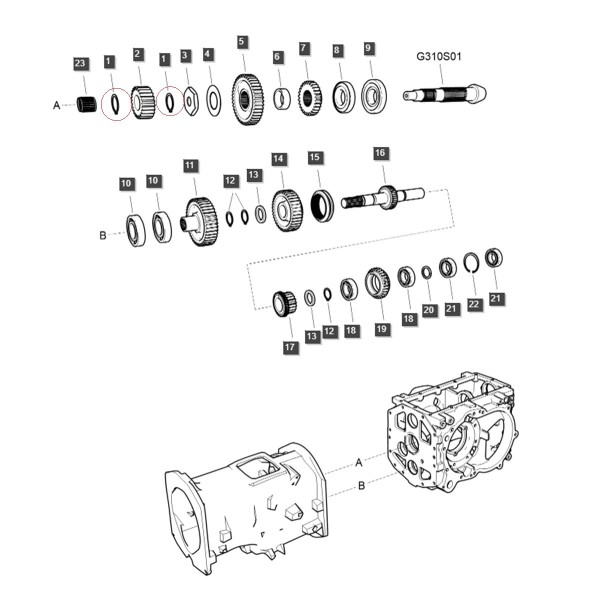

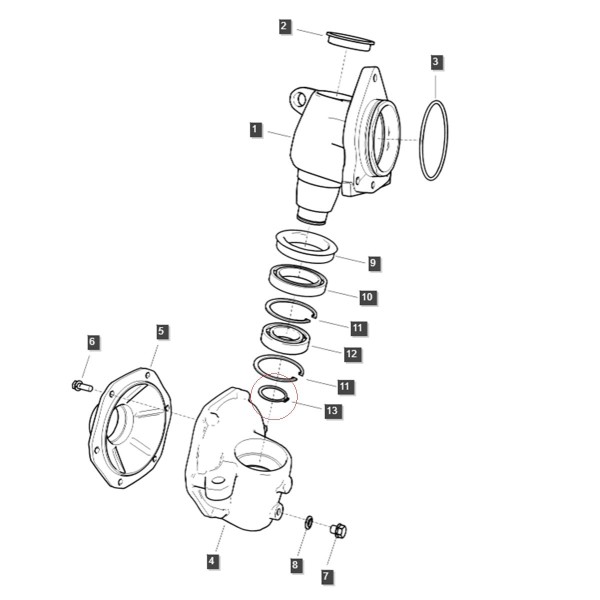

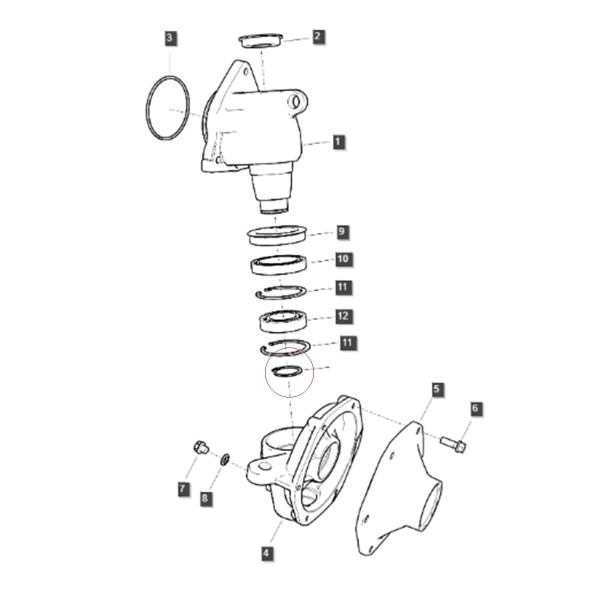

  • front axle reduction gears,
  • front axle reduction gears,

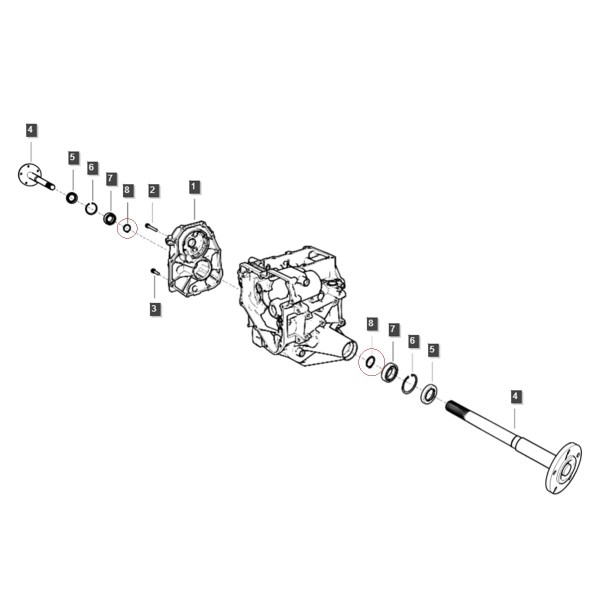

  • rear axle,
  • rear axle,

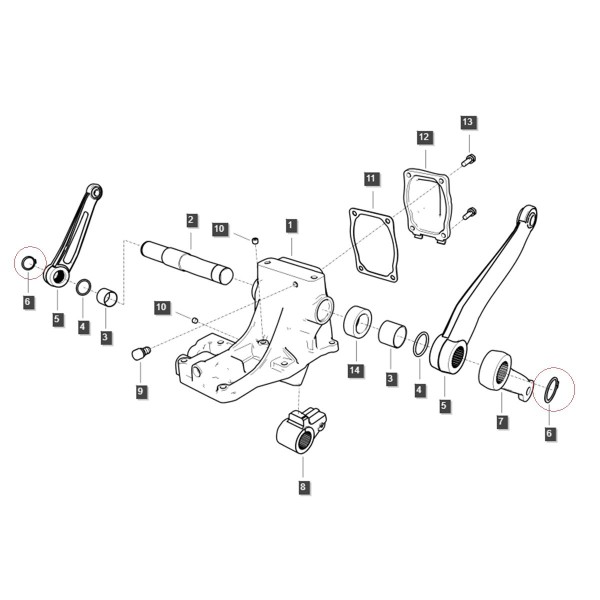

  • lifting shaft of the three-point linkage lifting arms,

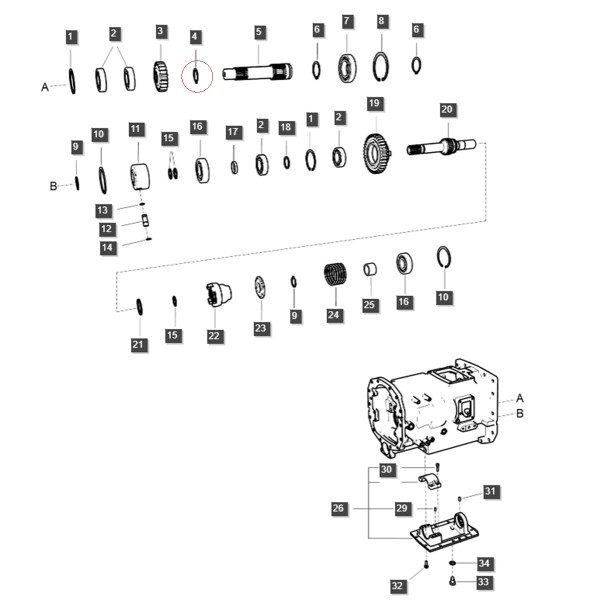

  • gearbox sprockets,

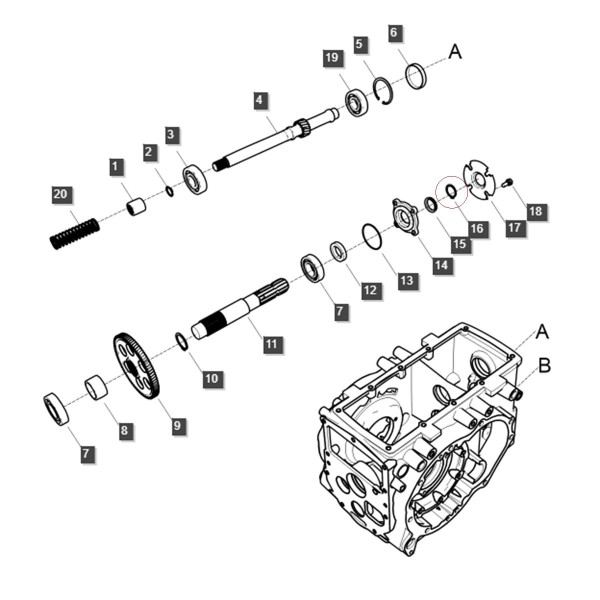

  • PTO/PTO shaft,
  • differential shaft.

A spring ring called a seger ring after the name of the company that was the first to patent its invention. A safety ring is an element of a mechanical system that is installed to prevent movement of moving components or machine parts. Bearings, bushings and gears are placed on the shaft and axles and, not secured with seger rings, can be subjected to axial movements. Seger rings are divided into two groups: for shafts, pins and holes, and they differ in shape in the location of the mounting holes.

Dimensions:

  • inner diameter: 32 mm,
  • outer diameter: 38 mm,
  • height: 41.30 mm,
  • hole diameter: 1.30 mm,
  • thickness: 1.30 mm,
  • Comparison numbers: S810035001.

Tractor models:

LS Tractors :

  • LS MT1.25,
  • LS MT3.35,
  • LS MT3.40,
  • LS MT3.50,
  • LS MT3.60.

Warehouse :
L01:B153

Specifications

Condition
New

Reviews of Locking ring..

Traktor.com.pl S.C. Wojciech i Miłosz Początek Reviews with ekomi-pl.com

This product has no reviews yet.

We collect reviews from verified Customers after the purchase of the product.

Write your review

Review form will be here

Questions & Answers

Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.

How to properly select and sharpen mower blades for a Japanese tractor?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.

How to identify the correct V-belt size and how to care for it?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
