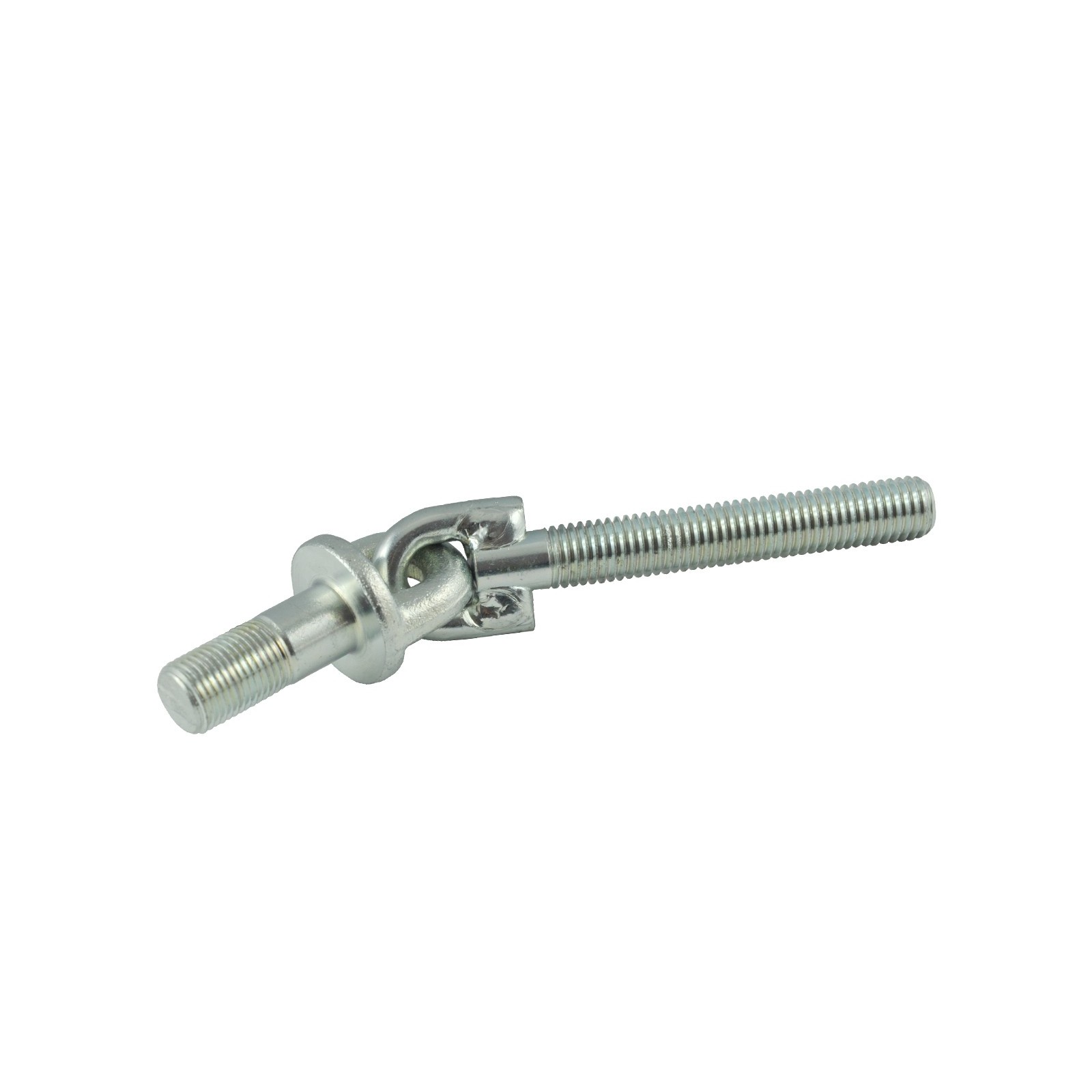

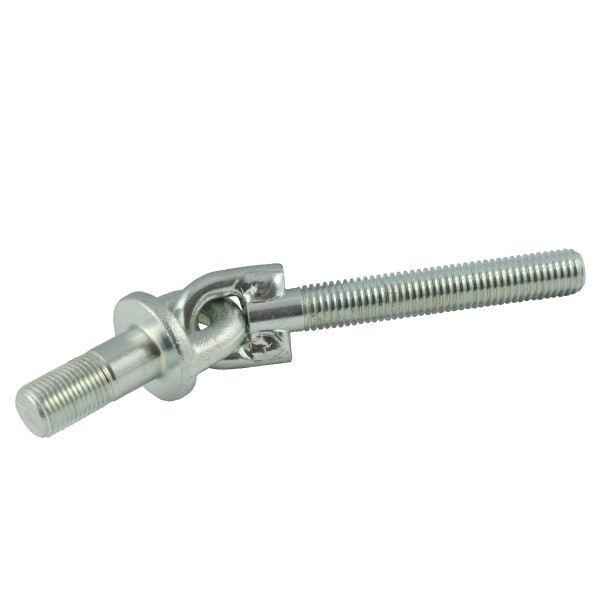

Eyebolt M14 x 2.00 x 86 / M16 x 1.5 x 40 mm / LS MT1.25 / TRG896 / 40194151

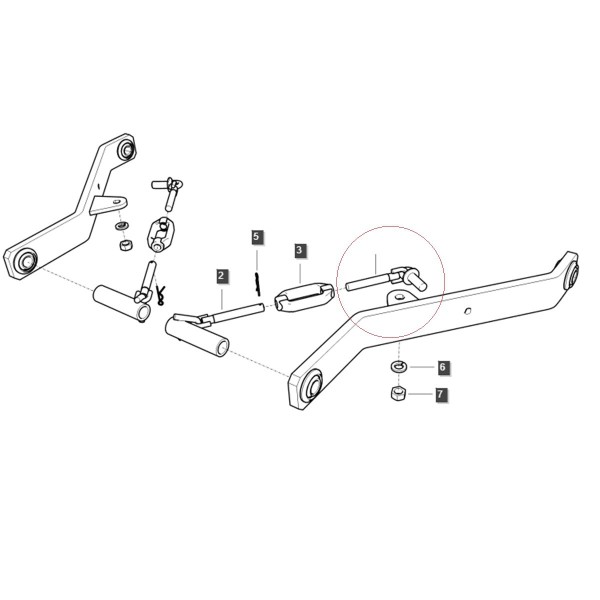

Eye bolt of the retraction chain of the right three-point linkage with thread M14 x 2.00 and M16 x 1.5 , length 86 mm and 40 mm . Screw for LS Tractor LS MT1.25 series tractors and others. The screw connection occurs in the lower chain of the three-point linkage arm.

The appropriate selection of the screw in terms of strength should be made before installation, because the shape of the screw and technical parameters may have a direct impact on the safety and durability of the connection. We distinguish 3 classes of screw accuracy , i.e. A, B and C, and 10 classes (measured in mega pascals) of strength: 3.6, 4.6, 4.8, 5.6, 5.8, 6.8, 8.8 , 9.8, 10.9, 12.9 where the first digit indicates the tensile strength limit and the second is the yield strength relative to the first value (in percentage). The higher the values, the greater the strength of the bolt, so 3.6 is the lowest quality bolt (made of low-carbon steel) and 12.9 is the highest strength class (low-alloy steel).

Dimensions :

• length: 86 / 40 mm,
• thread length: 84 / 22 mm,
• thread: M14 x 2.00 x 86 / M16 x 1.5,
• part numbers: 40194151.

Tractor models: :

LS Tractor :

• LS MT1.25.

Warehouse :
L01:B234
