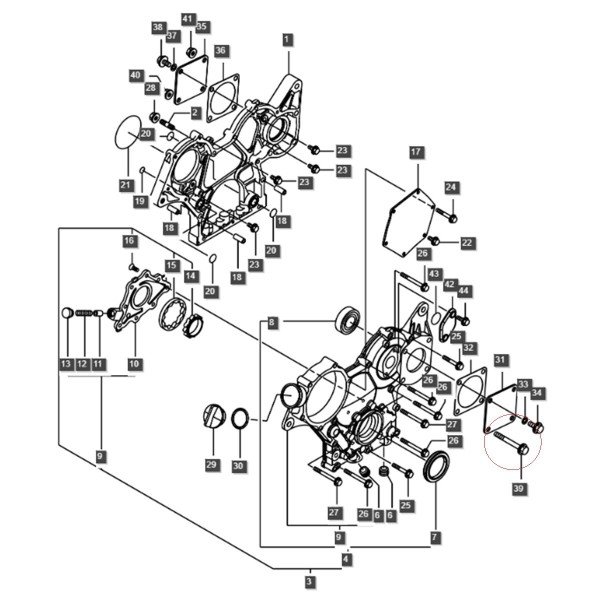

Screw M8 x 1.25 x 70 mm / LS MT1.25 / 40333743

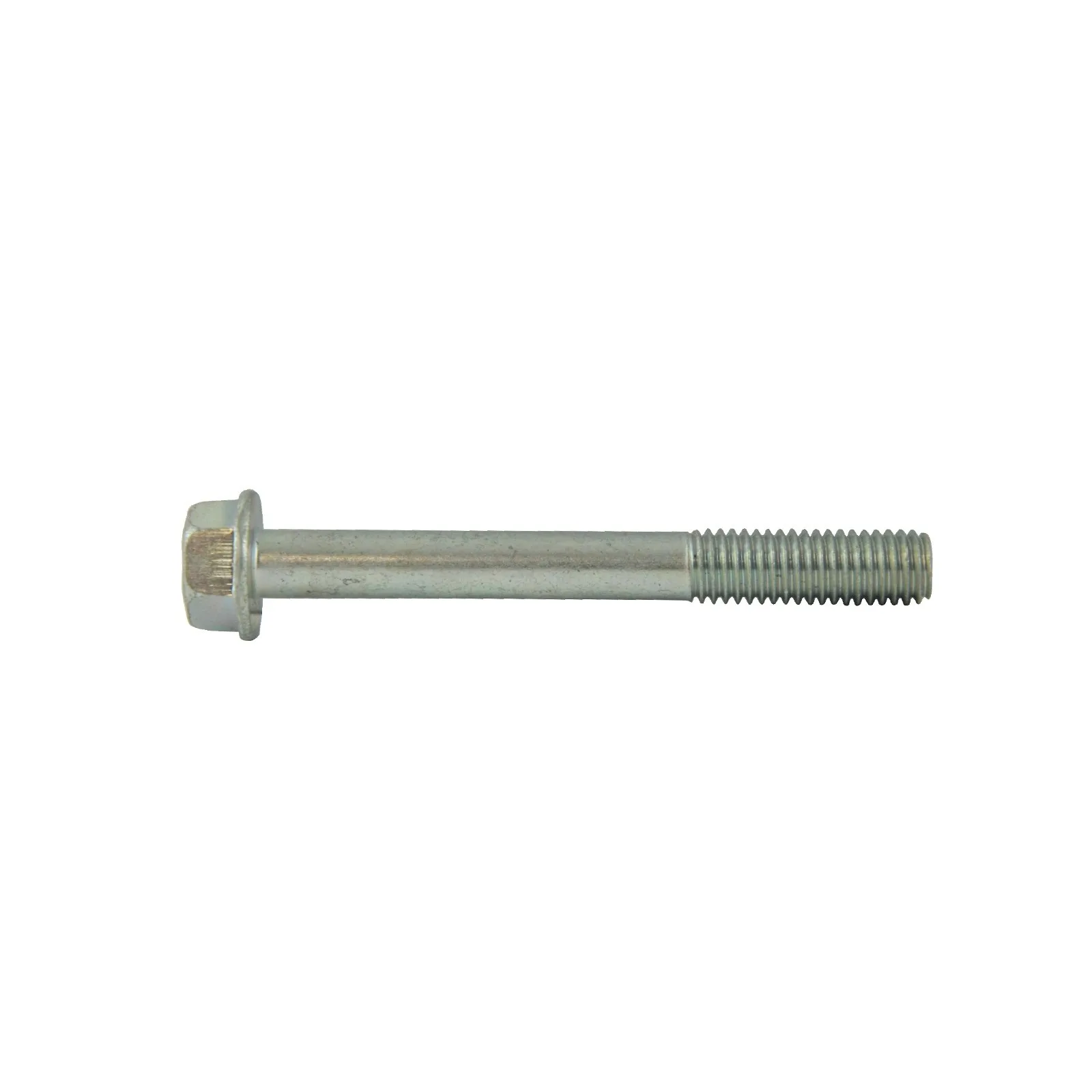

M8 screw with 1.25 thread, overall length 77 mm and hardness 7. Screw for LS Tractor , LS MT1.25 series and others for:

• gearbox housing,
• pump housing

Appropriate selection of the bolt in terms of strength should be made before starting the assembly, because the shape of the bolt and technical parameters may have a direct impact on the safety and durability of the connection. We distinguish 3 classes of bolt accuracy , i.e. A, B and C, and 10 classes (measured in mega pascals) of strength 3.6, 4.6, 4.8, 5.6, 5.8, 6.8, 8.8 , 9.8, 10.9, 12.9 where the first number indicates the tensile strength limit and the second, the yield strength with respect to the first value (percentage). The higher the values, the greater the strength of the bolt, and so 3.6 is the lowest quality bolt (low carbon steel) and 12.9 is the highest strength class (low alloy steel).

Dimensions :

• total length: 77 mm,
• working length: 70 mm,
• thread length: 25 mm,
• thread: M8 x 1.25,
• flange diameter: 16 mm,
• spanner size: 12,
• standards and strength classes: 7,
• part numbers: 40333743.

Tractor models :

LS Tractor :

• LS MT1.25.
