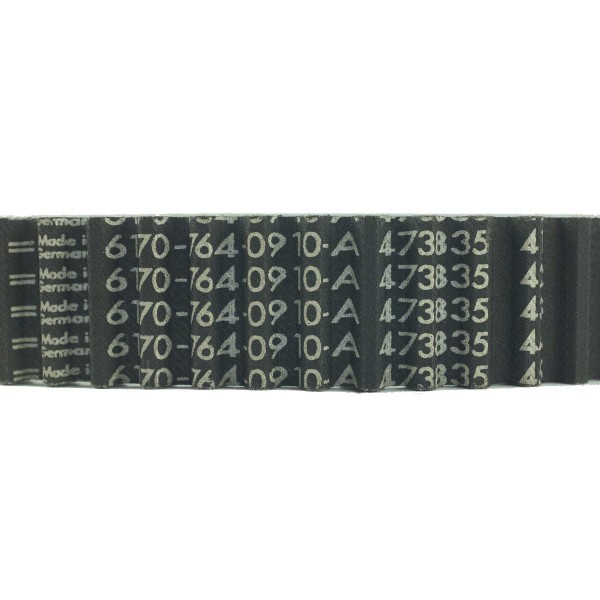

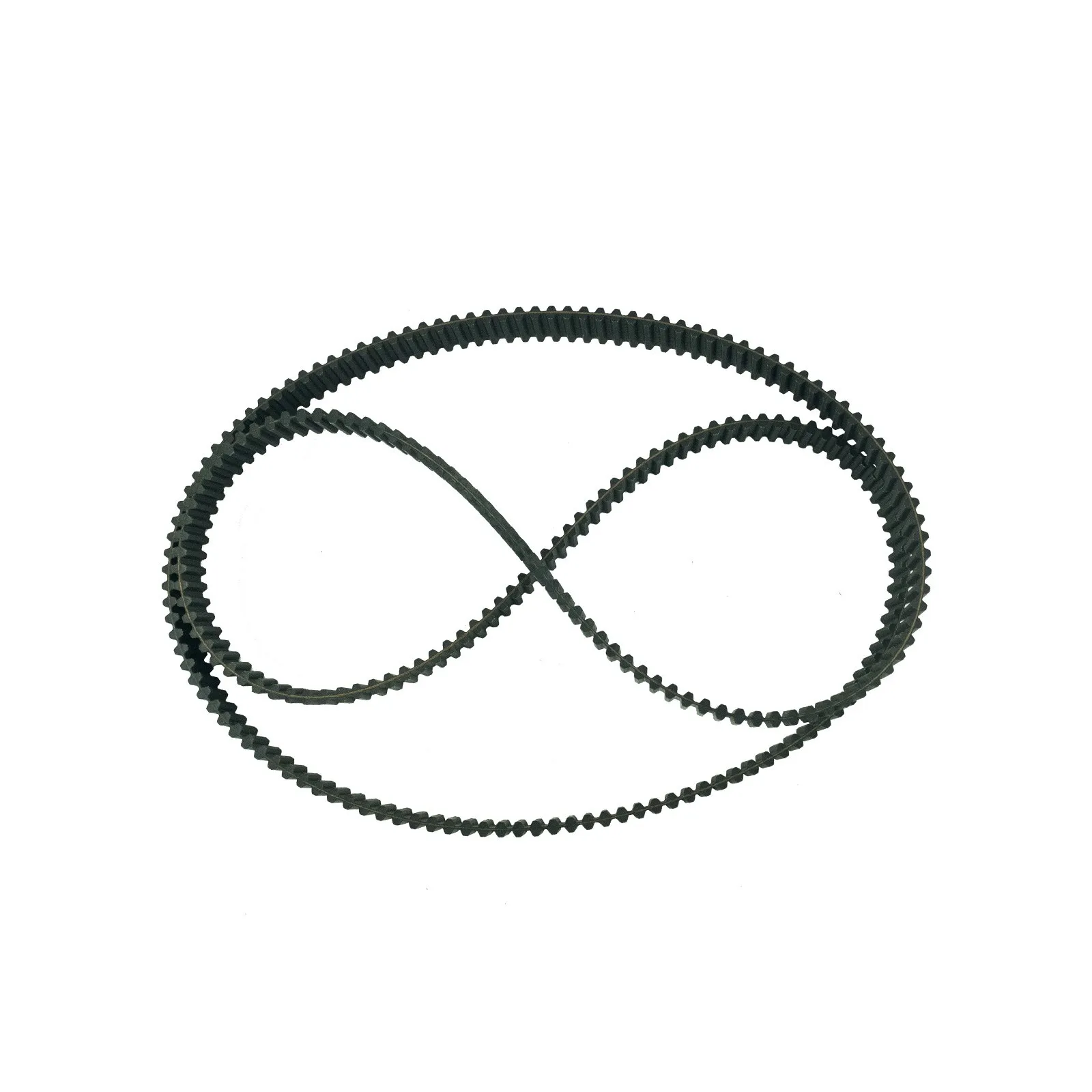

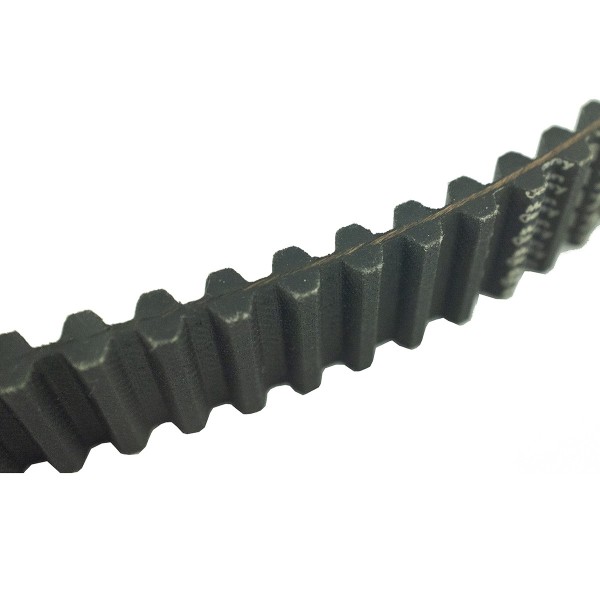

Toothed belt AL-KO T23 / 473835 / 6170-764-0910-A

V- belt with teeth , external length 1912 mm (La) , width 25 mm for driving the knives of AL-KO T23 series lawn mowers with a mower with a mowing width of 1250 mm.

How to measure a V-belt?

The standard V-belt has two length values, Ld and Li . The length of Li is the inside length and the length Ld is the so-called the pitch length, according to the ISO standard, can be simply called the external length, but it is the length measured at the strongest constructional point of the belt. V-belt designations are usually a capital letter of the alphabet denoting the belt cross-section (mm) Z, A, B, C, D and length. The simplest division of belts on sale are narrow-profile belts, classic belts, narrow-profile toothed and classic toothed belts.

Dimensions :

• outer length (La): 1912 mm,
• width: 25 mm.
• thickness: 7 mm,
• number of teeth: 239,
• part number: 473835,
• comparative numbers: 6170-764-0910, 6170-764-0910-A, 61707640910

Mower models:

• solo by AL-KO T23-125.4,
• solo by AL-KO T23-125.5 HD V2,
• solo by AL-KO T23-125.6 HD V2 .

A V-belt is a component that transmits power from the engine or transmission to an attachment or device. Most often, V-belts are used to drive an alternator, coolant pump or compressor, and in agriculture , belts are used in agricultural machinery and equipment that are operated at high speeds. V-belts are the most frequently wearing parts of agricultural machinery due to the material they are made of and damage resulting from overloading during machine operation. A worn V-belt should be replaced as soon as possible to prevent accidents or damage to the machine.
