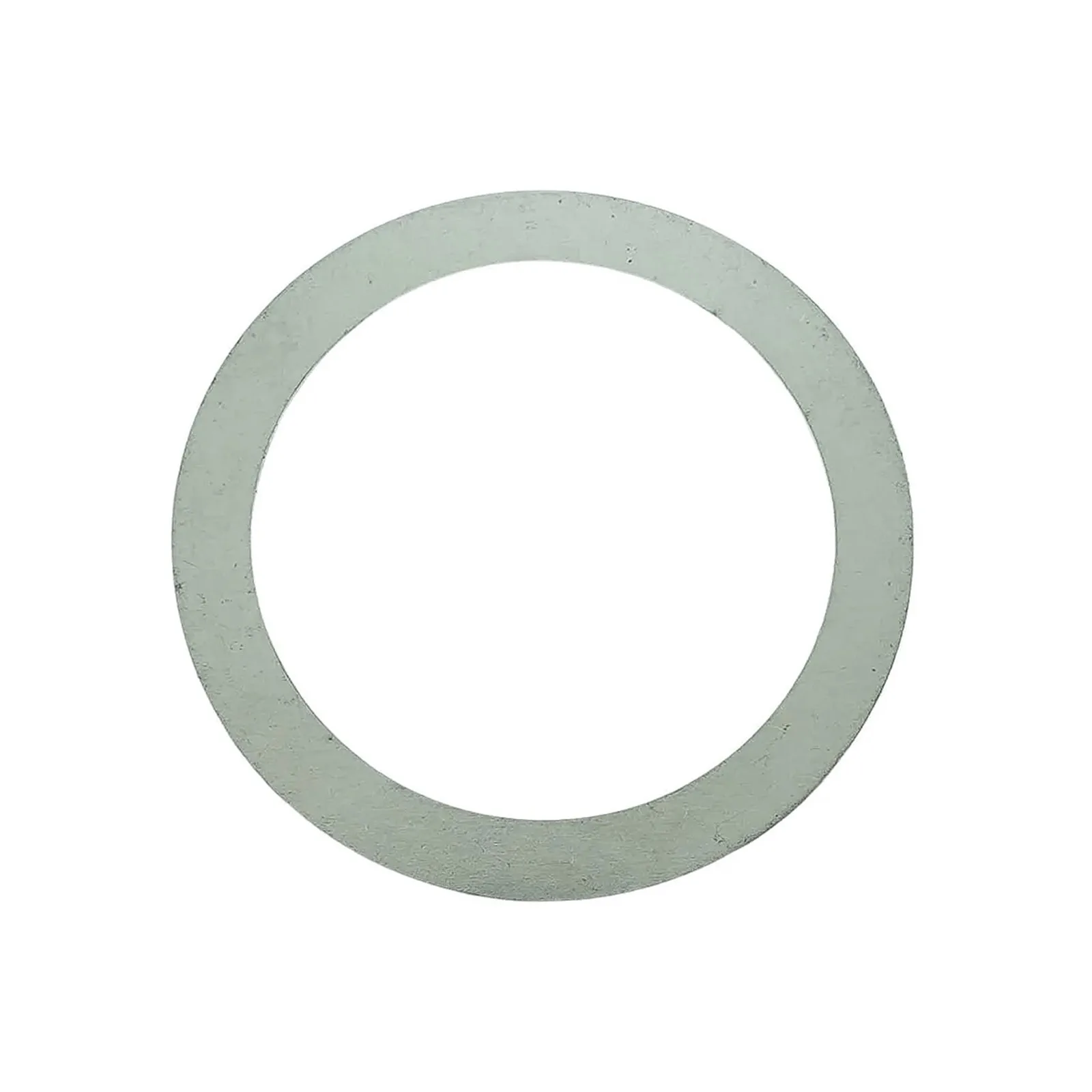

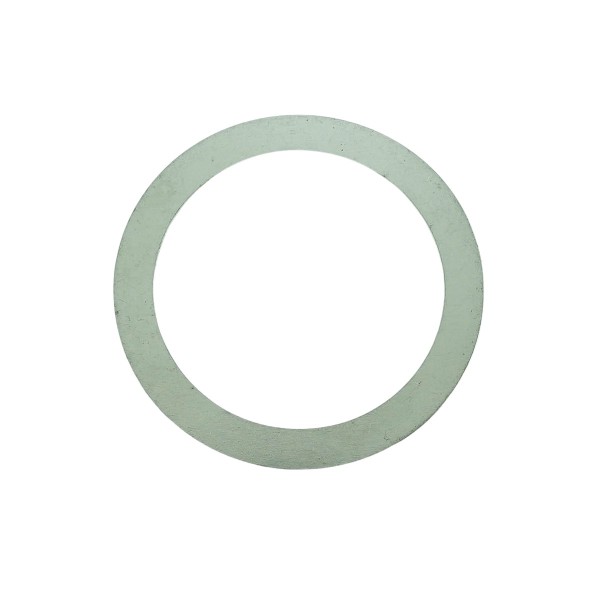

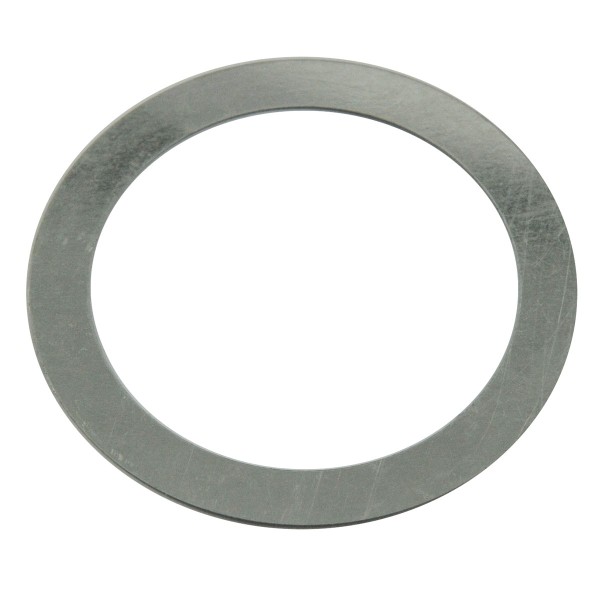

Spacer 51.50 x 40 x 0.20 / LS XJ 25 / TRG400 / 40195044

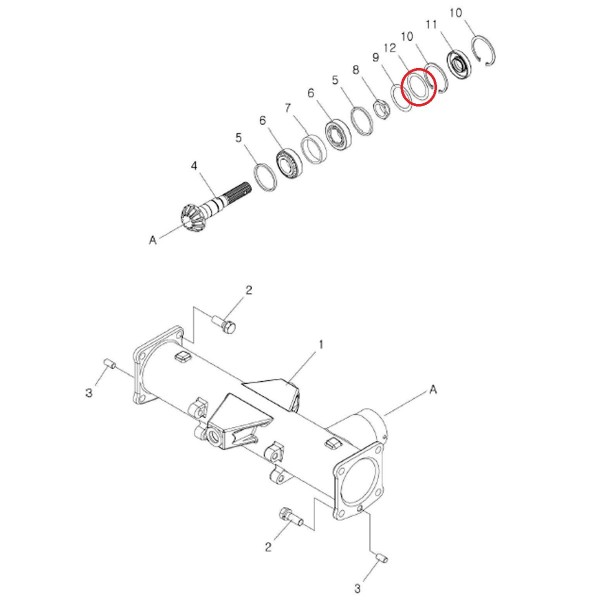

Front axle spacer with an internal diameter of 40 mm , an external diameter of 51.50 mm and a thickness of 0.20 mm for LS Tractors of the LS XJ25 series and others.

The spacer is a very thin washer and is present in all parts of the engine, transmission and front and rear axle. The main task of the spacer is to minimize the clearance between the elements and to level the seemingly perfectly smooth surfaces adjacent to each other. We divide the washers into three groups:

• ordinary (protective, increasing the pressure surface of the screw),
• securing against unscrewing (spring),
• spacers , leveling, copper (for leveling when the joined elements are not perfectly smooth),
• special sealing.

Dimensions :

• inner diameter: 40 mm,
• outer diameter; 51.50mm,
• thickness: 0.20mm,
• part numbers: 40195044.

Tractor models :

LS Tractor :

• LS XJ25.

Warehouse :
M01:M26 S06+W
