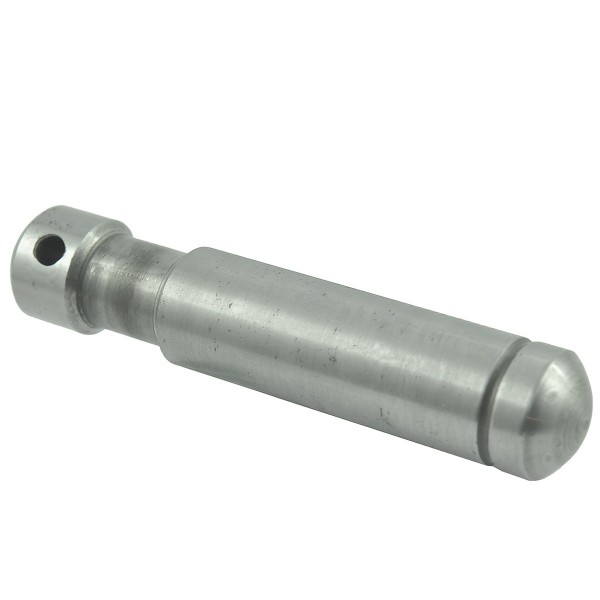

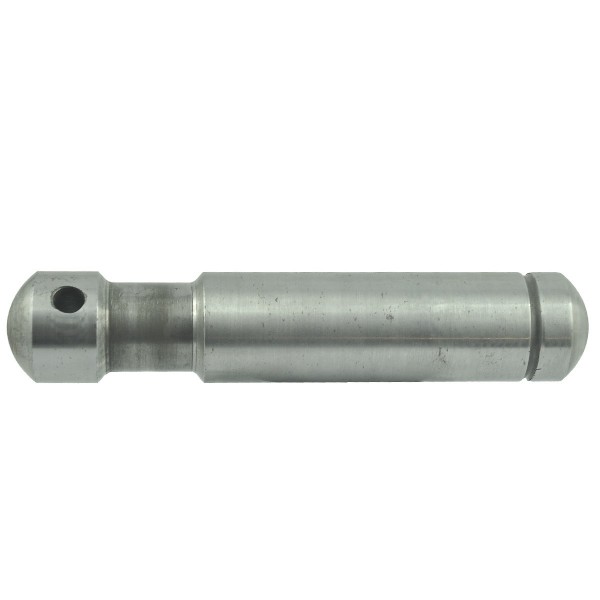

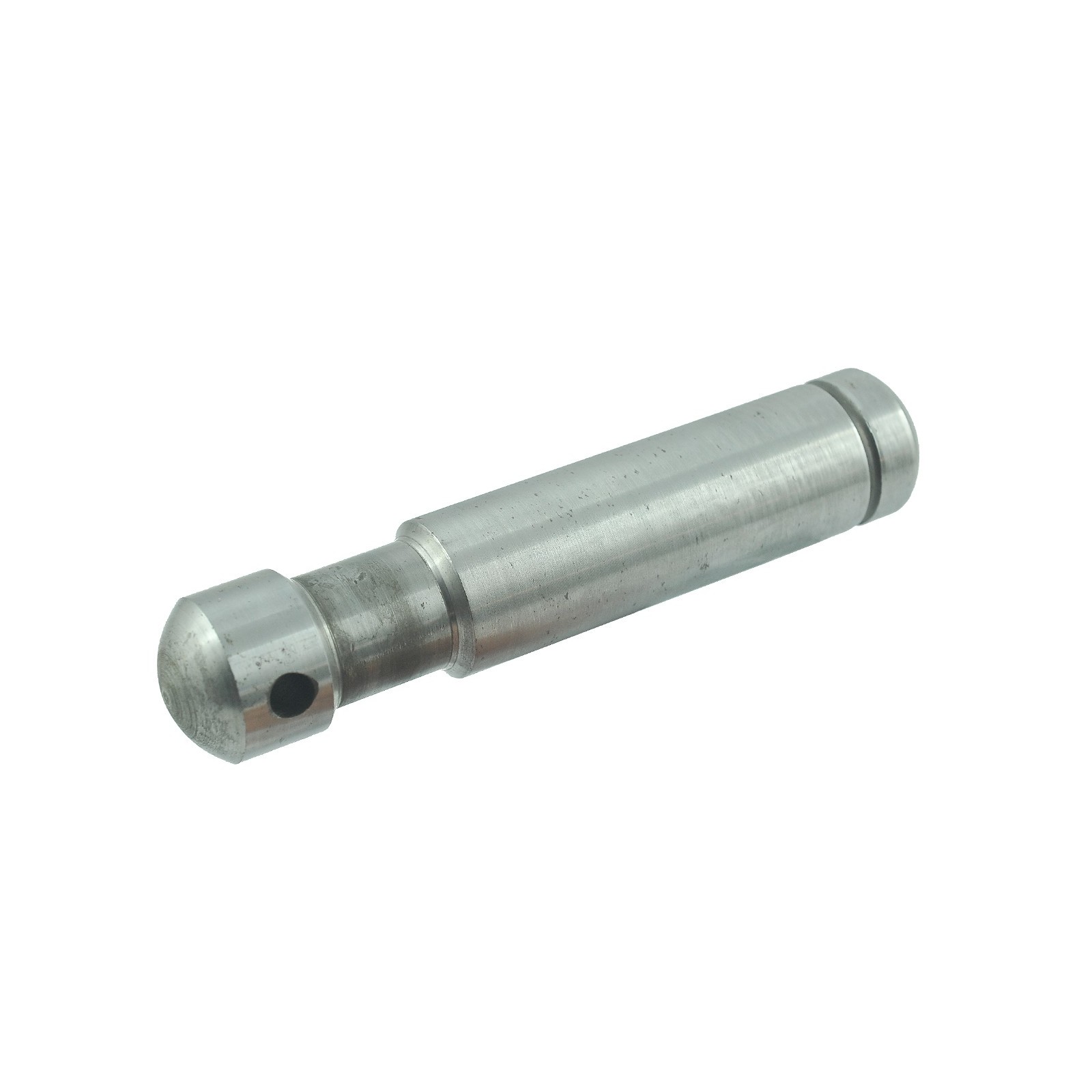

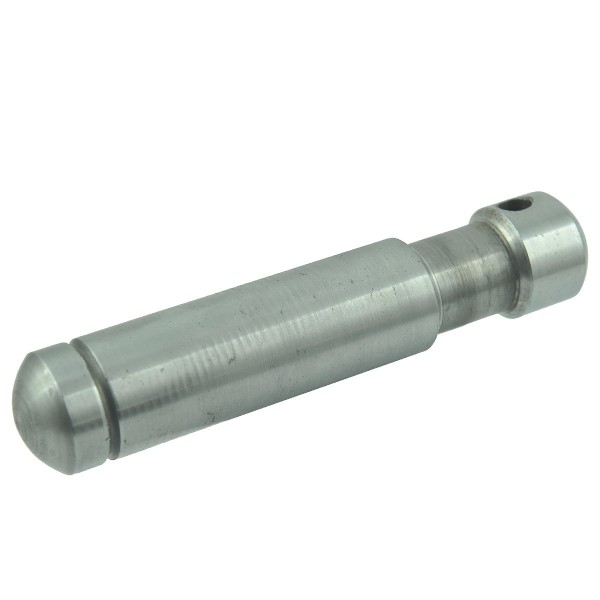

Hydraulic piston pusher / Ø 35 x 180 mm / Kubota M5000 / 3A011-82863 / 5-25-117-07

Hydraulic piston pin , hydraulic lifter middle arm piston rod (o-ring %C3% B8-3150-x-3850-x-350-mm-kubota-b2330-b2920-b7510-m4900-m5000-m5700-m7040-5-27-101-89.html">5-27-101-89 , 04816-0032) with a length of 180 mm , a diameter of 35 mm and a diameter for the mounting pin of 9.30 mm for Kubota tractors and mini tractors of the Kubota M9000 series and others.

The push rod , or the push rod of the tractor's hydraulic piston, is a component whose main function is to transfer longitudinal load and the movement of the central arm, which rotates the arms of the three-point linkage. The push rod is mounted on a pin on one side, while on the other, a rounded part freely fits into the socket of the lift piston, which, when activated by the movement of the lever, performs a sliding movement, generating the appropriate fluid pressure and thus lifting the lift.

Dimensions :

• length: 180 mm,
• diameter: 35 mm,
• pin hole diameter: 9.30 mm,
• original part numbers: 3A011-82863,
• part numbers: 5-25-117-07.

Tractor models :

• Kubota M5000.

The jack piston returns to its original or set position (after previously moving the jack lever) under the force of its own weight or under the weight of the machine mounted on the jack, and in simple designs under the influence of the previously generated hydraulic fluid pressure (in some hydraulic jacks return springs are used).

Magazine: K18:F13:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
