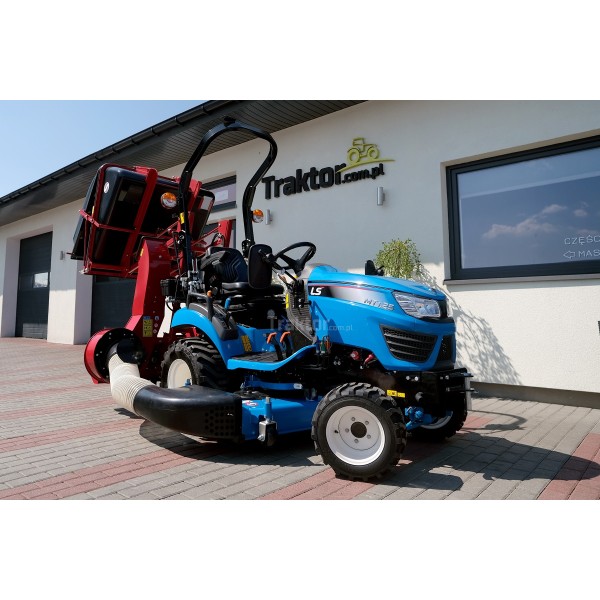

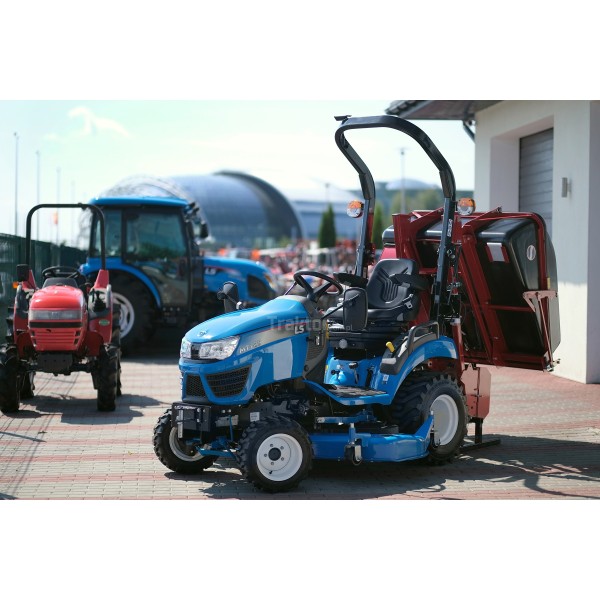

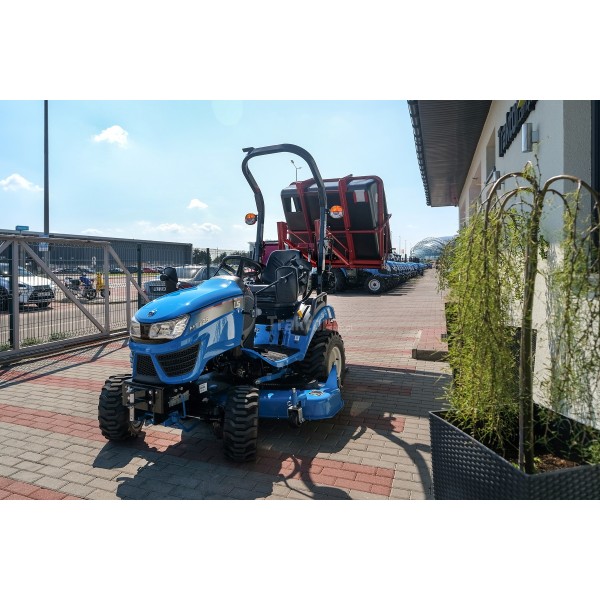

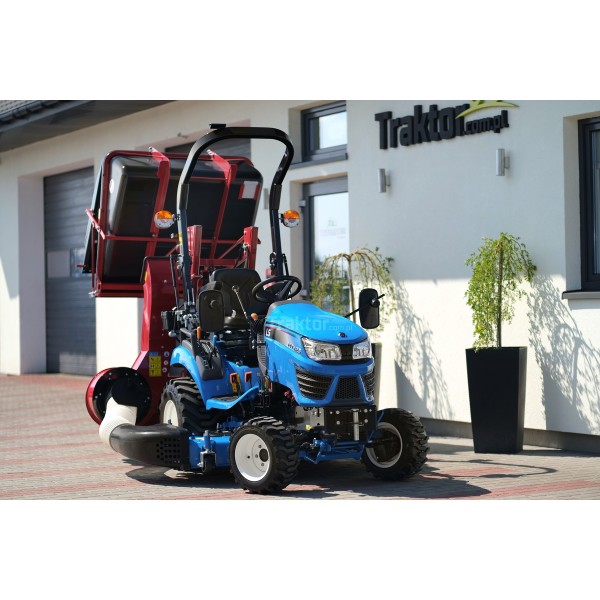

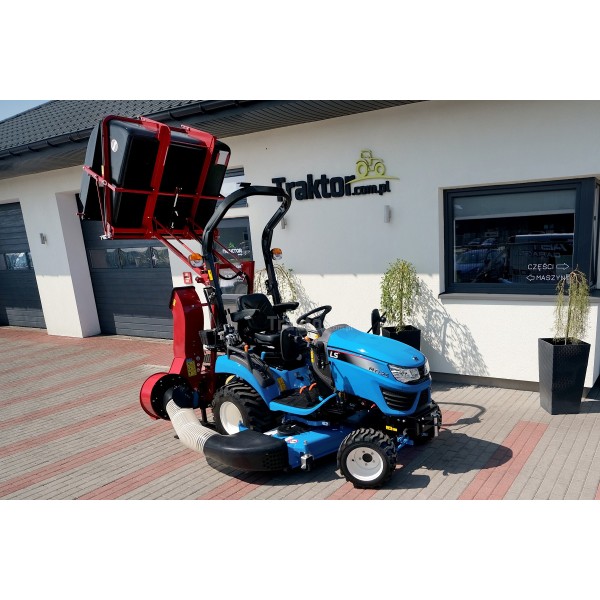

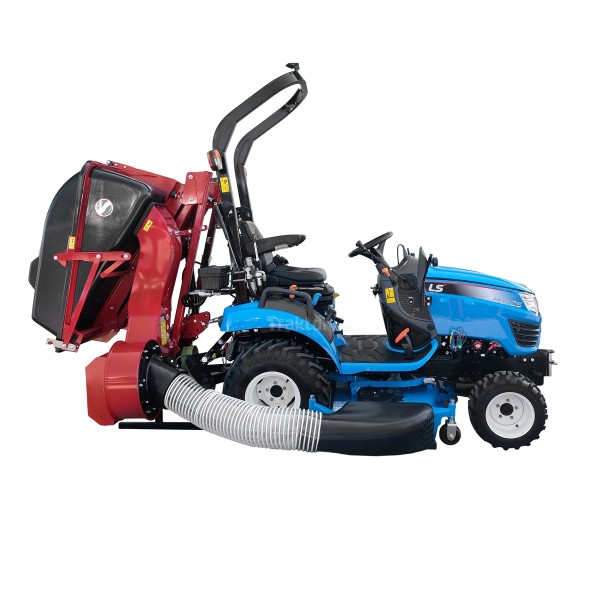

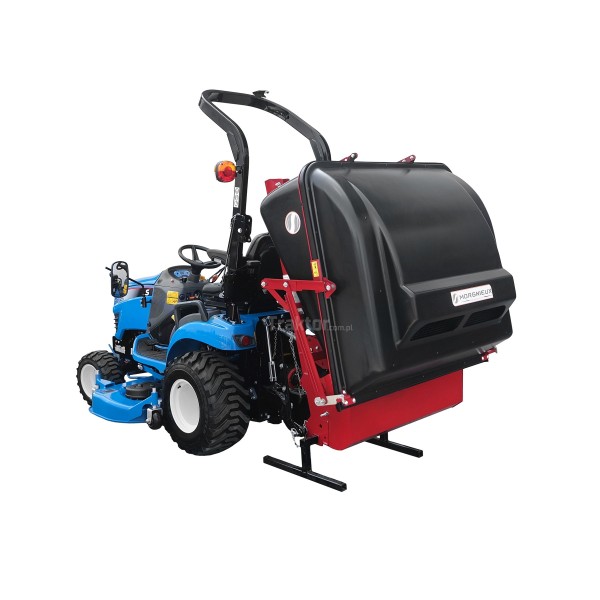

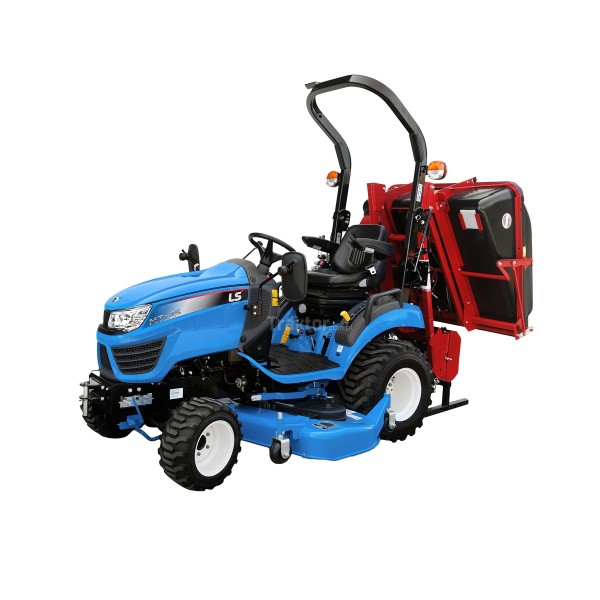

LS Tractor MT1.25 4x4 - 24.7 HP / IND + LS LM1160 mower with HD basket
Exceptional
LS Tractor MT1 series tractors are, above all, a perfect fit to your needs. You choose how the tractor will be equipped to meet all your expectations. The design of LS Tractor tractors has been designed for versatile use.
The MT1 series tractors will be perfect if you are looking for a tractor with small dimensions. The MT1.25 model is one of the smallest tractors available on the market. This inconspicuous machine has a lot of possibilities and can easily perform its tasks in the field, garden, orchard, plantation, transport or cleaning work.
Thanks to the tractor configuration options and the availability of accessories dedicated to LS tractors , this machine will be an ideal work partner.
Multi-tasking
By choosing a tractor from the MT1 series, you can fit additional equipment to it:
By choosing the MT1.25 model in configuration with a maintenance mower , the tractor becomes an invaluable machine for mowing large areas and maintaining a beautifully well-groomed lawn. The combination of the MT1.25 tractor with a front loader or an excavator gives us even more possibilities, making our tractor multifunctional.
Strong and Comfortable

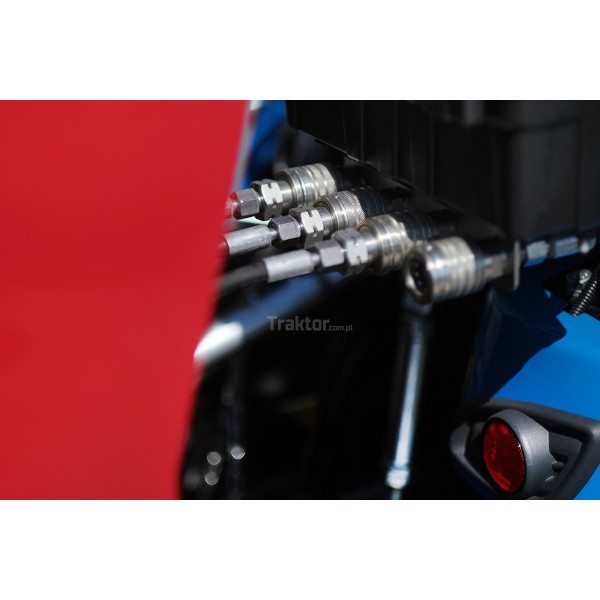

The MT1.25 model is a compact Premium class tractor. Under the hood of this machine there is a powerful 3-cylinder 3TNV80F diesel engine with a power of 24.7 HP. It guarantees very good operating parameters and high efficiency. Additionally, 4 hydraulic outputs allow you to connect a wide range of accessories to the tractor.
The MT1.25 model is equipped with a 3-point linkage Cat I with a lifting capacity of 450 kg and a rear and inter-axle PTO shaft, allowing for versatile use of the tractor . 4-wheel drive, power steering, as well as an easy and comfortable hydrostatic gearbox make the MT1.25 model an ideal machine, created according to your preferences.

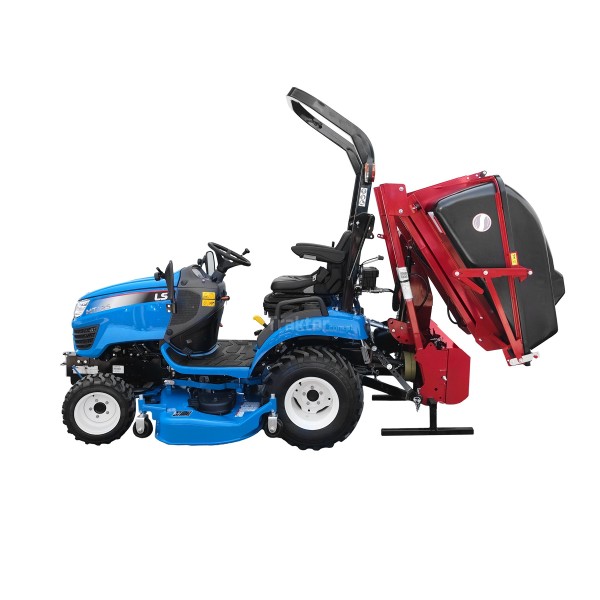

LS LM1160 mid-axle lawn mower
A maintenance mower is a mower designed for mowing large areas , where mowing takes place regularly and when we want nicely cut grass. Its structure allows it to be mounted between the tractor axles.
The cutting element is three knives, which are driven by a V-belt through an angle gear connected to the central power take-off shaft. The mower is dedicated to M1 series tractors for the LS MT1.22 and LS MT1.25 models.
It has been designed so that connecting and disassembling the device takes as little time as possible and the operation itself is very easy to perform, even for a less experienced operator.
Perfect cut with the LM1160 mower from LS Tractor

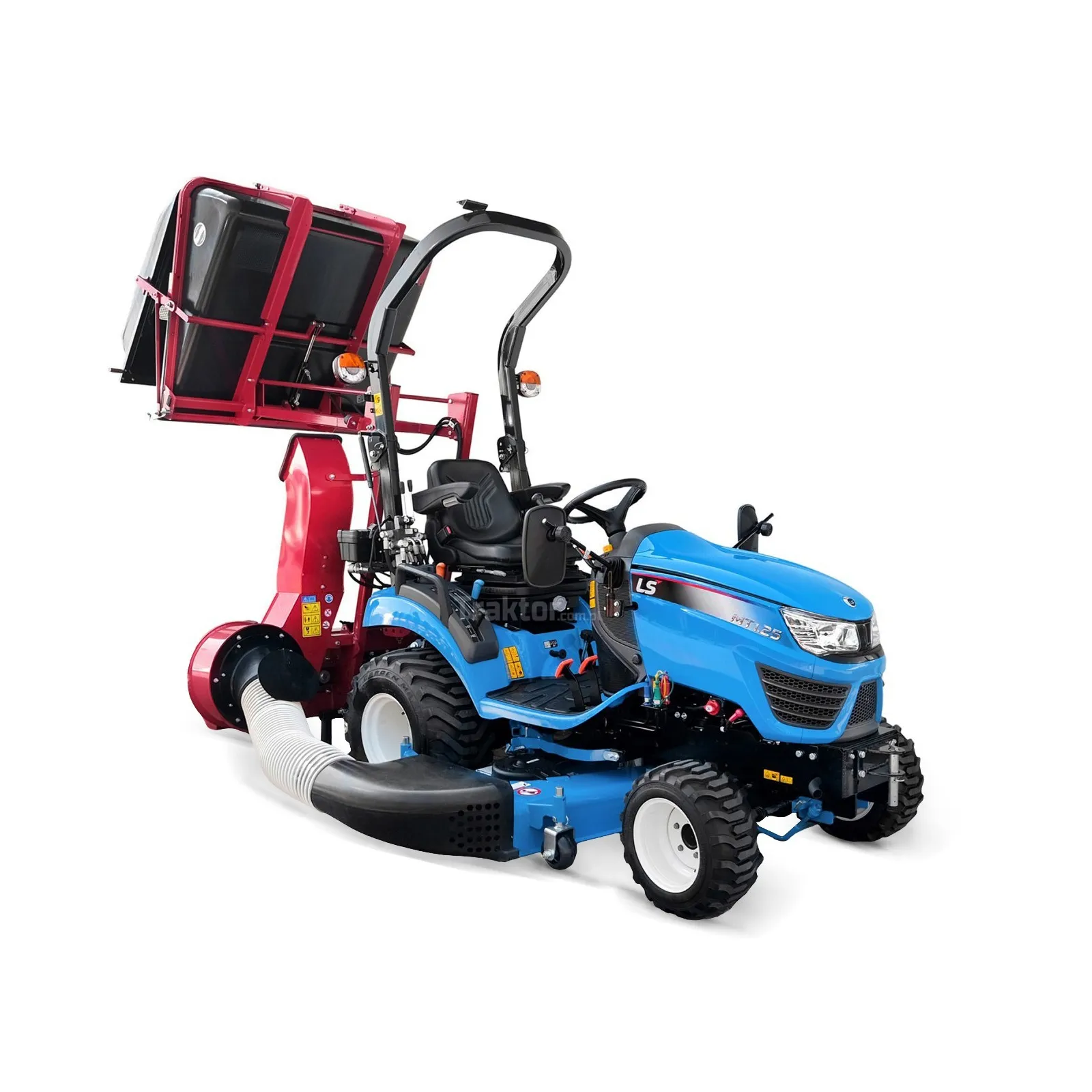

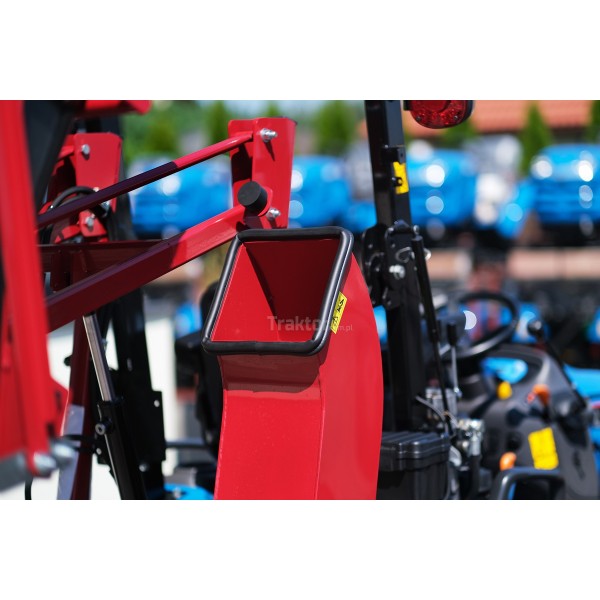

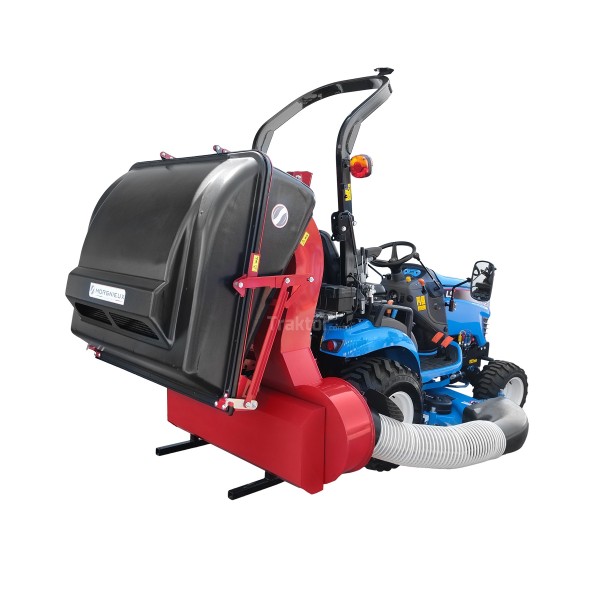

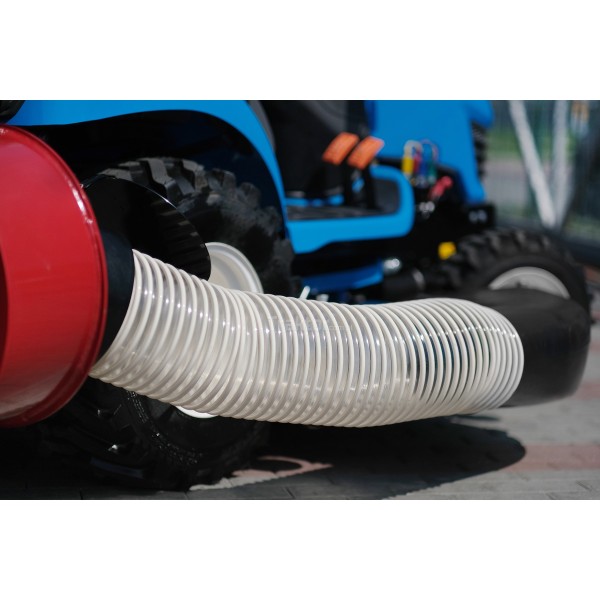

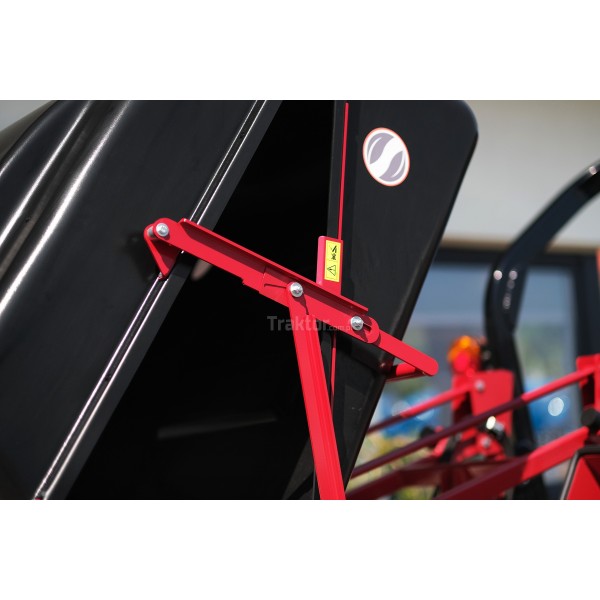

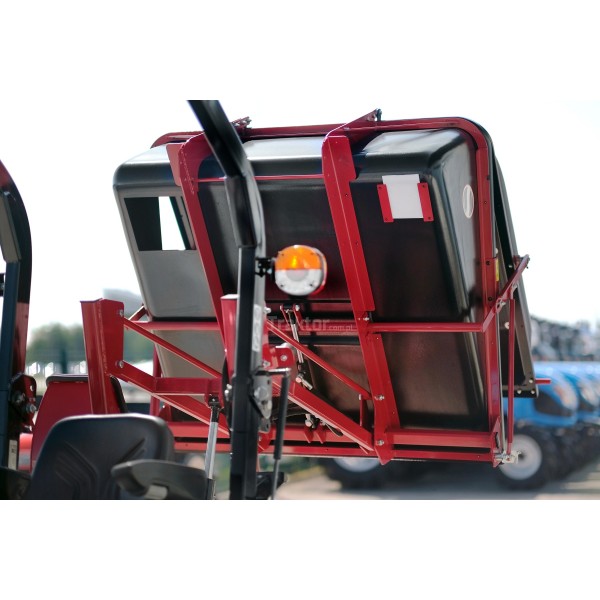

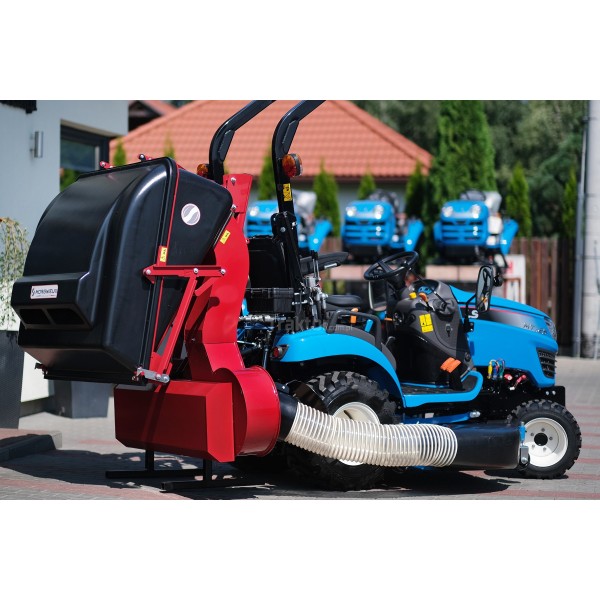

The LM1160 mower has a durable structure, and the efficient operation of the device is possible thanks to the use of the best materials and technological solutions. The machine allows for high cutting quality, has few failures, and operates exceptionally quietly. The maintenance mower is lowered and raised hydraulically. The cutting height is adjustable using a knob and allows you to select the appropriate operating parameters for the terrain. To protect against uneven terrain, the mower is equipped with support wheels that prevent it from being damaged. Thanks to the special design of the basket, the grass after cutting is sucked into the basket through a transparent pipe. After filling, the basket is emptied manually using a lever.
The most important features of the mower:
- cutting width: 1521 mm,
- total width: 1921 mm,
- weight: 129 kg,
- number of knives: 3 pcs,
- maximum knife revolutions: 2650 rpm,
- gear: 1:1.06,
- cutting height adjustment: 4 ranges
- collecting into a bin with a capacity of 530 L

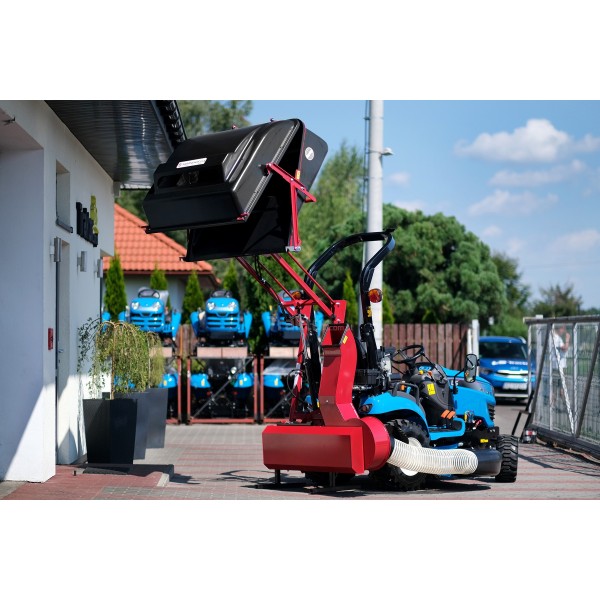

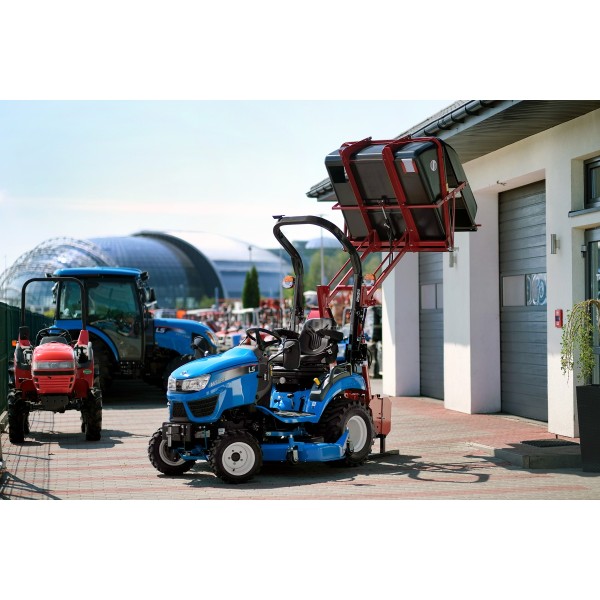

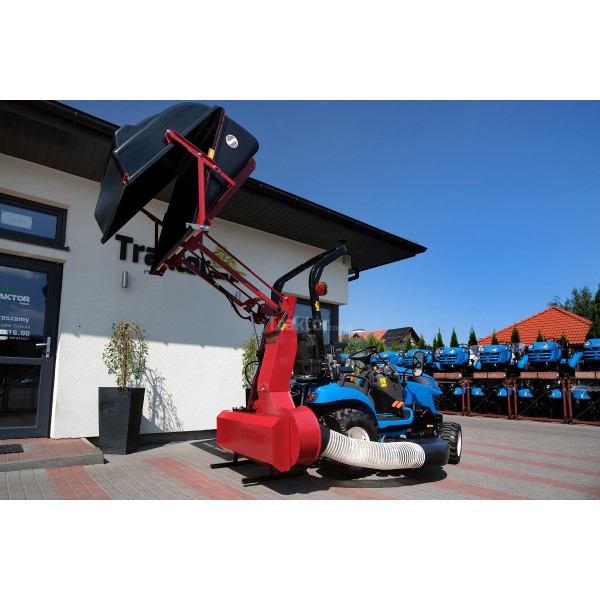

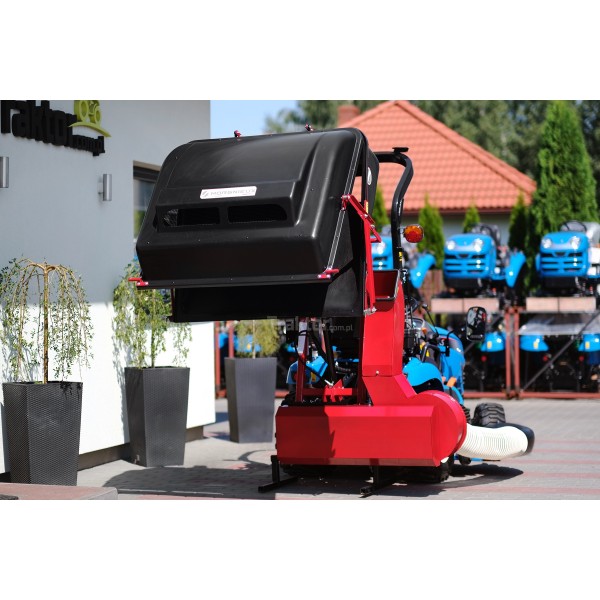

- basket with high discharge - maximum basket lifting height 200 cm.
By choosing the MT1.25 model, you choose not only high quality of workmanship, but also comfort and safety.
LS Tractor has equipped this unique machine with a comfortable, adjustable seat with a high backrest, armrests and shock absorption, which, together with ergonomically placed levers, ensure pleasant operation of the machine.
LS Tractor tractors are modern, high operator comfort and the highest quality of workmanship.
Specification
Condition
New
Equipment
Inter-axle mower
Engine
Liquid-cooled 3-cylinder diesel
with Delphi CRDI (Common Rail Direct Injection) direct fuel injection
Engine brand
Yanmar
Engine model
Yanmar 3TNV80F
Power (HP/HP)
24,75
Power (kW)
18.4
Engine capacity (cc/cc)
1,267
Number of cylinders (pcs.)
3
Rated engine speed (rpm)
3000
Torque (Nm/rpm)
69
Fuel tank capacity (L)
25
mowing system
Collecting to the trash
Cutting width (mm)
1521
Basket capacity (L)
530
Drive
4x4 4WD
Transmission
Hydrostatic
Reverse
No
Number of forward/reverse gears
2 / 2
Driving speed (km/h)
0 - 3.7 / 0 - 8.4 (back)
0 - 5.9 / 0 - 14 (forward)
Steering system
Hydrostatic
Power steering
YES
Split brakes
No
Differential lock
YES
PTO / PTO
1 speed
540 (rpm)
Independent PTO / PTO with wet clutch activated by knob
PTO (central)
2500 rpm
PTO/PTO power (kW)
11kW (17HP)
NEXT DOOR
3 point
KAT I
Lifting capacity of three-point linkage at ball ends (kg)
450
Hydraulic outputs (pcs (EA) / number of sections)
4/2 (front)
Hydraulic leveling of the rear suspension
No
Cruise control
YES
Armchair
Adjustable
Comfortable with high backrest and armrests
Cushioned
Trailer hitch
Bottom
Emptying the trash
High dump
Tire type(s)
grassy
Overall length (mm)
2470
Height to edge of ROPS (mm)
2218
Wheelbase (mm)
1425
Tire size front/rear
18 x 8.5 -10 / 26 x 12.00 -12
turning radius (mm)
2400
Weight (kg)
655
Brakes
Wet
Overall width with tires (mm)
1200
Ground clearance (mm)
160
Maximum front wheel rotation angle (°)
+/- 54,5
Alternator (Amps)
12V-40A
Hydraulic system pressure (MPa/bar)
13.0 ~ 13.5
Number of turns of the steering wheel (right / left)
3/3
Rated steering oil flow (l/min)
8 (2.1 GPM)
Type of candles
Glow plugs
Tread adjustment FRONT (mm)
Permanent, 916
Track adjustment REAR (mm)
fixed, 880
Air filter
Dry replaceable element
Basic equipment
Roll bar (ROPS)
Hydraulic pump capacity (l/min)
25.4
