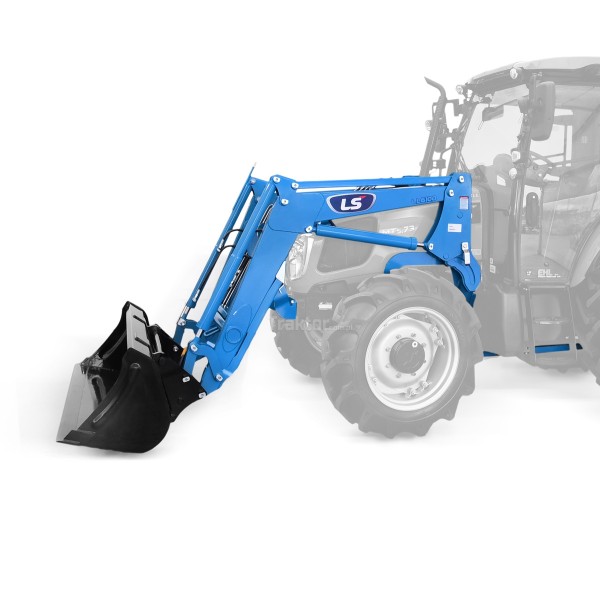

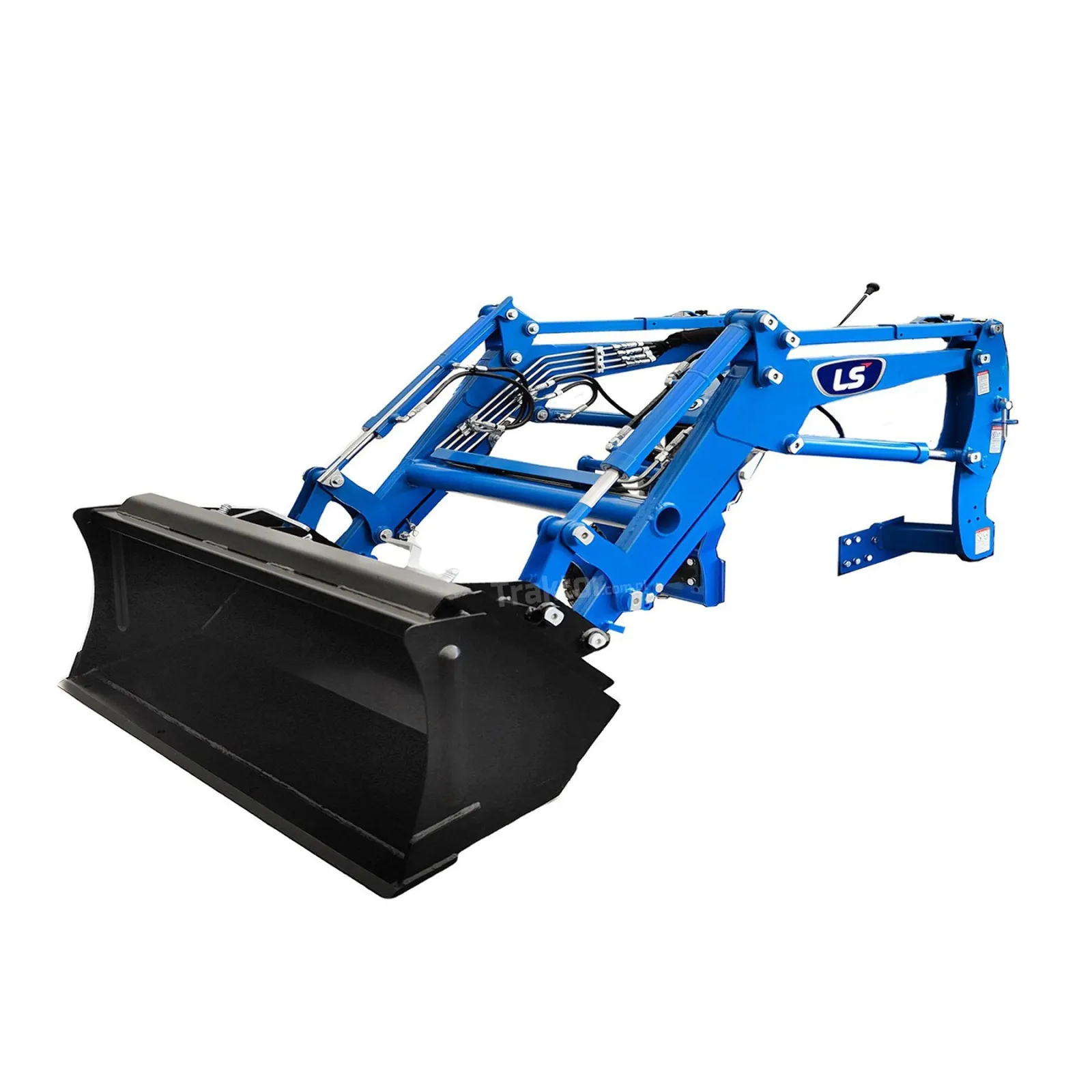

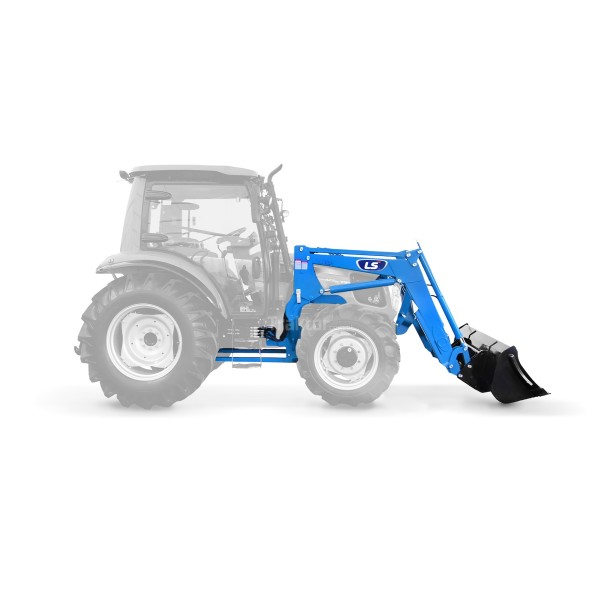

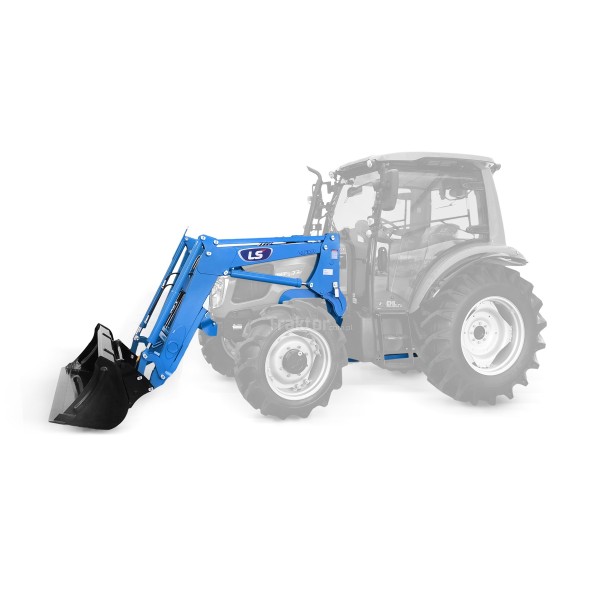

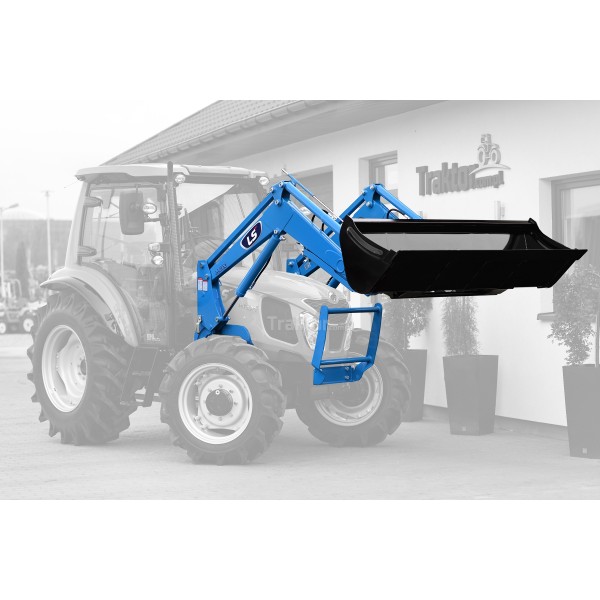

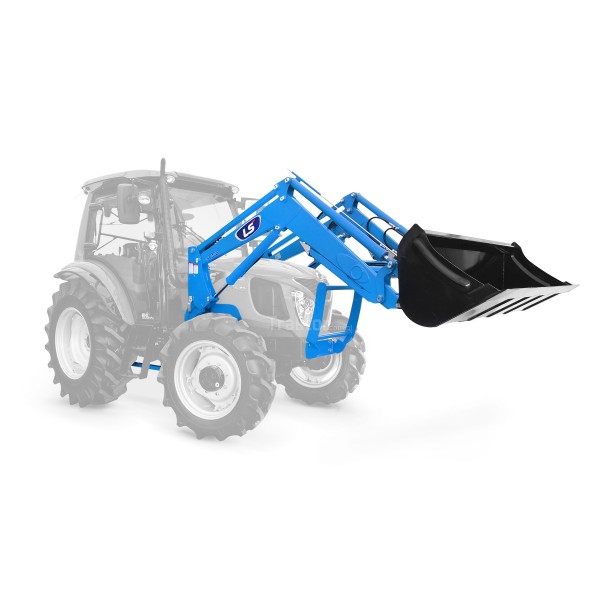

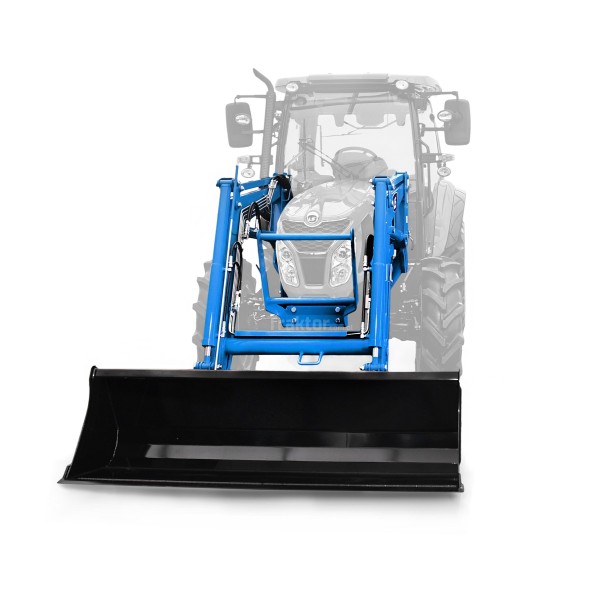

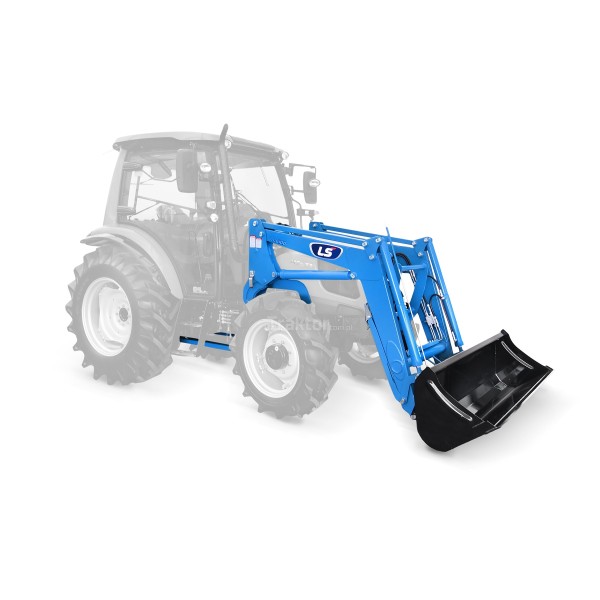

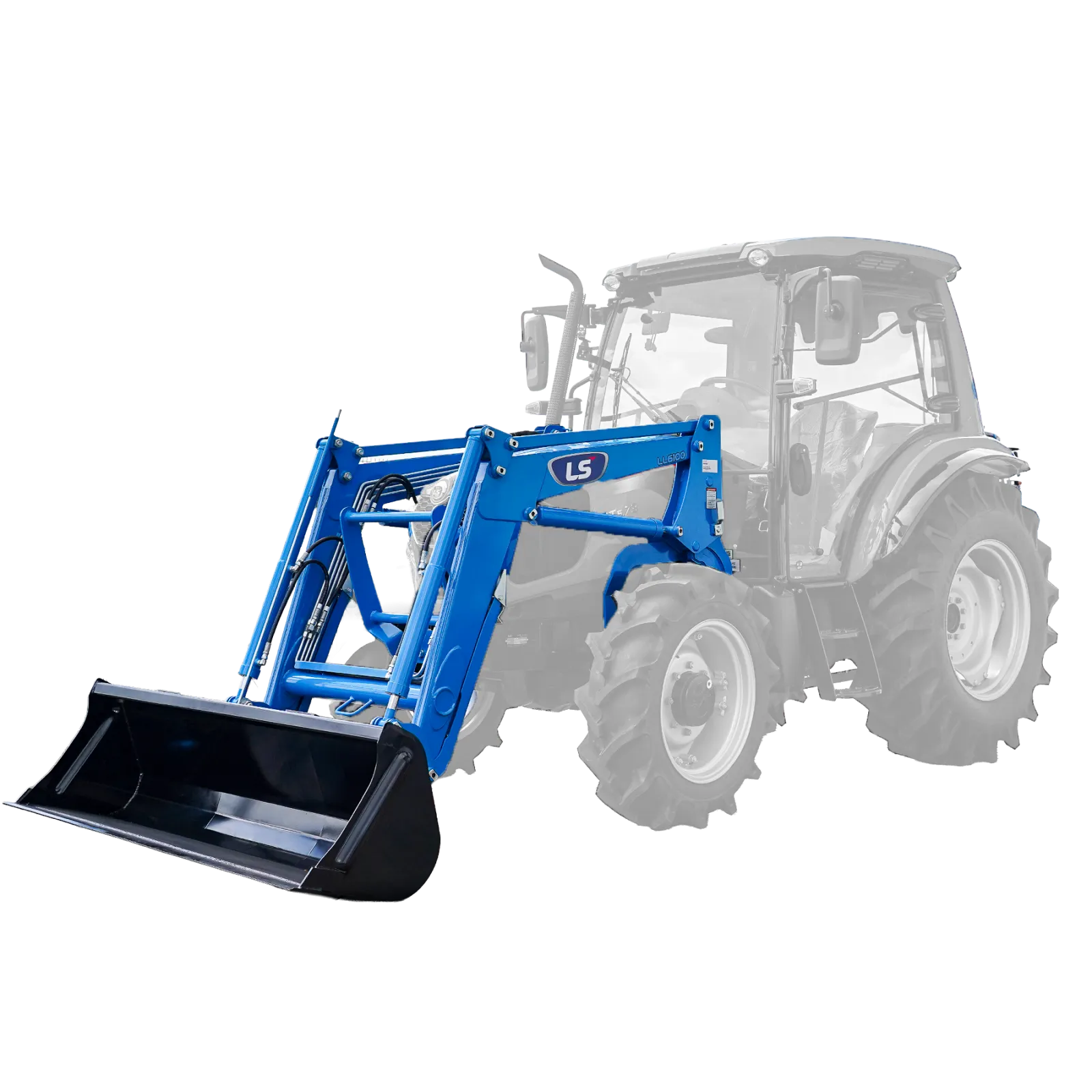

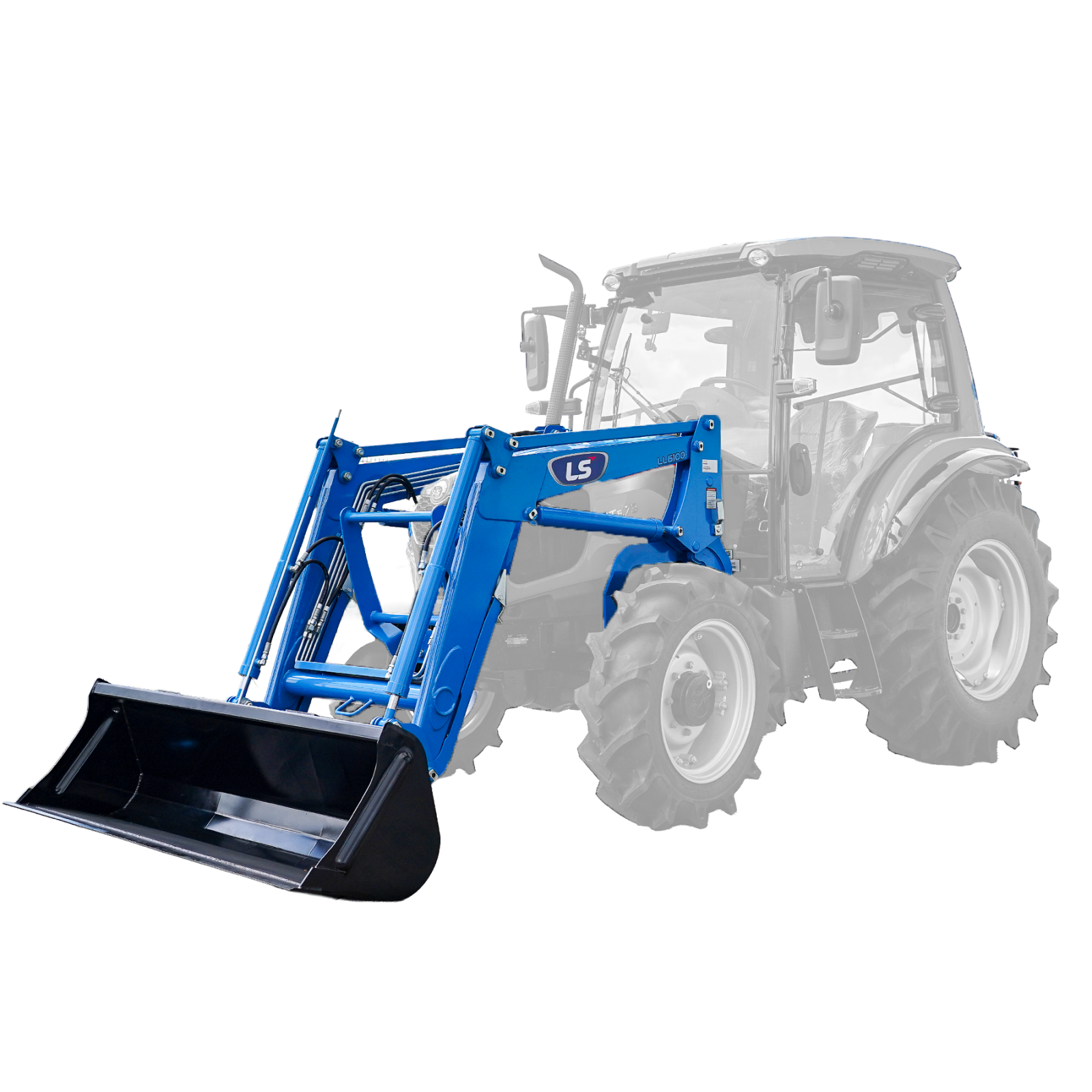

LS LL6100 front loader for the LS Tractor MT5 tractor
Do you have any questions?
Greater lifting capacity - 1648 kg
The front loader with the symbol LL6100 is an original, standard front loader dedicated to LS Tractor MT5 series tractors. The so-called front loader TUR, thanks to its very durable construction and well-thought-out construction, is able to carry much greater weight than other tractors of similar size and power. One of the many advantages of this loader is its quick assembly and disassembly, which is possible thanks to, among others: quick hydraulic connectors, euro frame and special storage supports. Quick assembly and disassembly also applies to the bucket itself, the loader can be removed by pulling out two pins, and the operation itself does not require the use of tools.
Safety and comfort of work
The LS front loader is equipped with a safety valve which prevents the load from being lifted higher if the loader is overloaded. Automatic bucket adjustment is another convenience and improves the quality of work, the automation is intended to regulate the position of the bucket while the loader arm is moving. Tractors equipped with a hydraulic distributor with a floating section have a bucket protection function; the function automatically folds the bucket when it encounters too large an obstacle. The loader is standardly equipped with a cover to protect the grill from damage.
The most important features of the LL6100 loader
- Load capacity: 1648 kg,
- Mounting type: EURO,
- Bucket width: 1981 mm,
- Maximum lifting height: 3214 mm, and: 2925 mm (bucket in horizontal position), 2420 mm (bucket fully lowered),
- Bucket capacity: 0.49 m3,
- Lifting time to maximum height without load: 5.1 s,
- Descent time from maximum height: 3.8 s,
- Maximum spoon tipping time: 2 s,
- Time for maximum unscrewing of the bucket to the horizontal position: 2.9 s.
*Image for illustration purposes only
Specification
The origins of the LS Tractor brand can be found in South Korea in 1977, when the KHIC (Korea Heavy Industries & Construction Co.), in cooperation with Fiat, began to produce agricultural tractors and, in later years, also combines and other agricultural equipment . The year 1984 brings further successes for the LS Tractor brand , Mitsubishi MHI (Mitsubishi Heavy Industry) and other manufacturers, among others, become the supplier of drive units for mini tractors . Yanmar. Currently, the Korean tractor manufacturer LS Tractor has 4 factories located in South Korea, Brazil, China and the USA. Notably, LS Tractors have been ranked #1 in overall customer satisfaction, product availability and parts availability in the United States.
LS tractors - price combined with high quality
LS tractors were designed for use in households, municipal companies and farms. If you are looking for functional equipment, products with the LS brand will be the perfect choice - the operation of a tractor from each available series is not only comfortable, but, above all, completely safe. Therefore, the equipment can be successfully used by both professionals and beginners. A wide selection of models providing various functionalities and engine performance, adapted to loads of various intensity, compatible accessories allowing for an increase in the work range, simple, intuitive operation and comfort of work - these are the features of every LS tractor - the price is another strong point of the product. High quality of workmanship combined with competitive, attractive prices make even the most demanding customers fully satisfied with the equipment we offer.
LS tractor is not only LS tractor Poland - the equipment of this brand is known and appreciated all over the world. This is confirmed by the fact that LS tractors were recognized as number 1 in terms of customer satisfaction, a wide range of models and the availability of spare parts in the United States.
Are you looking for the perfect equipment or do you need advice on choosing a specific model? Contact us and we will help you match the LS tractor to your needs, not only by suggesting which model will be best for you, but also by helping you choose the right equipment.
LS tractor Poland - improve your work
Our store offers new LS tractors . We meet the needs of our customers by offering a wide selection of models, including agricultural tractors with axes and lawn mowing tractors that can be used both on large plots of land and in the backyard. We offer, among others, the LS MT3.40 HST tractor , which is a tractor with a 3-cylinder L3CRV-T4 diesel engine with a power of 40 HP. The equipment in this series are 4x4 tractors equipped with power steering, which makes operation and maneuvering simple and safe. An LS tractor of this type allows you to work in any terrain, which is also influenced by the possibility of choosing different types of tires - in the case of this model, the customer can choose both agricultural and construction/industrial tires. The 3-point rear three-point linkage with a lifting capacity of 820 kg allows you to use virtually all farm machines and equipment without any restrictions. An additional advantage of this tractor is a comfortable, air-conditioned safety cabin. The LS MT3.60 MEC CAB 4x4 tractor is also available in the MT3 series. This model is a tractor equipped with a 3-cylinder L3CRV-7T diesel engine. Similarly to the previous model in this series, the MT3.60 is equipped with a three-point linkage with a higher lifting capacity - 1,250 kg. The undoubted advantage of this model is the mechanical gearbox with reverse, which allows you to change the driving direction with one movement of the lever located next to the steering wheel. In turn, 3 speeds of the PTO shaft enable the use of additional PTO/PTO equipment. The traktor.com.pl assortment also includes LS tractors from the MT series. LS tractors of this type are equipped with engines with a power of 21.5 HP or 24.7 HP, so you can easily adjust the model to the specific work and your own needs. The offer also includes a complete range of accessories, including a TUR front loader , a mower or an excavator adapted to be attached to the rear of the tractor. The engine based on Yanmar technology makes this compact model perform as well as classic tractors in the field , and also works well as a lawn mower tractor used for household work.
