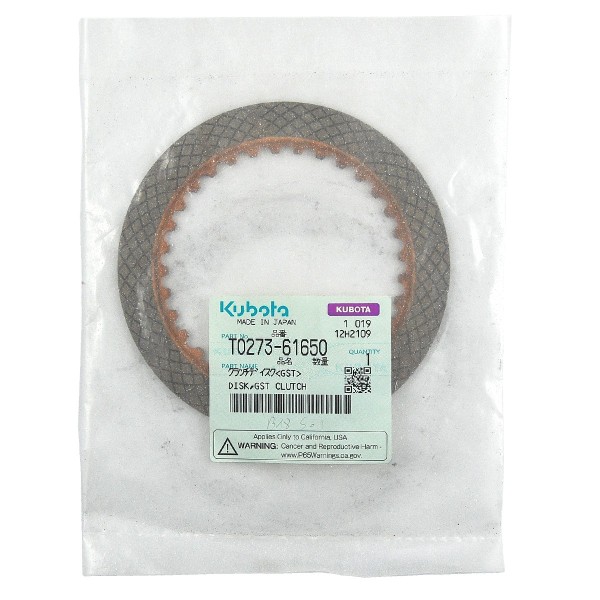

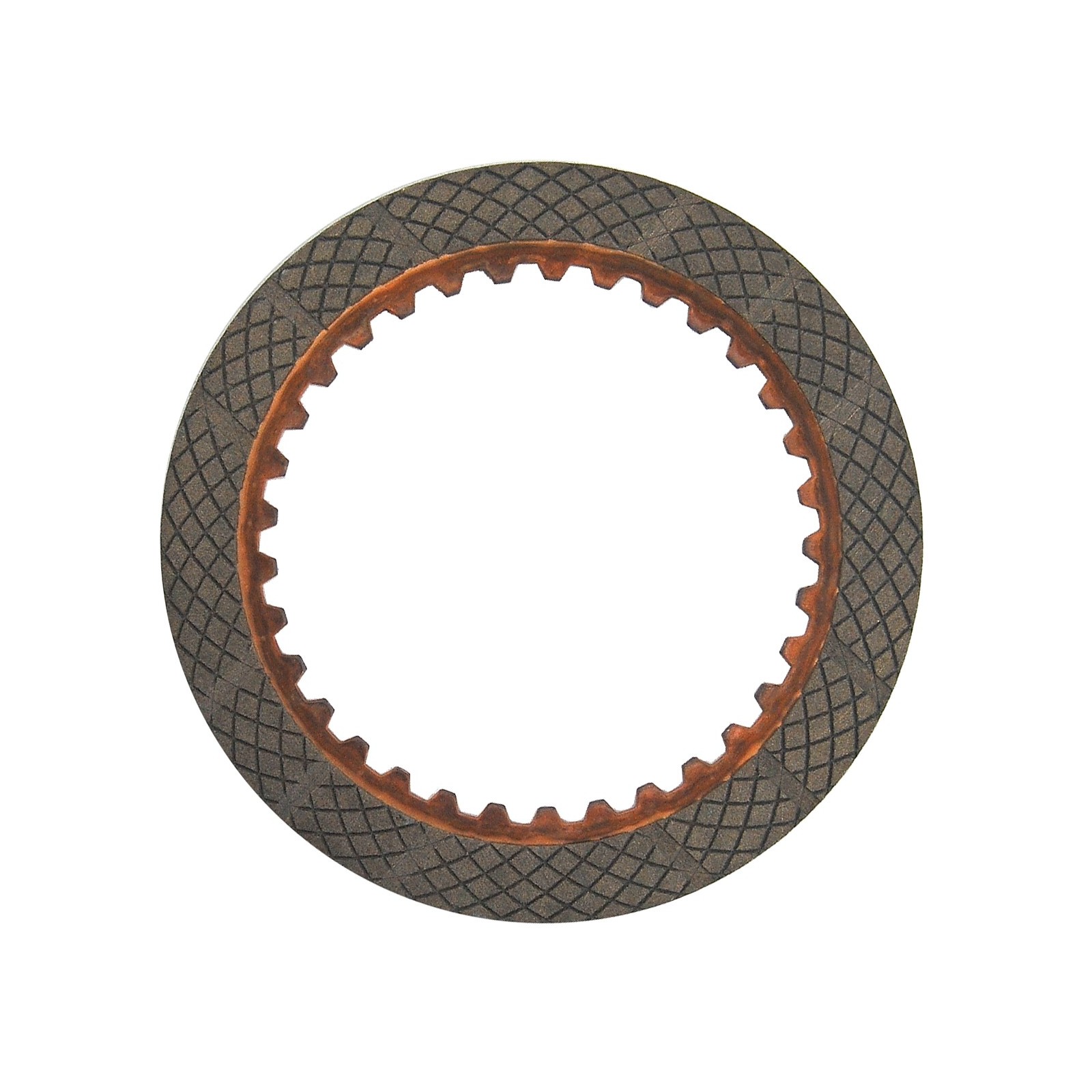

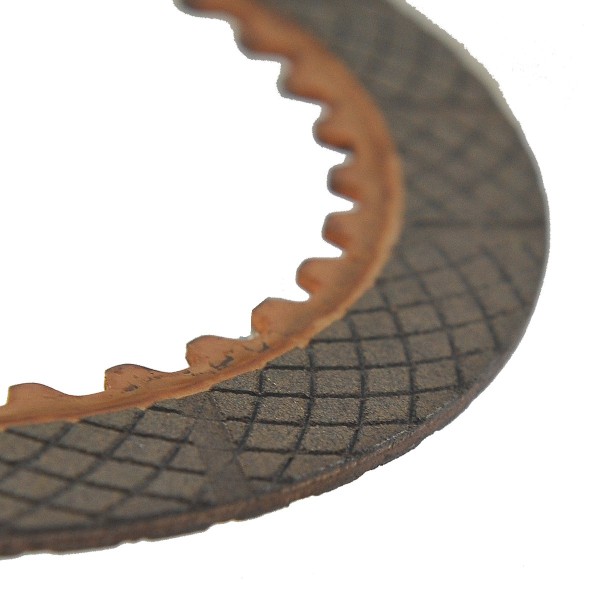

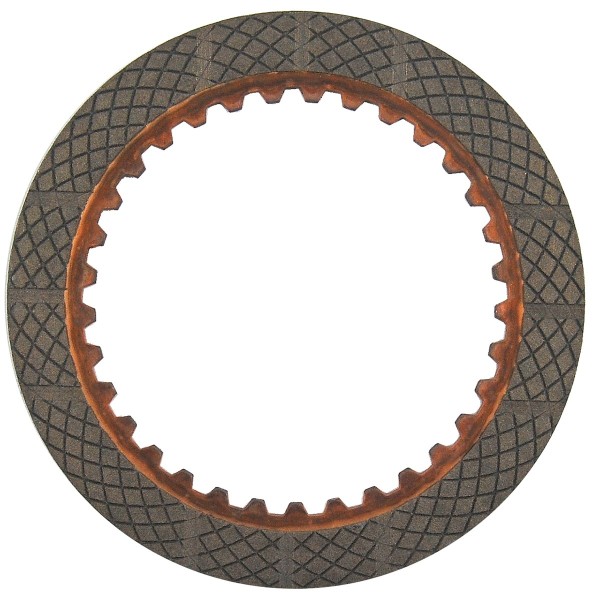

PTO clutch disc / Ø119 mm / 33T / Kubota GL23 / GL32 / L2900 / L4200 / T0273-61650

Clutch disc (clutch piston %C5% 82a-disks-wompto-119-mm-kubota-gl23-gl32-l2900-l4200-34076-61560.html">34076-61560 ) with a diameter of 119 mm , an internal diameter measured between the teeth of 88 mm and 83 mm with teeth and a thickness of 2.60 mm for Kubota tractors of the Kubota GL23, Kubota GL32, Kubota L2900, Kubota L4200 series and others.

The clutch disc is the component responsible for transmitting power from the engine (crankshaft) to the gearbox (clutch shaft) or PTO/PTO shaft . The disc consists of a splined hub mounted on the clutch shaft and a disc with springs and appropriately thick friction linings. The disc, pressed by the second clutch element, the pressure plate, uses the friction force (the lack of friction during power transfer) of these two elements to set the tractor in motion. The springs in the clutch discs are responsible for reducing vibrations generated during high engine speeds.

Dimensions :

• Outer diameter: 119 mm,
• Inner diameter: 88 mm (measured between cutter teeth), 83 mm (measured together with teeth),
• Number of teeth: 33T,
• Thickness: 2.60 mm,
• Comparison numbers: 34076-61650, 34076-61652,
• Part numbers: T0273-61650.

Tractor models :

• Kubota GL23,
• Kubota GL32,
• Kubota L2900,
• Kubota L4200.

The first signs of clutch disc wear (wear) are clutch slippage , which makes it difficult or impossible to move the vehicle. The tractor fails to accelerate when the engine speed increases. The clutch disc can also show signs of wear if it is contaminated with oil. It is recommended to replace the disc along with the clutch pressure plate and release bearing, as all these components have comparable durability and wear at the same rate. Another sign of clutch disc wear is the inability to engage a gear.

Magazine : K18:B18:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
